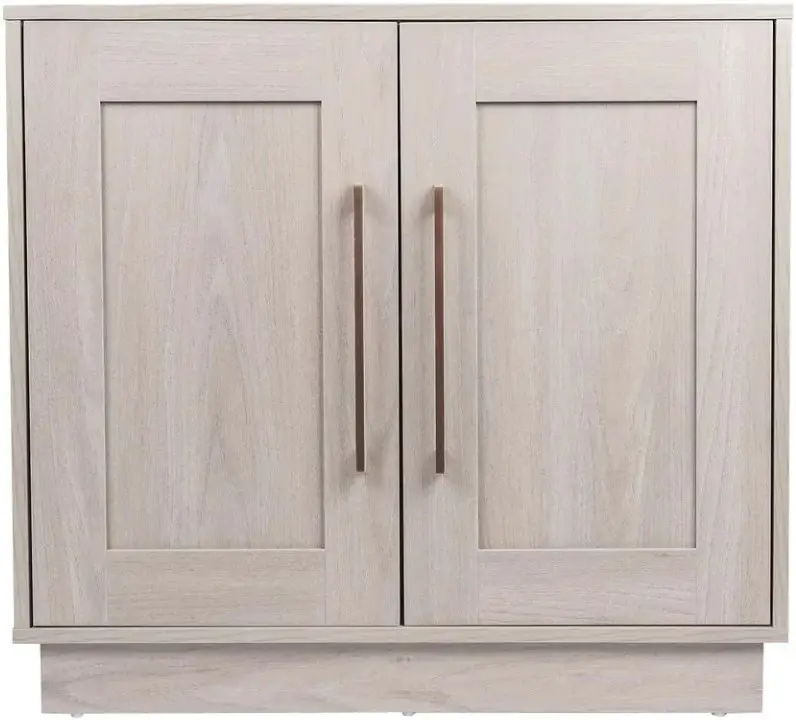

Sango 7252DW292ACK63 Patterson 2 Door Accent Cabinet Instruction Manual
- Check for damaged or missing parts . Call 1-800-696-8446 to order missing supplies.
- Use a soft surface or the carton as a working surface to prevent damage during assembly.
- It is recommended to have 2 adults on hand for assembly.
- Gather all tools prior to assembly.
- WARNING! When included, anti-tipping hardware MUST be installed for your safety
| PARTS LIST : | QTY | ||

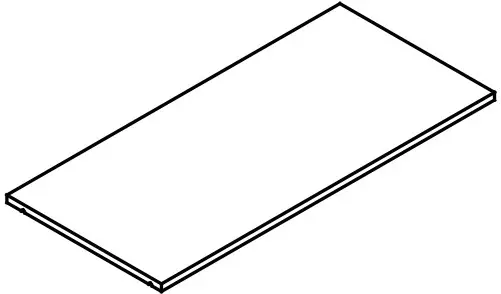

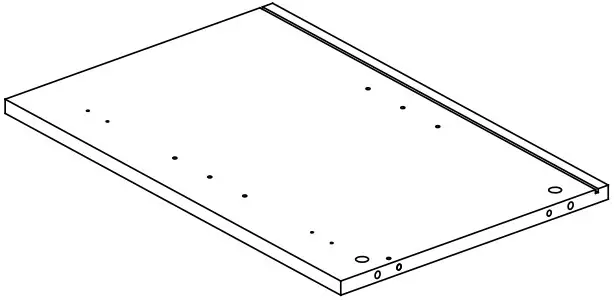

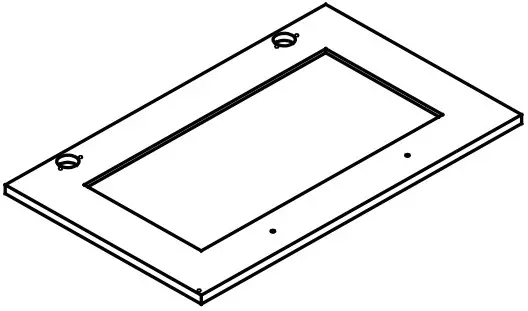

| A | Top Panel |  | 1pc |
| B | Left Side Pan el |  | 1pc |
| C | Right Side Panel |  | 1pc |

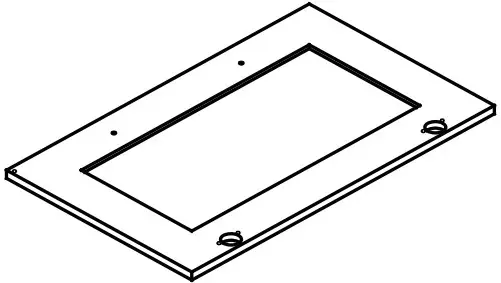

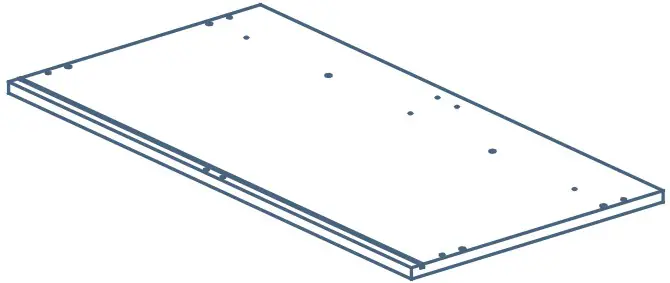

| D | Bottom Panel |  | 1pc |
| E | Left door |  | 1pc |
| F | Right door |  | 1pc |

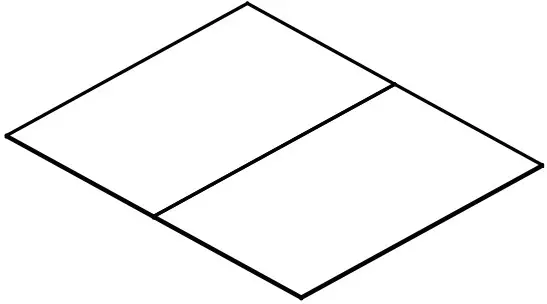

| G | Shelf |  | 1pc |
| H | Back panel |  | 1pc |

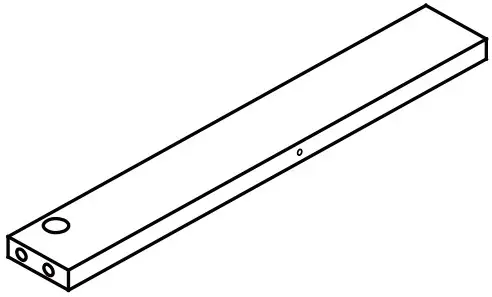

| I | Back panel support |  | 1pc |
| J | Bottom front base plate |  | 1pc |
| K | Bottom right base plate |  | 1pc |
| L | Bottom left base plate |  | 1pc |
| M | Bottom rear base plate |  | 1pc |

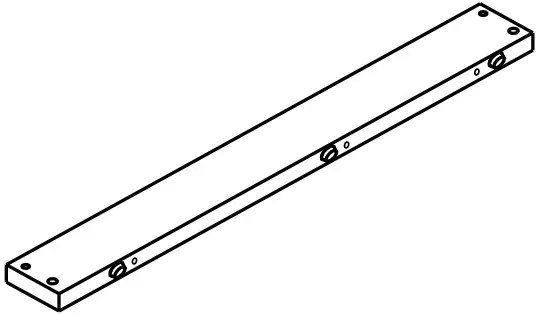

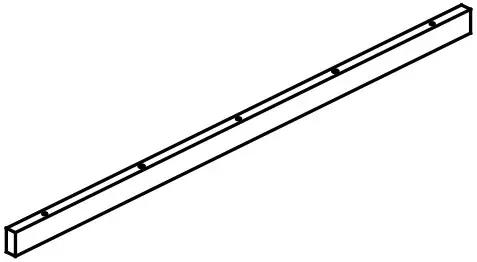

| N | Support rail |  | 1pc |

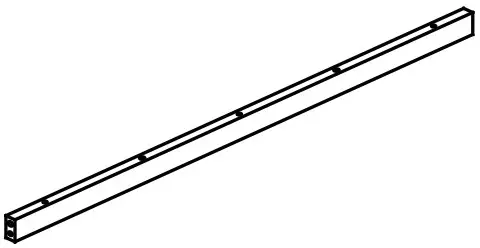

| O | Shelf support rail |  | 1pc |
| HARDWARE : | QTY | ||
| 1 | Cam Bolt |  | 9pcs |

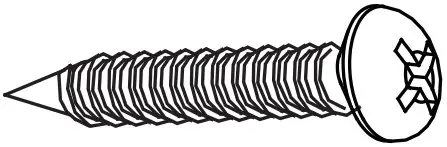

| 2 | Self-tapping screws (Φ4x40mm) |  | 16pcs |
| 3 | Cam Lock (Φ15mm) |  | 9pcs |
| 4 | Wood Dowel (Φ6x30mm) |  | 21pcs |

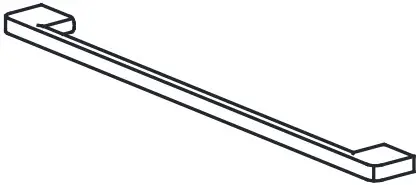

| 5 | Handles |  | 2pcs |
| 6 | Hinges |  | 4pcs |
| 7 | Magnetic latch |  | 1pcs |
| 8 | Handle screws |  | 4pcs |
| 9 | Plastic Wedge Bracket |  | 8pcs |
| 10 | Self-tapping screws (Φ3x14mm) |  | 10pcs |
| 1 | Self-tapping screws (Φ4x60mm) |  | 8pcs |
| 12 | Self-tapping screws (Φ3x12mm) |  | 2pcs |
| 13 | Shelf pins |  | 4pcs |
| 14 | Flat-head screw(Φ4x14mm) |  | 16pcs |
| 15 | Anti-reversal lock wall screw |  | 1pcs |
| 16 | Small screws |  | 1pcs |

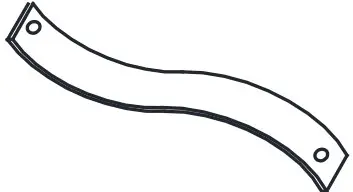

| 17 | Strap |  | 1pcs |
| 18 | Plastic anchor |  | 1pcs |
| 19 | Metal plate |  | 2pcs |
| 20 | Washer |  | 2pcs |

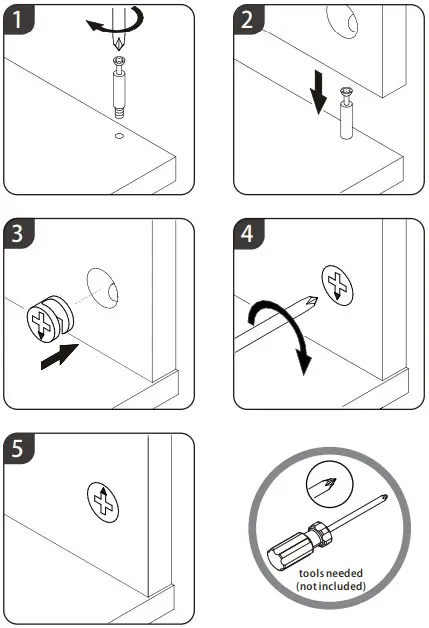

How to use cam lock system

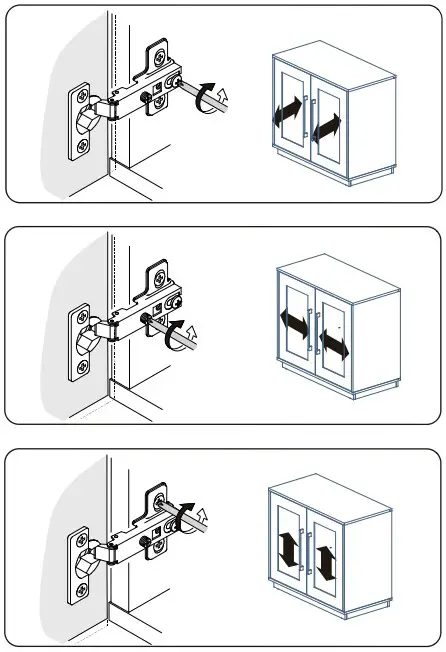

How to adjust door gaps

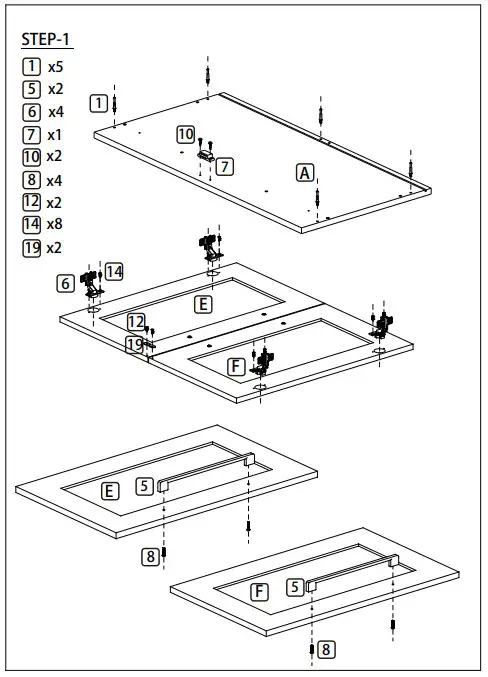

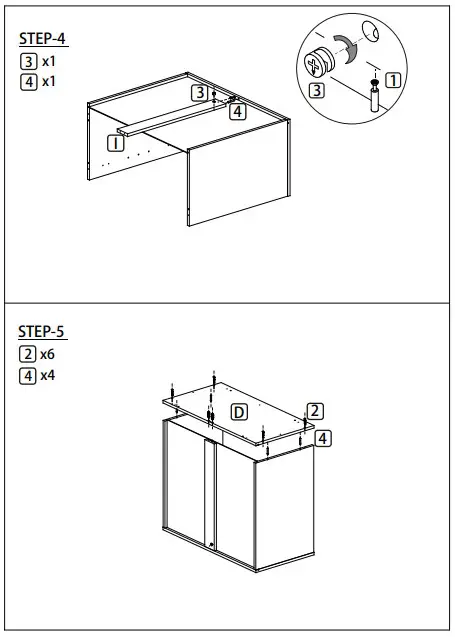

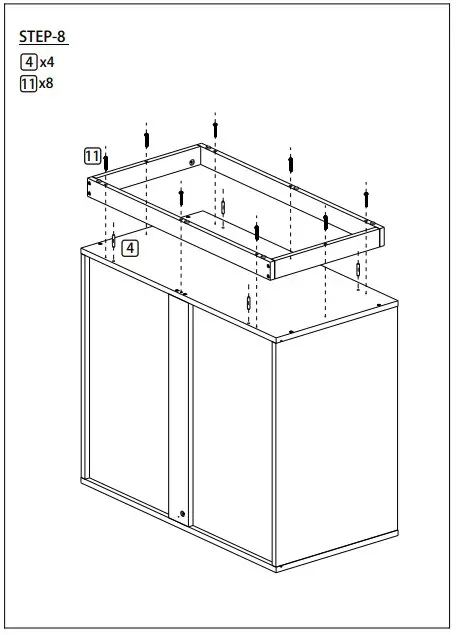

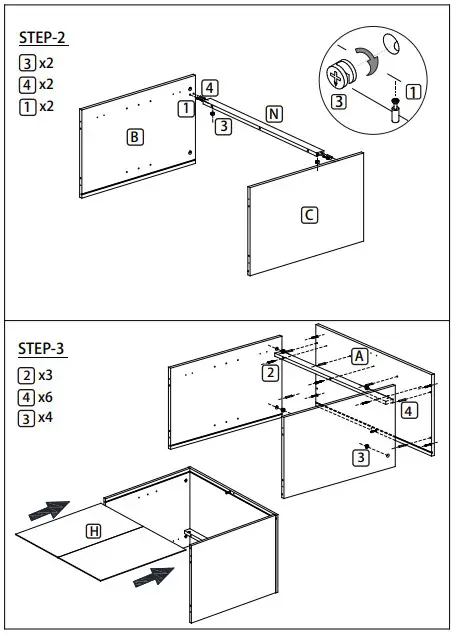

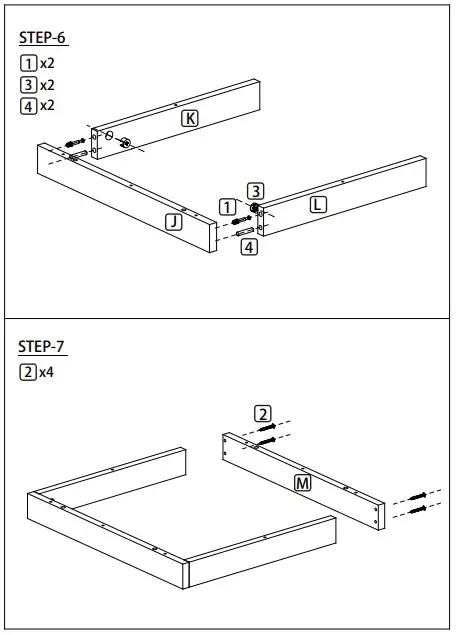

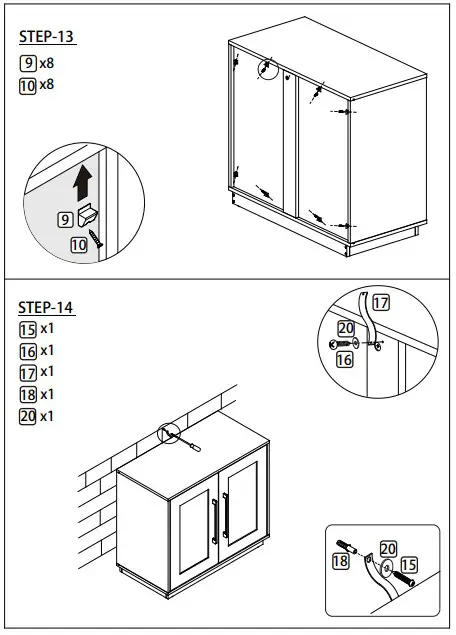

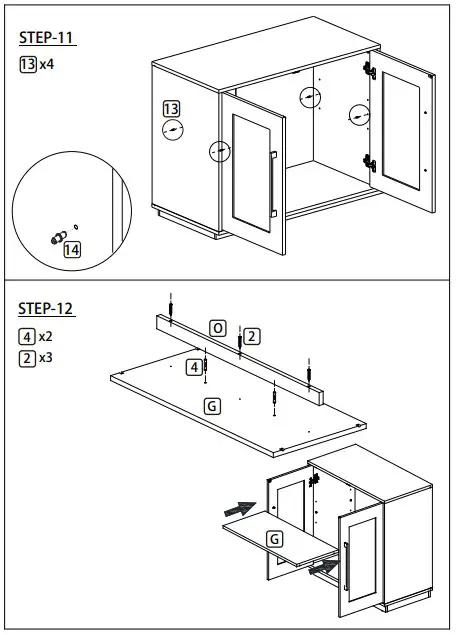

Assembly Instructions
