Kv2 Audio Esd Series Subwoofers User Guide

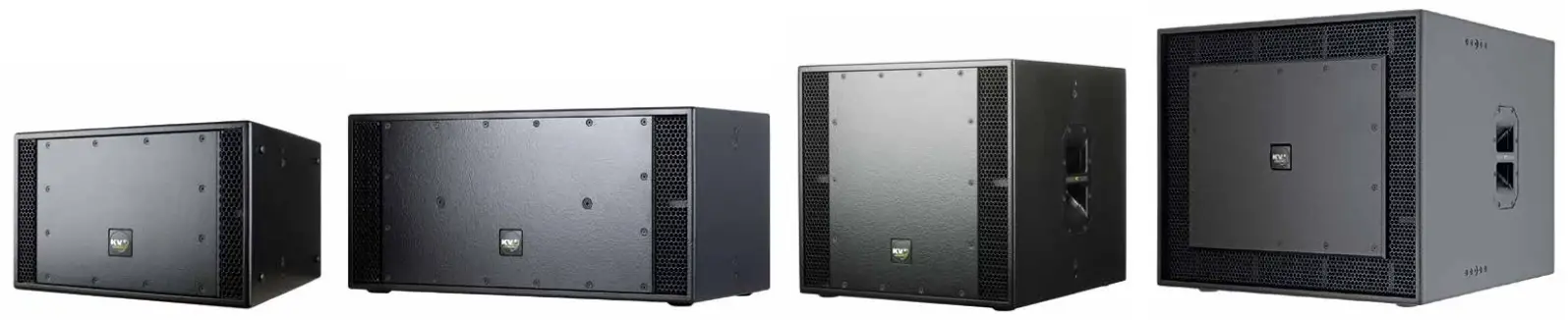

ESD Series Subwoofers
User Guide
ESD1.10 / ESD1.12 / ESD1.15 / ESD1.18

ESD Series Subwoofers

The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source.
Our aim is to create audio products that absorb you, place you within the performance, and deliver a listening experience beyond expectations.

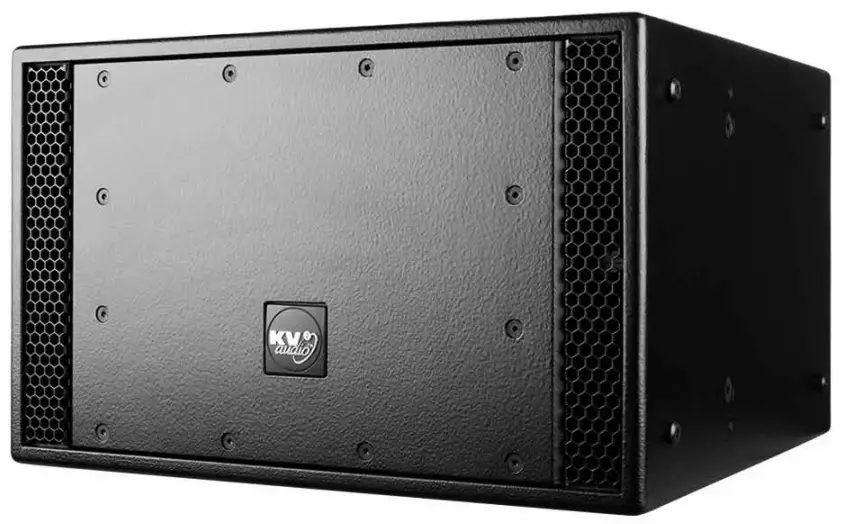

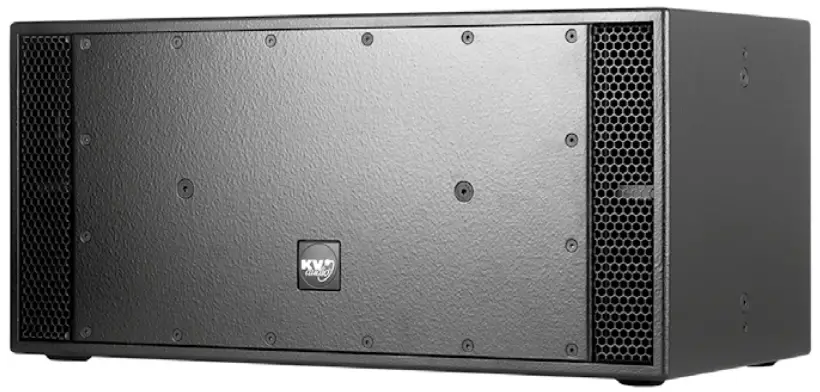

ESD1.10

ESD1.10 – part number KVV 987 391
Overview
SUBWOOFER 500Watts

Application

Specifically designed as a passive subwoofer to accompany and compliment the ESD Cube systems, or as a standalone compact low-frequency solution for space-limited applications.

• Fixed installations
• Bars-small entertainment projects and peripheral sound
• Museums or Theme park projects
• Small footprint and dimensions allow placement under seating and fixtures

Introduction

The ESD1.10 is a compact passive 10″ subwoofer featuring a high-quality neodymium transducer. The smallest subwoofer within the KV2 range, it has been designed to compliment the ESD Cube Ultra compact Passive loudspeaker, creating a full range system solution when partnered with the Cube and ESP1000 amplifier. With power handling of 500 watts the ESD1.10 is capable of delivering tight, fast, and controlled bass response, at high output levels from a very compact cabinet and is ideal for any discreet low-frequency applications alongside other KV2 Audio products.
Connection
The ESD1.10 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in parallel to allow the “daisy chaining” of additional ESD1.10s.

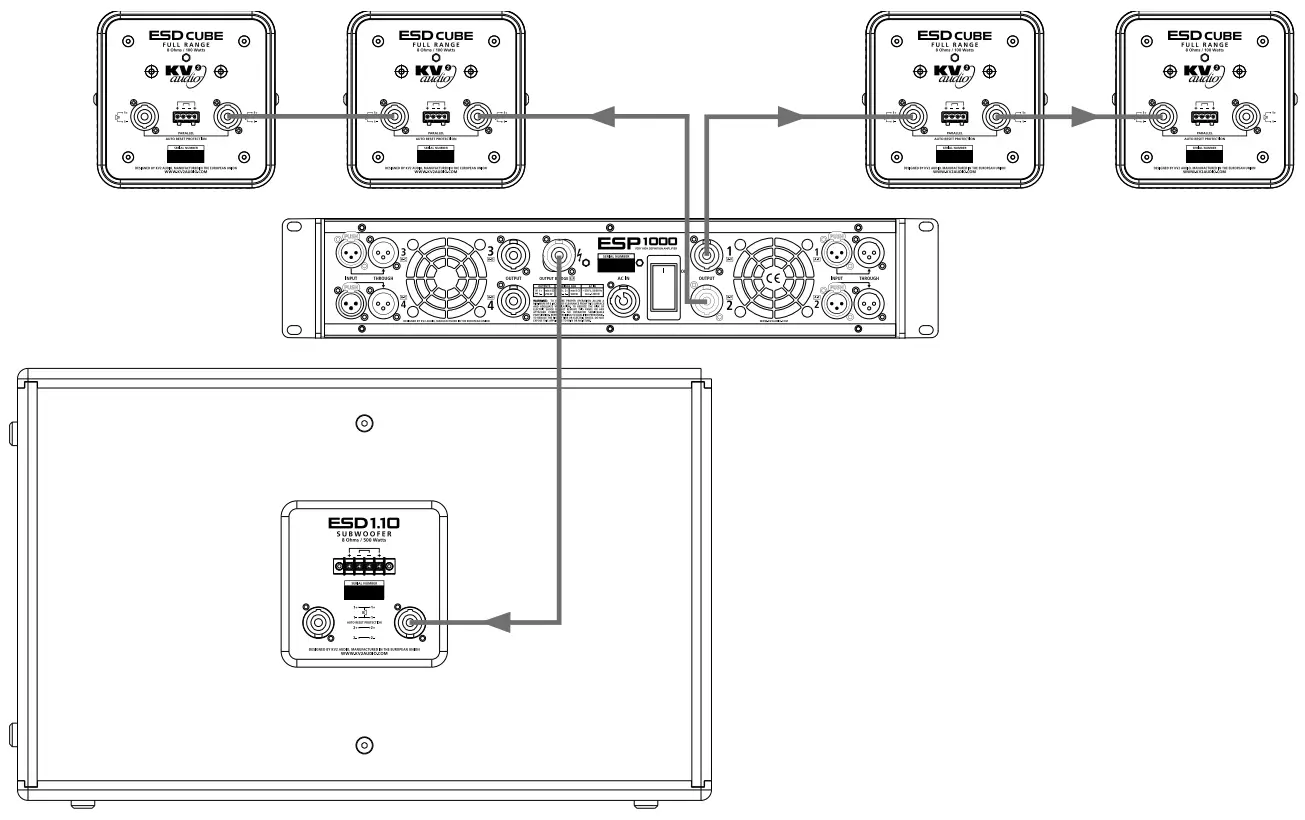

Example of connection: ESD1.10 BriDgED output (8Ω)

Specifications

System Acoustic Performance

Low-Frequency Section

Speaker Input

Cabinet

Physical Dimensions

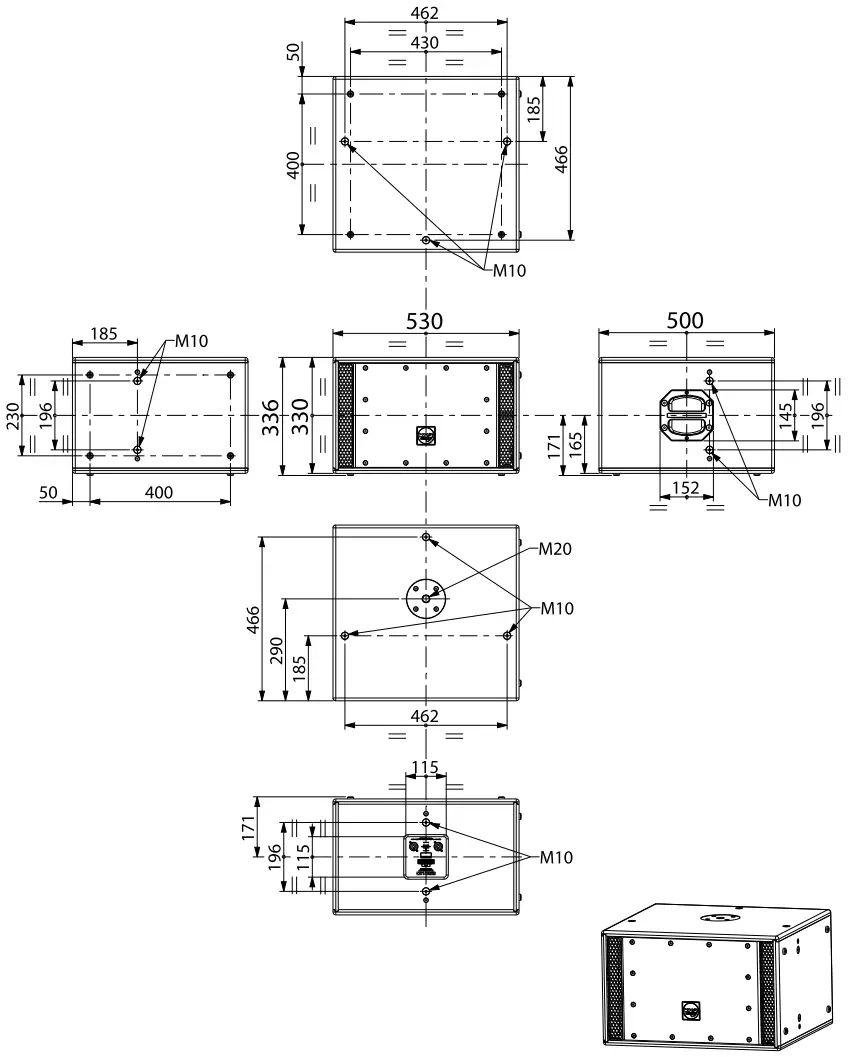

Drawings

ESD1.12

ESD1.12 – part number KVV 987 225
Overview
SUBWOOFER 600Watts

Application
Specifically designed as a passive subwoofer to accompany and compliment the ESD5/6 as a true full-range system

• For fixed installation
• Bars-small entertainment projects
• Small footprint and dimensions allow placement under seating and fixtures

Introduction
The ESD1.12 is a very compact passive, high-output subwoofer. The ESD1.12 is a passive version of the active EX1.2, 12″ subwoofer and features the same high-quality neodymium driver.
This subwoofer’s low profile and size make it ideal for discreet applications.
With a power handling of 600 watts, the ESD1.12 is capable of delivering tight, fast, controlled bass response at high output levels from a compact cabinet.
The ESD1.12 woofer is protected by a reverse thermal-circuit breaker (auto reset) and features a professional Baltic Birch construction with a wear-resistant polymer coating and a specially designed handle for simplified handling and carrying. The ESD1.12 is also available in any RAL color (white RAL9003 on stock).
Connection
The ESD1.12 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in parallel to allow the “daisy chaining” of additional ESD1.12s.

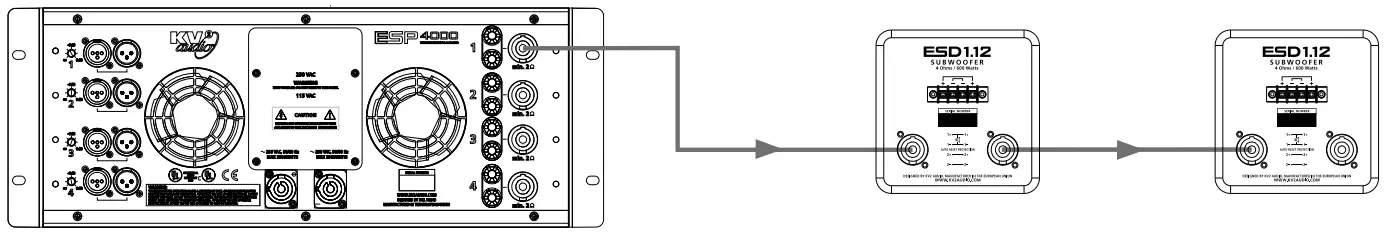

PARALLEL CONNECTION OF THE ESD 1.12 (40) – TOTAL IMPEDANCE 20

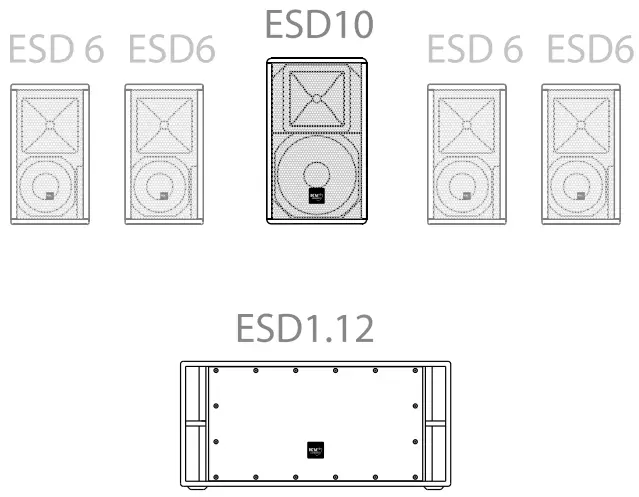

Configurations example
ESD1.12 + 1x ESD10 or 4x ESD6

ESD1.12 +1x ESD10 or 4x ESD6

Specifications
System Acoustic Performance

Low-Frequency Section

Speaker Input

Cabinet

Physical Dimensions

Drawings

ESD1.15

ESD1.15 – part number KVV 987 241
Overview
SUBWOOFER 600Watts

Application
Specifically designed as a passive subwoofer to accompany any of the ESD range to create a true full-range system performance

• Fixed installation
• Portable PA
• Bars-small entertainment projects
• Scalable into larger systems

Introduction
The ESD1.15 is a compact passive, high-output subwoofer. The ESD1.15 features a single 15″ neodymium driver.
Offering a peak SPL of 130dB the ESD1.15 produces considerable output yet in true KV2 style retains a compact footprint. Multiple units of ESD1.15s can be stacked together to create a powerful and scalable subwoofer system.
With a power handling of 600 watts and high efficiency, the ESD1.15 is capable of delivering fast, controlled bass response at high output levels from a compact cabinet.
The ESD1.15 woofer is protected by a reverse thermal-circuit breaker (auto-reset) and features a professional Baltic Birch construction with a wear-resistant polymer coating and a specially designed handle for simplified handling and carrying. The ESD1.15 is also available in any RAL color (white RAL9003 on stock).
Connection
The ESD1.15 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in parallel to allow the “daisy chaining” of additional ESD1.15s.

PARALLEL CONNECTION OF THE ESD 1.15 (40) – TOTAL IMPEDANCE 20

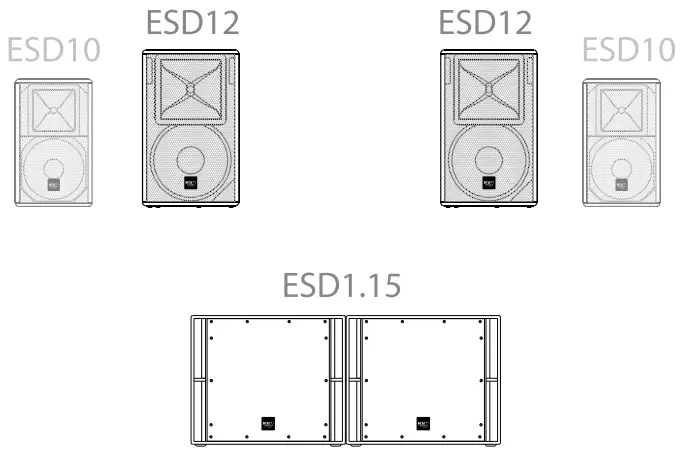

Configurations example
2x ESD1.15 + 2x ESD10 or 2x ESD12

2x ESD1.15 + 2x ESD10 or 2x ESD12

Specifications
System Acoustic Performance

Low-Frequency Section

Speaker Input

Cabinet

Physical Dimensions

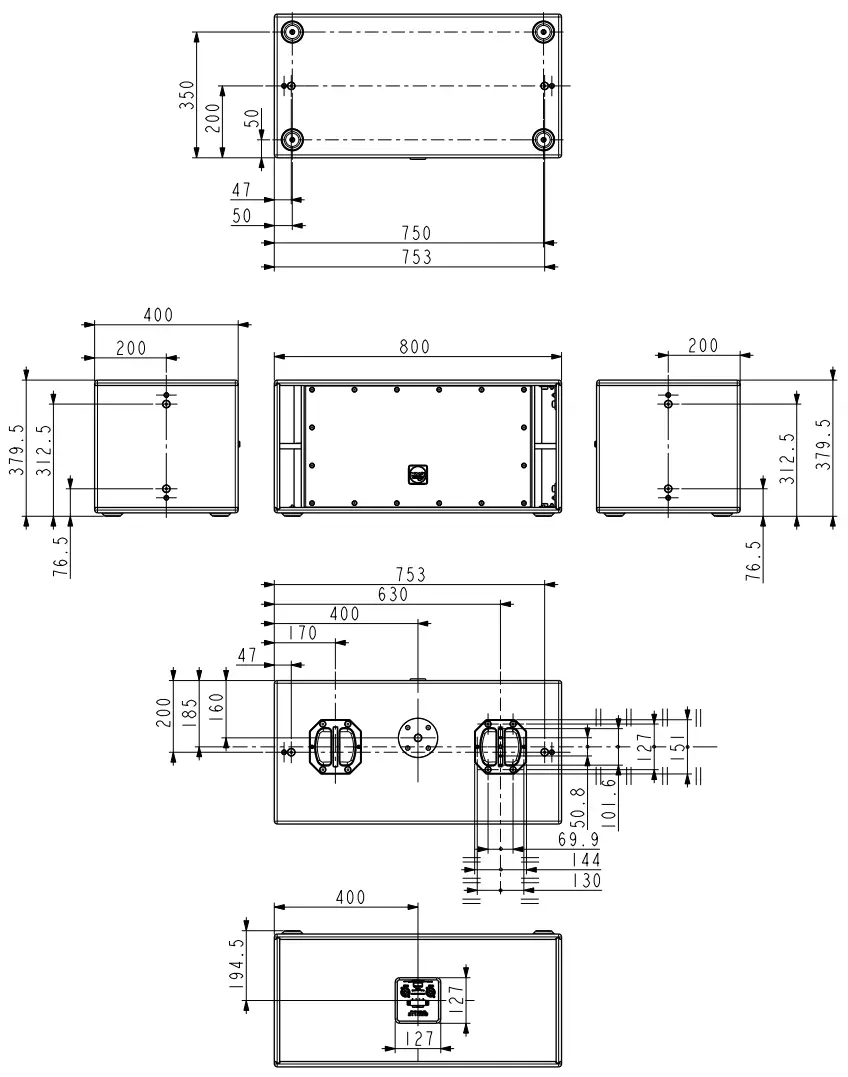

Drawings

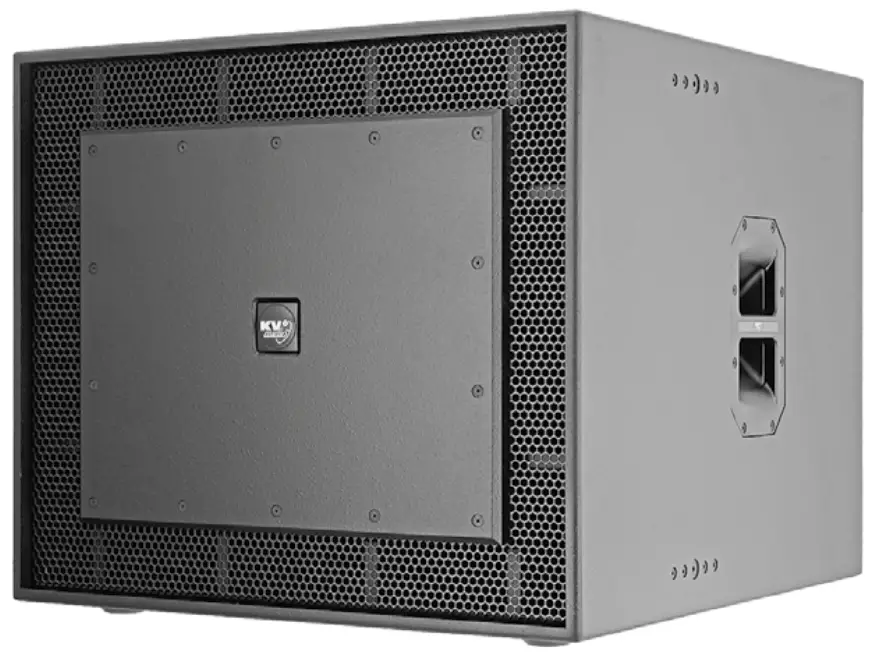

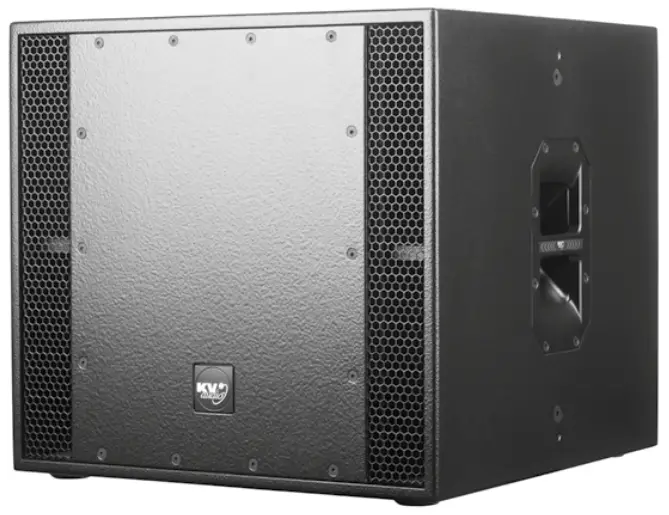

ESD1.18

ESD1.18 – part number KVV 987 242
Overview
SUBWOOFER 1000Watts

Application
Specifically designed as a passive subwoofer to accompany any of the ESD range to create a true full-range system performance

• Fixed installation
• Portable PA
• Bars-small entertainment projects
• Scalable into larger systems

Introduction
The ESD1.18 is a high-output subwoofer. The ESD1.18 is a passive version of the active EX1.8, 18″ subwoofer and features the same high-quality neodymium driver. The unit provides a very firm foundation on which to build a powerful ESD system.
With a power handling of 1000 watts, the ESD1.18 is capable of delivering controlled bass response at very high output levels from a relatively small cabinet.
The ESD1.18 woofer is protected by a reverse thermal-circuit breaker (auto reset) and features a professional Baltic Birch construction with a wear-resistant polymer coating and a specially designed handle for simplified handling and carrying. The ESD1.18 is also available in any RAL color.
Connection
The ESD1.18 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in parallel to allow the “daisy chaining” of additional ESD1.18s.

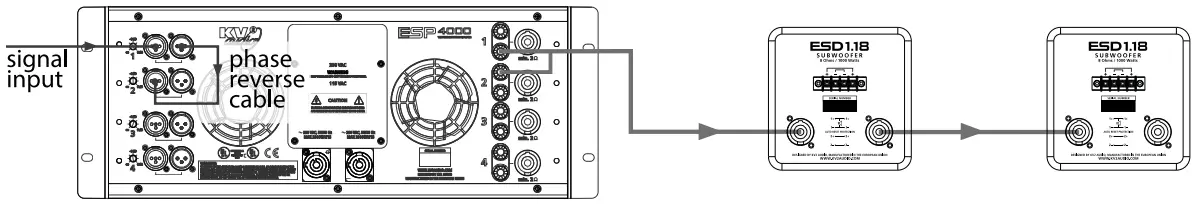

PARALLEL CONNECTION OF THE ESD 1.18 (8Ω) FROM THE BRIDGED ESP4000 – TOTAL IMPEDANCE 4Ω

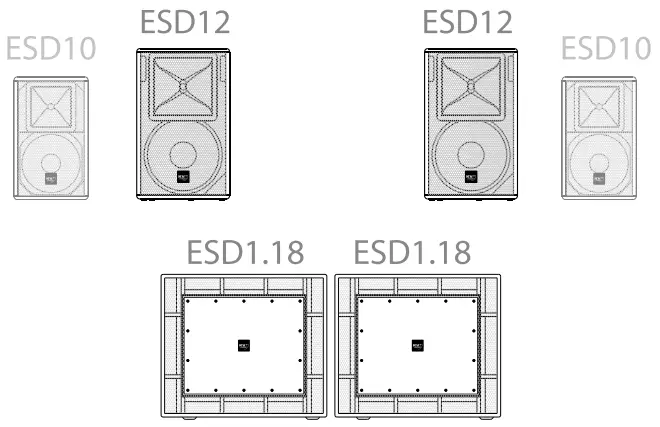

Configurations example:
2x ESD1.18 + 2x ESD12 or 2x ESD10

2x ESD1.18 + 2x ESD12 or 2x ESD10

Specifications
System Acoustic Performance

Low-Frequency Section

Speaker Input

Cabinet

Physical Dimensions

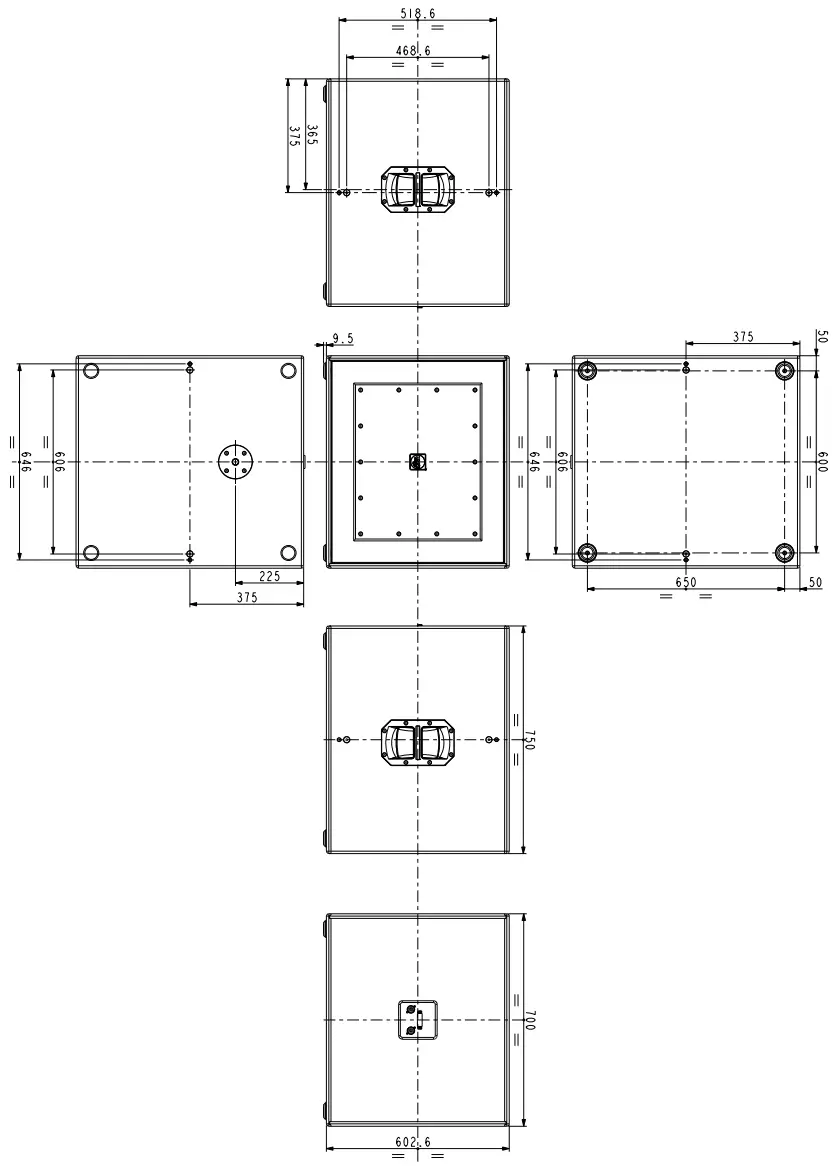

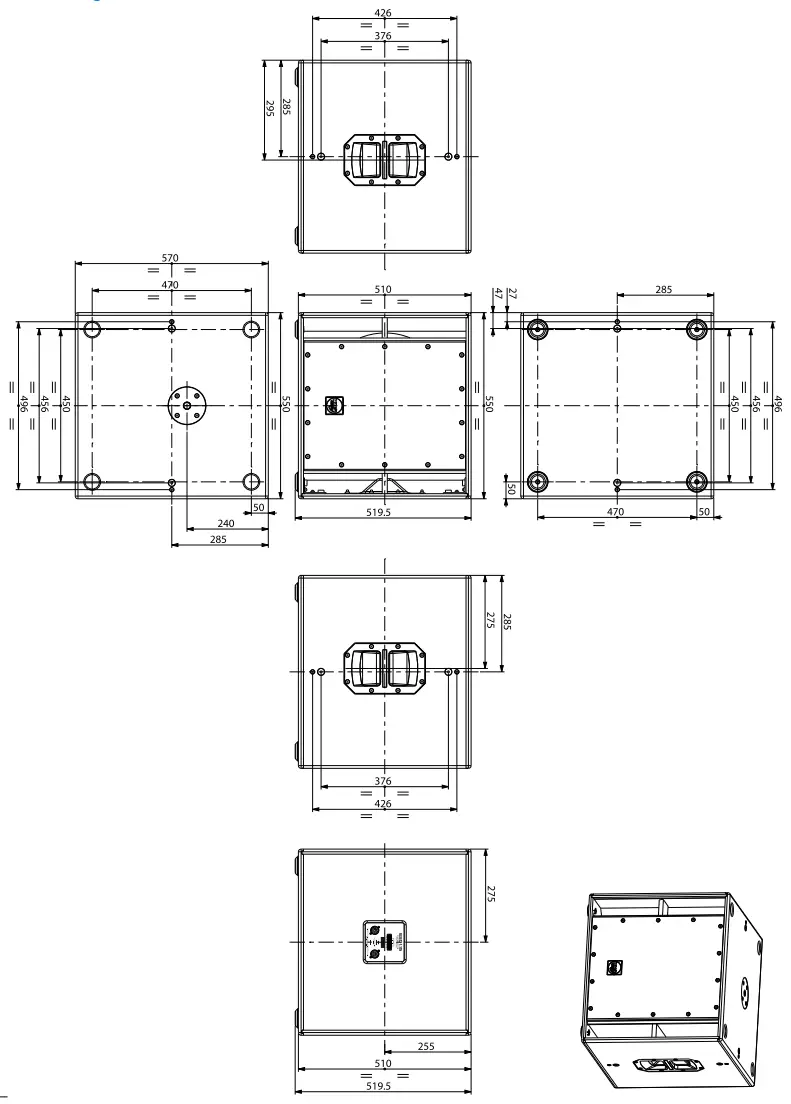

Drawings

ESD Series Subwoofers

Accessories

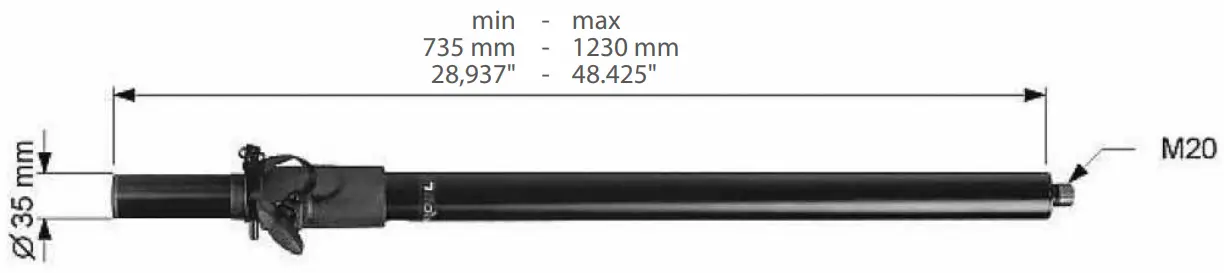

Speaker pole – universal
part name: KV2-H
part number: KVV 987 130
description:

• Heavy-duty telescopic speaker pole
• 0,735 to 1,23 m
• diameter 35 mm
• weight 2,2 kg
• max. load 50 kg
• bottom terminal M20
• matte black

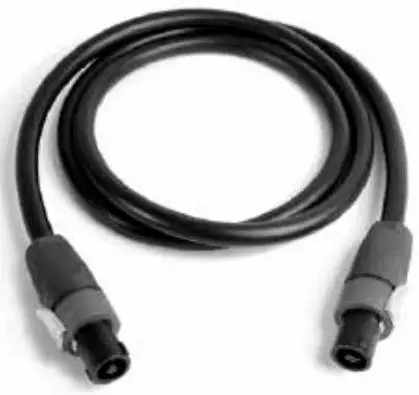

Speakon speaker cable 4.15
part name: CABLE SPEAKON 4.15
part number: KVV 987 326
description:

• 4 wire speaker cable
• Speakon NL4FX connectors
• 1,5m (5ft)

Speakon speaker cable 4.40
part name: CABLE SPEAKON 4.40
part number: KVV 987 327
description:

• 4 wire speaker cable
• Speakon NL4FX connectors
• 4m (13ft)

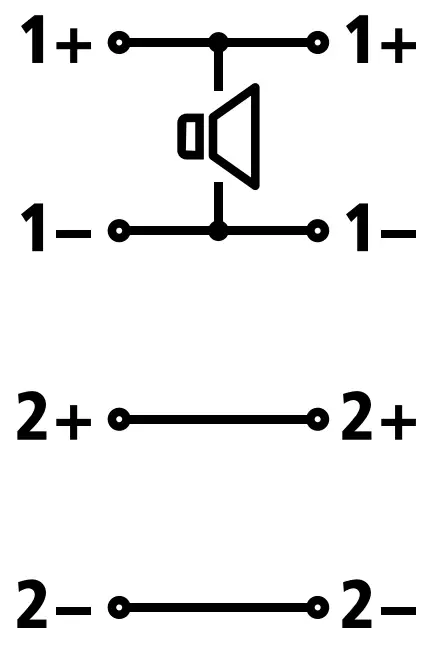

Speakon NL4 wiring
part name: ESD, Speakon NL4 wiring
positive pin
(1 +, 2 + parallel)
negative pin
(1 -, 2 – parallel)
Speakon NL4 wiring

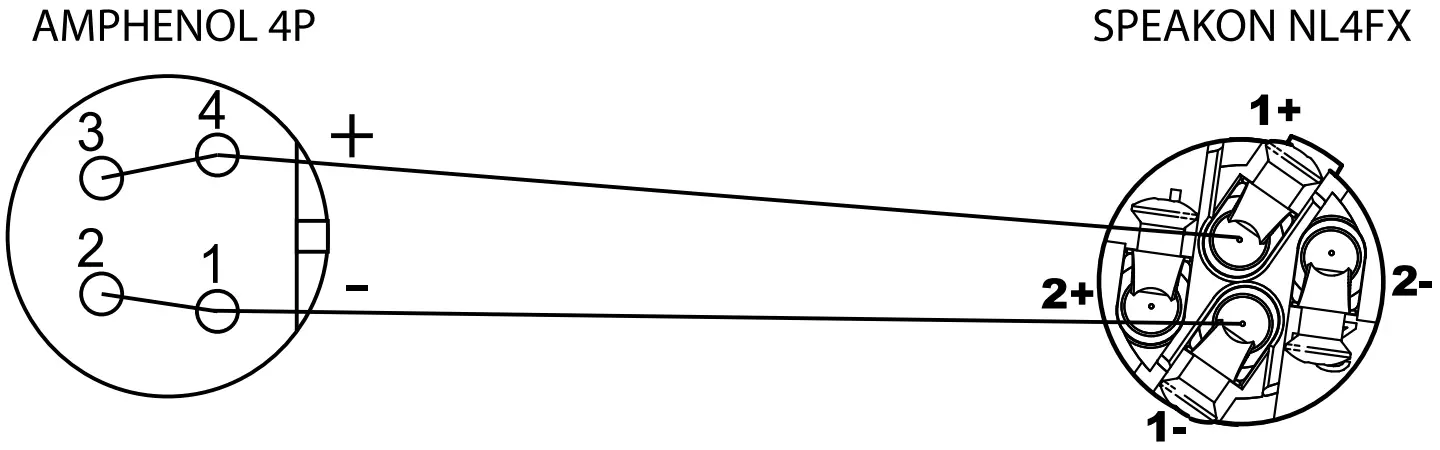

AP4 to Speakon wiring|
part name: ESD, AP4 to Speakon wiring

Recommended speaker cable lengths

Warranty & Service

Warranty
Your ESD is covered against defects in material and workmanship.
Refer to your supplier for more details.
Service
In the unlikely event that your ESD develops a problem, it must be returned to an authorized distributor, or service center or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel.
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged.
To obtain service, contact your nearest KV2 Audio Service Centre, Distributor, or Dealer.
