Cerwin Vega Mobile Subwoofers
Congratulations for purchasing Cerwin Vega Mobile subwoofers for your car audio system. You have chosen Cerwin Vega Mobile because you deserve the best!
Cerwin Vega Mobile speakers are designed and engineered to reproduce great sound quality for many years of listening enjoy-ment in your vehicle! We highly recommend that your new speakers be installed by an authorized Cerwin Vega Mobile dealer. Your authorized dealer can professionally assemble / disassemble the interior of your vehicle and set the proper subwoofer placement for ideal sound quality.
If you decide to install the subwoofers by yourself, please thoroughly read through this manual before getting started.
This manual will help familiarize yourself with these speakers and guide you through the installation process and procedures.
Please contact your local authorized Cerwin Vega Mobile dealer if you have any questions regarding the instructions in this manual. If you require additional assistance, please contact the Cerwin Vega Mobile Technical Support Department
during business hours at 213-261-4161

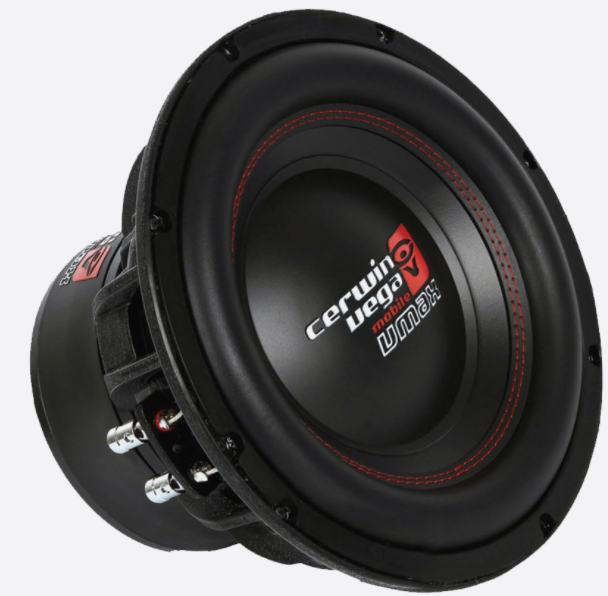

Features
VMAX65D2 – 6.5 INCH SUBWOOFER
VMAX8D2 / VMAX8D4 – 8 INCH SUBWOOFER
VMAX10D2 / VMAX10D4 – 10 INCH SUBWOOFER
VMAX12D2 / VMAX12D4 – 12 INCH SUBWOOFER
- Heavy Industrial Strength Aluminum Cast Frame
- Black Design Patterned Treated Semi-Pressed Plped Cone
- Elevated Motor Structure Cooling Design
- Oversized Spider
- Black Coated Voice Coil for Higher Thermal Capability
- Oversized Polished Black Chrome Finished Terminals
- Shorting Ring for lower Distortion
- Polished Bumped Backplate
- Klippel DA Optimized Motor and Suspension Symmetry

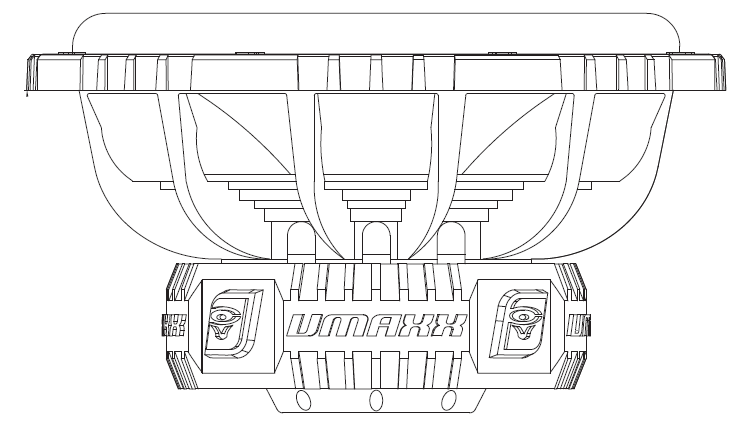

Specifications

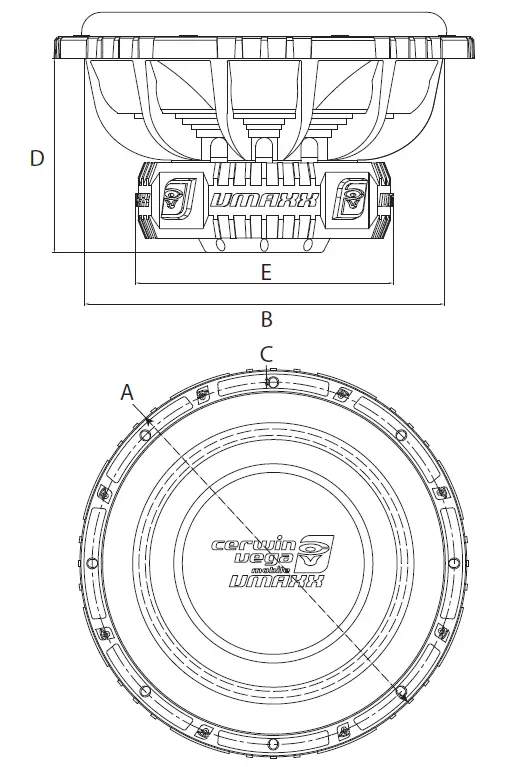

| Dimensions | Unit | VMAX65D2 | VMAX8D2/8D4 | VMAX10D2/10D4 | VMAX12D2/12D4 |
| Total Diameter (A) | in. (mm) | 6.89” (175) | 8.74” (222) | 11.06” (281) | 12.79” (325) |
| Mounting Diameter (B) | in. (mm) | 5.59” (142) | 7.36” (187) | 9.47” (240.5) | 11.02” (280) |
| Screw Hole Dia. (C) | in. (mm) | 0.18” (4.5) | 0.24” (6) | 0.26” (6.5) | 0.26” (6.5) |
| Mounting Depth (D) | in. (mm) | 4.25” (108) | 4.80” (122) | 5.39” (137) | 5.98” (152) |
| Magnet Dia. (E) | in. (mm) | 5.53” (140.5) | 6.57” (167) | 6.89” (175) | 7.89” (200.5) |
| Displacement | cu.ft / 3/L | 0.037 (1.04L) | 0.058 (1.65L) | 0.072 (2.05L) | 0.094 (2.67L) |
Small Parameters
| Parameter (unit) | VMAX65D2 | VMAX8D2 | VMAX8D4 | VMAX10D2 | VMAX10D4 | VMAX12D2 | VMAX12D4 |
| SPL (dB) | 83.5 | 81.1 | 81.9 | 83.3 | 84.4 | 84.8 | 86.9 |
| Re (Ω)[series] | 2Ω/4Ω | 2Ω/4Ω | 2Ω/4Ω | 2Ω/4Ω | 2Ω/4Ω | 2Ω/4Ω | 2Ω/4Ω |
| Qms | 5.07 | 5.86 | 4.75 | 6.73 | 5.23 | 5.09 | 4.49 |
| Qes | 0.44 | 0.65 | 0.62 | 0.61 | 0.6 | 0.5 | 0.48 |
| Qts | 0.40 | 0.58 | 0.55 | 0.56 | 0.54 | 0.46 | 0.44 |
| Fs (Hz) | 51.3 | 41.5 | 43.6 | 32.6 | 36.9 | 29.1 | 32.9 |
| Vas (L) | 4.7 | 8.1 | 7.5 | 24.6 | 21.5 | 40.6 | 44.2 |
| Cms (mm/N) | 0.16 | 0.14 | 0.13 | 0.13 | 0.12 | 0.1 | 0.12 |
| Mms (g) | 58.7 | 103.2 | 100.4 | 178.5 | 159.5 | 290.9 | 272.3 |
| Sd (m2) | 0.014 | 0.02 | 0.02 | 0.036 | 0.036 | 0.053 | 0.053 |
| BL (T*M) | 12.5 | 13.8 | 16.9 | 14.7 | 20.4 | 19.5 | 25 |
| Xmax (mm) | 10 | 15 | 15 | 15 | 15 | 14 | 14 |
| Pwr (W) NOM/MAX | 200/400 | 500/1000 | 500/1000 | 800/1600 | 800/1600 | 1000/2000 | 1000/2000 |

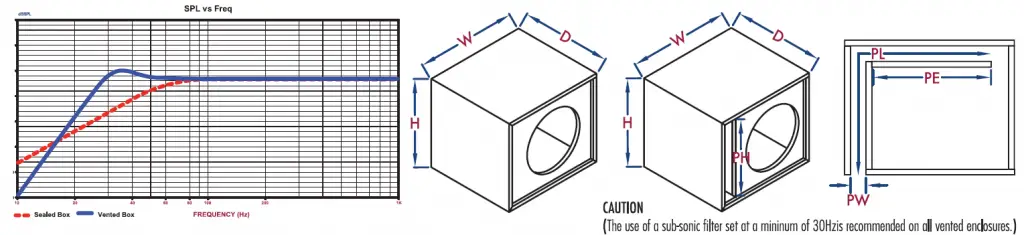

Enclosures
| (All measurements are calculated Using 3/4” MDF) | Volume (net int.) | External Dimensions Width x Height x Depth | Volume (net int.) | Enclosure External Dimensions Width x Height x Depth | Slot Port Internal Dimensions Port Width x Port Height x Port Length | Port Extension Length “PE” |
| VMAX65D2 | 0.4 ft3 | 8” x 9.5” x 15” 203.2mm x 241.3mm x 381mm | 0.75 ft3 | 10” x 12” x 16” 254mm x 304.8mm x 406.4mm | 0.75” x 8” x 17” 19.05mm x 203.2mm x 431.8mm | 8” 203.2mm |
| VMAX8D2/VMAX8D4 | 0.6 ft3 | 9.5” x 9.5” x 17.5” 241.3mm x 241.3mm x 444.5mm | 1.0 ft3 | 11.25” x 13” x 17” 285.8mm x 330.2mm x 431.8mm | 0.75” x 10” x 24” 19.05mm x 254mm x 609.6mm | 10” 254mm |
| VMAX10D2/VMAX10D4 | 1.0 ft3 | 11” x 14.5” x 15.5” 279.4mm x 368.3mm x 393.7mm | 1.25 ft3 | 12” x 14.25” x 17.5” 304.8mm x 361.95mm x 444.5mm | 1.25” x 12” x 21” 31.75mm x 304m x 533.4mm | 10.5” 266.7mm |
| VMAX12D2/VMAX12D4 | 1.25 ft3 | 13” x 14.5” x 16” 330.2mm x 368.3mm x 406.4mm | 1.75 ft3 | 14” x 16” x 18.25” 355.6mm x 406.4mm x 463.55mm | 1.5” x 14” x 21” 38.1mm x 355.6mm x 533.4mm | 12.5” 317.5mm |
|
| ||||||
