ESD8 Expands ESD Series with New Loudspeaker
User Guide
ESD8 Expands ESD Series with New Loudspeaker
Application
Purpose designed as a discreet portable passive loudspeaker for speech and music content
- Corporate presentations and functions
- Full range performance with addition of subwoofers
- Infills
- Close monitoring
- Fixed installations
Introduction

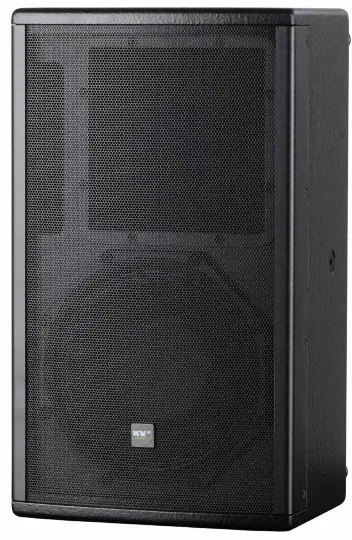

The ESD8 is a compact passive 2-way, high output full-range loudspeaker incorporating an 8″ trans-coil woofer and a 1″ compression driver coupled to a wide dispersion horn. Presented conservatively in a unique angled low-profile Baltic birch enclosure and designed to present exceptional speech and music definition, the ESD8 provides a smooth hi fidelity response and delivers a natural sound quality and level that is superior to many larger competing products. Ideal as a main system speaker or as an in-fill for larger systems, the flexible ESD8 can be applied quickly and efficiently on podiums, stands or suspended.
Connection

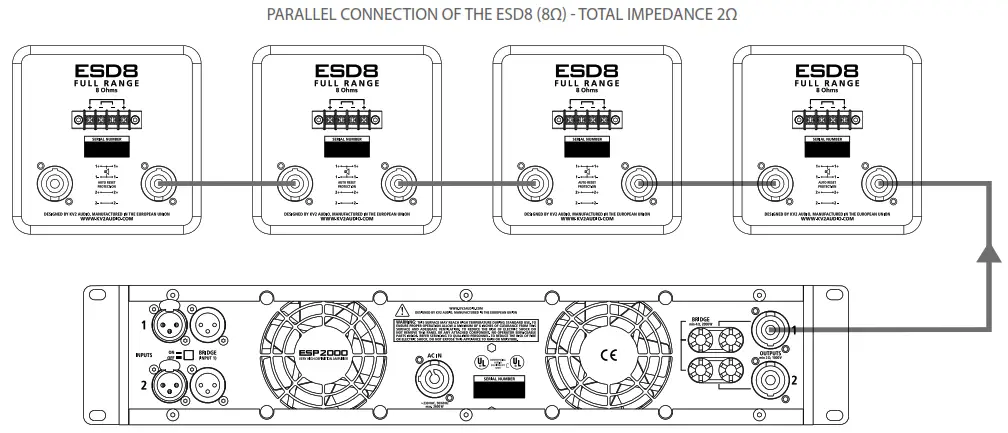

The ESD8 features both Speakon (NL4) connectors and a terminal block. The connectors are interconnected in parallel to allow the “daisy chaining” of additional ESD8’s.
Installation
Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35 mm using a support flange.
The ESD8 also features a 35 mm speaker pole mount adapter housed at the bottom of the cabinet for use with conventional speaker stands and poles.

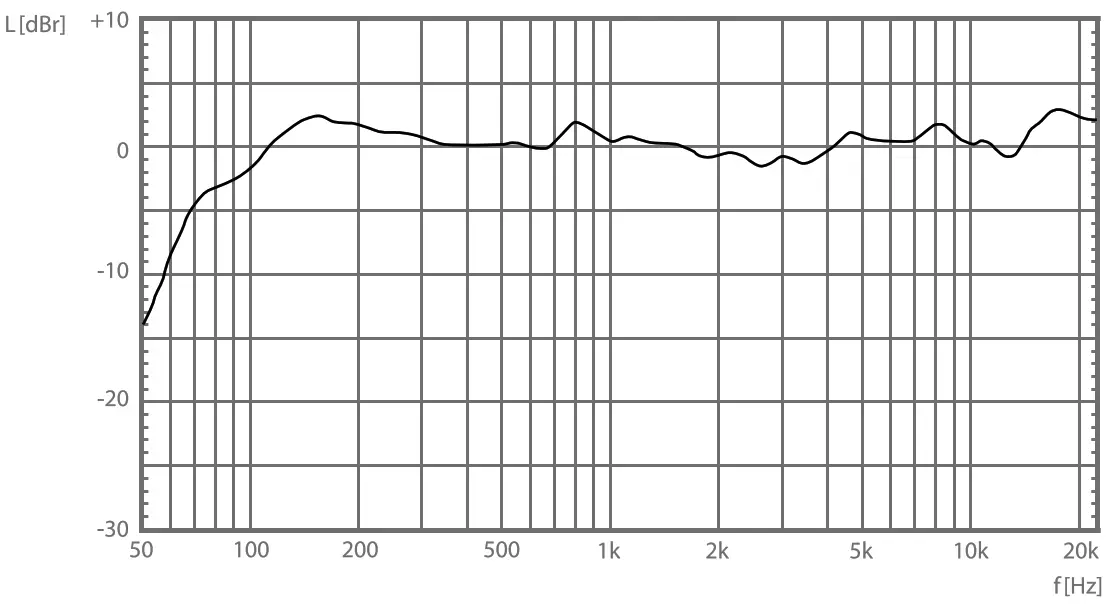

Frequency response

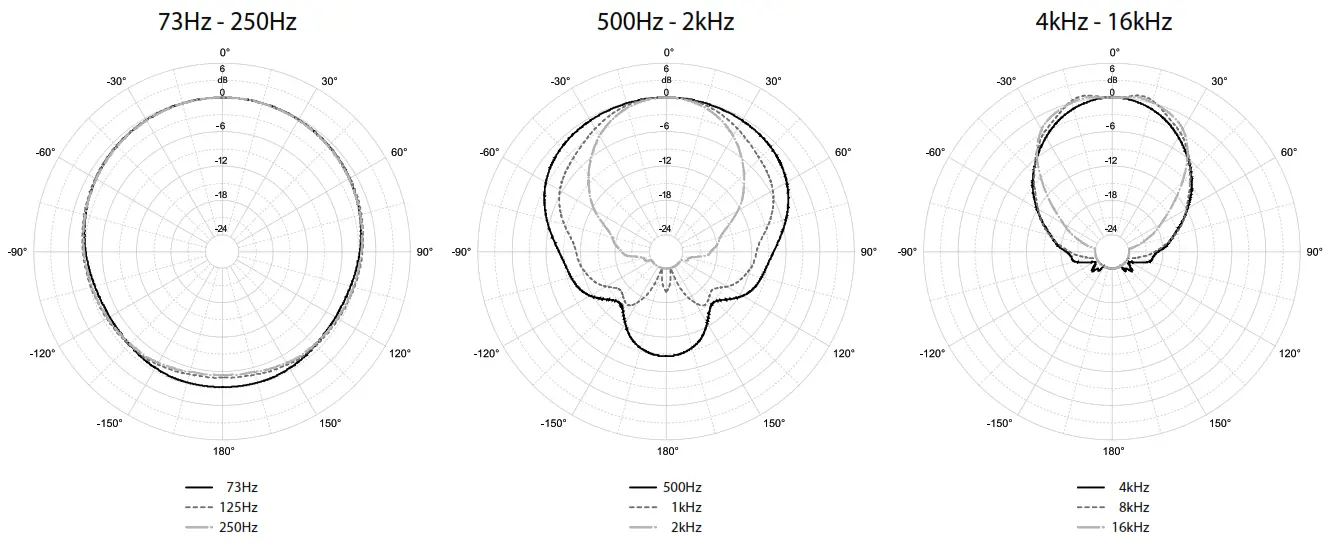

Horizontal Polarplots

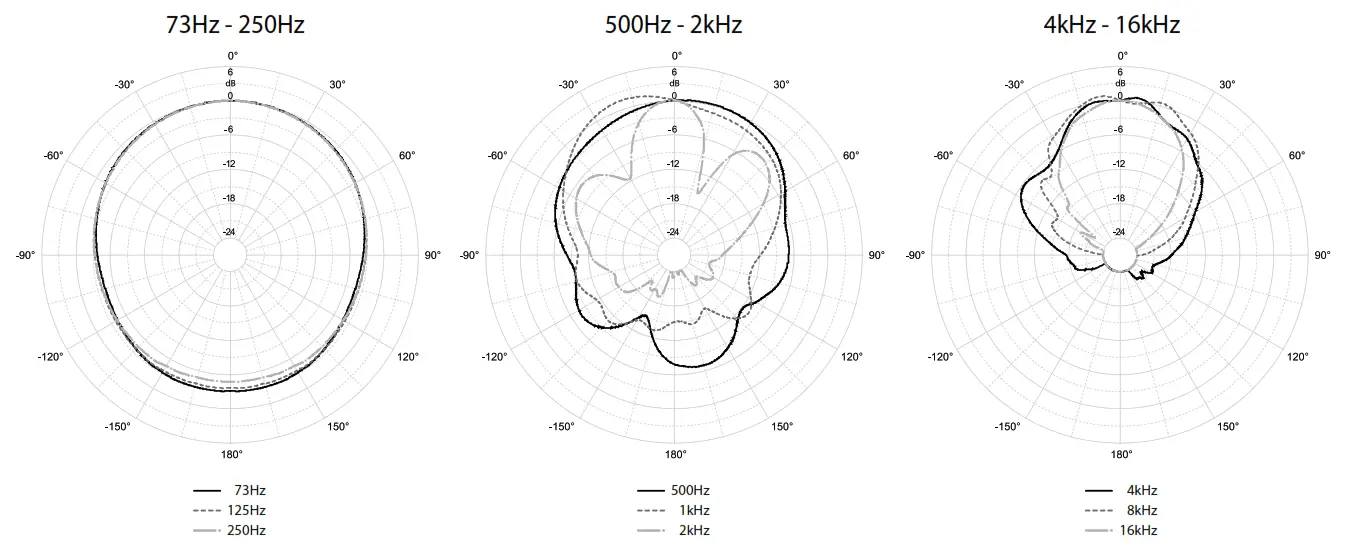

Vertical Polarplots
Specifications
| System Acoustic Perfomance | |
| Max SPL Long-term | 121dB |
| Max SPL Peak | 124dB |
| -3dB Response | 80Hz to 20kHz |
| -10dB Response | 62Hz to 28kHz |
| Recommended Power | 275W |
| Sensitivity | 94dB |
| Impedance | 8Ω |
| Crossover Point | 2.2kHz |
| High Frequency Section | |
| Acoustic Design | Horn Loaded |
| High Horn Coverage Horizontal / Vertical | 100° x 100° |
| Rotatable Horn | Symmetric |
| Throat Exit Diameter / Diaphragm Size | 1″ / 1.75″ |
| Diaphragm Material | Titanium |
| Magnet Type | Neodymium |
| Protection | RMS Limiter |
| Low Frequency Section | |
| Acoustic Design | Front Loaded, Bass Reflex |
| Number of Drivers | 1 |
| Woofer Size / Voice Coil Diameter / Design | 8″ / 2″ / Trans coil |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium |
| Protection | Thermal breaker – auto reset |
| Speaker Input | |
| Speaker Input | 2x Neutrik Speakon®, Terminal Block |
| Cabinet | |
| Cabinet Material | Baltic birch |
| Handles | 1 |
| Color | Orange peeled Matt Black or any RAL |

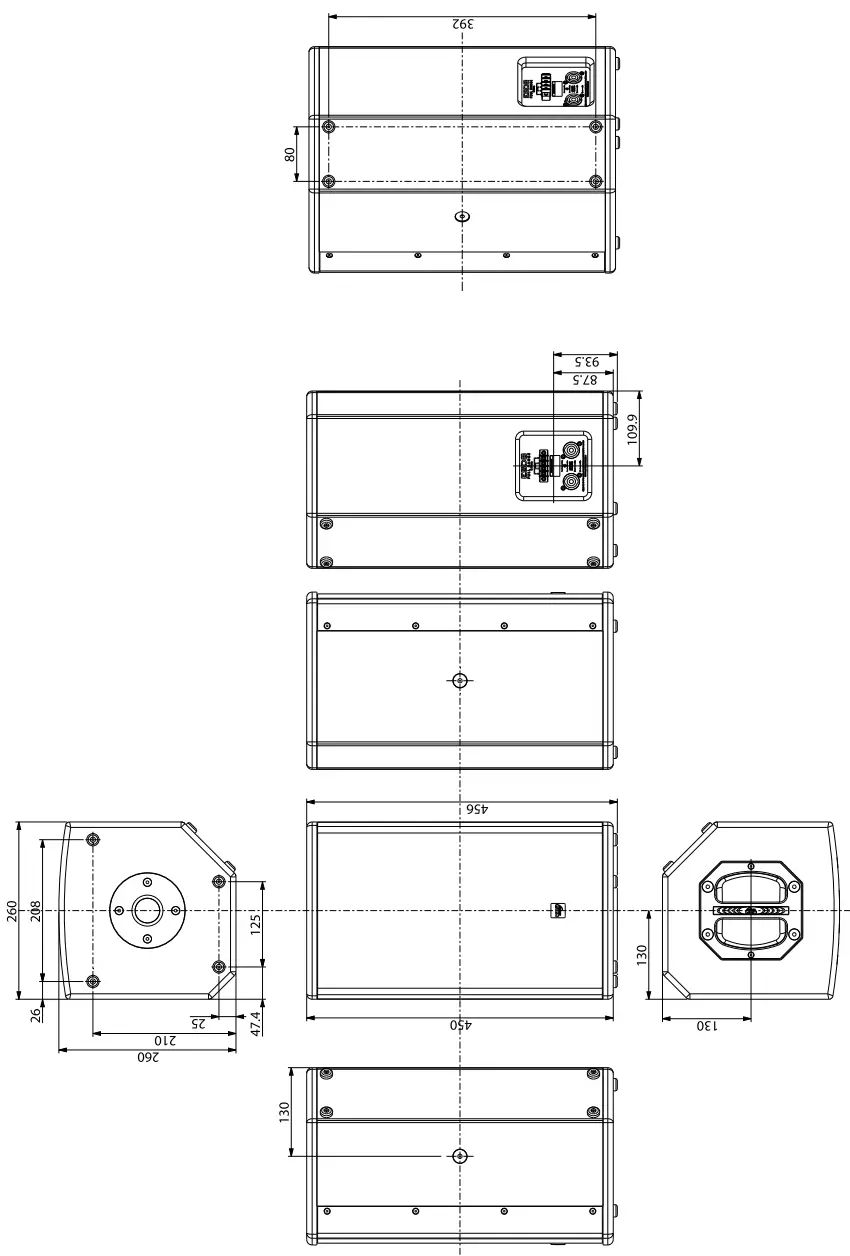

| Physical Dimensions | |
| Height | 456 mm (17.95″) |
| Width | 260 mm (10.23″) |
| Depth | 260 mm (10.23″) |
| Weight | 13 kg (28.6lbs) |
ESD8 · Accessories

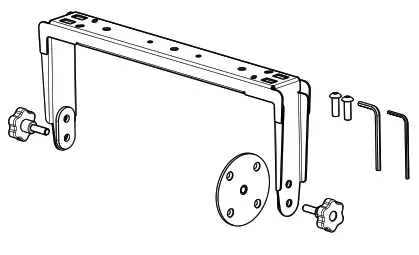

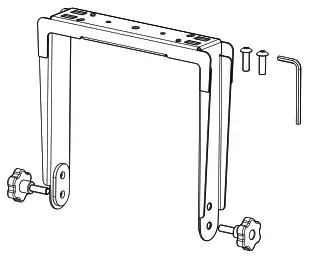

HORIZONTAL BRACKET
Horizontal Bracket for ESD8
part name: ESD8 Horizontal Bracket
part number: KVV 987 422
description:
- black
- including two connection bolts and bracket
VERTICAL BRACKET
Vertical Bracket for ESD8
part name: ESD8 Vertical Bracket
part number: KVV 987 421
description:
- black
- including two connection bolts

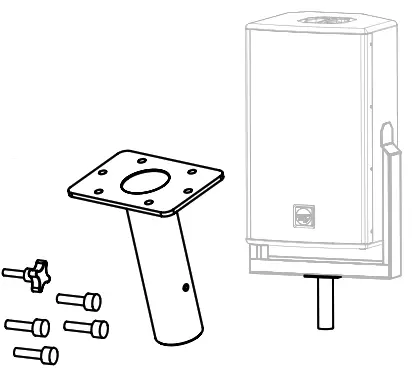

Bracket Top Hat Adapter
part name: Top Hat Adapter
part number: KVV 987 090
description:
- for vertical and horizontal brackets
- including bolts – black

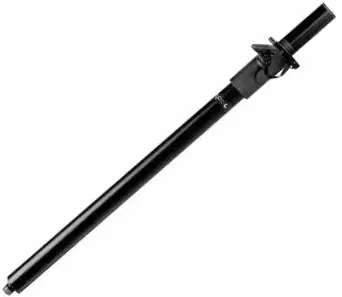

Speaker pole – universal
part name: KV2-H
part number: KVV 987 292
description:
- Heavy duty telescopic speakerpole
- 0,735 to 1,23 m
- diameter 35 mm
- weight 2,2 kg
- max. load 50 kg
- bottom terminal M20
- matte black

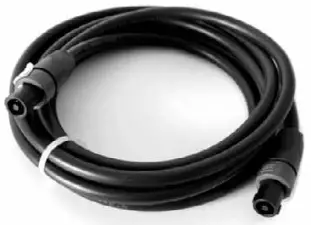

Speakon speaker cable 4.15
part name: CABLE SPEAKON 4.15
part number: KVV 987 326
description:
- 4 wire speaker cable
- Speakon NL4 connectors – 1,5m (5ft)
Speakon speaker cable 4.40
part name: CABLE SPEAKON 4.40
part number: KVV 987 327
description:
- 4 wire speaker cable
- Speakon NL4 connectors
- 4m (13ft)

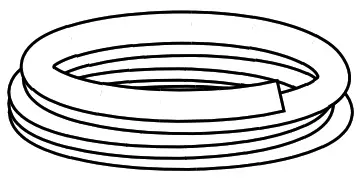

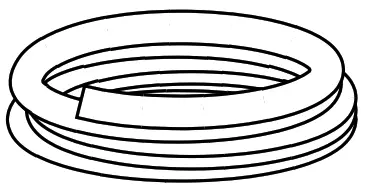

Speaker cables
part name: 1m – round flexible speaker cable, cross section 2 x 1.5mm
part number: WX 002
part name: 1m – round flexible speaker cablecross section 4 x 2.5mm
part number: WX 003

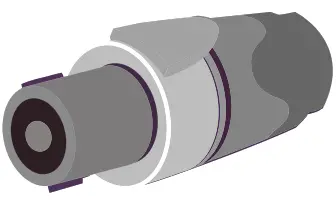

part name: SPEAKON NL4
part number: KA 027

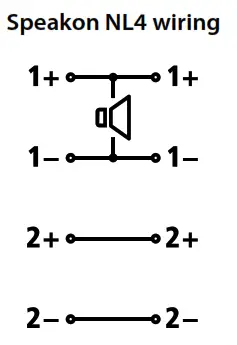

part name: ESD, Speakon NL4 wiring
positive pin
(1 +, 2 + parallel)
negative pin
(1 -, 2 – parallel)
Recommended maximum speaker cable length
| MINIMUM CROSS SECTION [mm²] | LENGTH [m], impedance 4Ω | LENGTH [m], impedance 8Ω | LENGTH [m], impedance 16Ω |
| 1.5 | 8 | 15 | 30 |
| 2.5 | 15 | 30 | 60 |
| 2 x 2.5 | 20 | 40 | 90 |
| 4 | 25 | 50 | 100 |
Warranty
Your ESD8 is covered against defects in material and workmanship.
Refer to your supplier for more details.
Service
In the unlikely event that your product develops a problem, it must be returned to an authorized distributor, service centre or shipped directly to the KV2 Audio factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel.
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged.
To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer.
