Citronic Csl-series Mixing Consoles User Manual

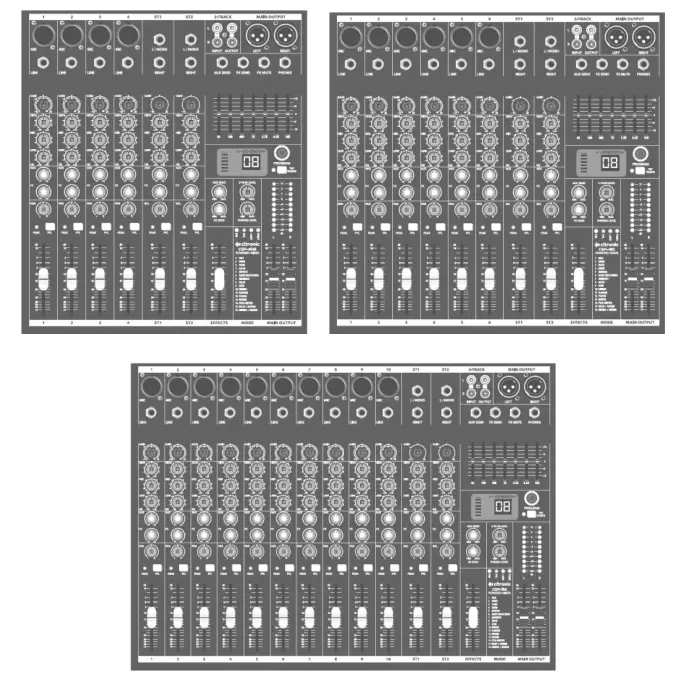

CSP & CSL-SERIES
MIXING CONSOLES
Item ref: 170.841UK, 170.843UK, 170.845UK, 170.851UK,
170.853UK, 170.855UK
User Manual

Version 2.1

Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty

Introduction

Thank you for choosing a CSP/CSL mixing console as part of your professional sound system. This product has been developed to provide a wide range of facilities for professional and reliable sound reinforcement. Please read and keep this manual to achieve the best results from your purchase and avoid damage through misuse.

Package Contents

• CSP powered or CSL passive mixing console
• Mains lead(s)
• User manual

If you find any accessories is missing or the product has arrived with any problems, please contact your retailer at once. This product contains no user-serviceable parts, so make no attempt to try to fix or modify this item yourself as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for any possible replacement or return issues.

Warning
To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture. Avoid impact or heavy vibration to any of the components. No user-serviceable parts inside – refer servicing to qualified service personnel.

Safety

• Please observe the following warning conventions
  CAUTION: RISK OF ELECTRIC SHOCK DO NOT OPEN
  This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
  This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.
• Ensure that the correct mains lead is used with the adequate current rating and mains voltage is as stated on the unit
• Avoid ingress of water or particles into any part of the housing. If liquids are spilled on the console, stop using
  immediately, allow the unit to dry out and have checked by qualified personnel before further use
• Do not cover or obstruct cooling vents
  Warning: this unit must be earthed
  Placement
• Keep the console out of direct sunlight and away from heat sources.
• Do not place heavy objects on top of the control surface
• If rack-mounting, use the correct rack-ears and ensure adequate support for the weight of the product.
• Allow adequate space for airflow and keep the console away from damp or dusty environments.
  Cleaning
• Use a soft dry or slightly damp cloth to clean the surfaces of the console
• A soft brush can be used to clear debris from between controls without damaging them
• To avoid damage, do not use solvents to clean the components

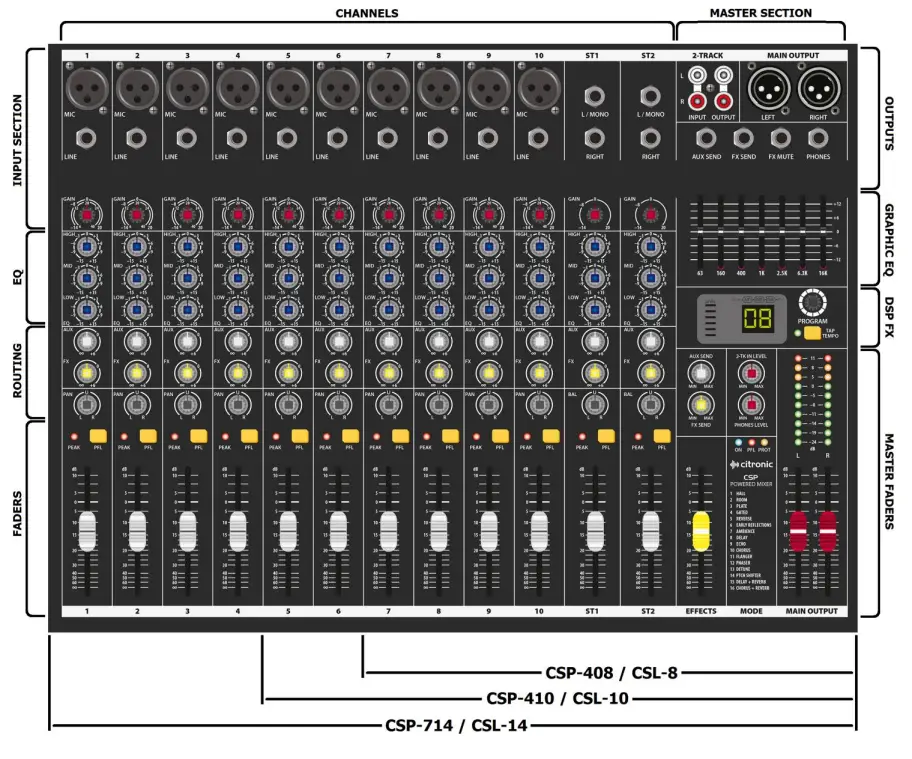

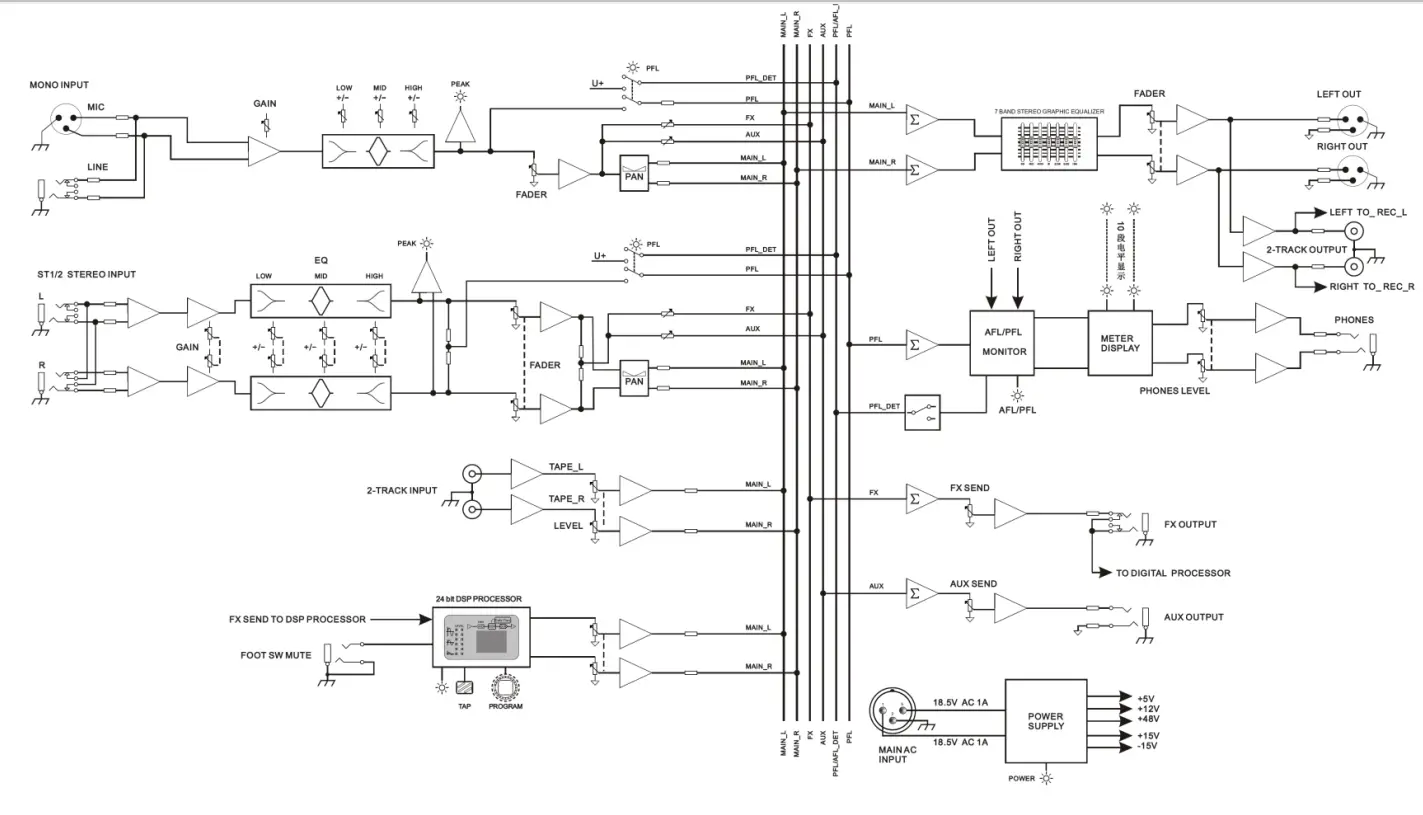

Console layout

Each CSP/CSL mixing console has comprehensive input and output sections which can be split further into various stages of processing and routing. All preamps have studio-grade, low-noise architecture for the cleanest possible path throughout the signal chain. The input stages are repeated across each channel of the console, which simplifies operation and enables quick and easy location of various controls. The following pages of this manual are divided up into these stages to explain the details and function of each control.

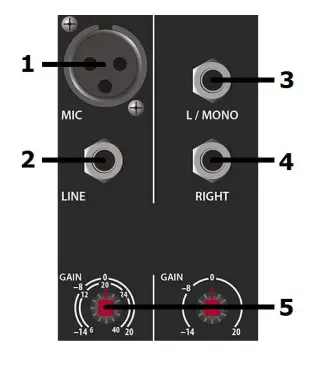

Mic/Line Input Section

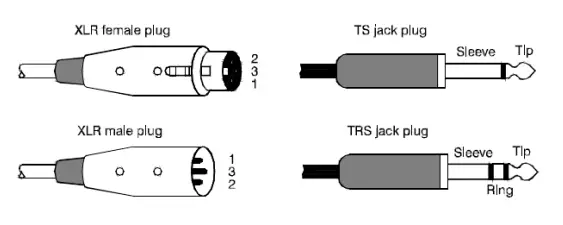

Channel inputs and inserts are provided as XLR and/or 6.3mm jack sockets. The connections for these inputs are assigned as follows.

1. MIC input
   Balanced Unbalanced

   Balanced	Pin 1 = Ground	Pin 2 = Signal +	Pin 3 = Signal —
   Unbalanced	Pin 1 = Ground	Pin 2 = Signal +	Pin 3 = Ground

2. LINE input
   Balanced Unbalanced

   Balanced	Tip = Signal +	Ring = Signal —	Sleeve = Ground
   Unbalanced	Tip = Signal +	–	Sleeve = Ground

3. L/MONO input
4. RIGHT input


   Balanced	Tip = Signal +	Ring = Signal —	Sleeve = Ground
   Unbalanced	Tip = Signal +	–	Sleeve = Ground

5. GAIN control
   This control trims the input signal to the optimum level for the channel strip circuitry. Too low a signal level can result in a weak signal-to-noise ratio and too high can result
   in overload and distortion in the signal output.
   The PEAK LED next to the channel fader will give an indication of the signal level. Ideally, the Gain rotary control should be adjusted so that the loudest passages of the
   the input signal (e.g. bass drum beats) will just momentarily trigger the CLIP LED.
   Anything longer than a momentary flicker of the CLIP LED means that the Gain should be reduced. Using the PFL button further down the channel strip gives a more detailed view of the channel level on the main VU LEDs.

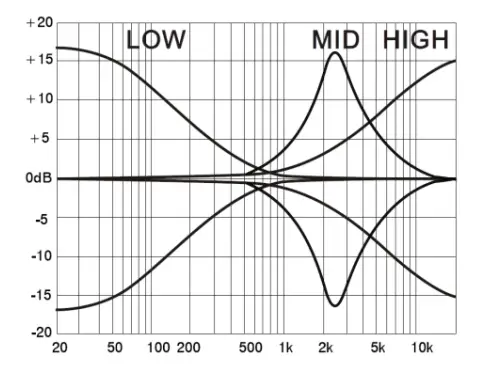

   EQ Section
6. HIGH

   This control can boost or cut the high frequencies (center 12kHz) by ±15dB (12 o’clock position is zero)
7. MID
   This control can boost or cut the mid frequencies (center 2.5kHz) by ±15dB (12 o’clock position is zero)
8.  LOW
   This control can boost or cut the low frequencies (center 80Hz) by ±15dB (12 o’clock position is zero)Channel Routing


9. AUX
   This control governs the amount of signal from the channel routed to the AUX SEND or auxiliary output to external equipment. (This control is post-fader – i.e. the signal routed to AUX SEND is also affected by the channel fader level)

10. . FX
    This control governs the amount of signal from the channel routed to the DSP effects engine. If a jack is connected to the FX SEND connector (see 37 below), this will operate as an extra AUX output (This control is post-fader – i.e. the signal routed to AUX SEND is also affected by the channel fader level)

11. PAN/BAL
    This control adjusts the amount of signal from the channel fed to Left or Right outputs.
    This varies the point in the stereo field that the signal appears. For ST1 and ST2 channels, the PAN control is replaced with a BAL control for the Left/Right balance.

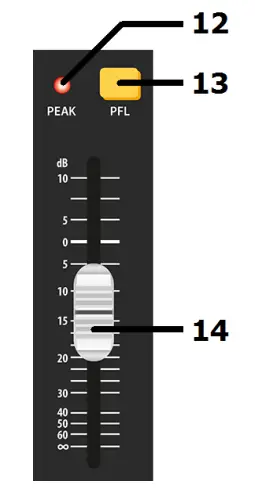

    Channel Faders


12.  PEAK LED
    An indicator showing when the signal reaches the maximum level and clipping.

13.  PDF
    Pre-Fader Listen sends the channel signal direct to monitoring. This means that the channel signal is shown on the main VU LEDs. Also, the signal is routed directly to the headphone’s output. This allows the particular channel signal to be checked. If many PFLs or AFLs are selected, all are routed to monitoring.

14. Channel fader 60mm fader to adjust the channel level to the master output. A dB scale is provided to show the level of boost or cut.Graphic Equalizer

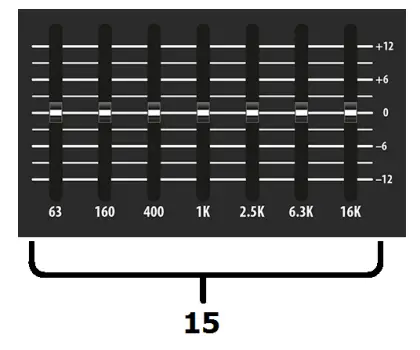

    The main EQ is a stereo 7-band graphic equalizer, offering refined audio spectrum sharing and feedback control for live mic situations.
15. EQ sliders.
    Each slider controls a boost or cuts of up to 12dB centered at the specified frequency.DSP Effects Engine

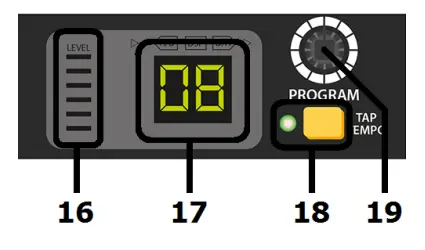

    CSP and CSL series mixers each have an internal 24-bit DSP processor for audio effects, as detailed on the DSP Table (on the following page)
16.  6-segment LED
    Indicates overall input level to DSP
17. Program display
    Indicates selected program (see table on next page)
18. TAP
    Press once to switch the rotary control (27) to PARAMETER 2.

    Tap the TAP button rhythmically more than twice to set a tempo for time effects An LED to the left of the Tap switch flashes to indicate time intervals

19. PROGRAM/PARAMETER
    Turn this rotary encoder to select a program.
    The numerical display will flash the selected program number.
    Press the encoder to confirm the selection, the display will stop flashing & the selected program will be active.

    Press the encoder again and a dot will appear in the display indicating PARAMETER 1. Turning the encoder will change PARAMETER 1 for the selected program as detailed in the DSP Table on the following page.

    Pressing the TAP button (26) will switch to PARAMETER 2 and then turning the encoder will change PARAMETER 2 for the selected program.

    These parameter changes are stored for when the program is selected in the future.

    DSP EFFECTS TABLE

    PROGRAM	EFFECT	PARAMETER 1	MIN	MAX	PARAMETER 2	MIN	MAX	TAP
    01	Hall	Reverb time	01 (approx 1 second)	10 (approx 8 seconds)	Brilliance	OFF	ON	LED on/off
    02	Room	Reverb time	01 (approx 0.5 second)	10 (approx 4 seconds)	Brilliance	OFF	ON	LED on/off
    03	Plate	Reverb time	01 (approx 0.5 second)	10 (approx 5 seconds)	Brilliance	OFF	ON	LED on/off
    04	Gated	Reverb time	01 (approx 0.1 second)	10 (approx 1 second)	Brilliance	OFF	ON	LED on/off
    05	Reverse	Reverb time	01 (approx 0.1 second)	10 (approx 1 second)	Brilliance	OFF	ON	LED on/off
    06	Early Reflections	Room size	01 (small)	10 (very large)	Brilliance	OFF	ON	LED on/off
    07	Ambiance	Area size	01 (small)	10 (very large)	Brilliance	OFF	ON	LED on/off
    08	Delay	Repeats	01 (no regeneration)	20 (max regeneration)	Delay Time (bpm)	07 (72bpm)	60 (600bpm)	Blinking BPM Tempo
    09	Echo	Repeats	01 (no regeneration)	40 (max regeneration)	Delay Time (bpm)	07 (72bpm)	60 (600bpm)	Blinking BPM Tempo
    10	Chorus	Depth	01(1%)	99 (99%)	Mod Speed bpm	02 (24bpm)	48 (480bpm)	Blinking Mod Speed
    11	Flanger	Depth	01 (1%)	99 (99%)	Mod Speed bpm	02 (24bpm)	48 (480bpm)	Blinking Mod Speed
    12	Phaser	Depth	01 (1%)	99 (99%)	Mod Speed bpm	02 (24bpm)	48 (480bpm)	Blinking Mod Speed
    13	Detune	Depth	01 (1%)	99 (99%)	2nd voice delay	05 (5ms)	50 (50ms)	LED on/off
    14	Pitch Shift	Semitone steps	-12 (1 octave down)	+12 (1 octave up)	Detune	OFF (0%)	ON (25%)	LED on/off
    15	Delay + Rev	Ratio	-9 (90% Dly / 10% Rev)	9 (10% Dly / 90% Rev)	Delay time (bpm)	11 (116bpm)	60 (600bpm)	Blinking BPM Tempo
    16	Chorus + Rev	Ratio	-9 (90% Cho / 10% Rev)	9 (10% Cho / 90% Rev)	Reverb time	12 (1.2sec)	24 (2.4secs)	LED on/off

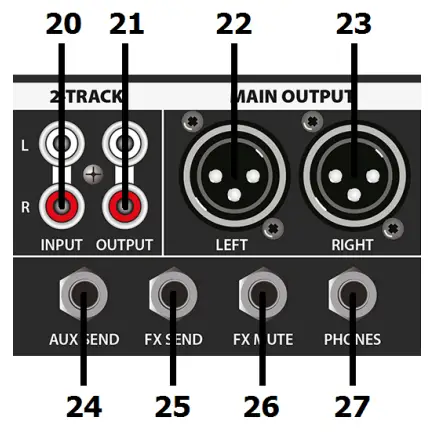

    Master Output Section


20. 2 TRACK INPUT Left + Right RCA input for connecting a playback
    device (e.g. CD or mp3) governed by the 2TK IN
    LEVEL rotary control. This output is pre-master-fader.
    (i.e. unaffected by main Left + Right faders)
21. 2 TRACK OUT Left + Right RCA connection for main mix output to a
    recording device. This output is pre-master-fader
22. MAIN L OUTPUT Balanced XLR output for main Left out
23.  MAIN R OUTPUT Balanced XLR output for main Right out
24. AUX SEND
    Unbalanced jack output from AUX SEND routes.
    The mix is governed by AUX levels from each channel.
25. FX / AUX SEND Unbalanced jack output from FX SEND routes.
    Overrides internal DSP effects when a jack is connected.
    The mix is governed by FX levels from each channel.
26. FX MUTE
    Footswitch jack to mute FX.
    Connect a non-latching footswitch here to mute or un-mute the FX SEND signal.
27.  PHONES

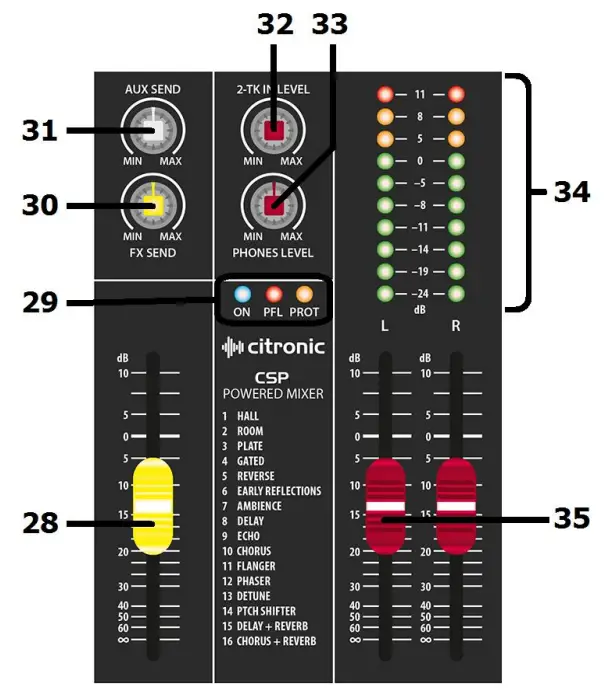

    Stereo headphones 6.3mm jack outputMaster Routing Section

28. EFFECTS fader Controls the level of FX to the main mix
29. Status LEDs
    Indicate Power On, PFL activated & Amplifier Protect (CSP only) statuses

30. FX SEND
    Overall level control of signals routed to the FX Send bus, either for internal DSP or FX Send output (20). When using the internal DSP, it is important to observe the LED level meter (16) on the DSP section and if the signal is clipping, reduce the FX SEND level accordingly.



31.  AUX SEND
    Overall level control of signals routed to the AUX Send output (19)
32. 2-TK LEVEL
    Level control for the 2-track RCA inputs
33. PHONES LEVEL Level control for headphones output.
    Pressing this button reverses this by routing the output of the PC or Mac back to the PC interface for playback.
34. VU meters
    Dual 10-segment LED ladders indication output level (or channel level if PFL is active)
35. Master faders
    Controls for main Left & Right output levels

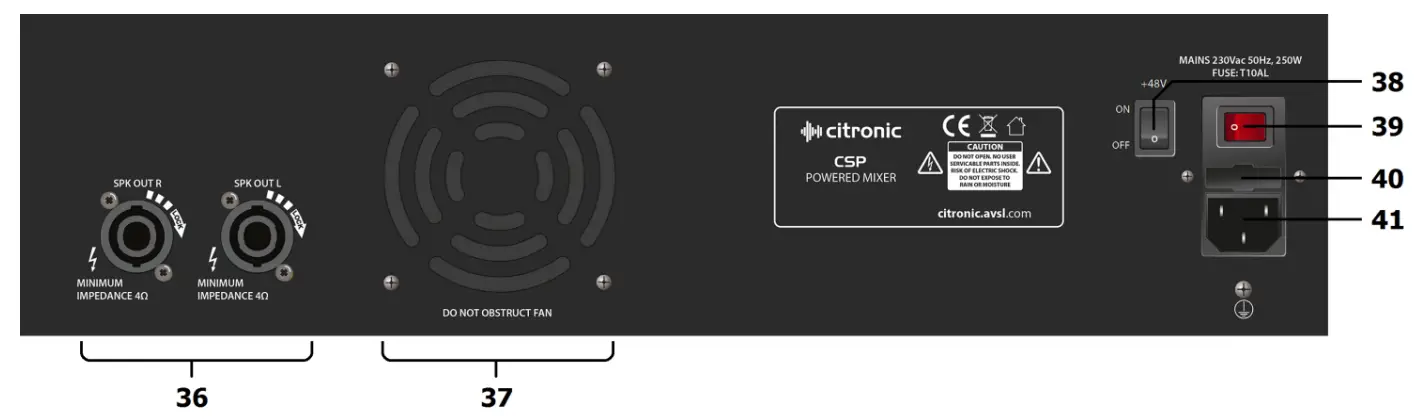

    Rear Panel

36. Speaker outs (CSP only)
    Left & Right twist-lock SPK connectors for speaker connection (4Ω min.)
37.  Cooling fan vent (CSP only)
    Ventilation for an internal cooling fan. Do not obstruct or cover.
38. +48V switch
    Rocker switches to enable +48V phantom power to all XLR inputs.
39.  Power switch
    Illuminated rocker switch for main power on/off.
40.  Fuse holder
    Integral holder for 5 x 20mm fuse. Replace only with the type indicated.
41.  IEC mains inlet
    Mains connection. Ensure voltage as indicated. Use IEC lead supplied.

Powering up
Connect the IEC inlet (40) to mains power using the supplied mains lead. In case of the fuse blowing, replace only with the type indicated. If the fuse is repeatedly blowing, refer to qualified service personnel.
The illuminated rocker switch activates the main power to the unit.

Phantom power
In addition to the mains power switch, the rear panel has an additional rocker switch which when switched on, enables +48V phantom power to the XLR input connectors. This is mainly used for condenser microphones that do not have an internal battery or to remotely power D.I. boxes for patching instruments directly into the mixer.
Connecting Speakers (CSP only)
When connecting speakers to the CSP-series mixers, ensure that the combined load for each output (left or right) is no lower than 4 Ohms (4Ω). To make sure of this, check the speaker manufacturer’s information.

If connecting more than one speaker to an output channel, observe the following calculation method.

Note: normally, speakers will be connected in parallel by connecting a speaker lead from one to another.
Most PA and sound reinforcement speakers are 8Ω, so we consider that 1/8 + 1/8 = 1/4.
Therefore, when connecting 2 x 8Ω speakers together in parallel, the resulting total load is 4Ω.

It is also important to ensure that the power delivered to the speakers will not overload them.

When connecting 2 x 8Ω speakers together on one channel, each speaker will equally receive half of the output of that channel.

Specifications

Troubleshooting

Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed of with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines

Errors and omissions excepted. Copyright© 2021.
AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester. M41 7JQ
AVSL (EUROPE) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, Ireland.

CSP & CSL-series User Manual
