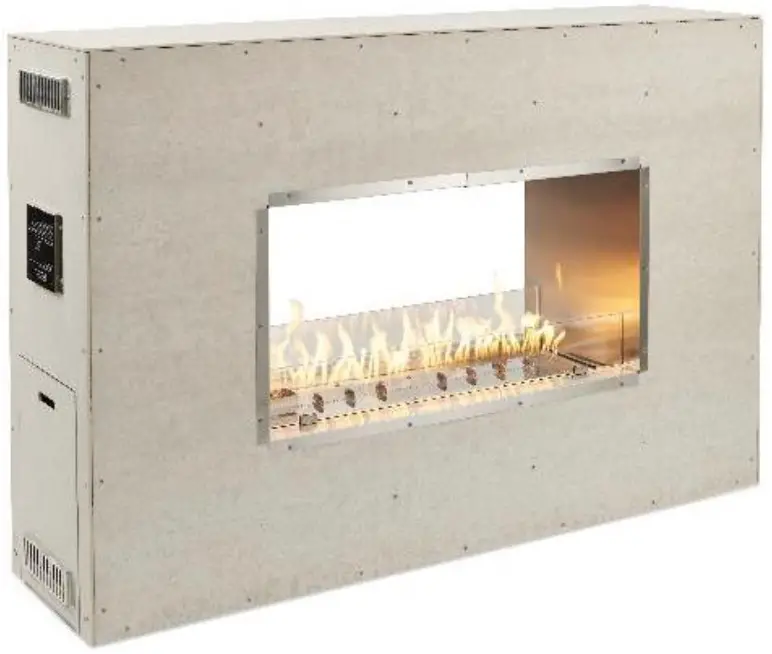

THE OUTDOOR GREATROOM COMPANY RSTL-40DLP 40 Inch Linear See-Through Ready-to-Finish Fireplace Owner’s Manual

Contents hide

1 BEAUTIFUL AND VERSATILE

2 FEATURES

3 PRODUCT INFORMATION

4 Documents / Resources

4.1 References

5 Related Posts

BEAUTIFUL AND VERSATILE

Ready-to-finish linear fireplace enclosures are made from Hardiebacker® fiber cement board and G90 marine-grade galvanized steel framing. These can be finished on-site to match your landscaping, hardscaping, or exterior design with stone or other non-combustible materials. Choose between single-sided or see through styles. Perfect for both commercial and residential applications.

FEATURES

Available as see-through or single sided
Made using G90 marine-grade galvanized steel framing and Hardiebacker® fiber cement boarding
Fireplace opening enclosure is lined with #304 stainless steel
Includes vents pre-installed, a cut-out for a control panel, and glass wind guard panels
Linear Crystal Fire® Plus Burner Insert with Direct Spark Ignition or Manual Ignition controls – order fire media, external controls, timers, and emergency stop separately
Can be used for liquid propane or natural gas installations – hard-pipe installation recommended
Access Door conceals standard 20 lb. propane tank in base for 40” and 60” models
Enclosures 8 feet or less ship in one piece with drop-ship option available
UL Listed, Made in USA
Contact [email protected] for information on custom sizes

PRODUCT INFORMATION

Single-Sided Opening

ITEM	ITEM CODE	BURNER INCLUDED/ BTUs	OVERALL DIMENSIONS/VIEWING AREA DIMENSIONS	WEIGHT	MEDIA QUANTITY	RETAIL PRICE
Manual Ignition
40” Ready-to-Finish	RLFP-40MLP	BI737 /	48” H x 72” W x 18.5” D /	218 lbs	30 lbs	$3469
Single-Sided*		80,000	40” W x 20” H
Direct Spark Ignition
40” Ready-to-Finish Single-Sided	RLFP-40DNG or RLFP-40DLP	BI737 / 80,000	48” H x 72” W x 18.5” D / 40” W x 20” H	225 lbs	30 lbs	$4809
60” Ready-to-Finish Single-Sided	RLFP-60DNG or RLFP-60DLP	BI757 / 100,000	48” H x 92” W x 18.5” D / 60” W x 20” H	242 lbs	40 lbs	$5199
72” Ready-to-Finish	RLFP-72DNG or	BI766 /	48” H x 108” W x 18.5” D /	267 lbs	50 lbs	$6939
Single-Sided	RLFP-72DLP	100,000	72” W x 20” H

See-Through Opening

ITEM	ITEM CODE	BURNER INCLUDED/ BTUs	OVERALL DIMENSIONS/VIEWING AREA DIMENSIONS	WEIGHT	MEDIA QUANTITY	RETAIL PRICE
Manual Ignition
40” Ready-to-Finish See-Through*	RSTL-40MLP	BI737 / 80,000	48” H x 72” W x 18.5” D / 40” W x 20” H	213 lbs	30 lbs	$3469
Direct Spark Ignition
40” Ready-to-Finish See-Through	RSTL-40DNG or RSTL-40DLP	BI737 / 80,000	48” H x 72” W x 18.5” D / 40” W x 20” H	220 lbs	30 lbs	$4809
60” Ready-to-Finish See-Through	RSTL-60DNG or RSTL-60DLP	BI757 / 100,000	48” H x 92” W x 18.5” D / 60” W x 20” H	237 lbs	40 lbs	$5199
72” Ready-to-Finish See-Through	RSTL-72DNG or RSTL-72DLP	BI766 / 100,000	48” H x 108” W x 18.5” D / 72” W x 20” H	262 lbs	50 lbs	$6939

*Manual control panel is mounted on lower front face of fireplace. Includes NG conversion kit and access door for LP storage.

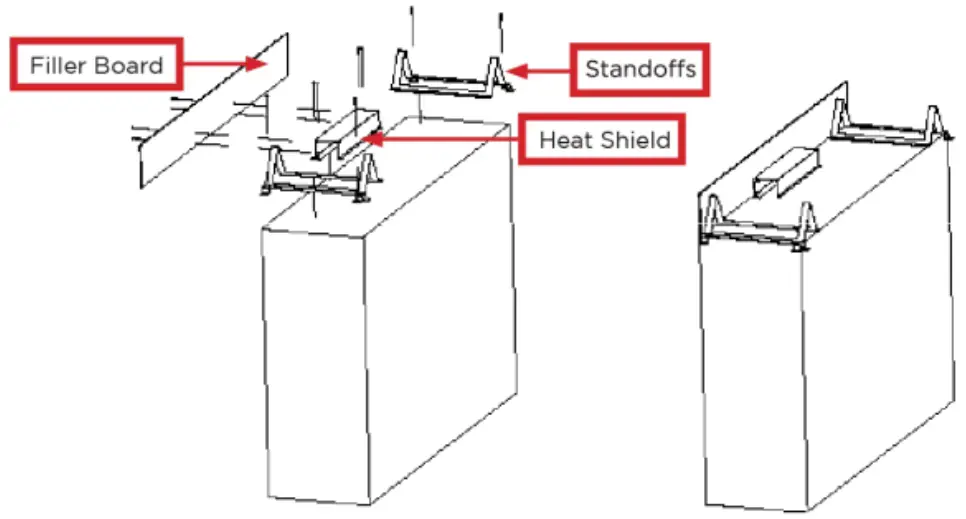

OPTIONAL STANDOFF*

ITEM	ITEM CODE	RETAIL PRICE
Standoff for 40” See-Through Fireplace	RSTL-40-SO
Standoff for 60” See-Through Fireplace	RSTL-60-SO
Standoff for 72” See-Through Fireplace	RSTL-72-SO
Standoff for 40” Single-Sided Fireplace	RFLP-40-SO
Standoff for 60” Single-Sided Fireplace	RFLP-60-SO
Standoff for 72” Single-Sided Fireplace	RFLP-70-SO
