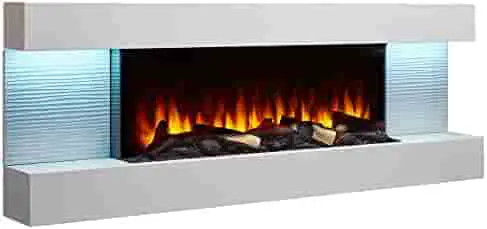

SimpliFire SF-FM60-WH Electric Fireplace 60 Inch Floating Mantel Wall-Mount User Manual
Please consult the manufacturer’s installation manual for all details and requirements before making a final design layout decision
| Model | BTU Output | Width | Height | Depth | Sides | Viewing Area (F x G) |
| SF-FM60-WH | 5000 | 59-7/8″ [1520] | 23-5/16″ [592] | 9-7/8″ [250] | 11-13/16″ [300] | 36-1/16″ x 12-5/8″ [916 x 321 |
Product Overview

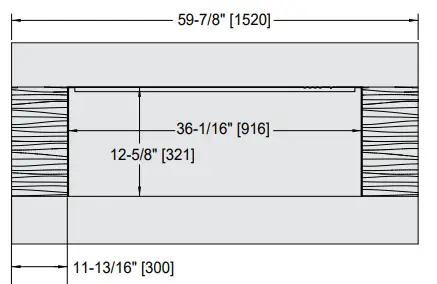

FRONT VIEW
SIDE VIEW
ELECTRICAL CONNECTION REQUIREMENTS
| CIRCUIT | CONNECTION METHOD | BTUS |
| 15 AMP, 120V/60 Hz | Plug-in or hardwire | 5,000 |

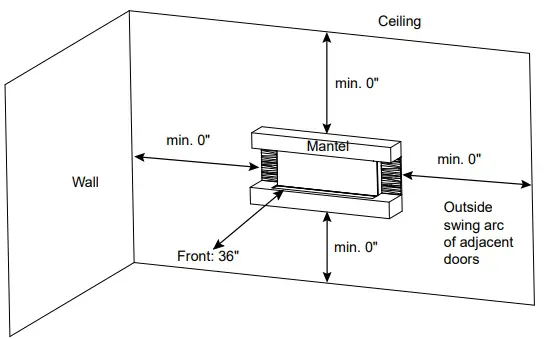

LOCATION AND CLEARANCES REQUIREMENTS

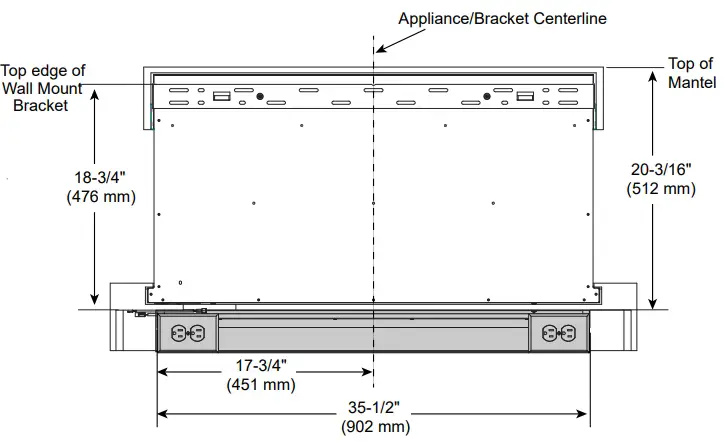

LOCATION OF OUTLET RECEPTACLE
Product information provided is not complete and is subject to change without notice. Product installation must adhere strictly to instructions accompanying product to avoid risk of fire and potential injury
CSA C22.2 No 46-2013
EF/HHT/SF-FM60-WH_0921
SimpliFire — A Brand of Hearth & Home Technologies
7571 215th Street West | Lakeville, MN 55044
888-427-3973 | 952-985-6000 | fireplaces.com
