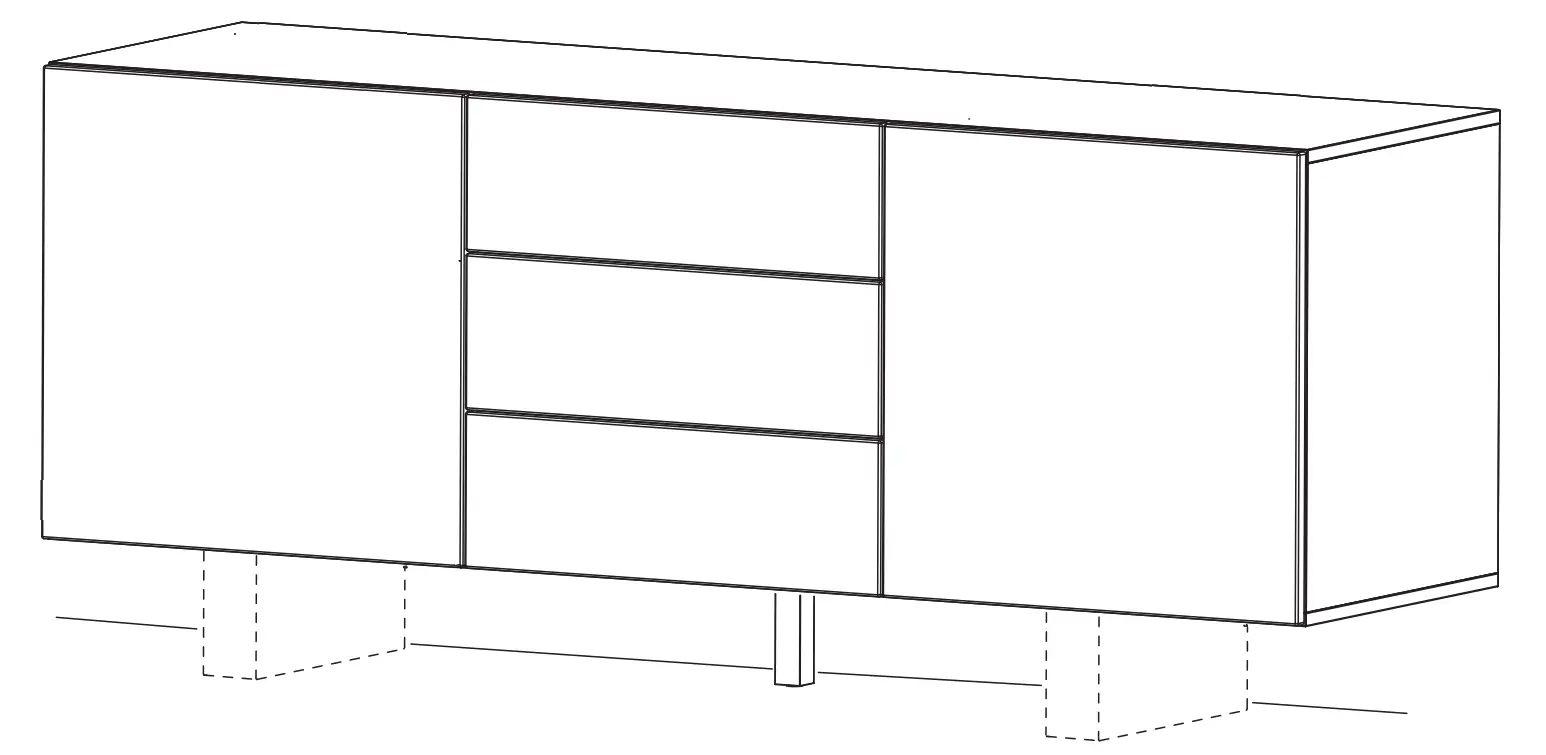

diventa MBA24 SIDEBOARD
Package Content

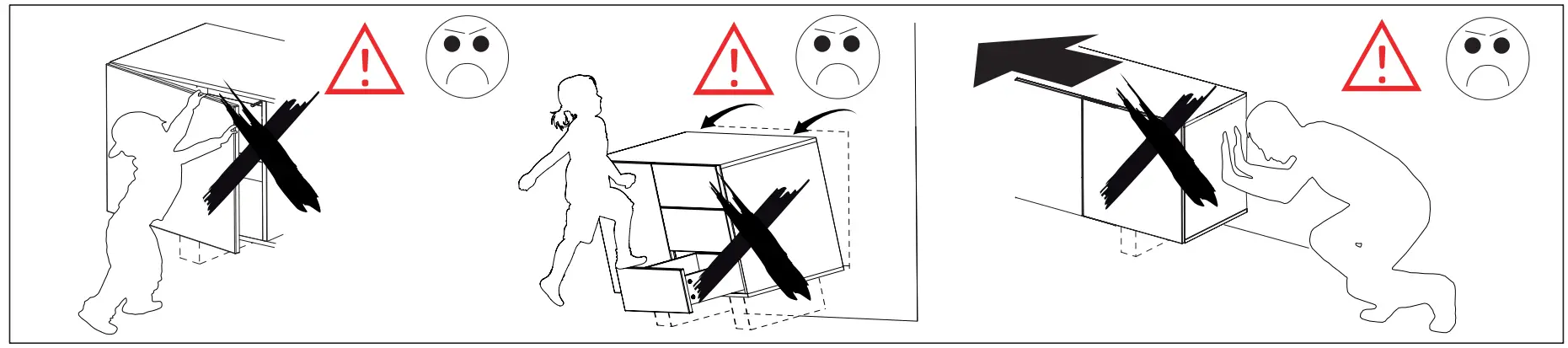

Safety instructions
The triangle reminds you during the installation of the following notes.

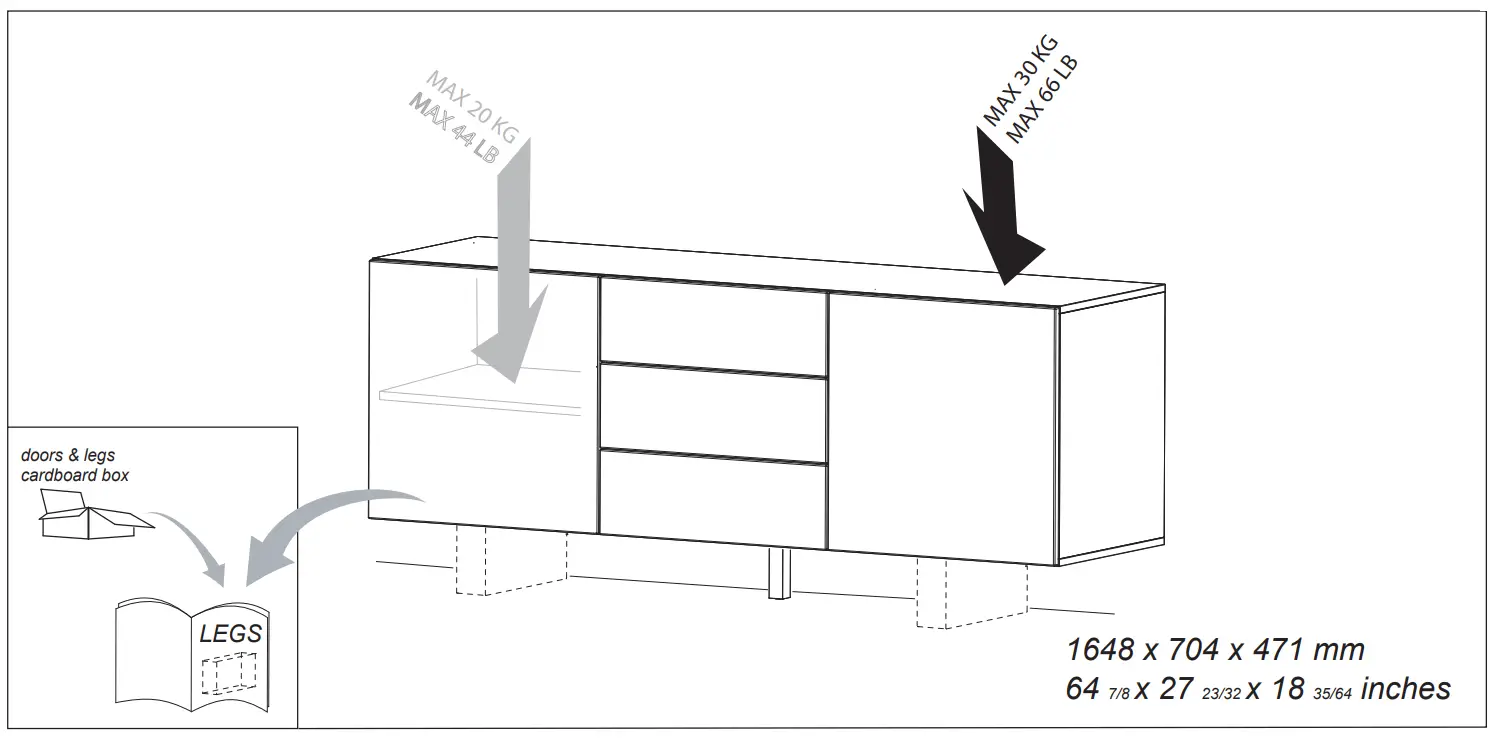

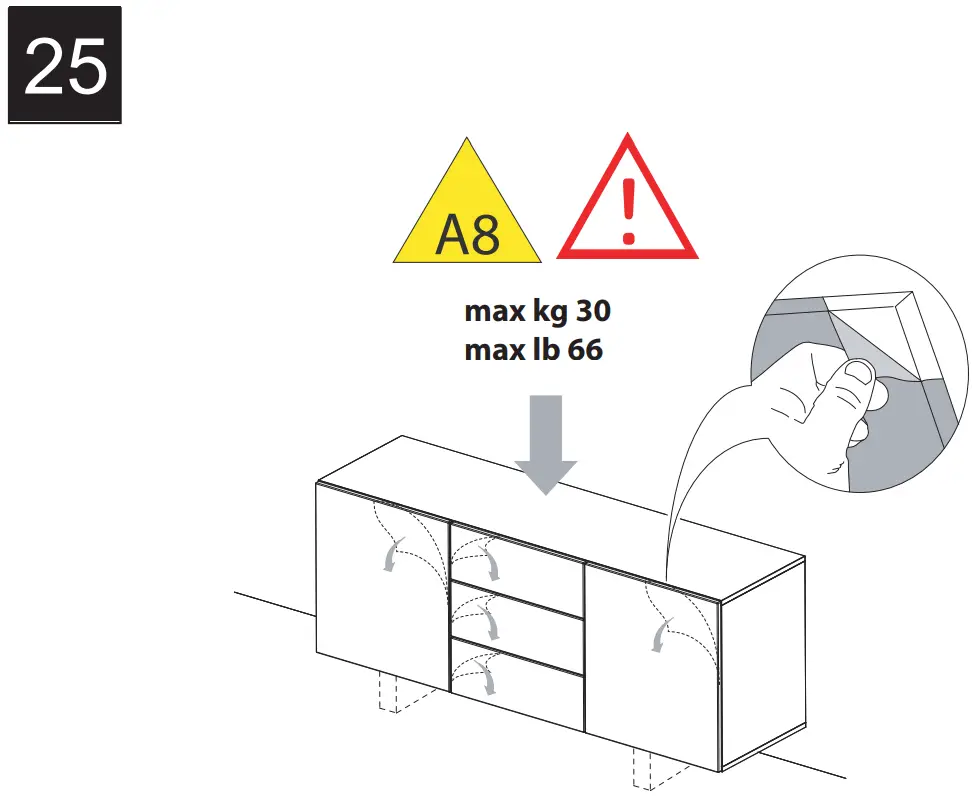

Do not exceed the maximum loads specified. Otherwise, the furniture may sustain damage and be irreparable.
Ensure that children do not put any small parts such as nuts, caps or the like in their mouth. They could swallow and choke on them.
When assembling the product, please proceed with caution and comply with the assembly instructions.
Assembly should be carried out by a qualified person, because wrong assembly may lead to at the furniture toppling over and causing injury or damage. As wall materials vary, screws for fixing to wall are not included. For advice on suitable screw systems, contact your local specialized dealer.

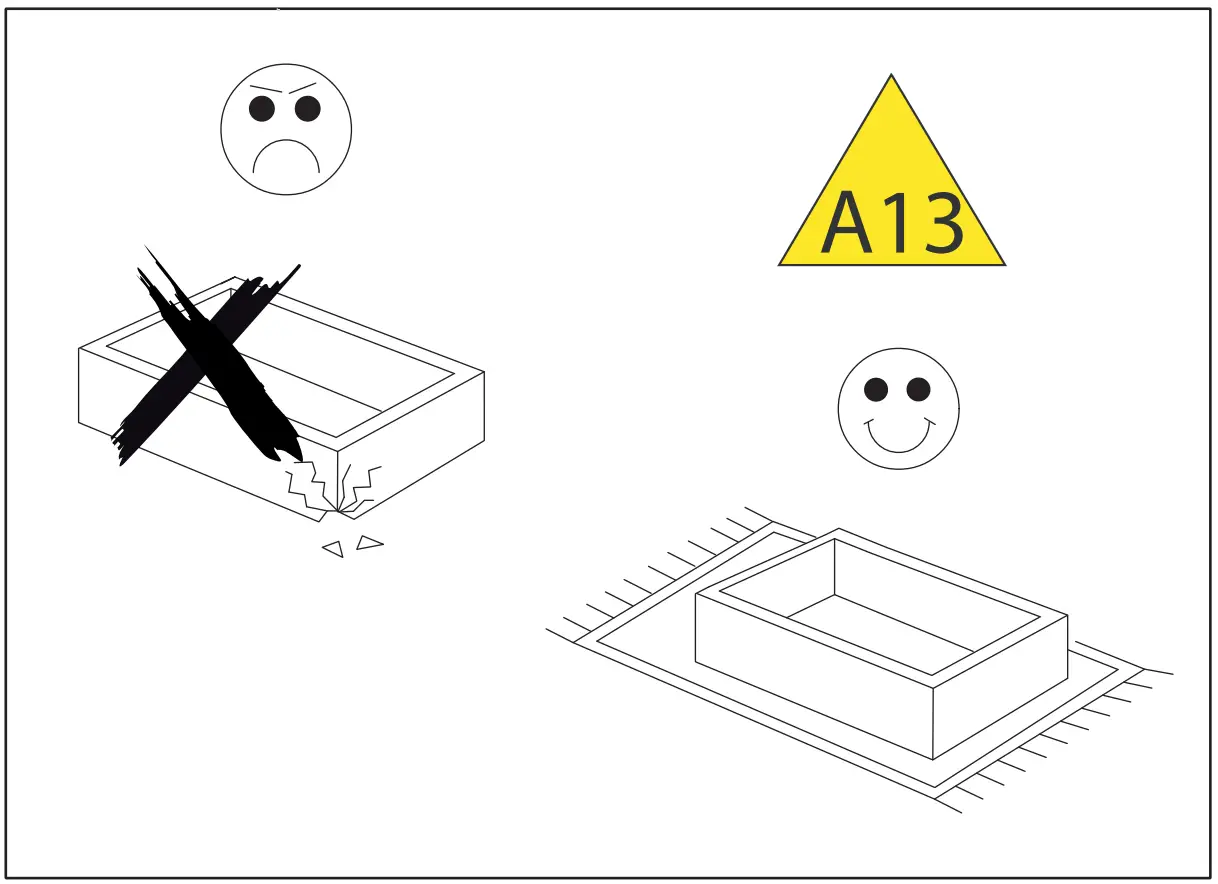

BEFORE STARTING, REFER TO THE ASSEMBLING ADVICE IN ANNEX

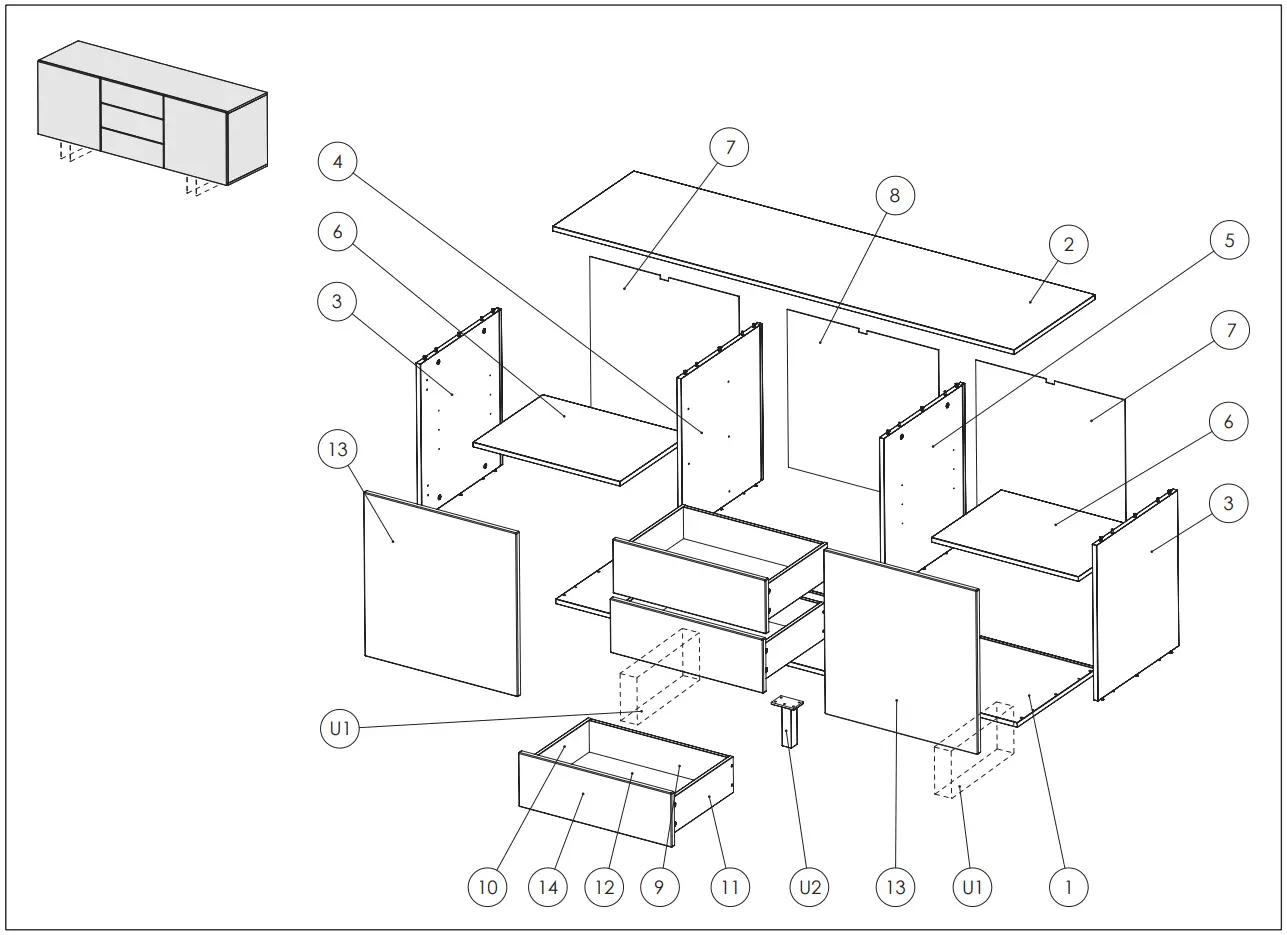

Overview
nr° | qty | length mm | width mm | thickness mm | box nr° |
| 1 | 1 | 1648 | 454 | 16 | 2-3 |
2 | 1 | 1648 | 454 | 16 | 2-3 |
| 3 | 2 | 519 | 453 | 16 | 1-3 |
4 | 1 | 519 | 453 | 16 | 1-3 |
| 5 | 1 | 519 | 453 | 16 | 1-3 |
6 | 2 | 390 | 525 | 16 | 1-3 |
| 7 | 2 | 532 | 526 | 3 | 2-3 |
8 | 1 | 540 | 526 | 3 | 2-3 |
| 9 | 3 | 120 | 493 | 12 | 1-3 |
10 | 3 | 120 | 353 | 12 | 1-3 |
| 11 | 3 | 120 | 353 | 12 | 1-3 |
12 | 3 | 351 | 503 | 3 | 1-3 |
| 13 | 2 | 547 | 547 | 16 | 3-3 |
14 | 3 | 181 | 547 | 16 | 3-3 |
| U1 | 2 | – | – | – | 3-3 |
U2 | 1 | 150 | 32 | 32 | 3-3 |

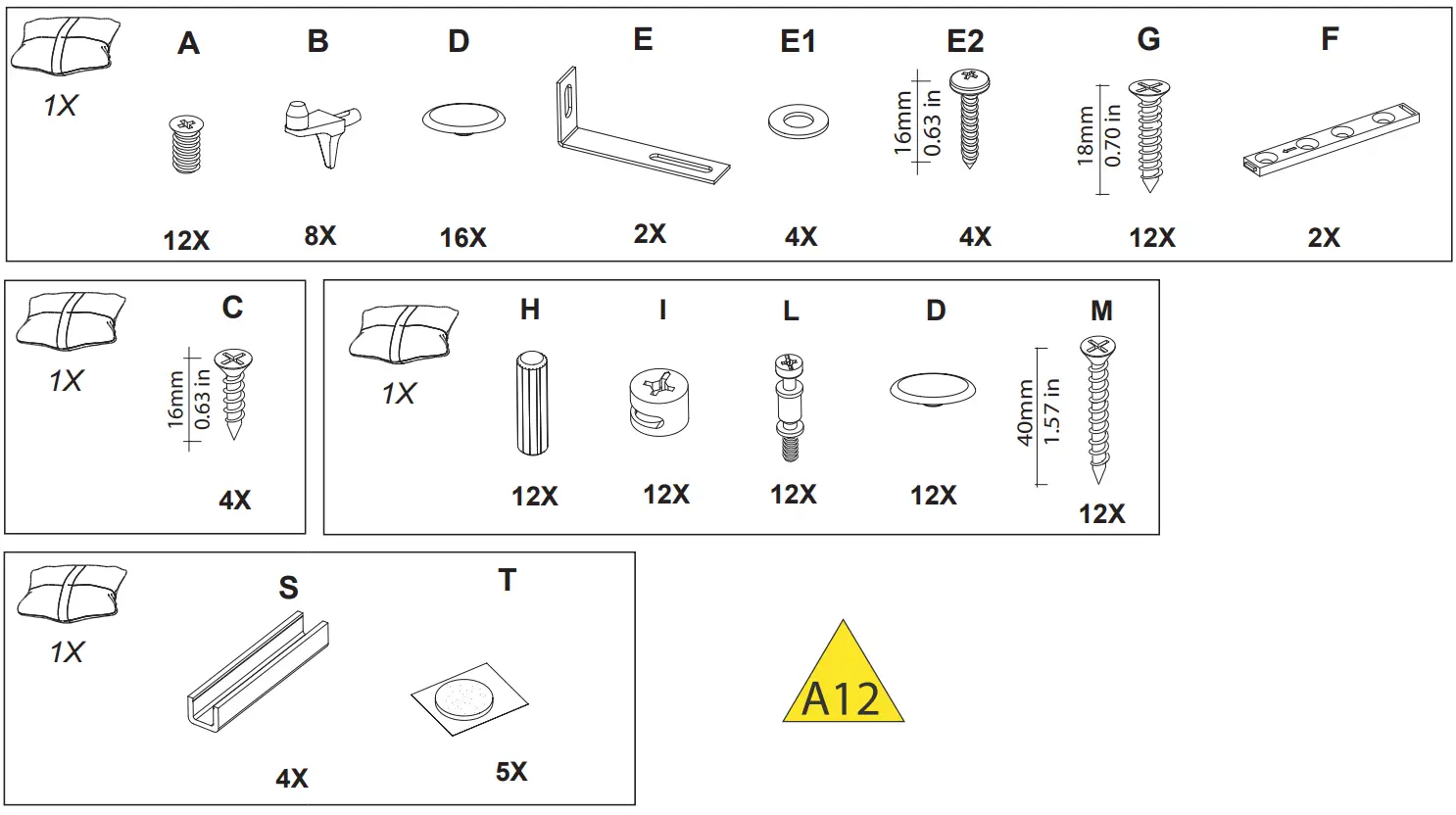

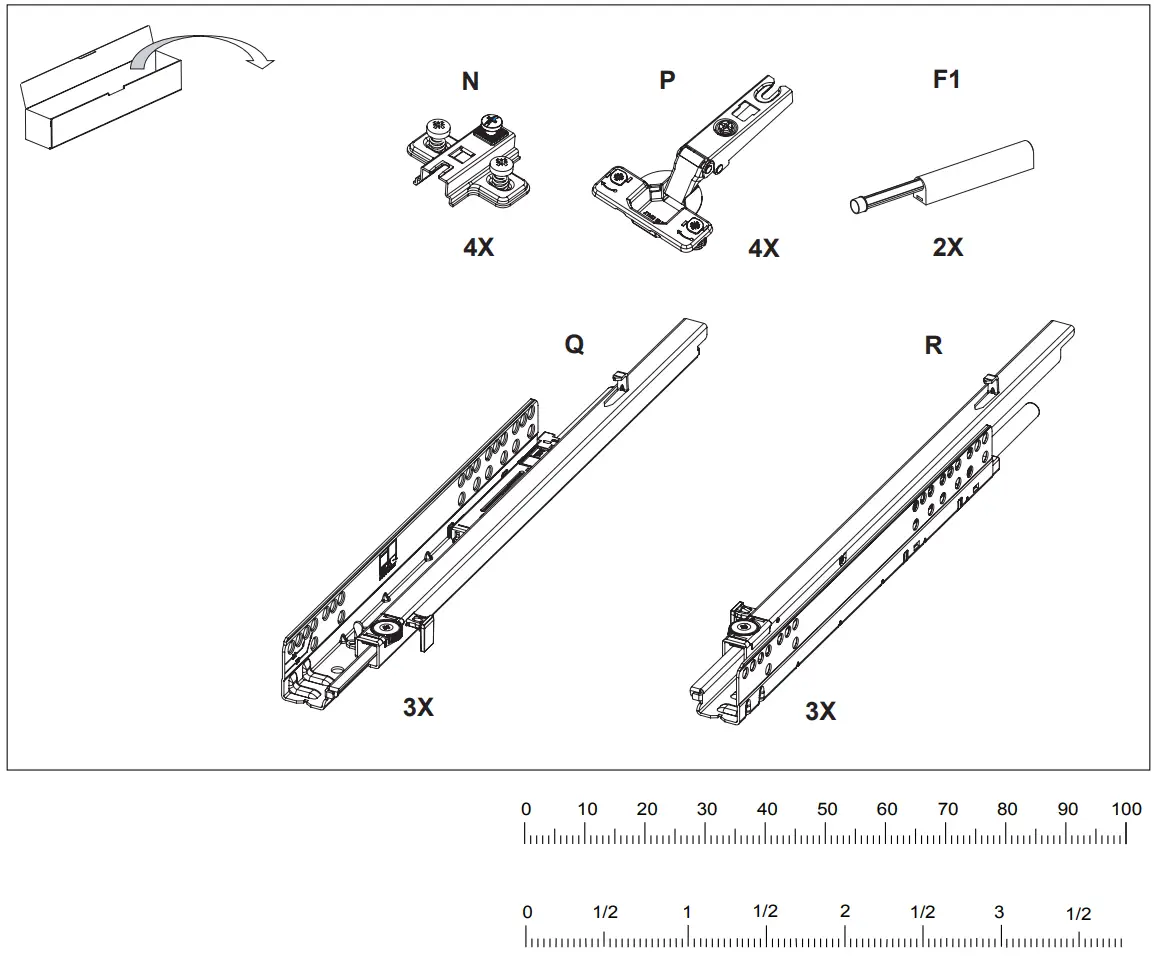

Parts

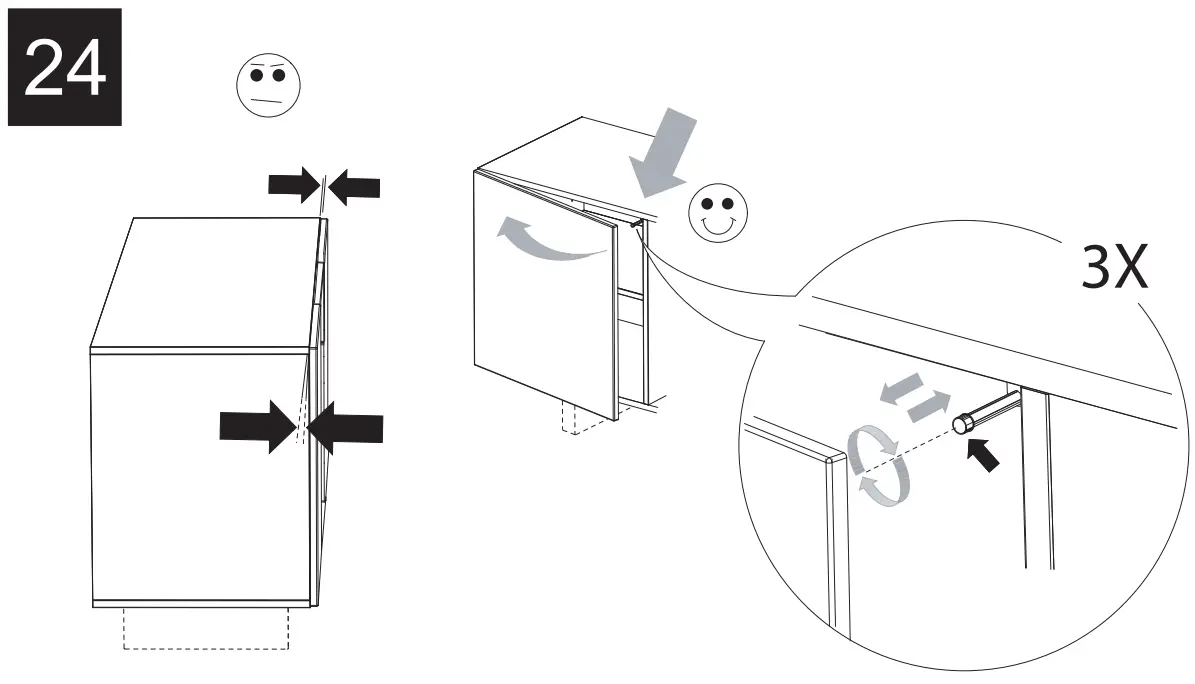

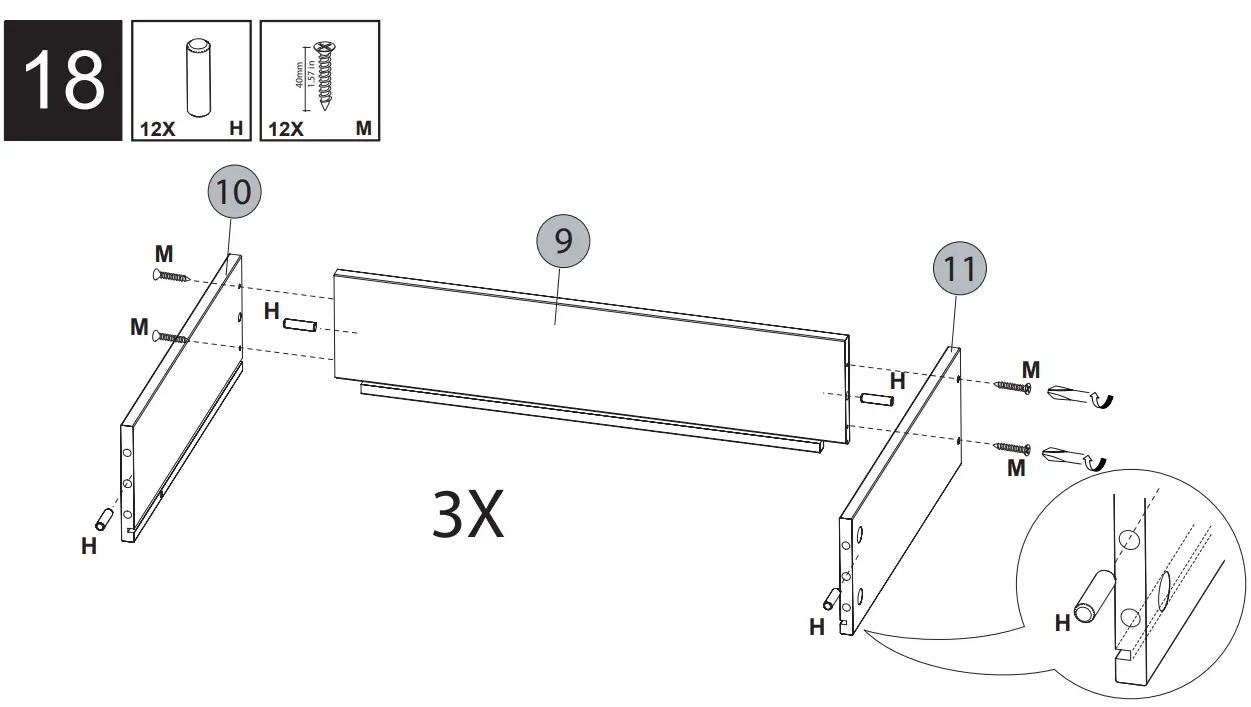

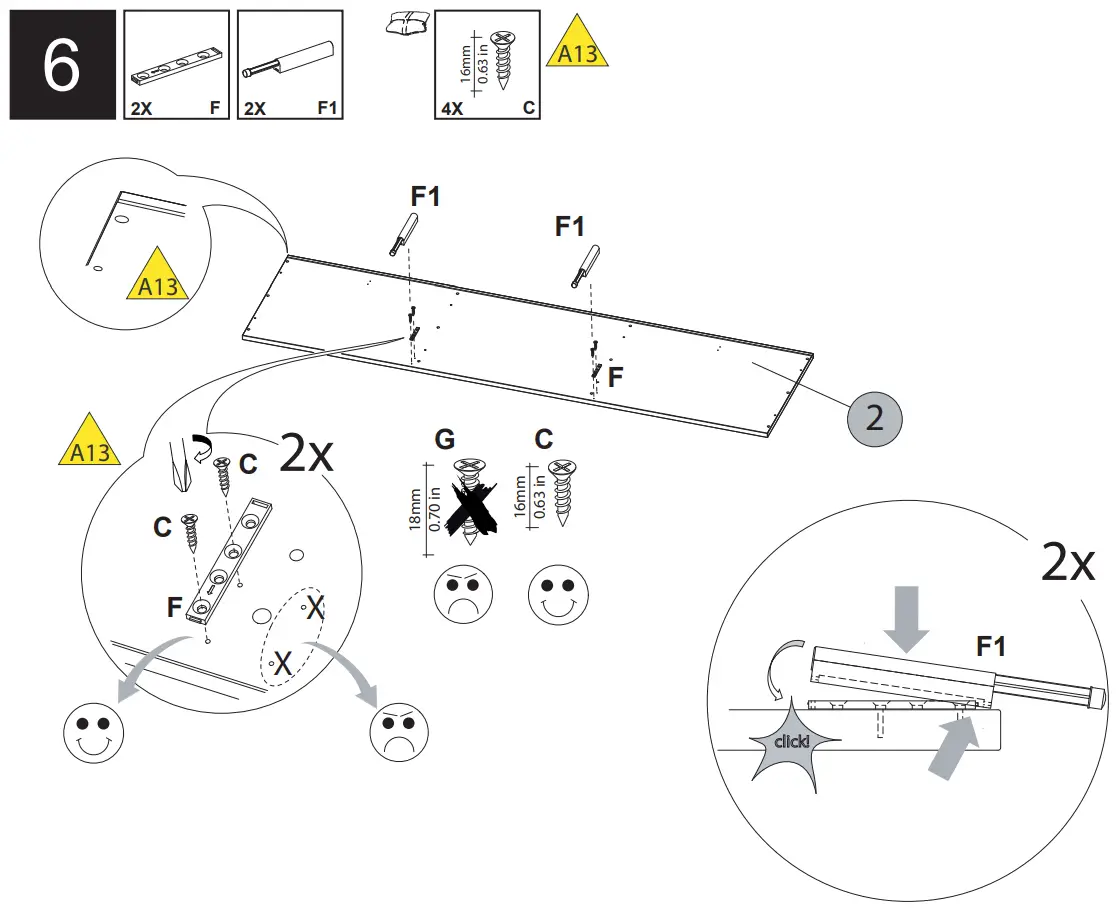

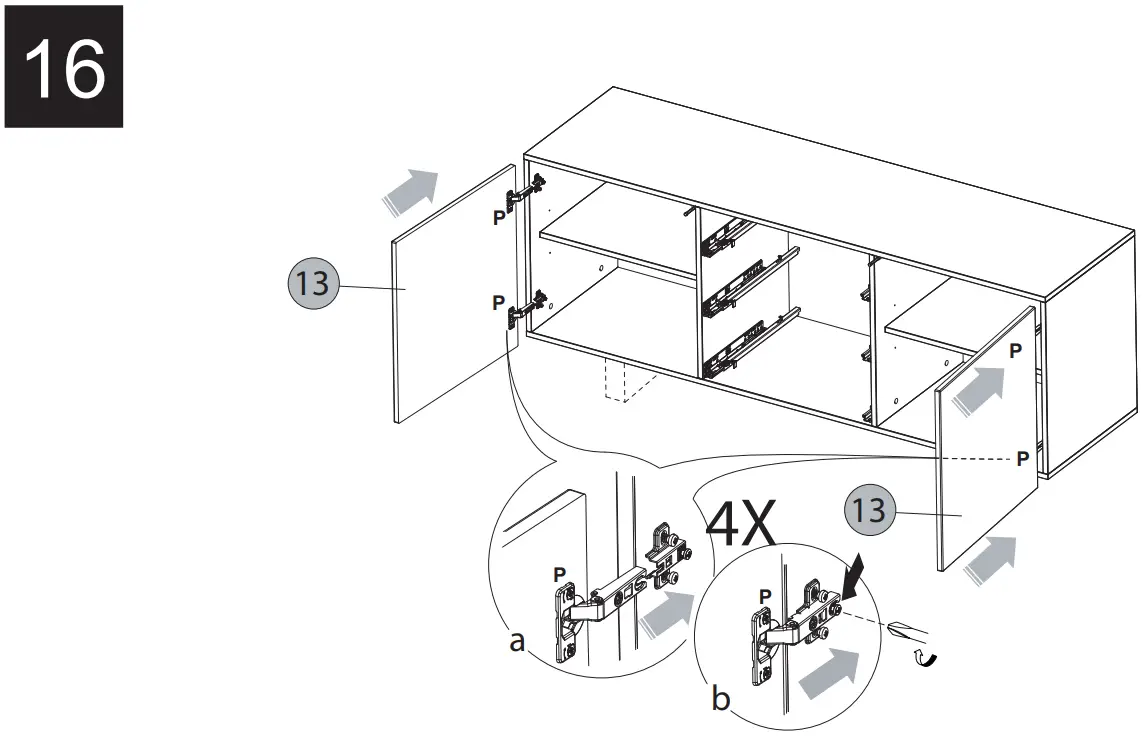

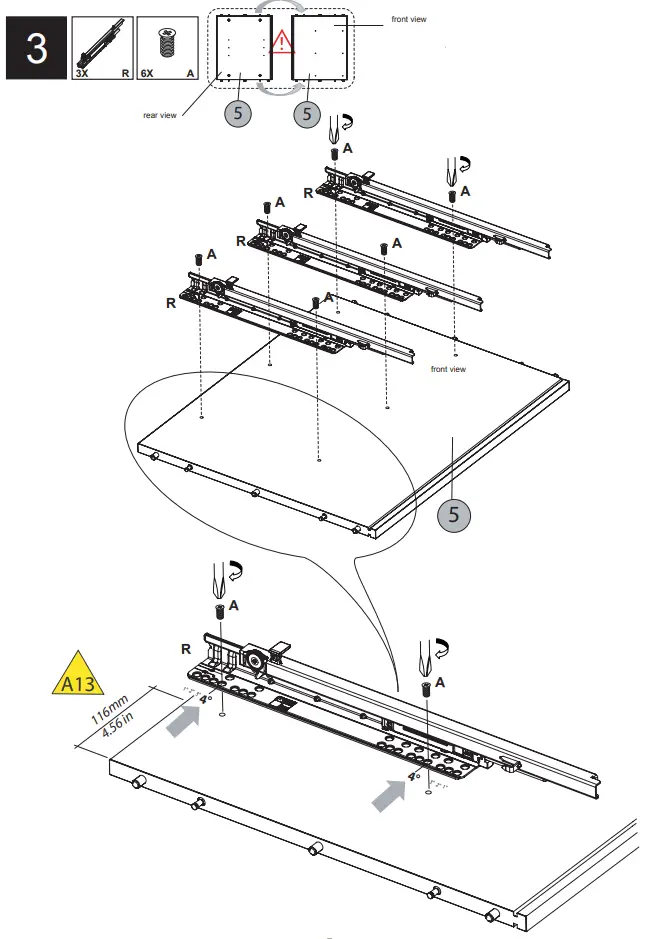

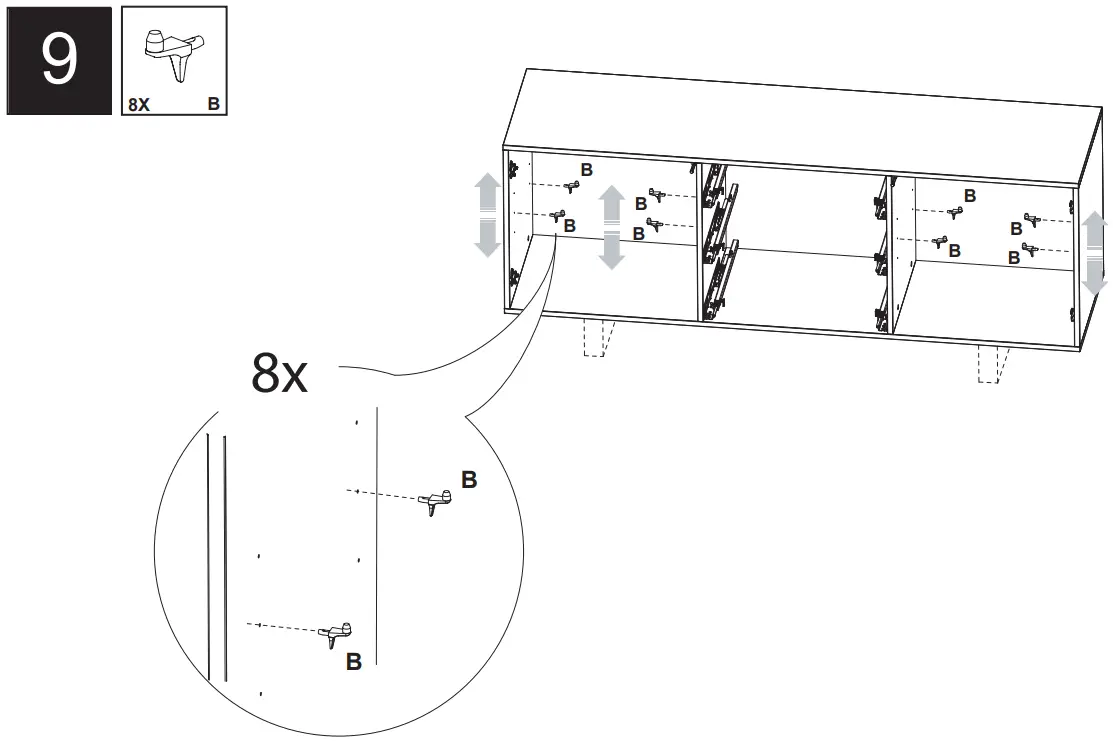

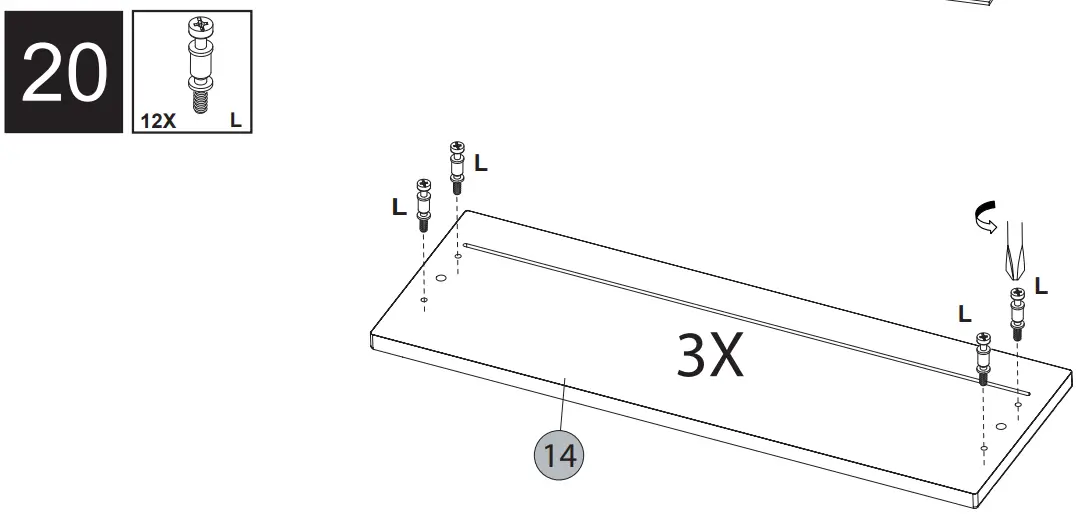

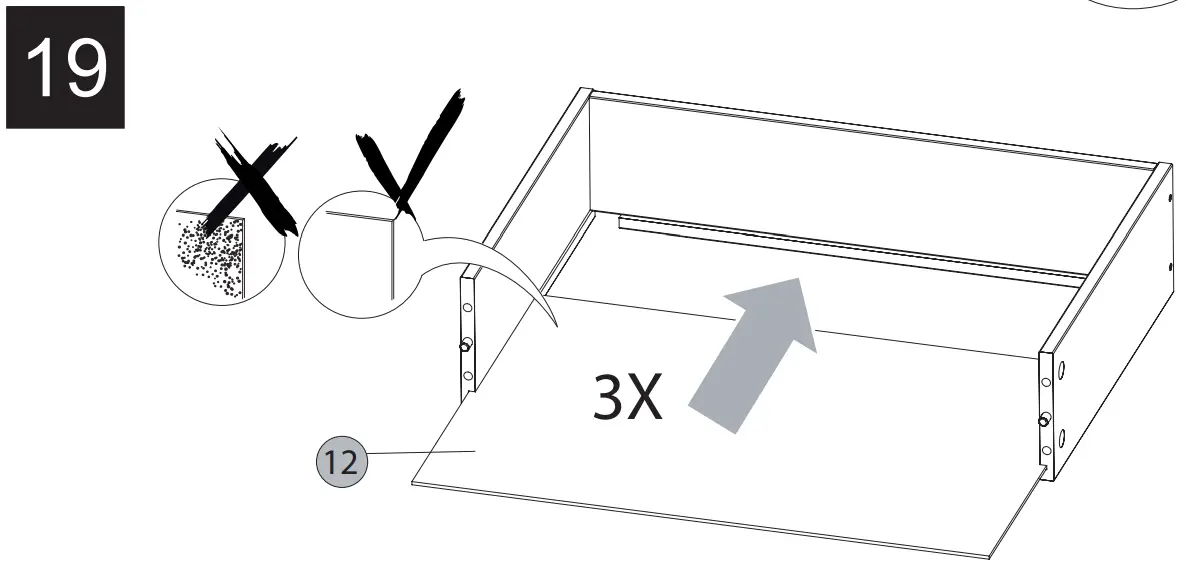

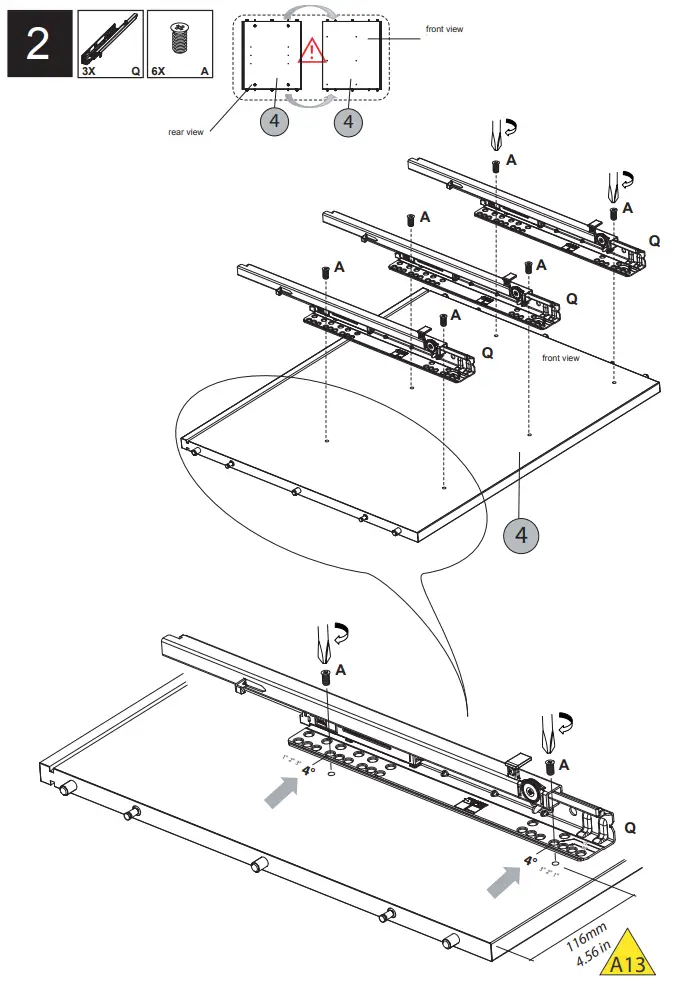

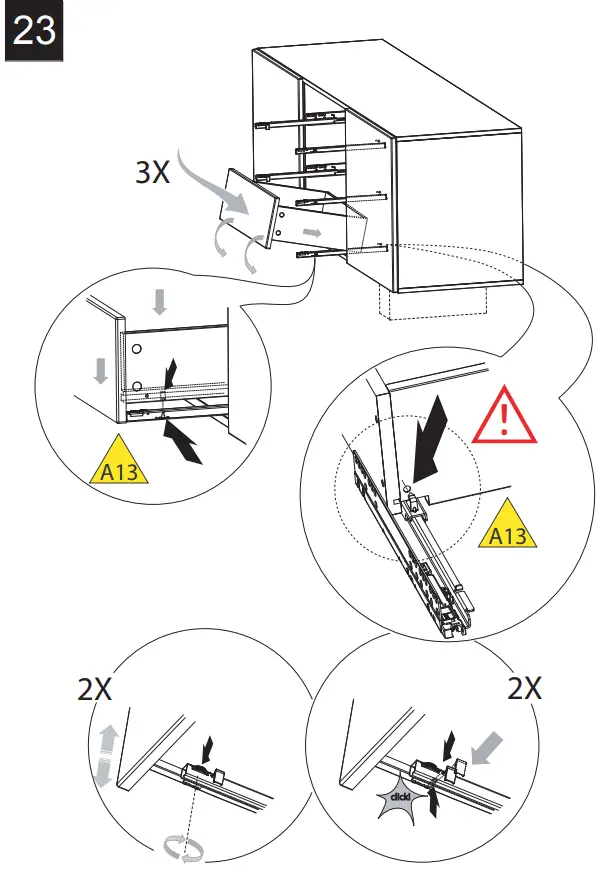

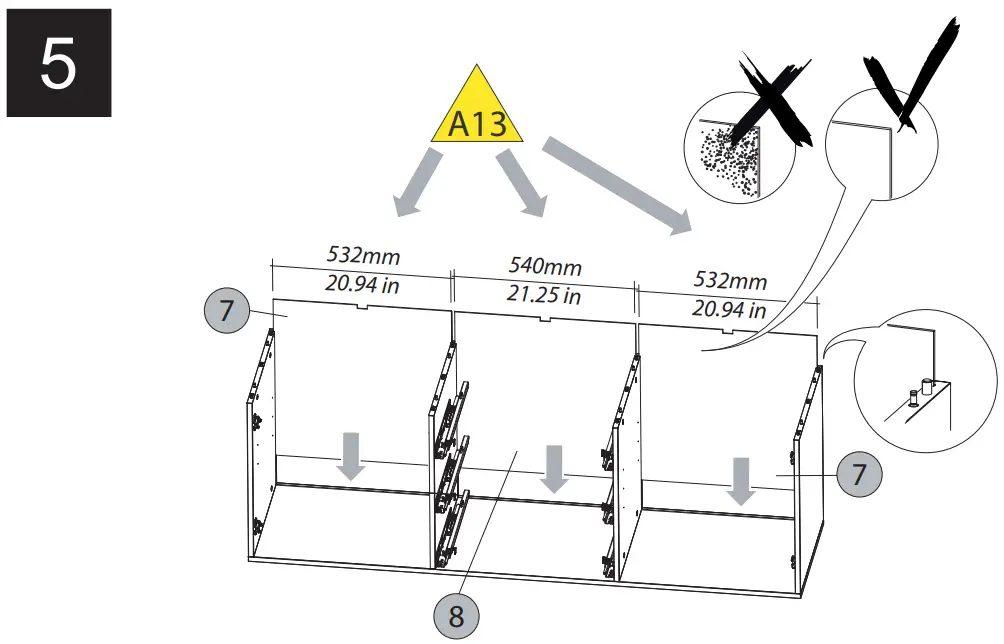

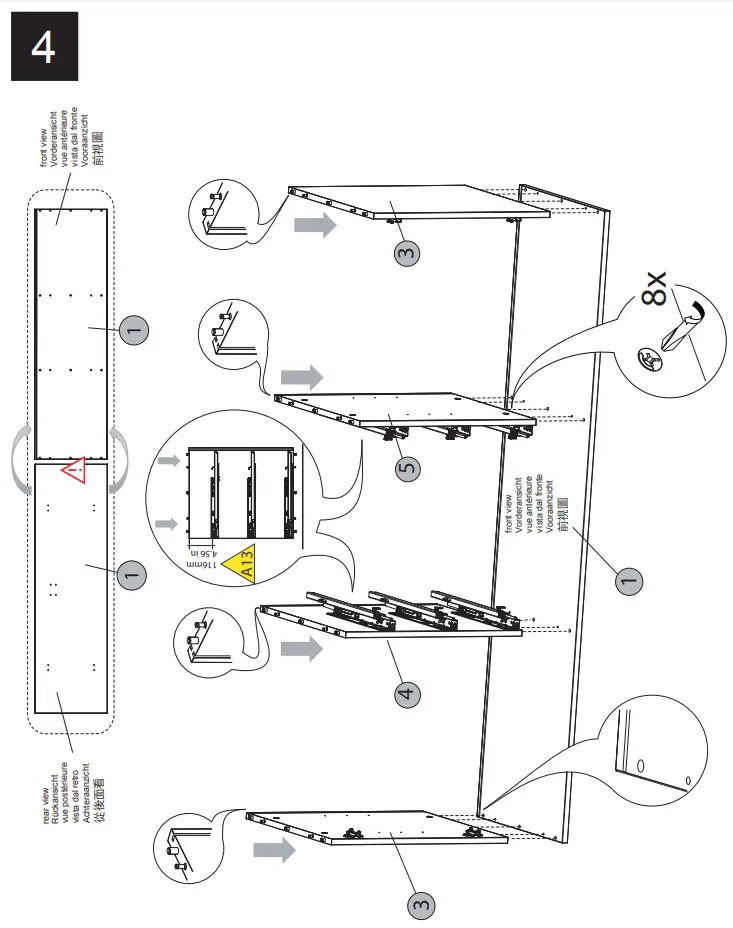

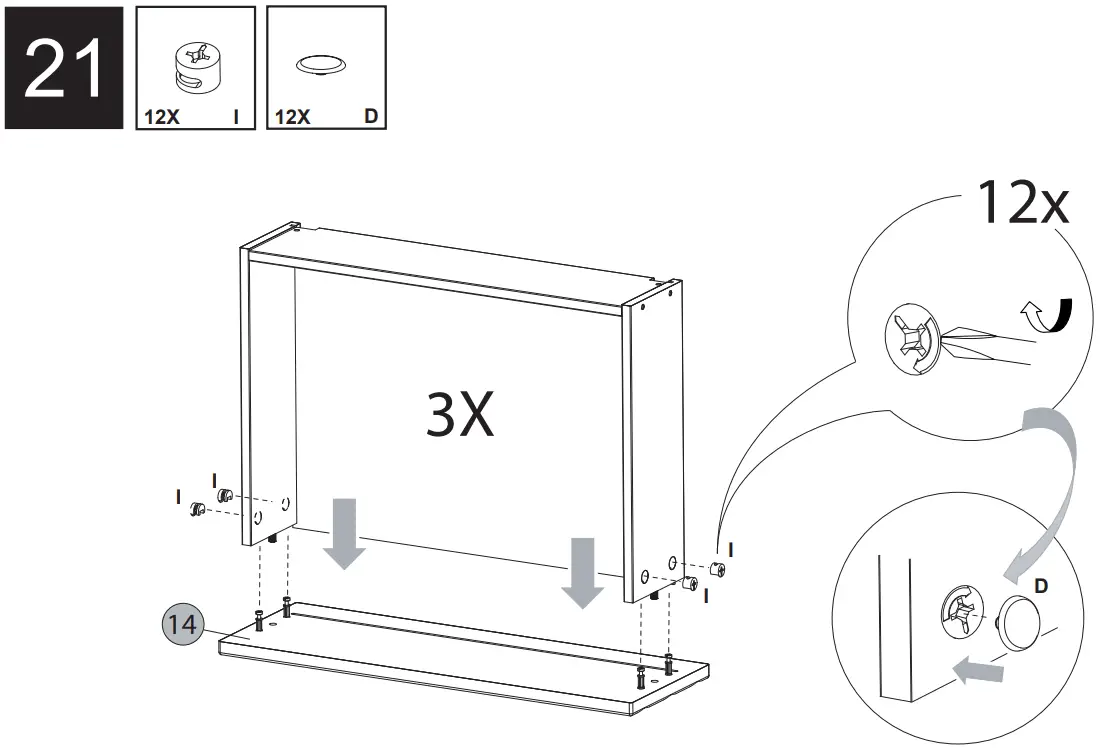

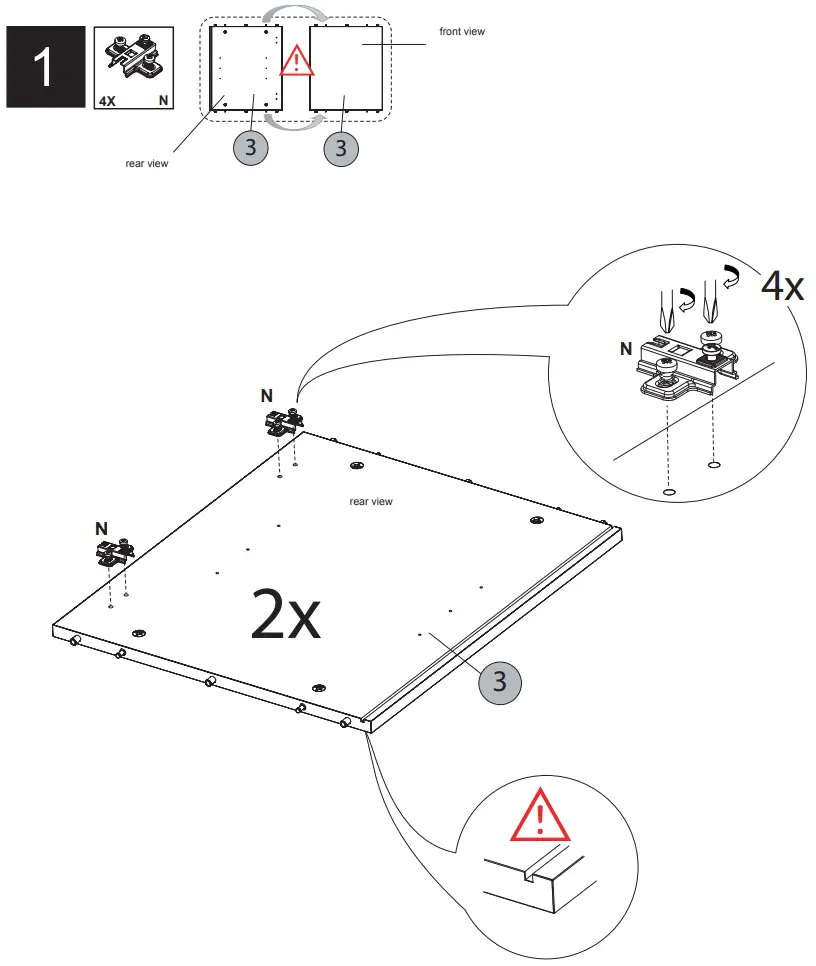

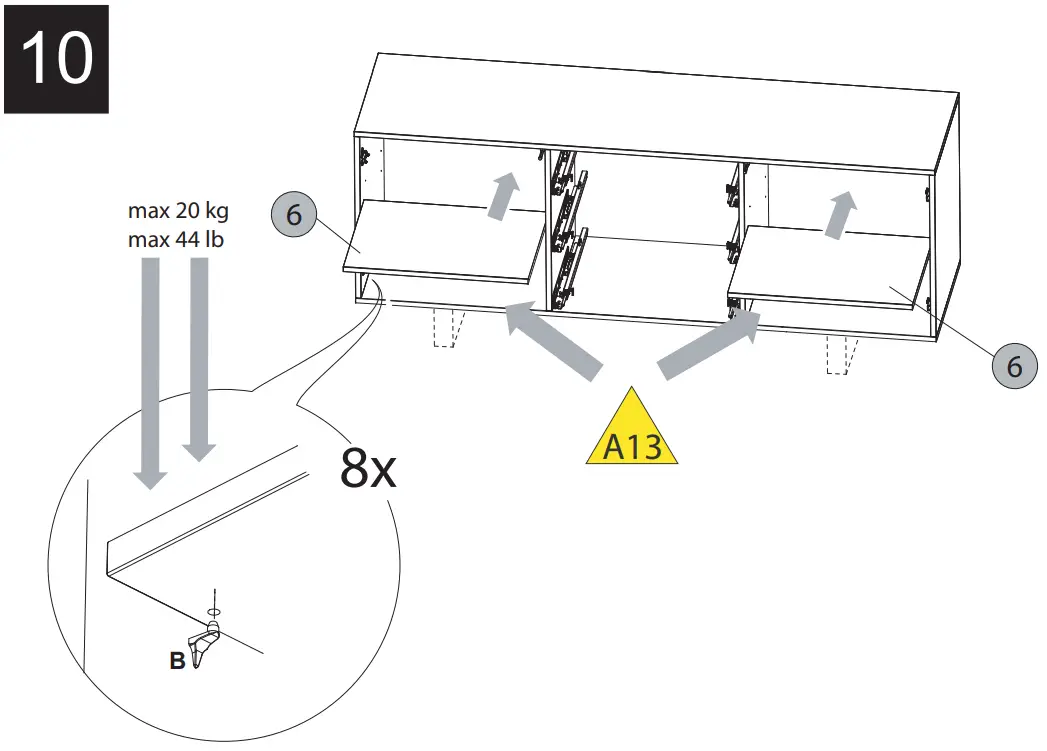

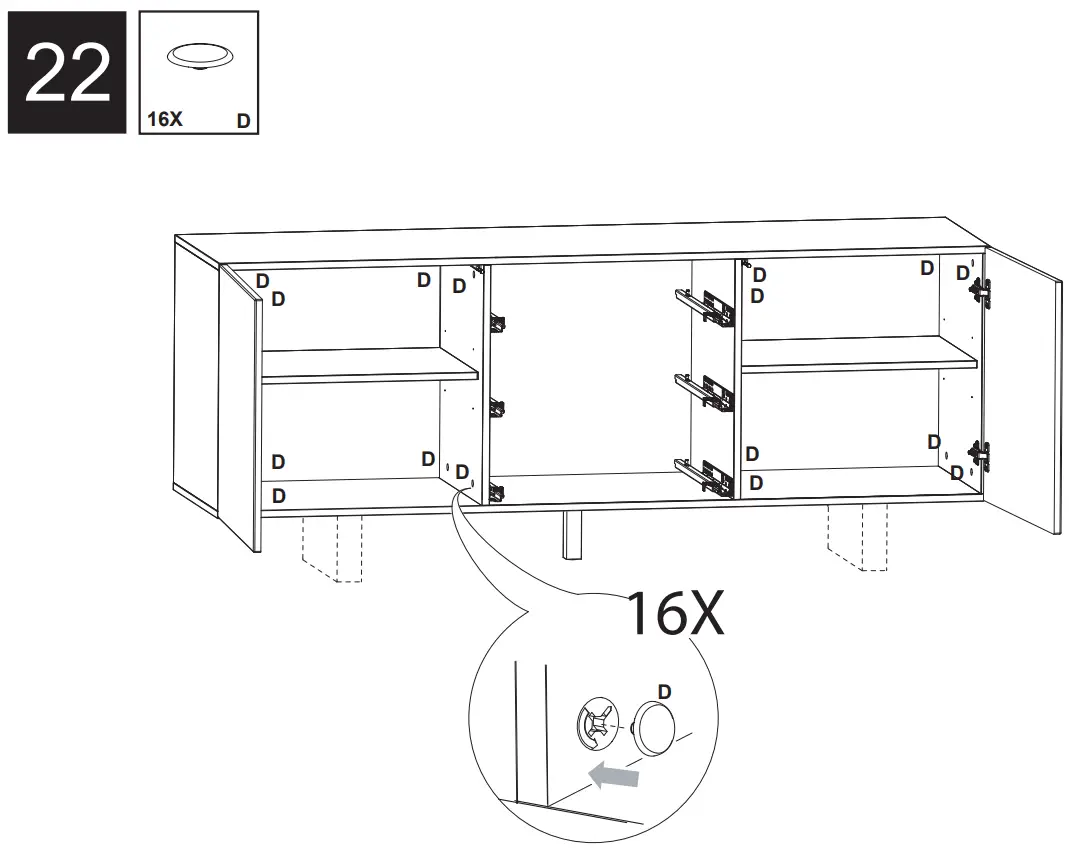

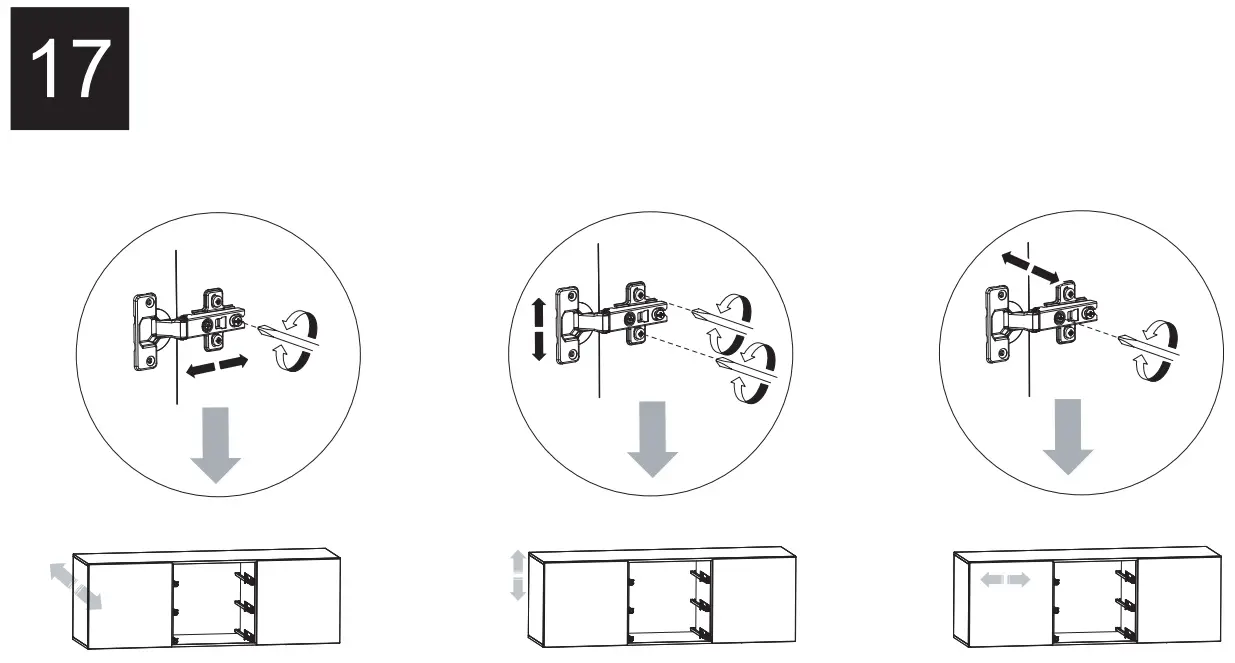

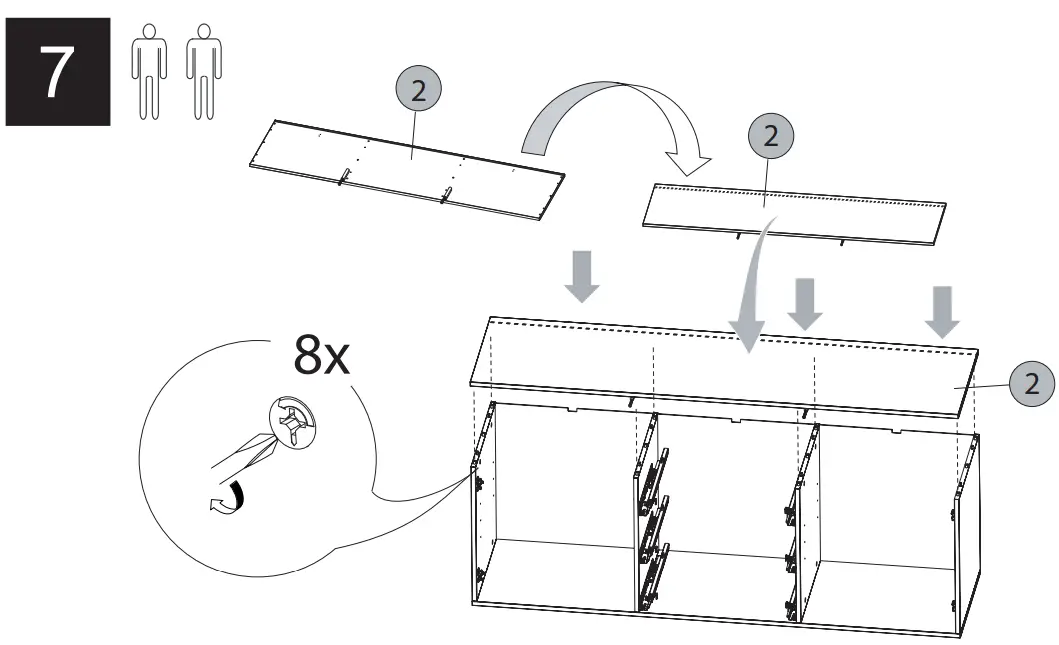

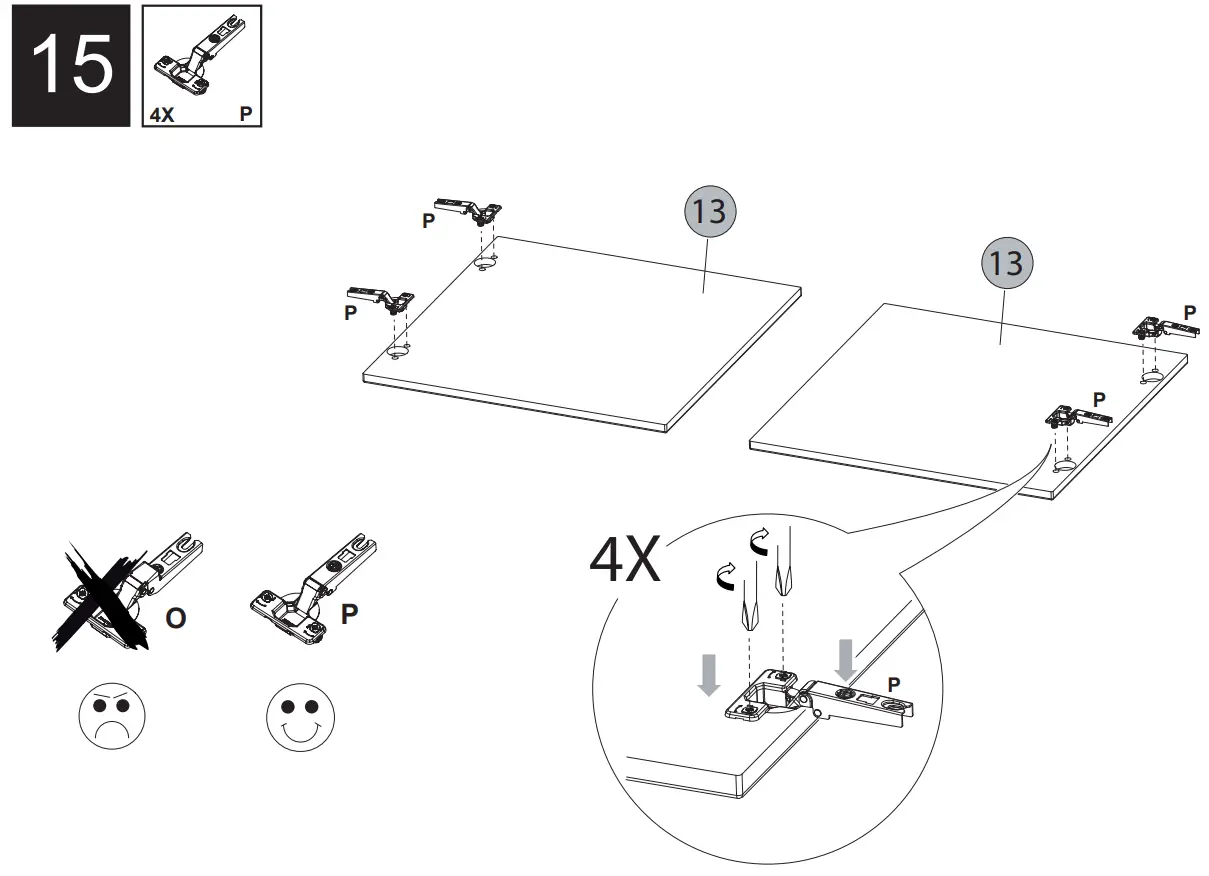

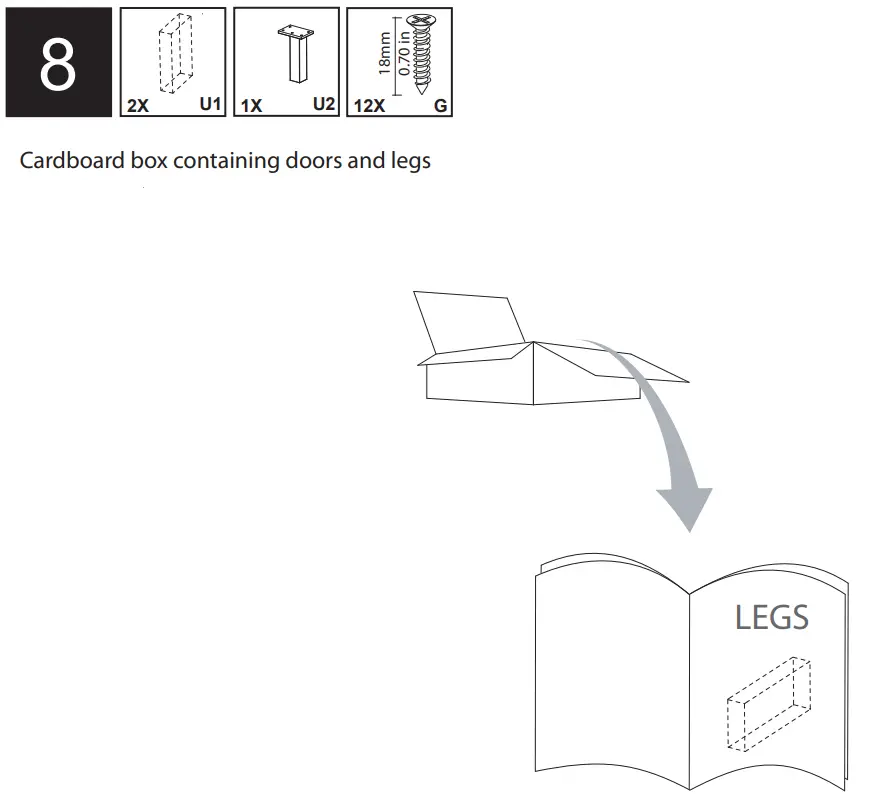

Assembly instructions
Attention

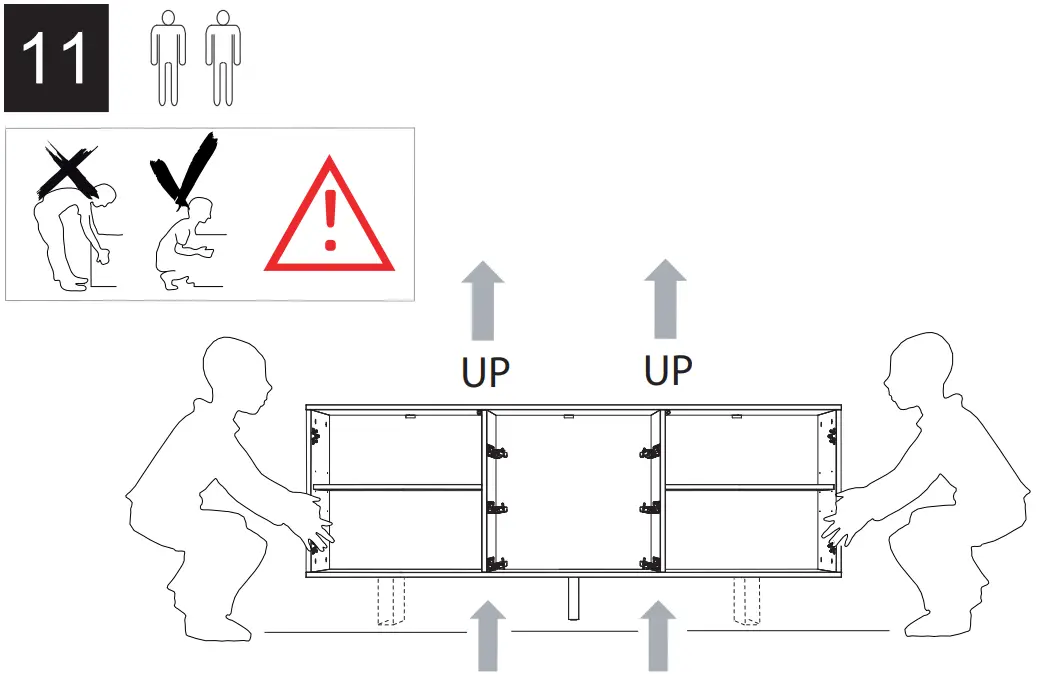

Always move carefully keeping the module raised off the ground in order not to damage the legs of the cabinet.
Attention

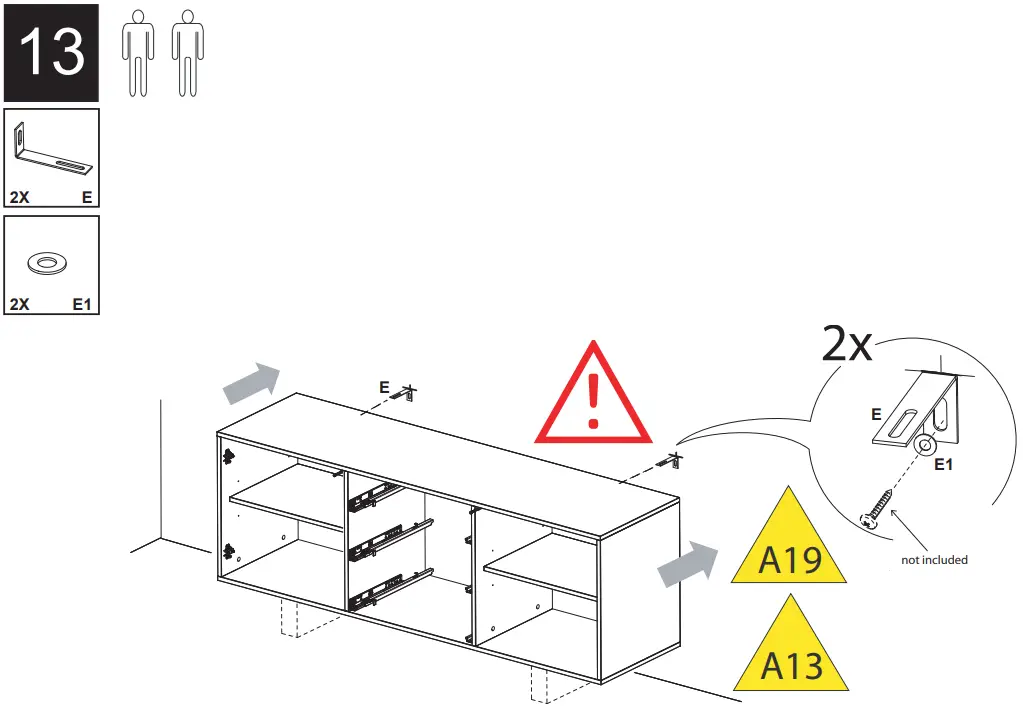

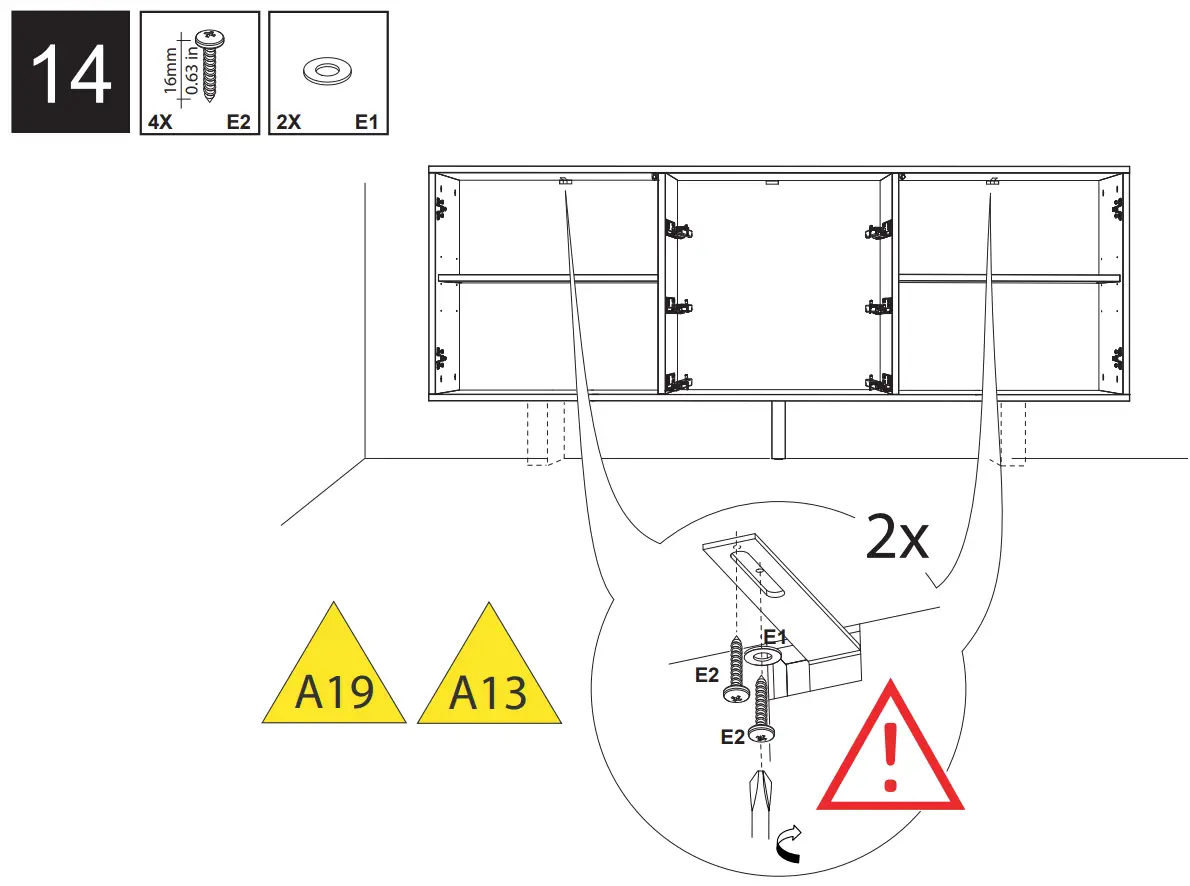

Wall mounting instructions and warnings are particularly important and should not be changed, “Because wall materials vary, wall mounting screws are not included.
Use the correct hardware for your wall construction. ”
Care tips
Please only clean with a duster or a damp cloth.
Do no use any abrasive cleaners.
In general, keep water away from your furniture (e. g. when mopping or watering plants). The moisture may penetrate the furniture and damage it.
