INOSIGN 9457094667 Sideboard 3 Mister Instruction Manual

Assembly Instructions

Assembly instructions

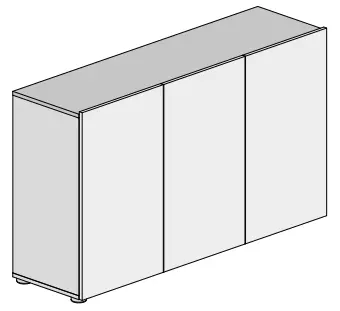

Sideboard 3

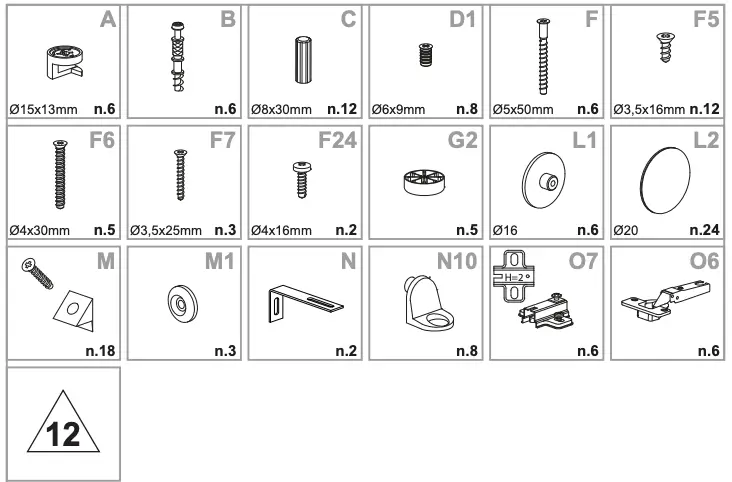

Parts

Safety instructions

Triangle Installation NotesThe triangle reminds you during the installation of the following notes.

Triangle Installation Note 1Assembly must be carried out by qualified personnel. If it is not carried out correctly, the product may tip over or fall, damaging people or things. Because there are walls of different materials, the screws for fixing to the wall are not including. To choose the right fastening accessories, contact a local dealer.

Triangle Installation Note 12Ensure that children do not put any small parts such as nuts, caps or the like in their mouth. They could swallow and choke on them.

Triangle Installation Note 13When assembling the product, please proceed with caution and comply with the assembly instructions.

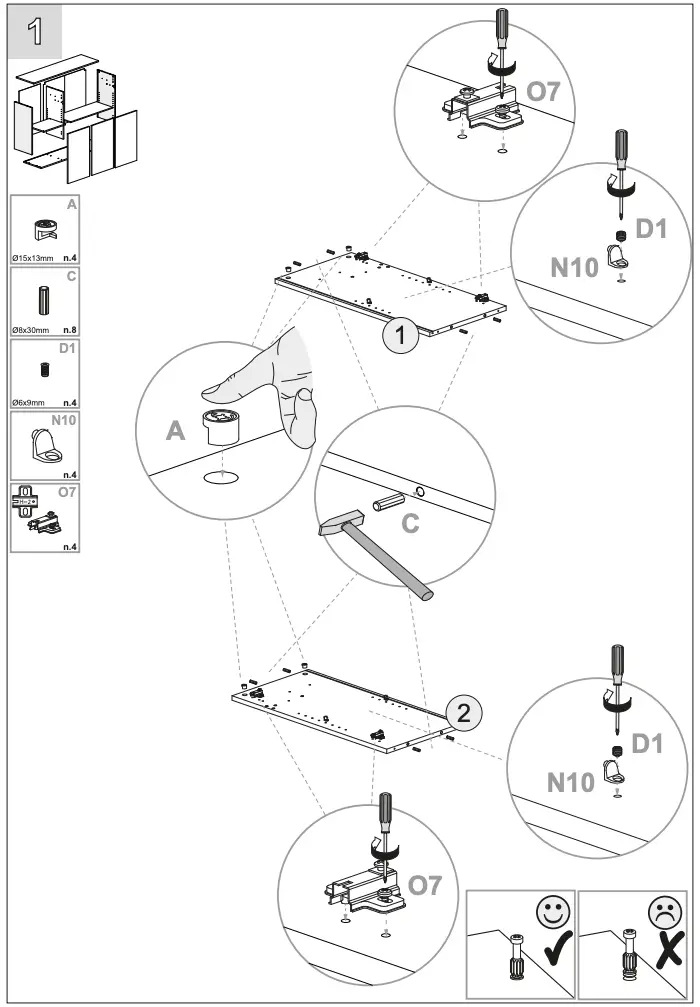

Instruction Figure 1

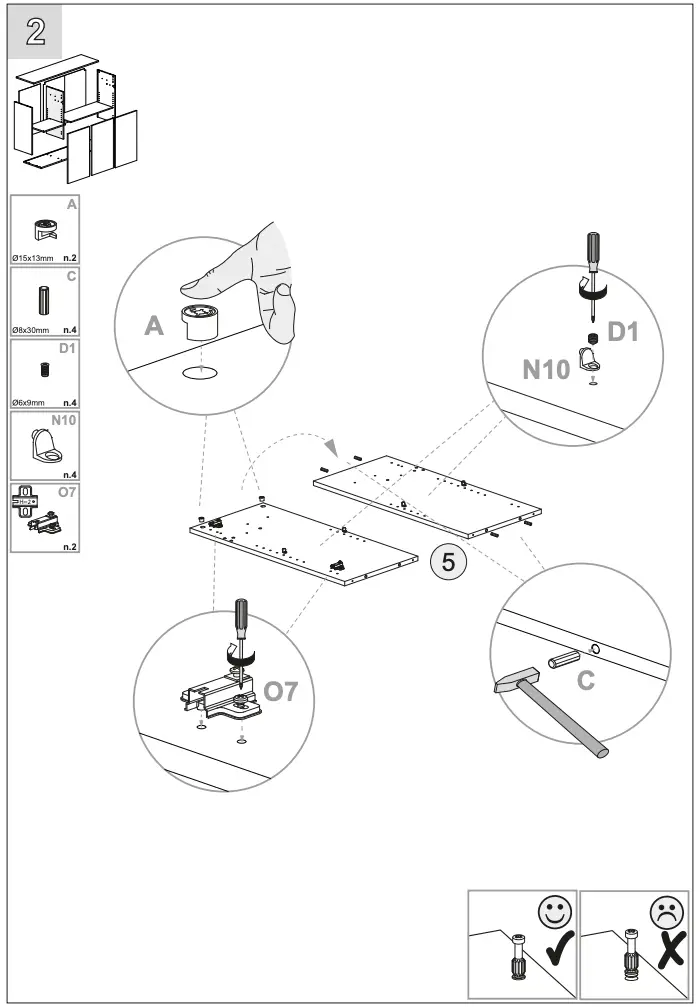

Instruction Figure 2

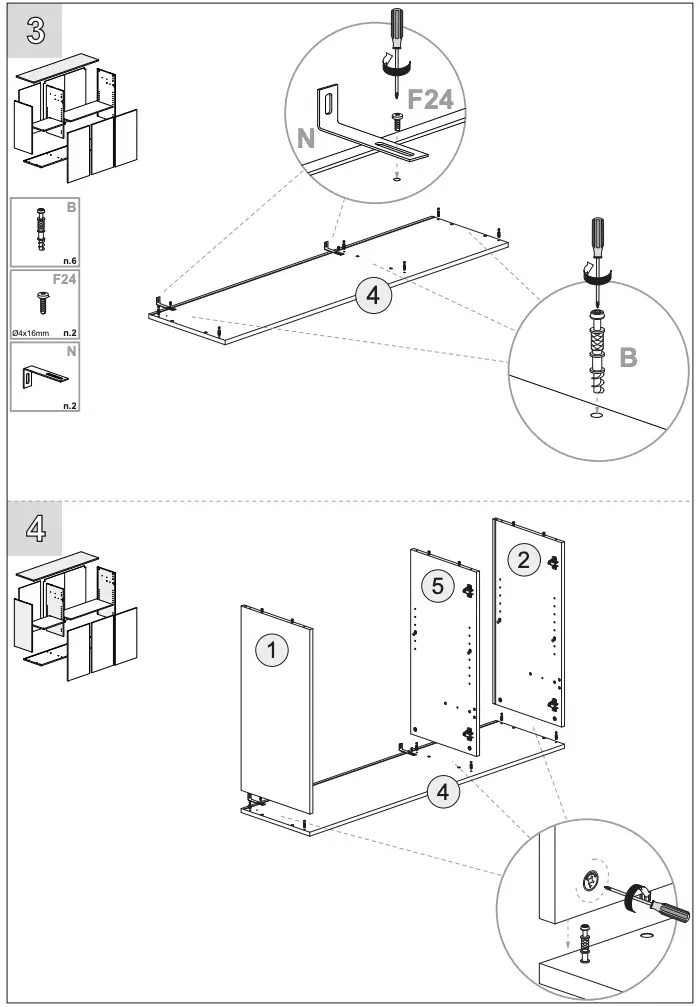

Instruction Figure 3 and 4

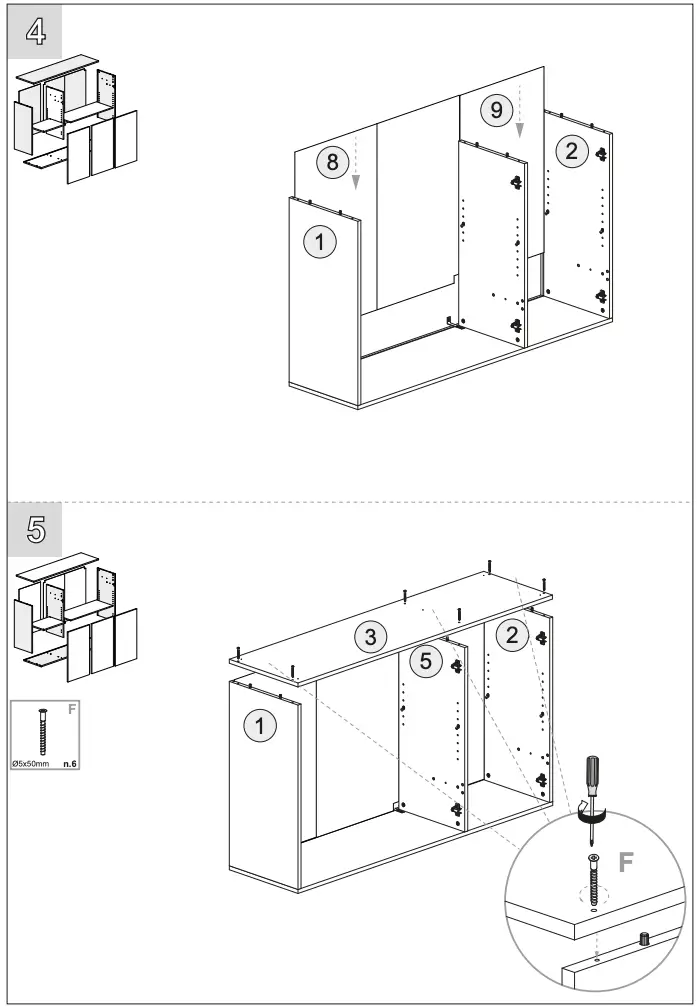

Instruction Figure 4 and 5

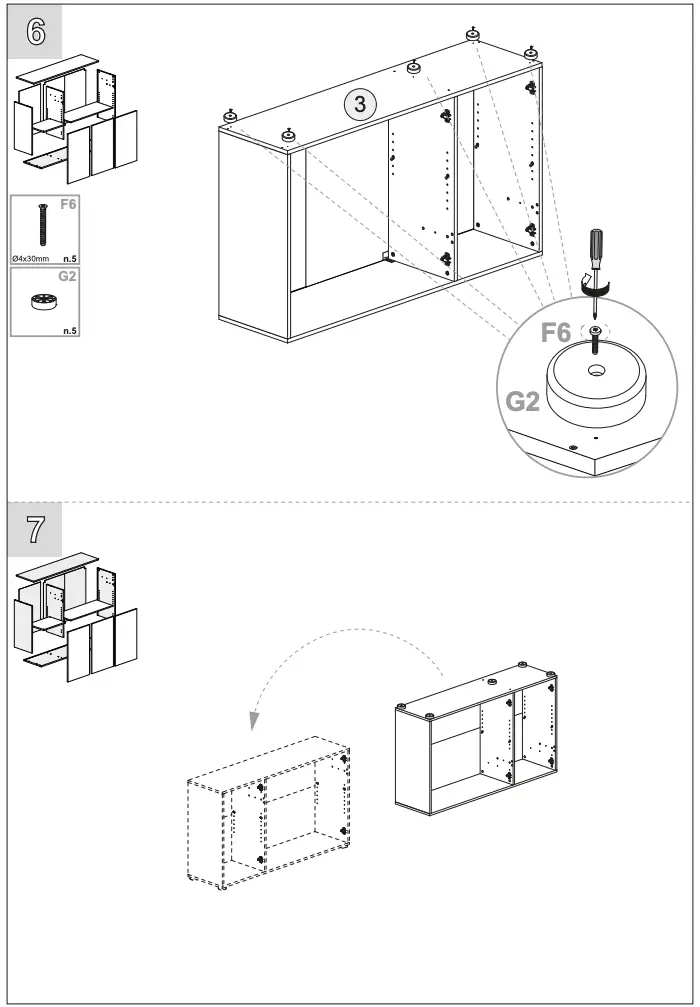

Instruction Figure 6 and 7

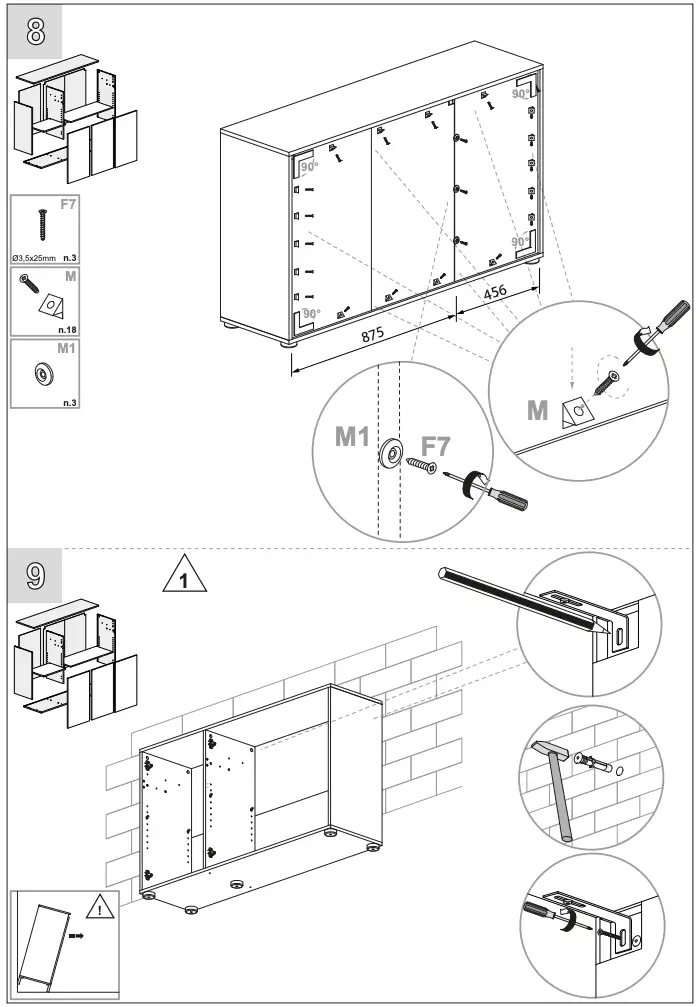

Instruction Figure 8 and 9

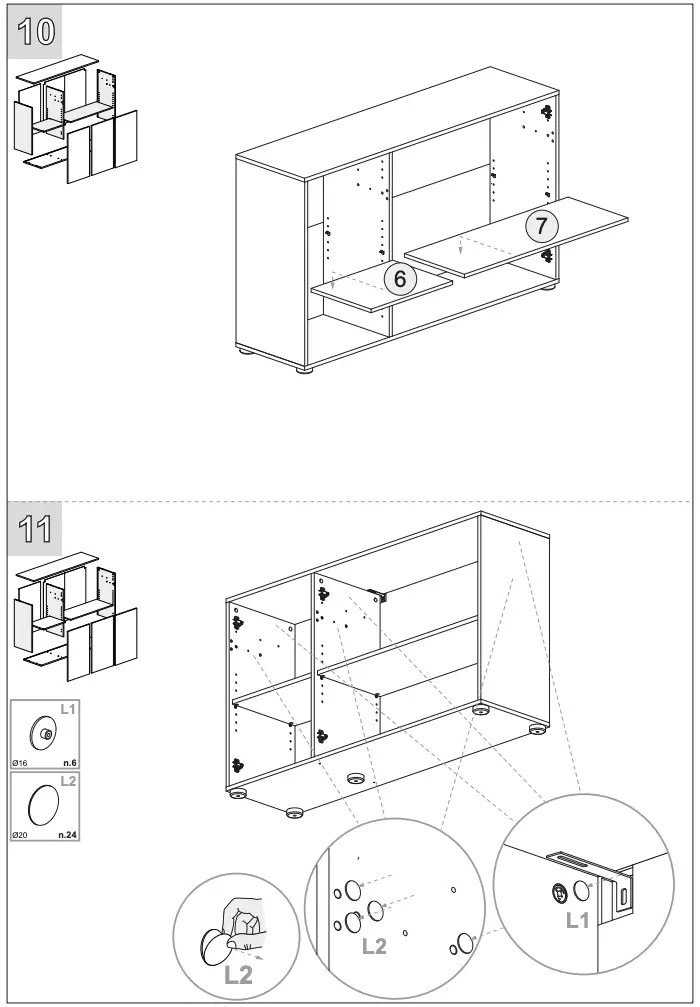

Instruction Figure 10 and 11

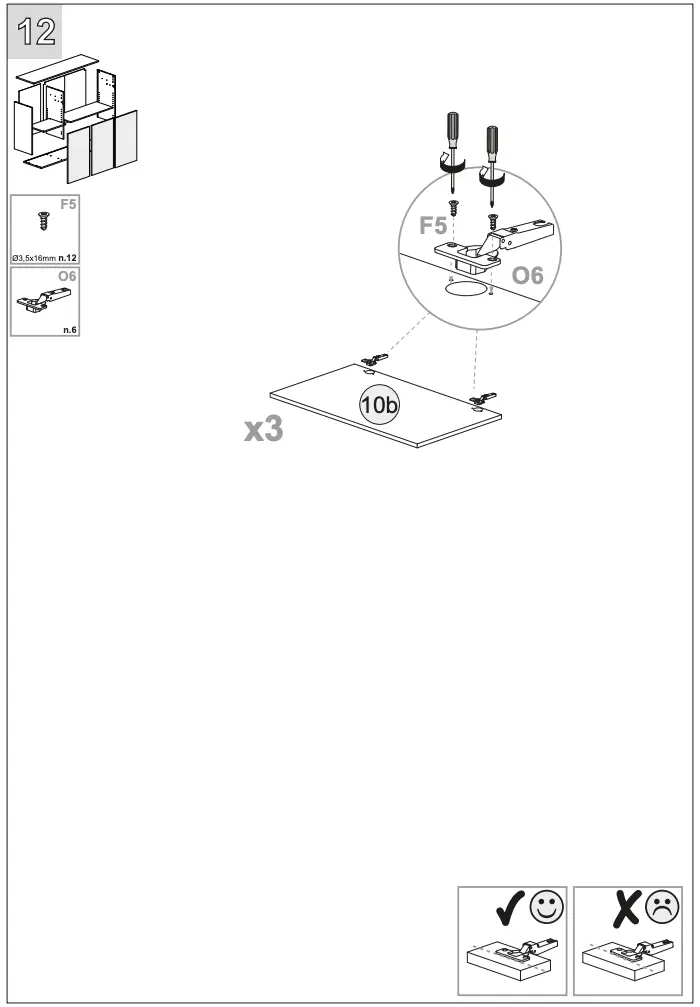

Instruction Figure 12

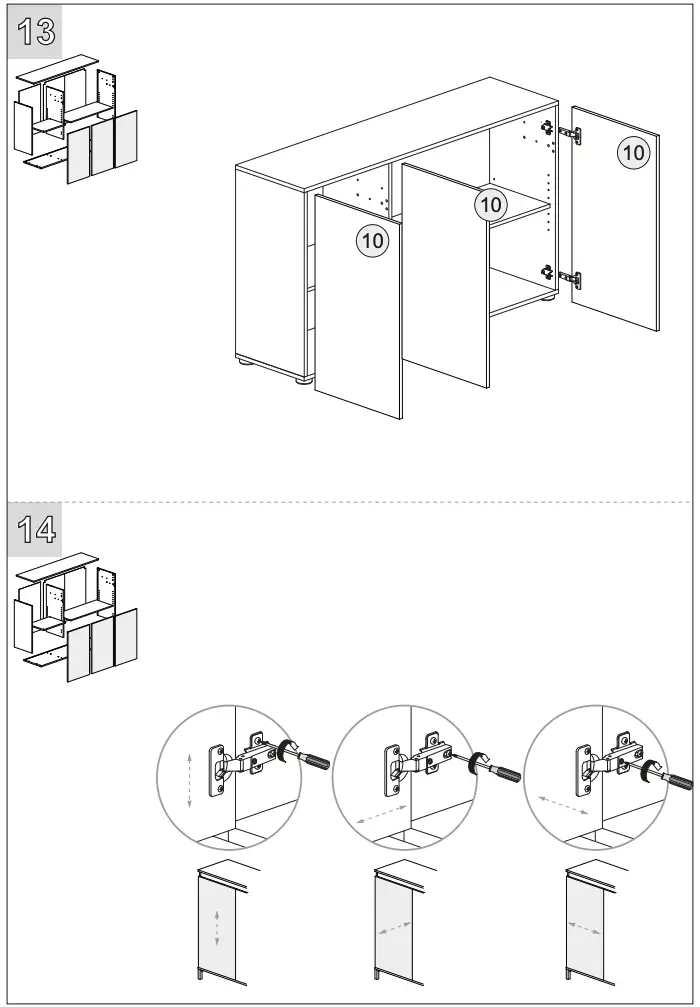

Instruction Figure 13 and 14
