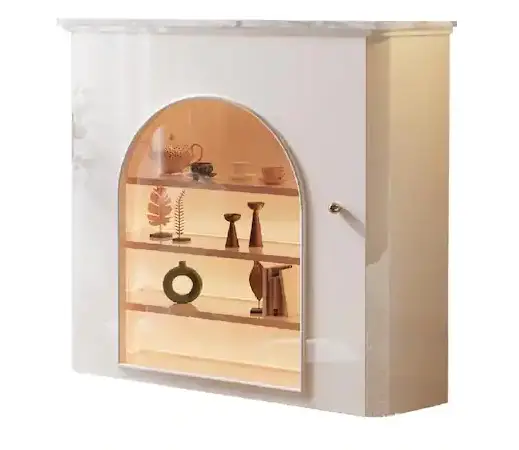

JASIWAY J-B2117X-BE Beige Sideboard

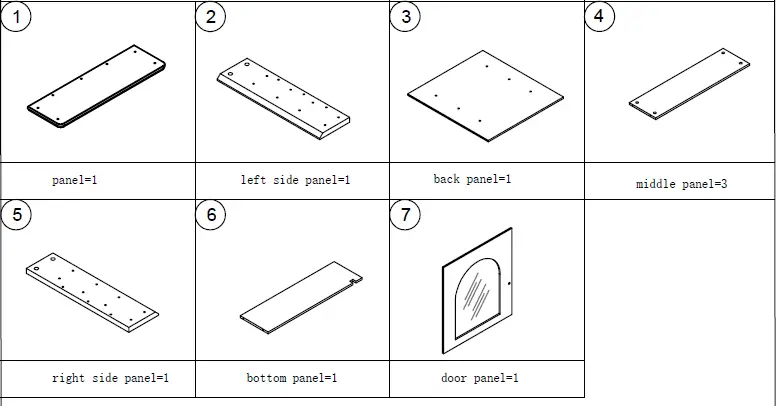

PART LIST

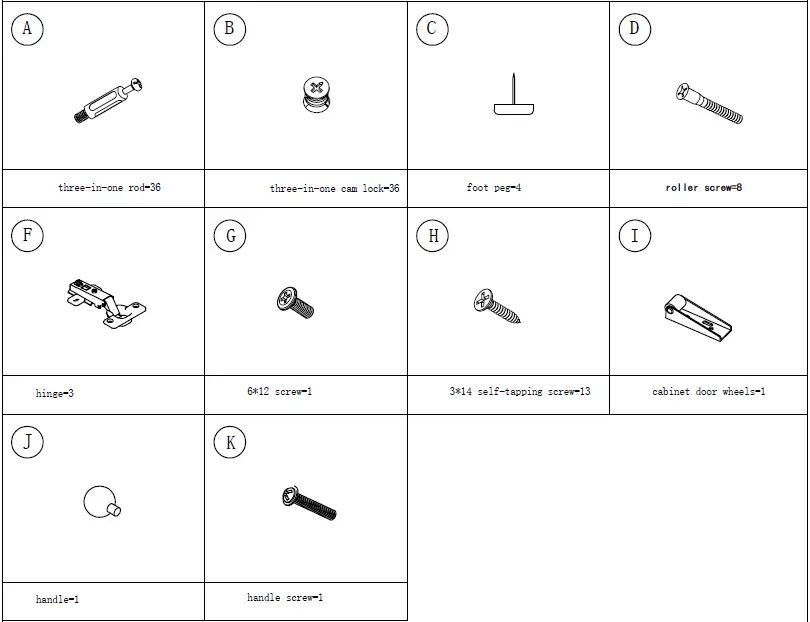

HARDWARE LIST

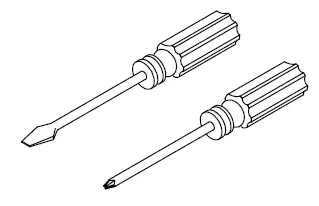

TOOLS REQUIRED
Phillips head screwdriver required for assembling —not include
Installation Instruction

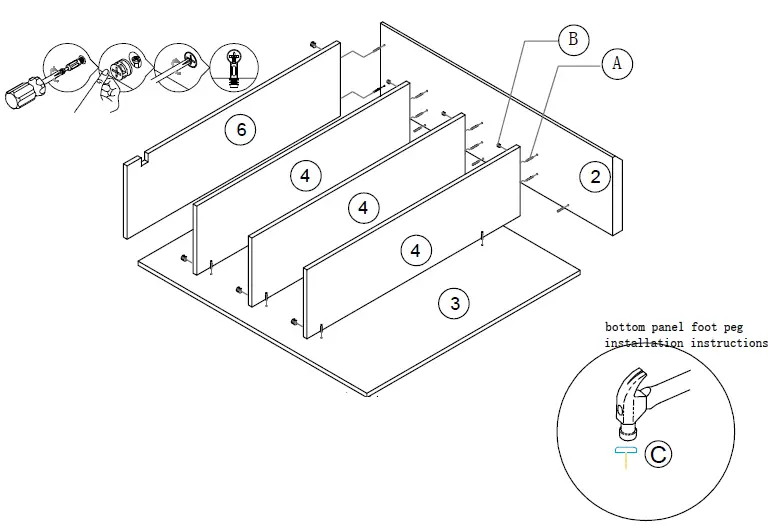

STEP 1
- Assemble
- left side panel
- back panel
- middle panel
- bottom panel
.Use 17 pcs(A)three-in-one rods,17 pcs(B)three-in-one cam locks to install②,③,④,⑥.
Noted: Install four pcs(C)foot pegs with a hammer on the surface of the ⑥ bottom panel that touches the ground.

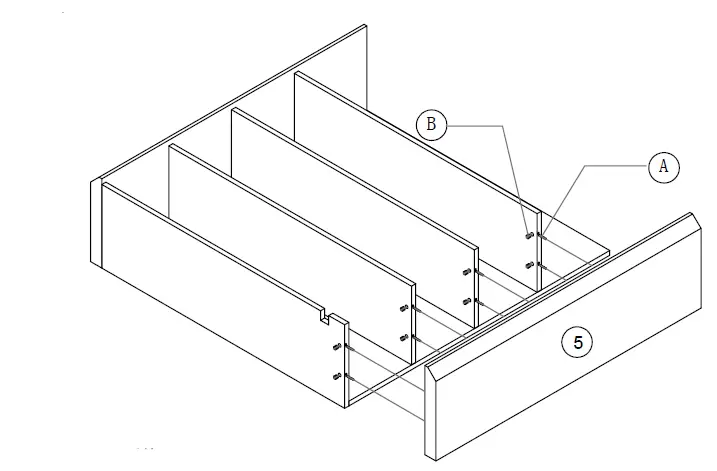

STEP 2
- Use eight pcs(A)three-in-one rods,eight pcs(B)three-in-one cam locks to fix
- left side panel
- back panel
- middle panel
- right-side panel
- bottom panel
STEP 3
Panel installation：
- Use seven pcs(A)three-in-one rods,seven pcs(B)three-in-one cam locks to fix
- panel
- left side panel
- back panel
- right side panel.

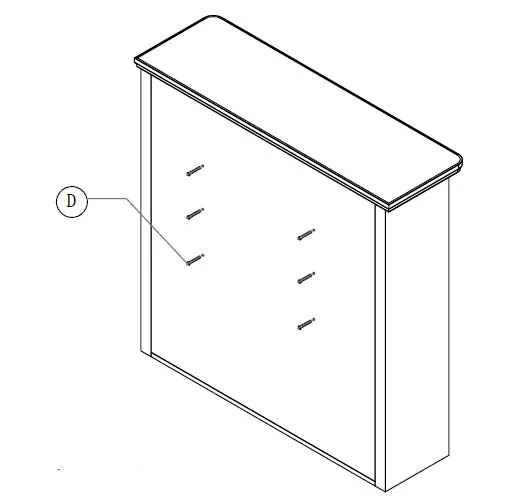

STEP 4
Behind the cabinet, use six pcs(D)roller screws to reinforce the ④middle panel

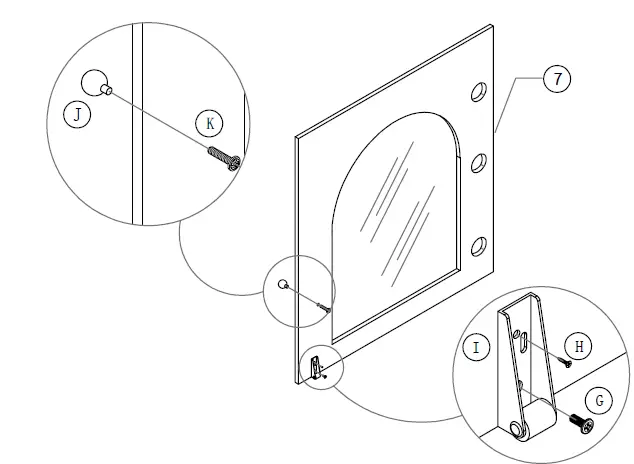

STEP 5
Handle,wheels installation
- Use one pcs(K)handle screw to install one pcs(J)handle on ⑦door panel.
- Use one pcs(H)3*14 self-tapping screw,one pcs(G)6*12 screw to install one pcs(I)cabinet door wheels on ⑦door panel.
STEP 6
Cabinet door installation
Fix ⑦door panel on the cabinet with 12 pcs(H)3*14 self-tapping screws, and three pcs(F)hinges.
