think smart MBA05 SIDEBOARD product
Safety instructions

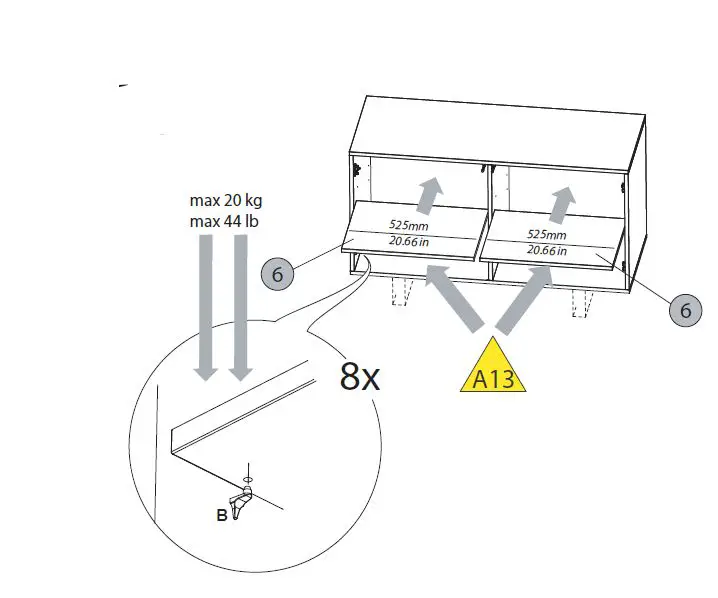

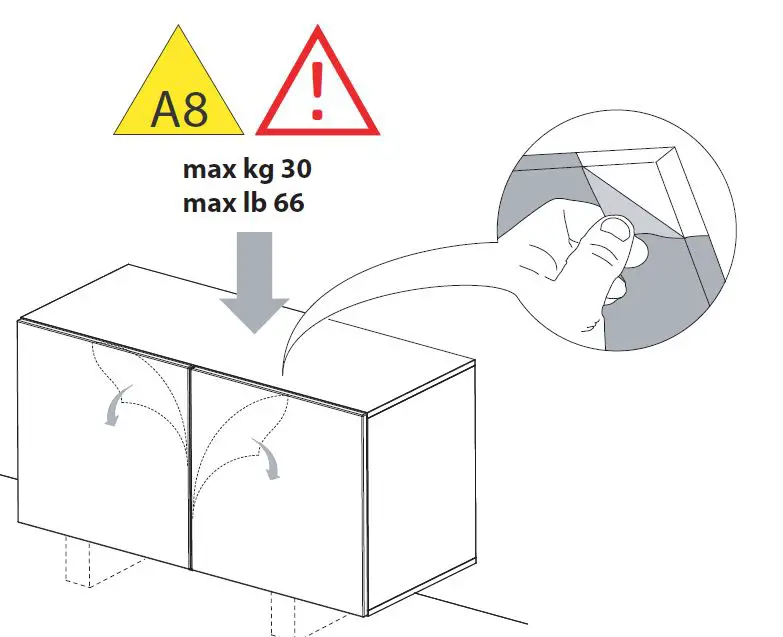

- Do not exceed the maximum loads specified.
- Otherwise, the furniture may sustain damage and be irreparable.
- Ensure that children do not put any small parts such as nuts, caps or the like in their mouth.
- hey could swallow and choke on them.
- When assembling the product, please proceed with caution and comply with the assembly instructions.
- Assembly should be carried out by a qualified person, because wrong assembly may lead to at the furniture toppling over and causing injury or damage.
- As wall materials vary, screws for fixing to wall are not included.
- For advice on suitable screw systems, contact your local specialized dealer.

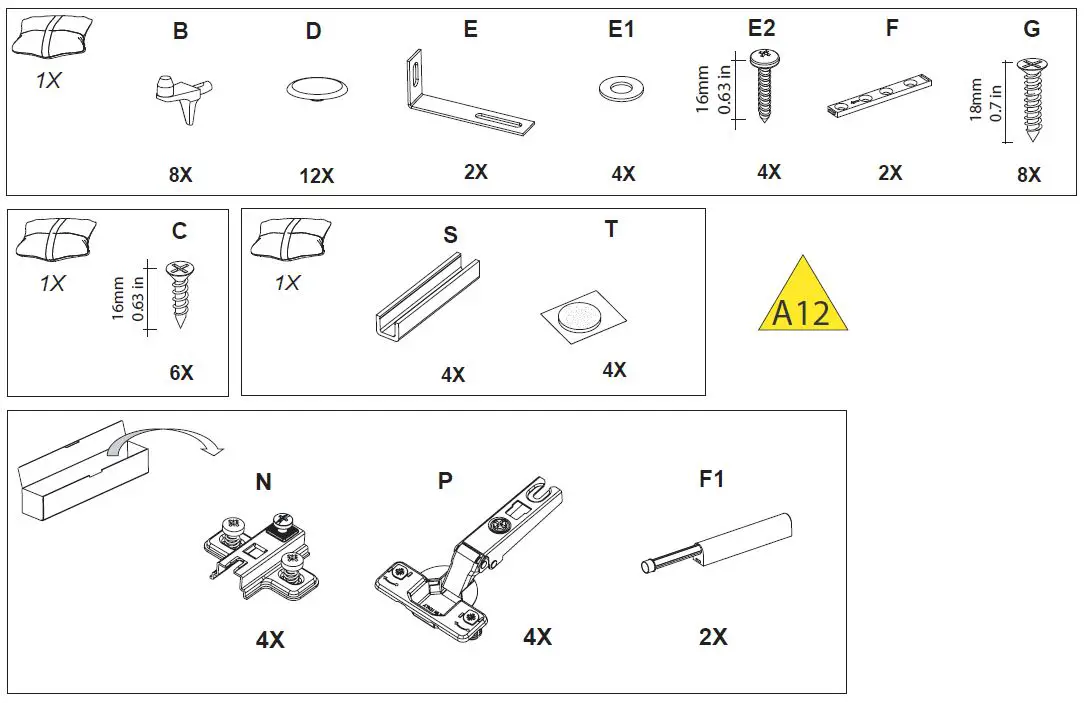

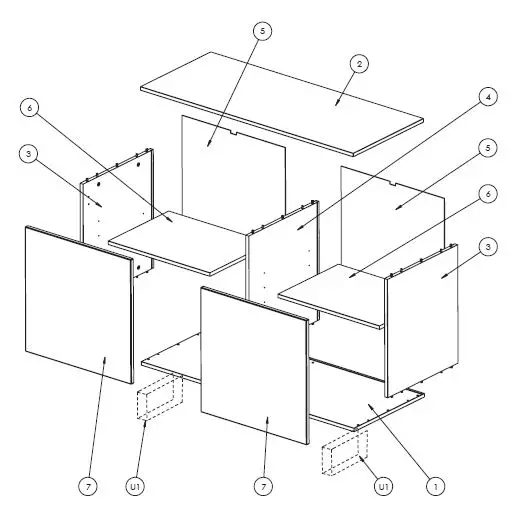

PARTS OVERVIEW
| nr | qty | length mm | length inch | width mm | width inch | thickness mm | thickness inch | box nr | A13
| |
| 1 | 1 | 1099 | 43,27 | 454 | 17,87 | 16 | 0,63 | 2-3 | ||
| 2 | 1 | 1099 | 43,27 | 454 | 17,87 | 16 | 0,63 | 2-3 | ||
| 3 | 2 | 519 | 20,43 | 453 | 17,83 | 16 | 0,63 | 1-3 | ||
| 4 | 1 | 519 | 20,43 | 453 | 17,83 | 16 | 0,63 | 1-3 | ||

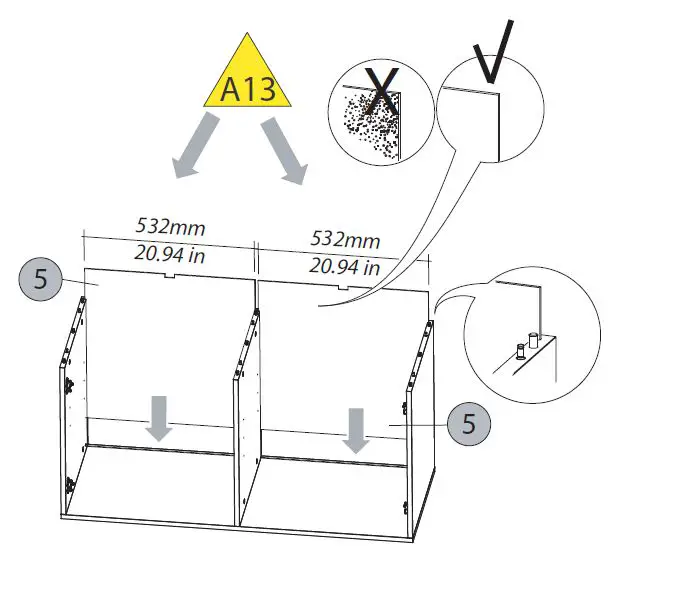

| 5 | 2 | 532 | 20,94 | 526 | 20,71 | 3 | 0,12 | 2-3 | ||
| 6 | 2 | 390 | 15,35 | 525 | 20,67 | 16 | 0,63 | 1-3 | ||
| 7 | 3 | 547 | 21,54 | 547 | 21,54 | 16 | 0,63 | 3-3 | ||
| U1 | 2 | 2-2 | ||||||||
TOOLS REQUIRED
SCALE REQUIRED
PRODUCT VIEW

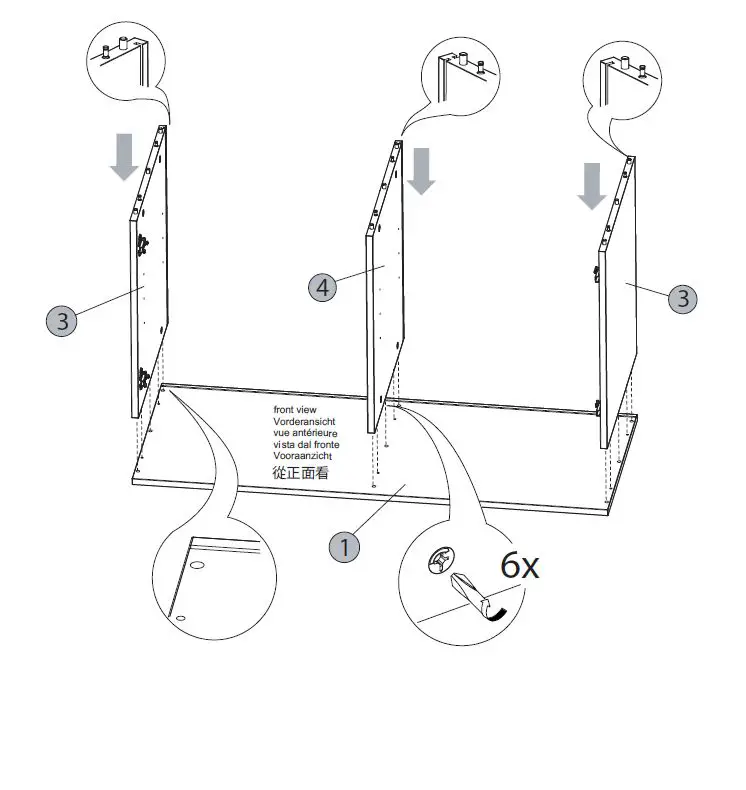

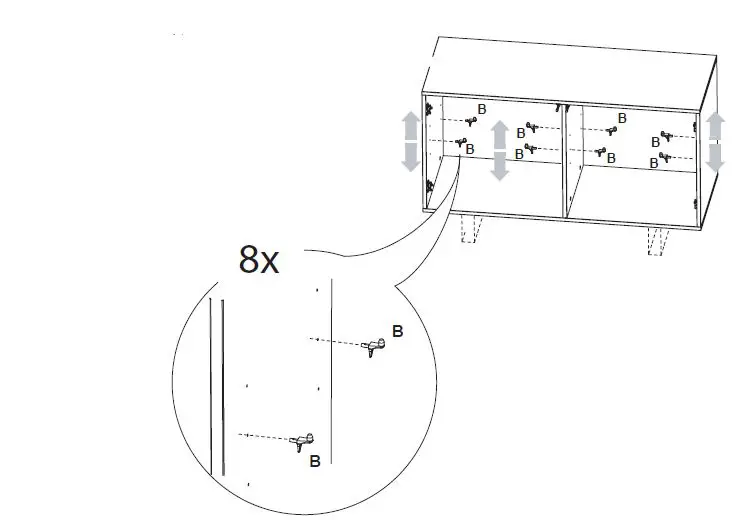

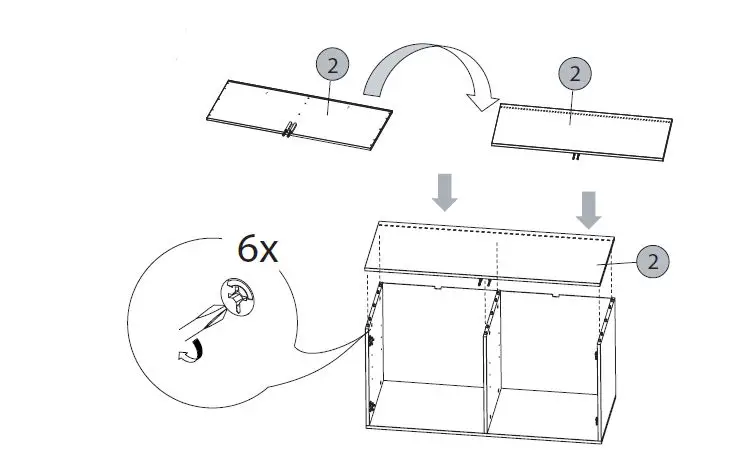

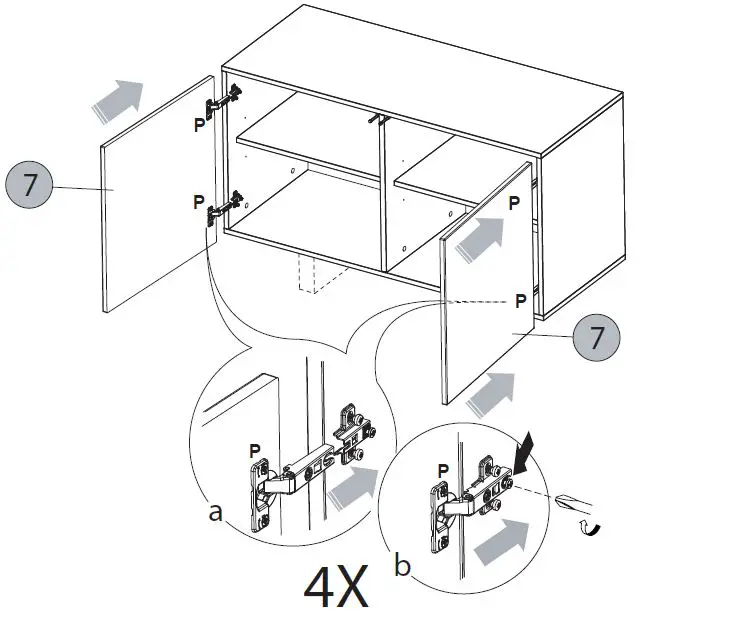

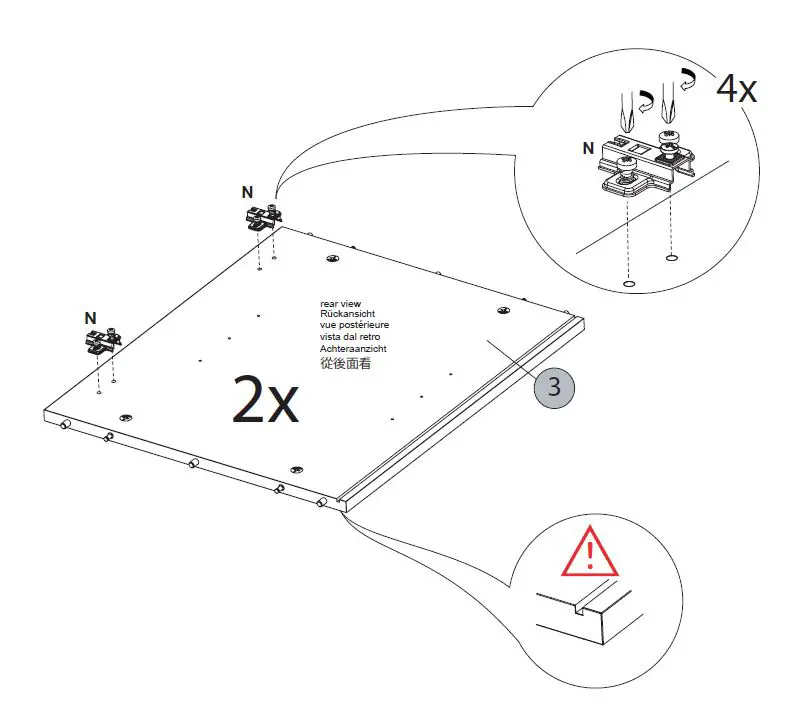

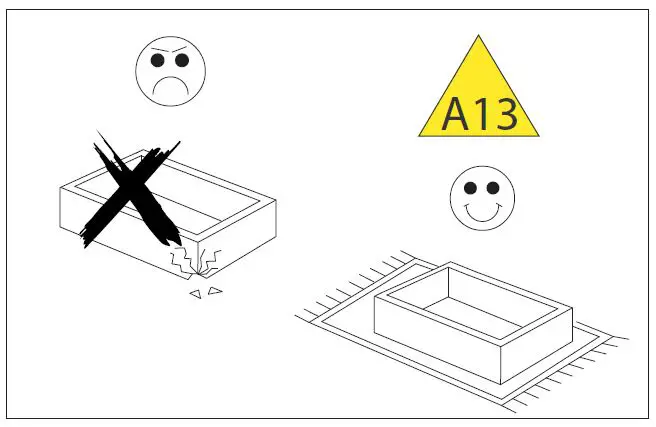

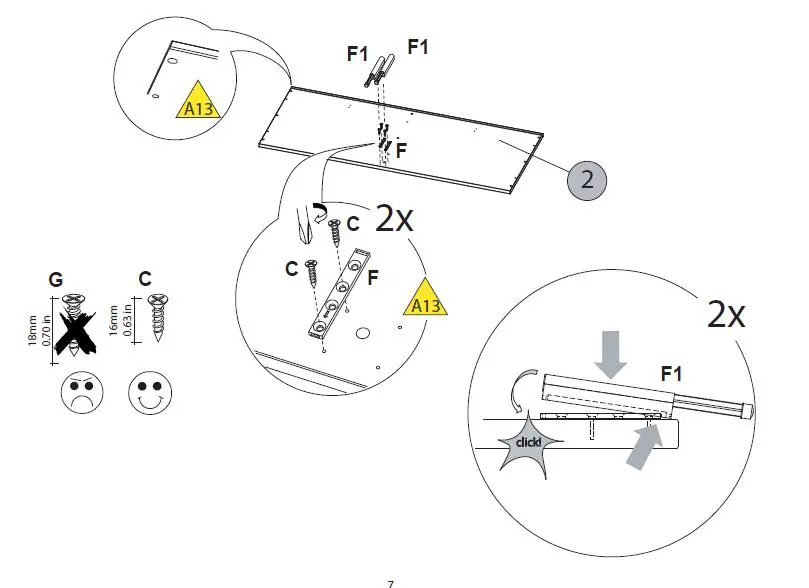

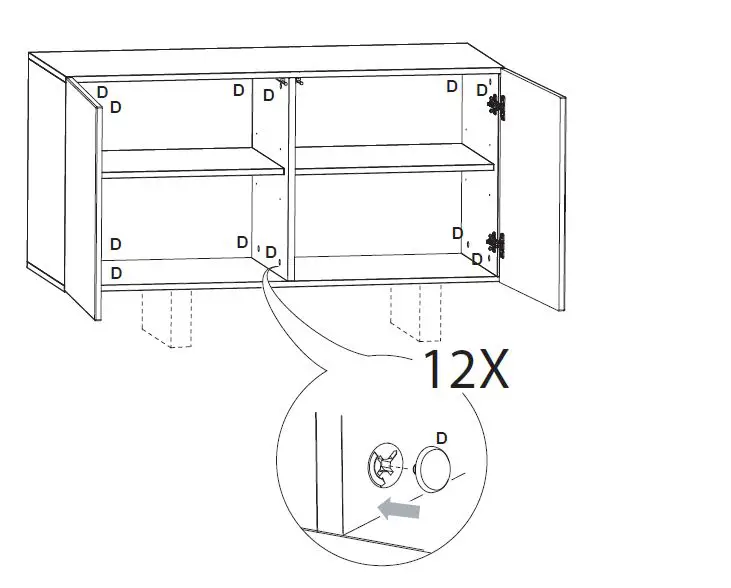

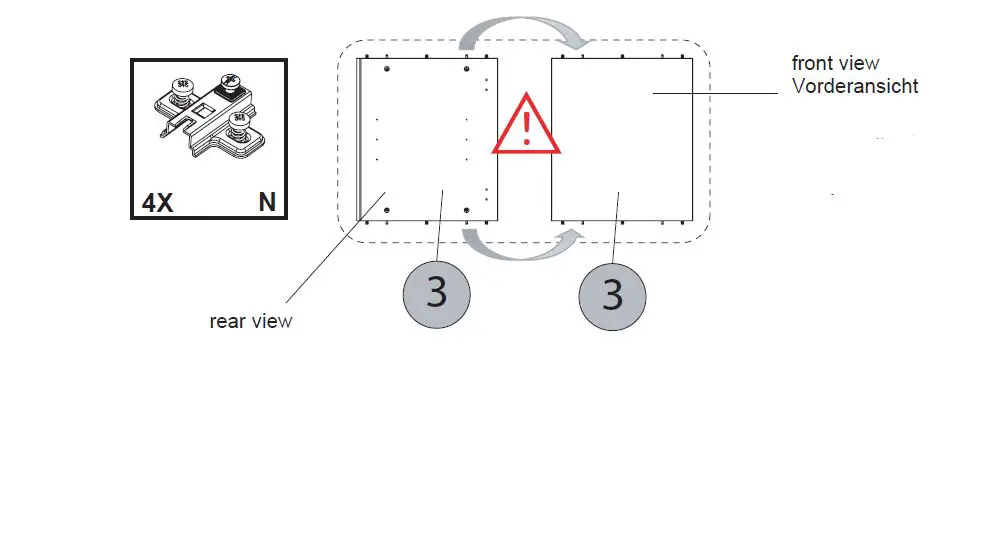

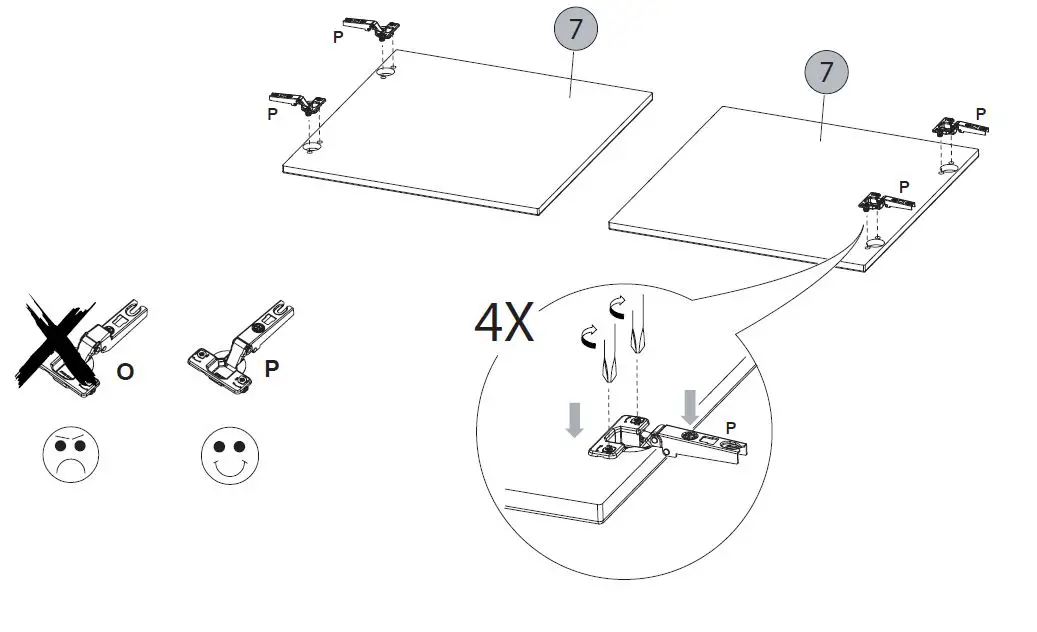

ASSEMBLING INSTRUCTIONS
Package Inside
Cardboard box containing doors and legs.
Dimensions Required
How we fix it?

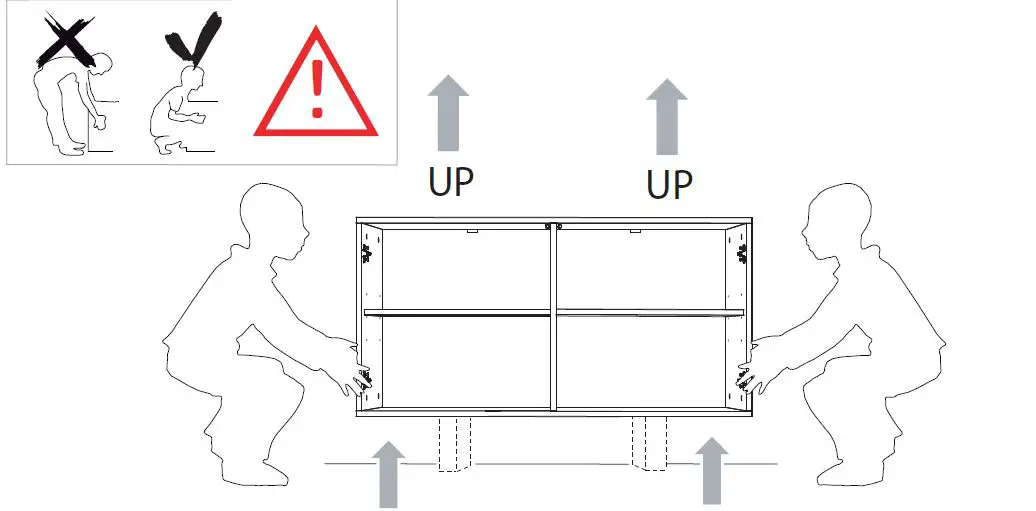

Always move carefully keeping the module raised off the ground in order not to damage the legs of the cabinet.

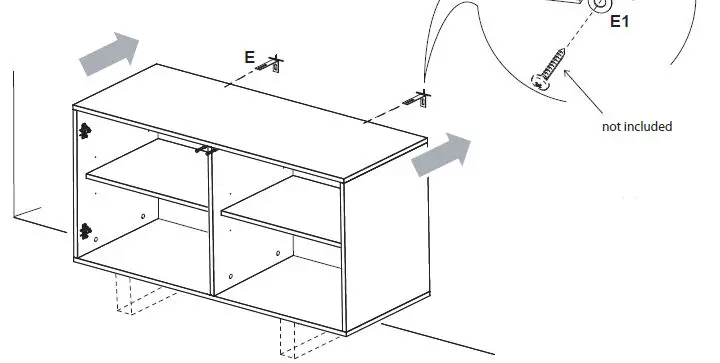

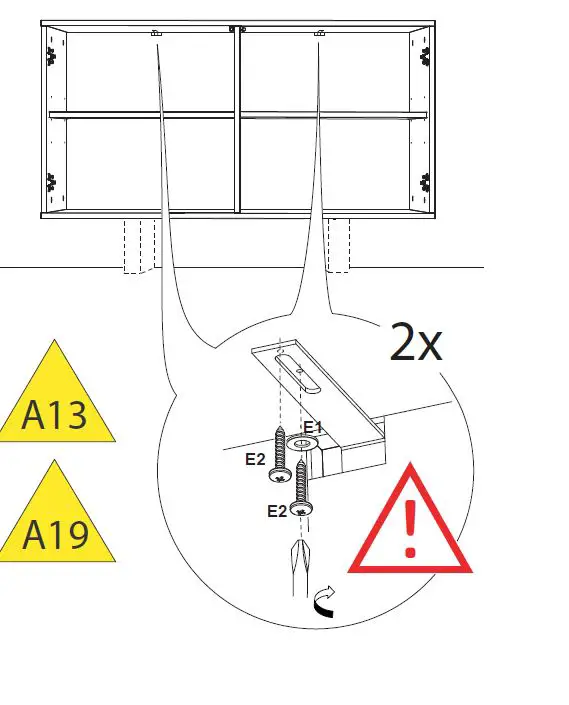

Wall Mounting Instructions
Cleaning and maintance
Please only clean with a duster or a damp cloth.
