SIDEBOARD model MBA25
Safety instructions
The triangle reminds you during the installation of the following | notes.

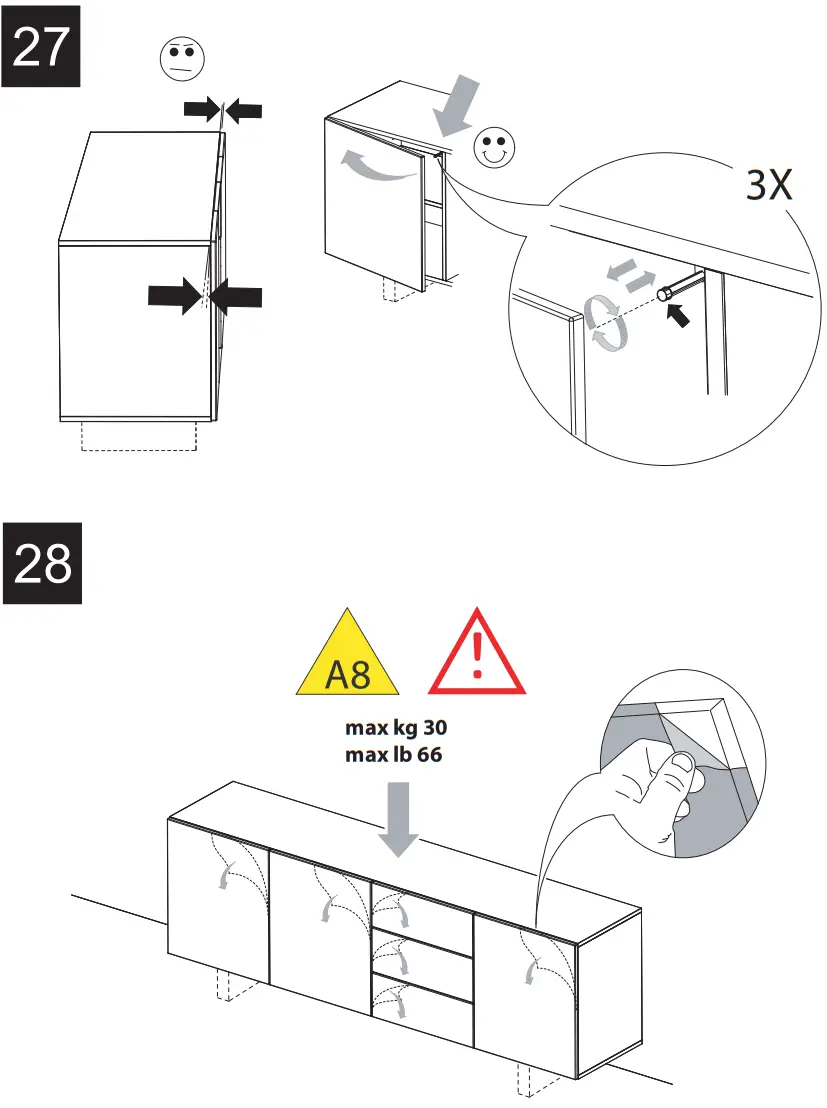

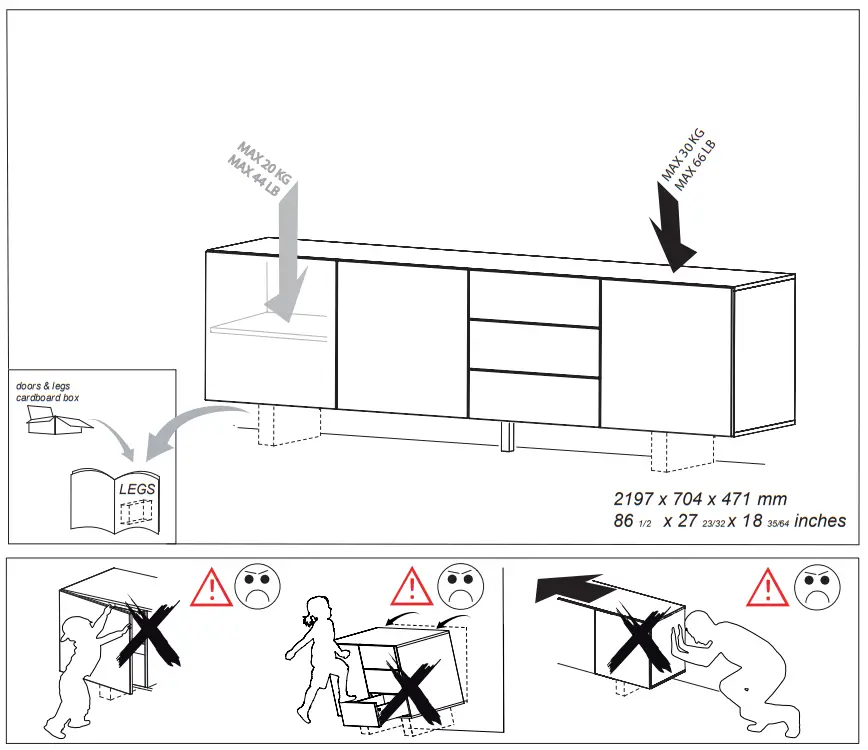

Do not exceed the maximum loads specified. Otherwise, the furniture may sustain damage and be irreparable.
Ensure that children do not put any small parts such as nuts, caps or the like in their mouth. They could swallow and choke on them.
When assembling the product, please proceed with caution and comply with the assembly instructions.

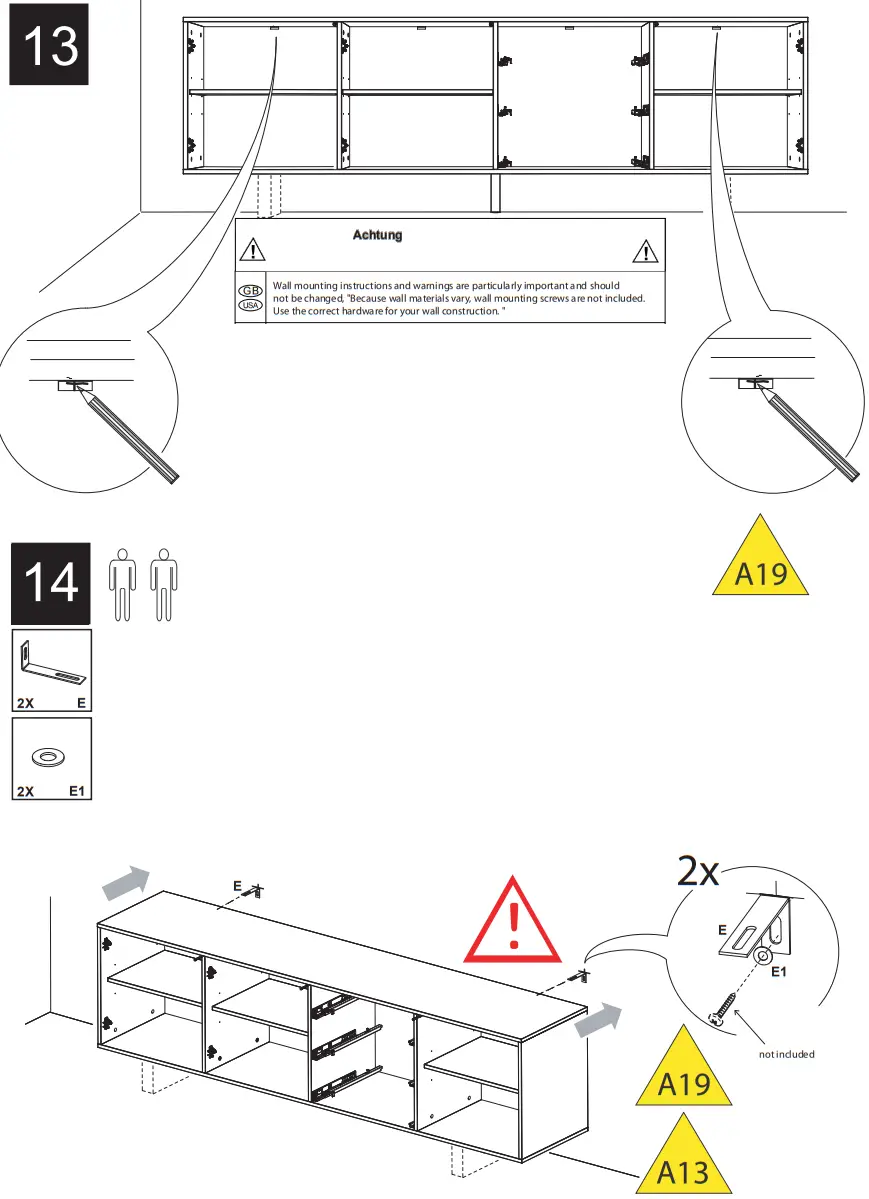

Assembly should be carried out by a qualified person, because the wrong assembly may lead to at the furniture toppling over and causing injury or damage. As wall materials vary, screws for fixing to the wall are not included. For advice on suitable screw systems, contact your local specialized dealer.

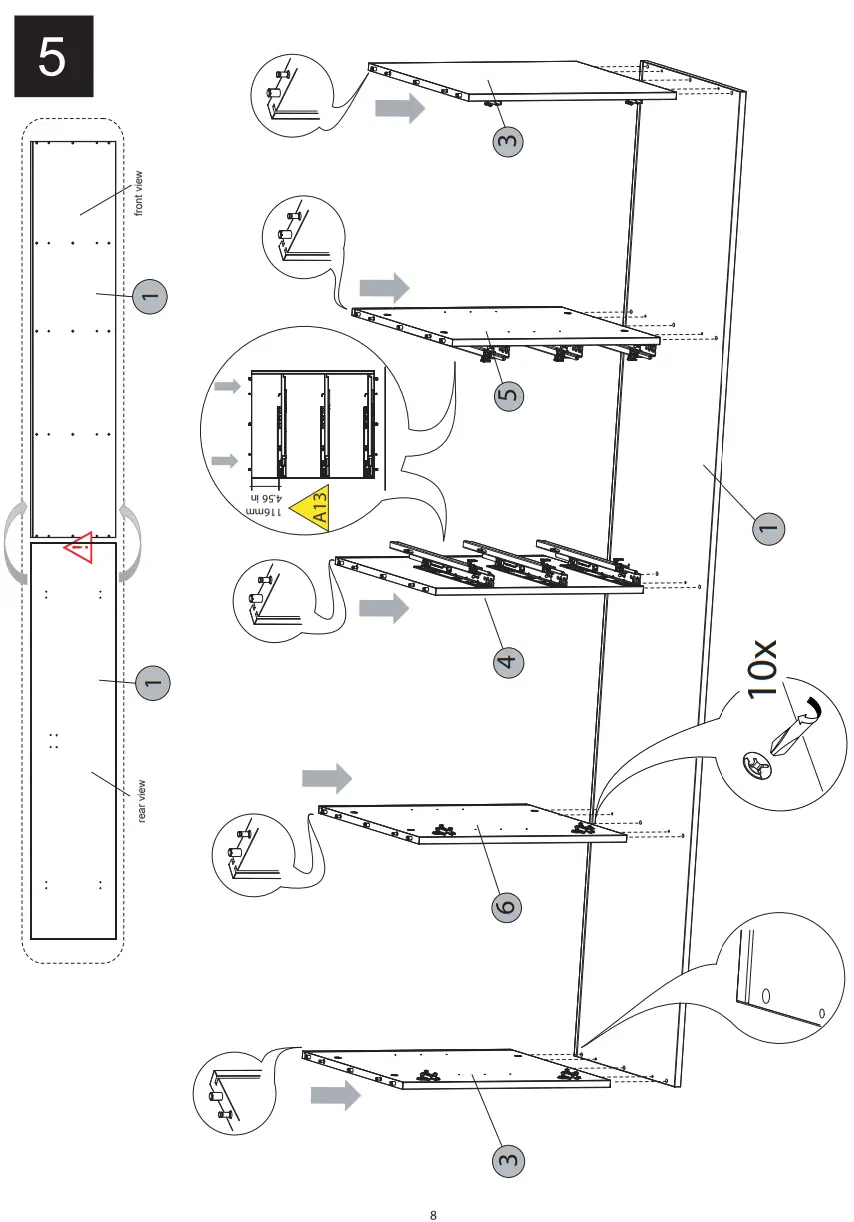

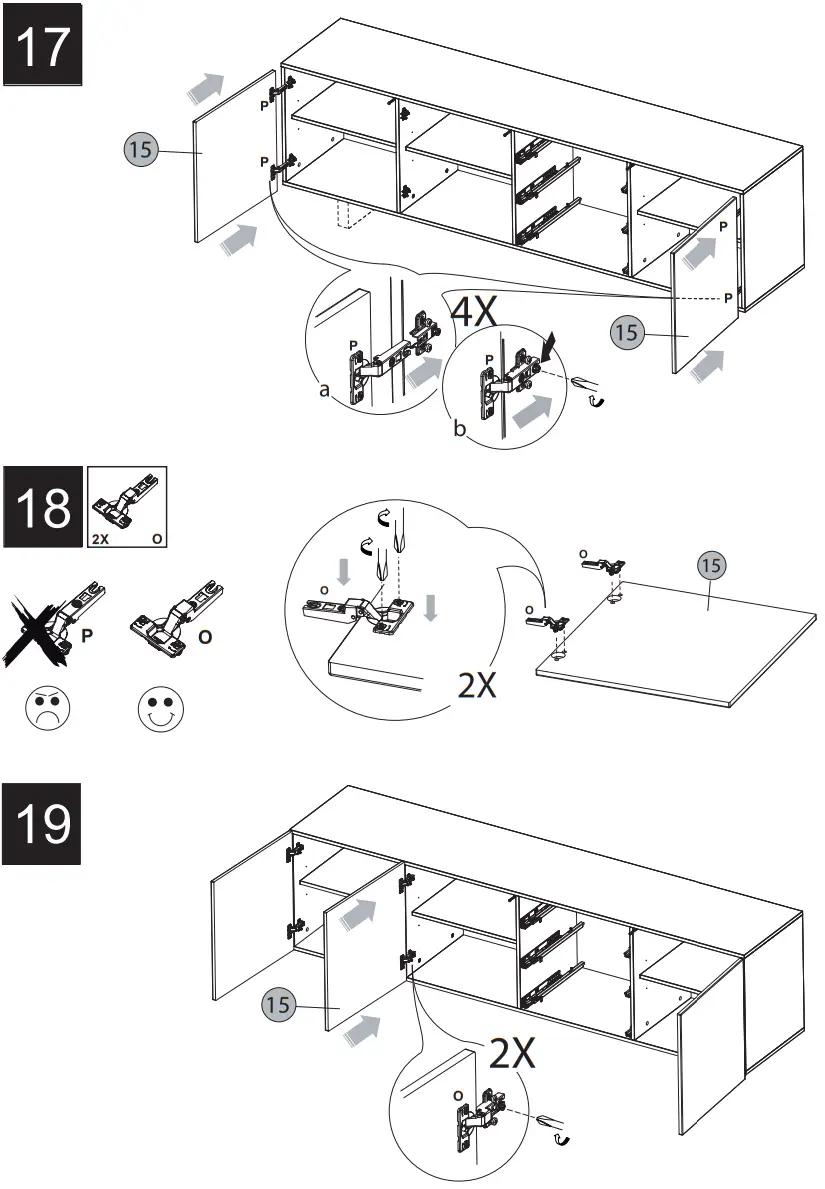

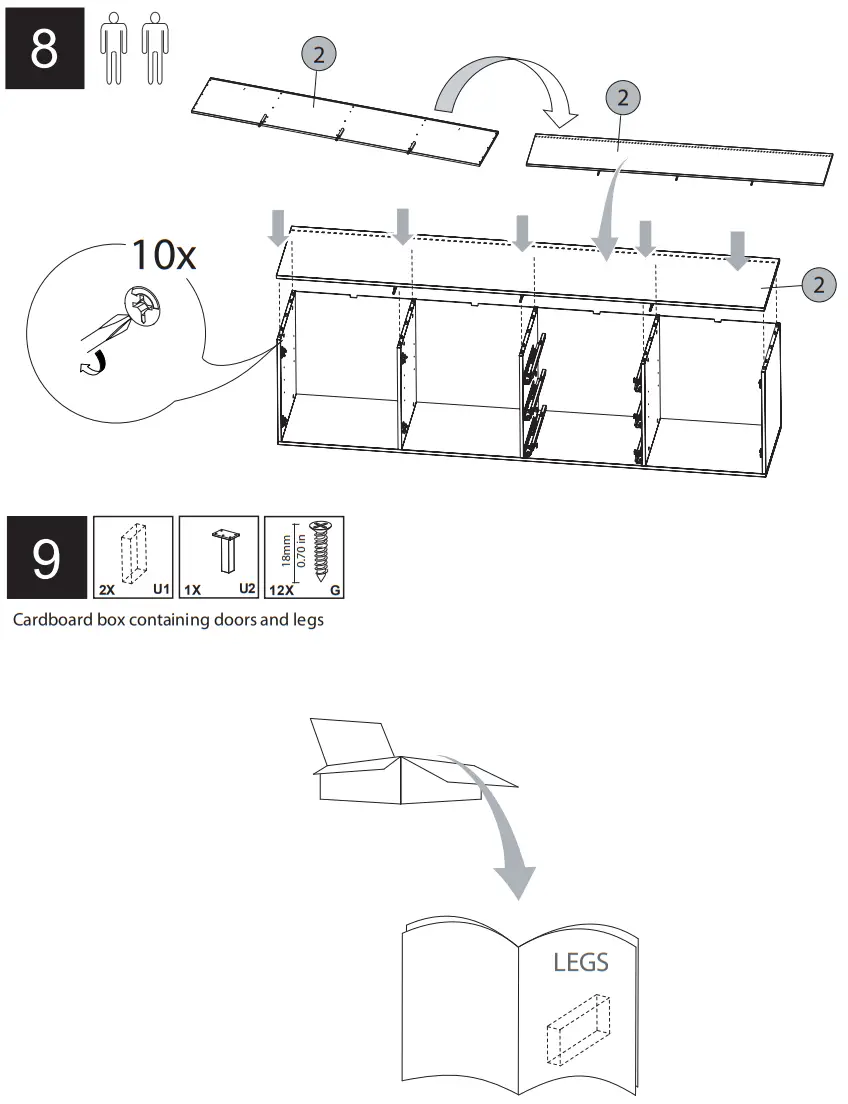

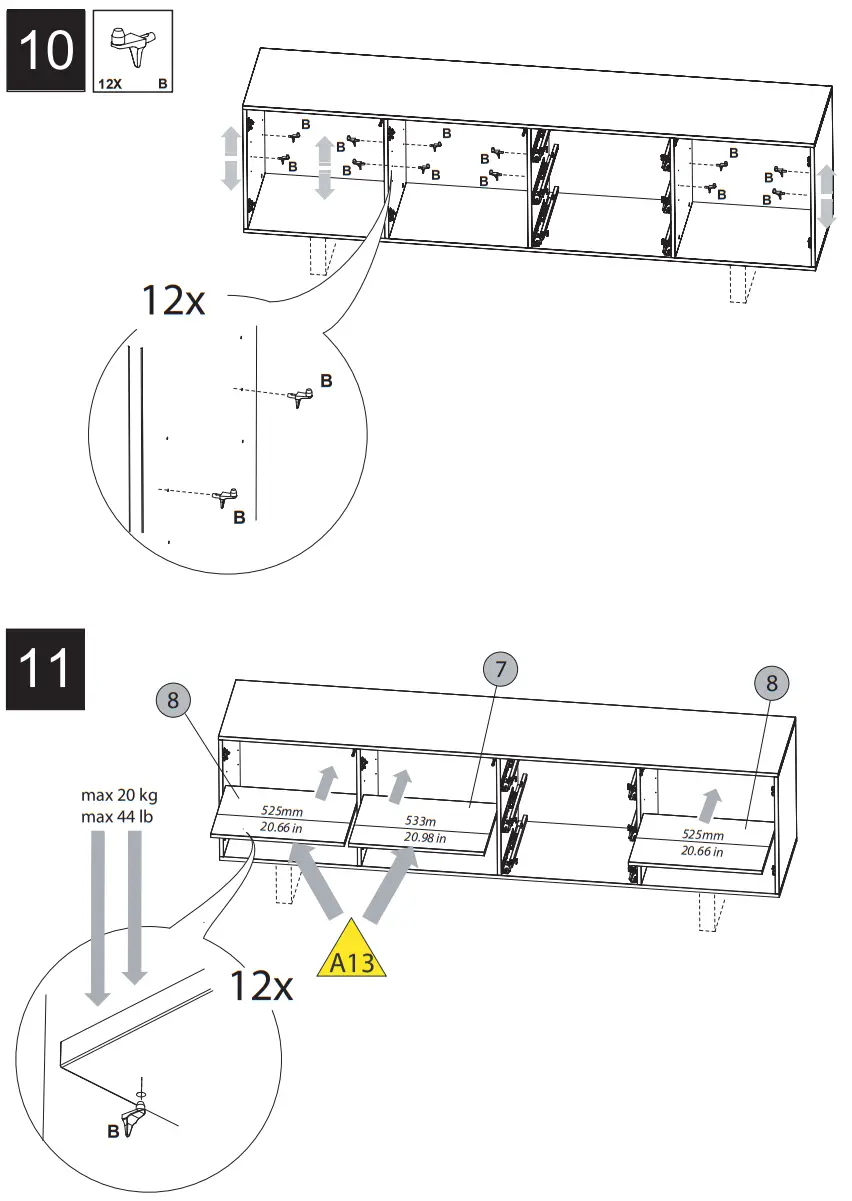

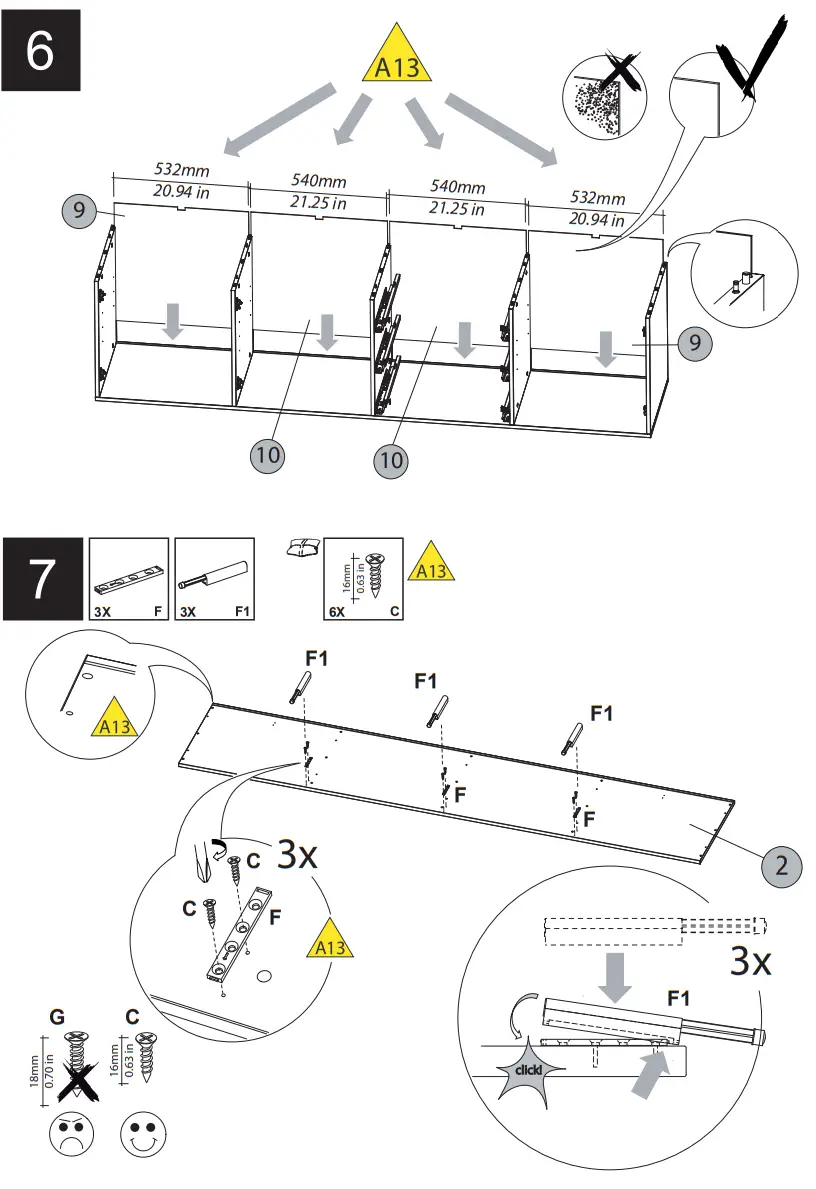

Assembly instructions
Service

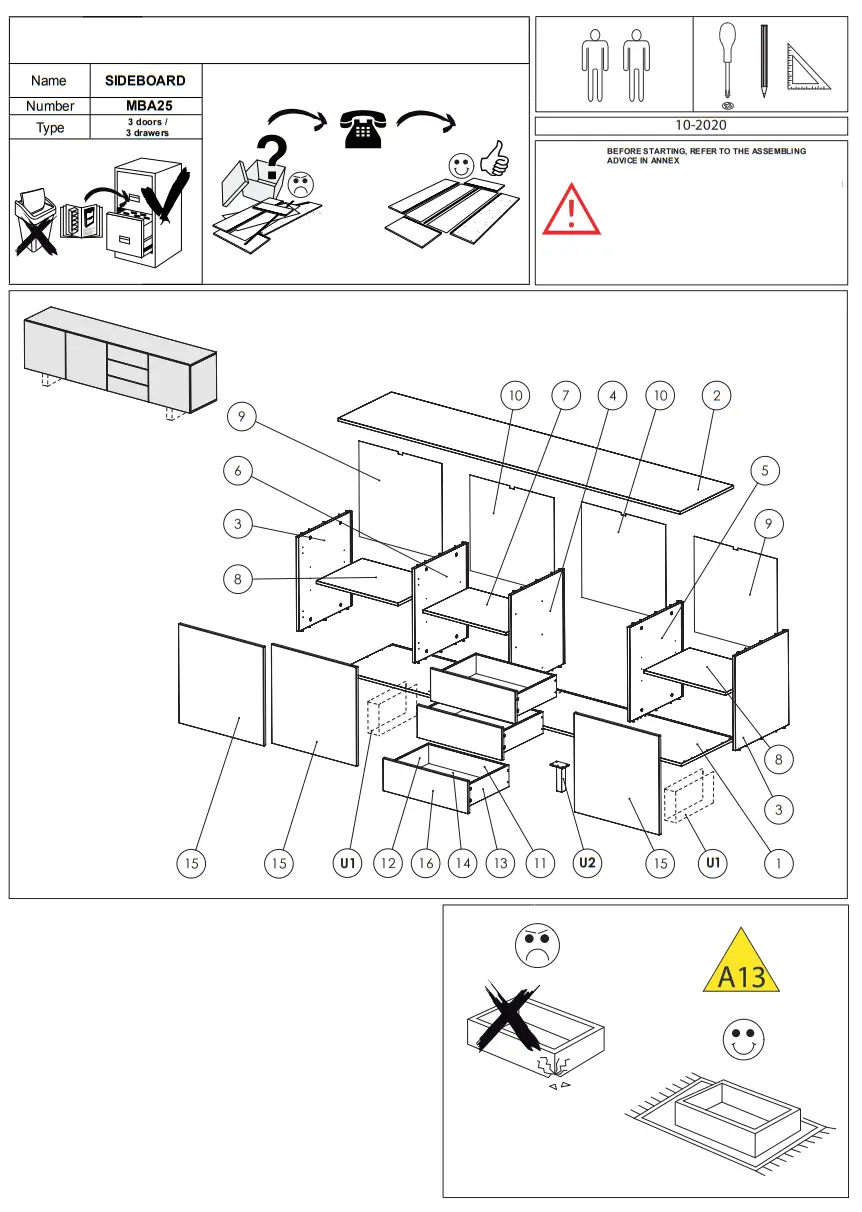

| nr° | q fy | length mm | length inch | width mm | width inch | thickness mm | thickness inch | box nr° |
| 1 | 1 | 2197 | 86,50 | 454 | 17,87 | 16 | 0,63 | 2-3 |
| 2 | 1 | 2197 | 86,50 | 454 | 17,87 | 16 | 0,63 | 2-3 |
| 3 | 2 | 519 | 20,43 | 453 | 17,83 | 16 | 0,63 | 1-3 |
| 4 | 1 | 519 | 20,43 | 453 | 17,83 | 16 | 0,63 | 1-3 |
| 5 | 1 | 519 | 20,43 | 453 | 17,83 | 16 | 0,63 | 1-3 |
| 6 | 1 | 519 | 20,43 | 453 | 17,83 | 16 | 0,63 | 1-3 |
| 7 | 1 | 390 | 15,35 | 533 | 20,98 | 16 | 0,63 | 1-3 |
| 8 | 2 | 390 | 15,35 | 525 | 20,67 | 16 | 0,63 | 1-3 |
| 9 | 2 | 532 | 20,94 | 526 | 20,71 | 3 | 0,12 | 2-3 |
| 10 | 2 | 540 | 21,26 | 526 | 20,71 | 3 | 0,12 | 2-3 |
| 11 | 3 | 120 | 4,72 | 493 | 19,41 | 12 | 0,47 | 1-3 |
| 12 | 3 | 120 | 4,72 | 353 | 13,90 | 12 | 0,47 | 1-3 |
| 13 | 3 | 120 | 4,72 | 353 | 13,90 | 12 | 0,47 | 1-3 |
| 14 | 3 | 351 | 13,82 | 503 | 19,80 | 3 | 0,12 | 1-3 |
| 15 | 3 | 547 | 21,54 | 547 | 21,54 | 16 | 0,63 | 3-3 |
| 16 | 3 | 181 | 7,13 | 547 | 21,54 | 16 | 0,63 | 3-3 |
| U 1 | 2 | 150 | 5,91 | 350 | 13,77 | 3-3 | ||
| U2 | 1 | 150 | 5,91 | 32 | 1,26 | 32 | 1,26 | 3-3 |
 |  |
 |  |
 |  |
 |  |
 | Achtung |
 |  |
 |  |
 |  |
 | |
Care tips
Please only clean with a duster or a damp cloth.
Do no use any abrasive cleaners.
In general, keep water away from your furniture (e. g. when mopping or watering plants).
The moisture may penetrate the furniture and damage.
