Startech Dk31c4dppd Usb Quad-4k Docking Station User Guide (+ PDF)

Quick-Start Guide
USB-C™ Quad-4K Docking Station – DisplayPort and HDMI – 100W PD
Product Diagram (DK31C4DPPD and DK31C4DPPDUE)

Contents hide

8 Documents / Resources

8.1 References

9 Related Posts

Front View

*Actual product may vary from photos

Port		Specifications and Installation
1	3.5mm Audio Port	• Connect an Audio Device • 4 Position Audio Jack for Headset use
2	USB-A Charging Port	• SuperSpeed USB 5Gbps (USB 3.2 Gen 1) • Supports USB BC 1.2 • Supports Apple Charging of up to 2.4A • Connect the Docking Station to a SuperSpeed USB 5Gbps Peripheral or Storage Device (e.g. flash drive), using a SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Cable
3	USB-C Charging Port	• SuperSpeed USB 10Gbps (USB 3.2 Gen 2) • Supports charging of up to 3A 5V • Connect the Docking Station to a SuperSpeed USB 10Gbps Peripheral or Storage Device (e.g. flash drive), using a SuperSpeed USB-C 10Gbps (USB 3.2 Gen 2) Cable
4	Power Button	• Powered ON by default • Solid White LED indicates the Docking Station is receiving power and is powered ON • Press and release the Power Button to power ON the Docking Station

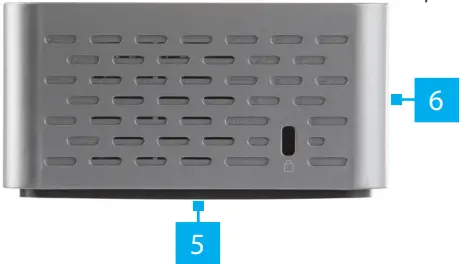

Side View

Port		Specifications and Installation
5	Mounting Holes	• (Optional) Mount the Docking Station, using appropriately sized Mounting Plate Assembly (sold separately)
6	Lock Slot	• Secure the Docking Station to a stationary object

Rear View

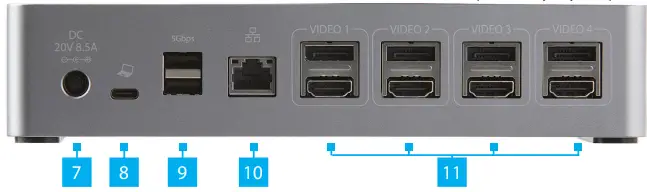

Port		Specifications and Installation
7	DC 20V Port	• Connect the Docking Station to a Power Source, using the Universal Power Adapter
8	USB-C Host Port	• SuperSpeed USB 10Gbps (USB 3.2 Gen 2) • Charge the Host Device while using the Docking Station • USB Power Delivery (PD) 5/9/12/15/20V • Connect the Docking Station to a Laptop, using the SuperSpeed USB-C 10Gbps (USB 3.2 Gen 2) Host Cable
9	USB-A Device Ports	• SuperSpeed USB 5Gbps (USB 3.2 Gen 1) • Maximum 0.9A for downstream charging • Connect the Docking Station to two SuperSpeed USB 5Gbps Peripherals and/or Storage Devices (e.g. flash drives), using a SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Cable
10	RJ45 Port	• 10/100/1000 Mbps • Connect the Docking Station to a Network Device, using a Network Cable

Video 1-4 DisplayPort

Port/HDMI Ports

DisplayPort Ports:
• Connect the Docking Station to a DisplayPort Enabled Display Device, using a DisplayPort Cable – or HDMI
Ports:
•Connect the Docking Station to an HDMI Enabled
Display Device, using an HDMI Cable

Package Contents

Docking Station x 1
Host Cable x 1
Universal Power Adapter x 1
Power Adapter Cords (NA/JP) x 1
Quick-Start Guide x 1

Requirements

For the latest requirements, please visit:
www.startech.com/DK31C4DPPD or www.startech.com/DK31C4DPPDUE

Host Laptop with USB-C port
USB PD Support

Installation

Notes: Installation is automatic for all modern Operating Systems. If the drivers do not auto-install, please visit www.startech.com/DK31C4DPPD to locate the latest drivers.

Operation

RJ45 Port LED Indicators

LED Color	Status	Indication
Green	Solid	•Link speed is either 1000Mbps (1 GbE), 100Mbps, or 10Mbps
Green	Off	•No connection established
Amber	Flashing	•Network traffic detected
Amber	Off	•No link established
