StarTech DKM30CHDPD USB-C Single Monitor Docking Station User Guide

Contents hide

5 Warranty Information

6 FCC Compliance Statement

7 Support

8 Documents / Resources

9 Related Posts

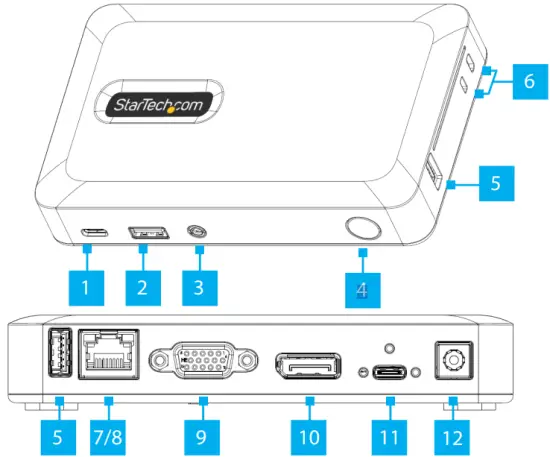

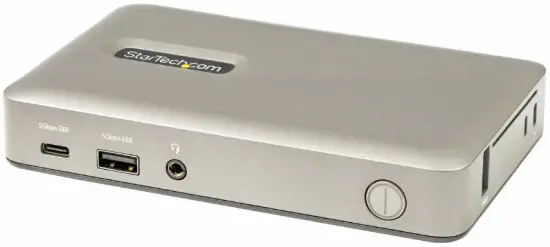

Product Diagram

Component		Function
1	USB-C Port	SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Connect a USB-C Peripheral Device to the USB-C Docking Station
2	USB-A Battery Charging Port	SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Supports up to 5V at 1.5A, 7.5W charging Connect a USB-A Peripheral Device to the USB-C Docking Station Fast-charge USB Peripheral Devices that comply with USB Battery Charging specification Revision 1.2
3	3.5mm Audio Port	4 Position Audio Jack for Headset use Connect an Audio Device
4	Power Button	Power the USB-C Docking Station on and off Integrated LED Indicator is illuminated white when the USB-C Docking Station is powered on
5	USB-A Port x 2	SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Connect USB-A Peripheral Devices to the USB-C Docking Station
6	Lock/Nano Lock Slots	Connect a K-Slot or Nano K-Slot Style Locking Device Deter theft of the USB-C Docking Station
7	RJ45 Port	Connect a Network Device
8	RJ45 LEDs (above the RJ45 Port)	Left (Link Speed) LED: Amber = 1Gb Green = 100Mb None = 10Mb Right (Link State) LED: Solid Green = Link Detected Flashing Green = Network Activity
9	VGA Port	Connect a VGA Enabled Display Device
10	DisplayPort Port	Connect a DisplayPort Enabled Display Device
11	USB-C Host Port	SuperSpeed USB 5Gbps (USB 3.2 Gen 1) Power Delivery 3.0 Specification Connect a Host Laptop, using the Locking USB-C Host Cable
12	DC Power Input Port	Connect the Universal Power Adapter to supply power to the USB-C Docking Station Type-N barrel connector 9.5V 6.15A

Product Infomation

For the latest product information, technical specifications, manuals, and Declarations of Conformance please visit: www.startech.com/DKM30CHDPD or www.startech.com/DKM30CHDPDUE

Package Contents

USB-C Dock x 1
Locking USB-C Host Cable x 1
(DKM30CHDPD) Universal Power Adapter (NA/JP, ANZ) x 1
(DKM30CHDPDUE) Universal Power Adapter (UK, EU x 1)
Quick-Start Guide x 1

Installation

Drivers will automatically install with an internet connection on Windows 10, macOS, ChromeOS, and Ubuntu. If drivers do not auto-install, please visit www.StarTech.com/DKM30CHDPD or www.StarTech.com/DKM30CHDPDUE to download the latest drivers.

Connect a Host

Connect the Locking USB-C Cable (included) to the Locking USB-C Host Port on the rear of the USB-C Docking Station and to a USB Port-C on the Host Laptop.

Connect the Display Devices

Connect a DisplayPort Enabled Display Device to the DisplayPort Port on the rear of the USB-C Docking Station using a DisplayPort Cable.
–or–
Connect a VGA Enabled Display Device to the VGA Port on the rear of the USB-C Docking Station using a VGA Cable.
- NOTE – VGA Port will be disabled when a Display Port Enabled Display Device is connected to the USB-C Docking Station.

Connect Peripherals

Connect an Audio Device to the 3.5 mm Audio Port on the USB-C Docking Station.
(Optional) Connect a USB-A Storage Device or other USB-A Peripheral to the USB-A Ports on the front, side and/or rear of the USB-C Docking Station. Connect up to 3 total USB-A Devices.
Connect a Network Device to the USB-C Docking Station, using a Cat5e/6 Network Cable.

Power the Docking Station

Select the appropriate regional Power Cord and connect it to the Universal Power Adapter.
Connect the Universal Power Adapter to the DC 19.5V Port on the rear of the USB-C Docking Station and to an AC Electrical Outlet.
(Optional) Press and release the Power Button to power the USB-C Docking Station off and on. The USB-C Docking Station will be powered on by default when the Universal Power Adapter is first connected.

(Optional) Mounting

To install a Mounting Bracket (sold separately), fasten the Mounting Bracket to the USB-C Docking Station, using the appropriate Screws. The Screw length should equal the thickness of the Mounting Bracket plus 2-4 mm.

Warranty Information

This product is backed by a three-year warranty.
For further information on product warranty terms and conditions, please refer to www.startech.com/warranty

Limitation of Liabilit

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Safety Measures

Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards.
