Moer 3 In 1 Carbon Dioxide Air Quality Monitor Detector Instruction Manual

3 In 1 Carbon Dioxide Air Quality Monitor Detector
Instruction Manual

https://drive.google.com/drive/folders/1dVnb8aUc5XROIcCmBH_MX7y7 vKspOGPQ?usp=sharing	https://pan.baidu.com/s/1eR4N5lTu3AuHH2R9h5HTbw?pwd=ny3f

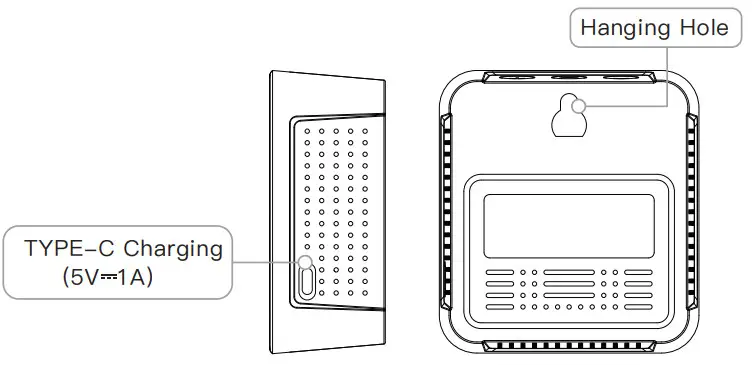

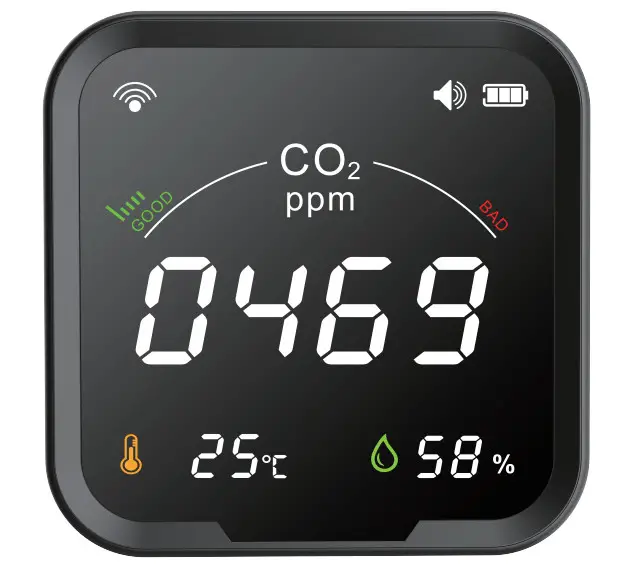

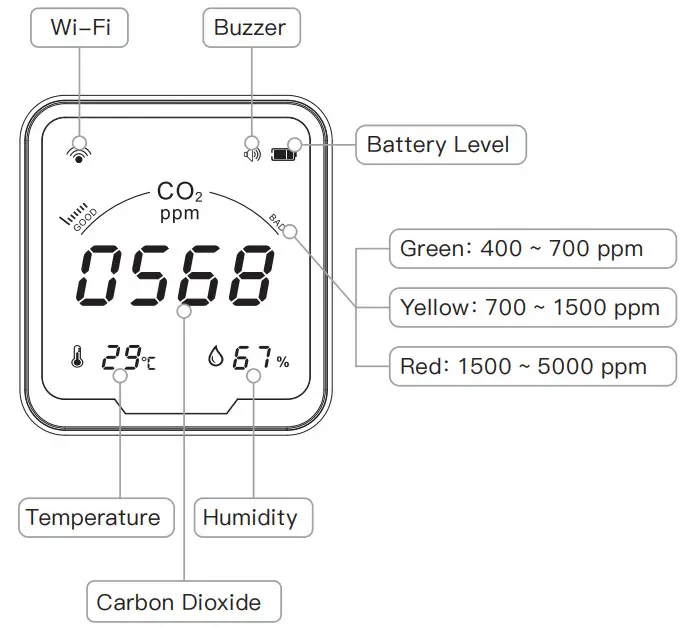

Product Introduction

Specification

Carbon Dioxide Range: 400 ~ 5000 ppm [± (50ppm + 5%) ]
Temperature Range: -10°C ~ 40°C (±2℃) / 14℉ ~ 104℉ (±3.6℉)
Humidity Range: 20 ~ 80 % RH (±5 % RH)
Product Size: 98 × 90 × 40 mm
Power Supply: Built-in Lithium Battery (2400mAh)
Wireless Connection: Wi-Fi (only for 2.4GHz Wi-Fi network)
Input: 5V 1A
Packing List:
PTH-9C × 1；User Manual × 1；TYPE-C Charging Cable × 1

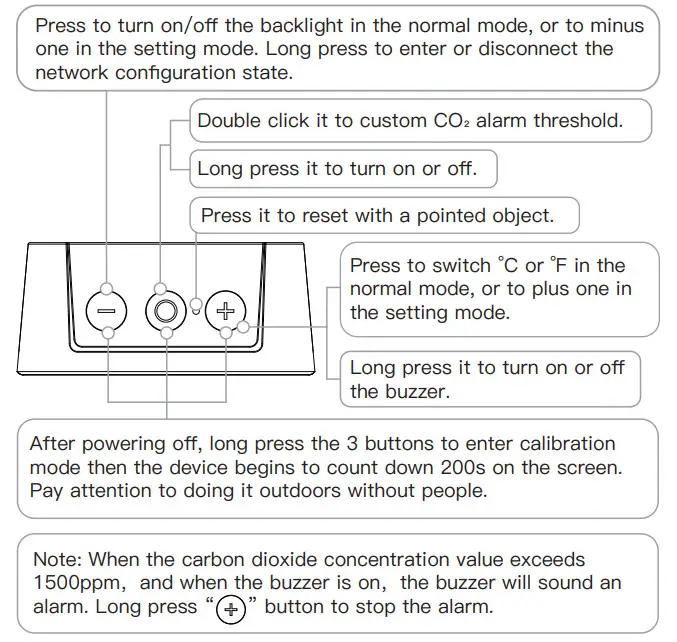

Operation

Customize Sound Alarm Value

Tips:
You can customize the sound alarm value for this meter.
How to set the sound alarm value?
Double click “ ” to enter the setting. Then click “” or “ ”. Click “ ” to confirm setting and go back to home page.

How to connect to the app

Scan and download before using

https://smartapp.tuya.com/tuyasmart
http://smartapp.tuya.com/smartlife

1. Please confirm you have enabled the phone Bluetooth, 2.4G WiFi and location service.

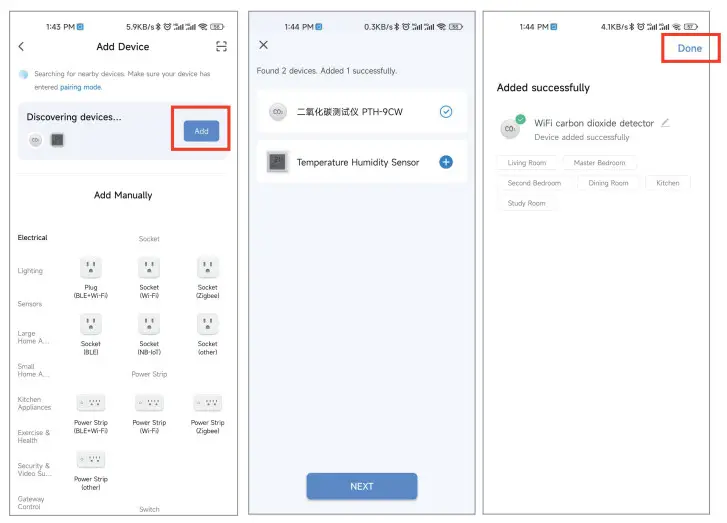

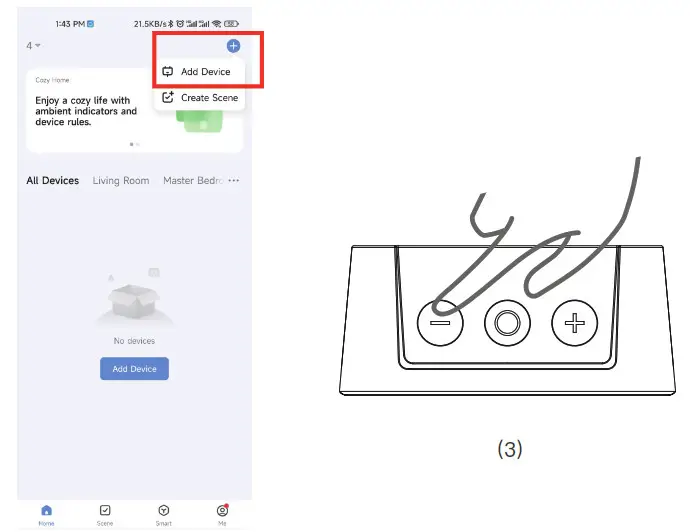

2. Open Smart Life APP,click “Add Device”on the home page or click the icon “+”on the top right.

3. Long press the “” button until the “” icon flashes on the screen, and the device enters the network configuration state.

4. Click “Add”when searching devices, choose your 2.4G WiFi by entering password for clicking “Next”to wait for successful device adding.

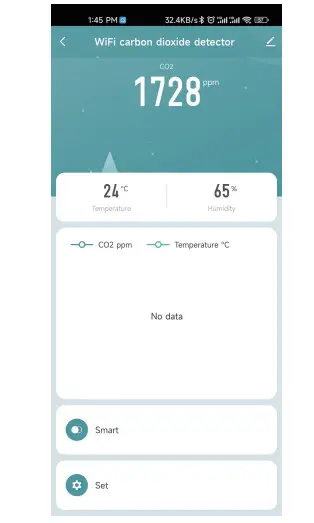

5. Click “Done”and enter the device page to enjoy smart life with home automation.


Note:

1. Besises the “Auto Scan” mode, you can also click “Add Manually” and follow the path “Sensors – CO2 Alarm – CO2 Detector (other)” to click on the corresponding  icon and operate as prompted on the interface.
2. During the connection process, it is necessary to ensure that the device and the mobile phone are within 30 meters during the connection process, as Wi-Fi is short- distance connection.
3. During the connection process, make sure that the device and the mobile phone are in the same Wi-Fi environment, and only support the 2.4GHz Wi-Fi signal mode.

Limited Warranty

Note：

1. Do not expose this product to water, nor place it in a high temperature environment exceeding 60°C, and keep it away from fire;
2. This product is a precision measuring instrument, and it is not allowed to disassemble the machine without authorization;
3. Can not be placed in an environment full of dust or corrosive gas for measurement；
4. When measuring the environment in the car, please do not expose this product directly to the sun for a long time.
   1 year warranty against any manufacturing defects or faulty workmanship. This warranty does not cover fuses, disposable batteries or damage from accident, neglect,  misuse, alteration, contamination or abnormal conditions of operation or handling.

SERVICE

1. During the free warranty period, if the product breaks down during normal use, we will offer free maintenance for the product.
2. Natural disasters/man-made equipment failures, disassembly and repair without the permission of our company, no warranty card, products beyond the free warranty  period, etc., are not within the scope of free warranty
3. Any commitment (oral or written) made by the third party (including the dealer/service provider) to the user beyond the warranty scope shall be executed by the third  party
4. Please keep this warranty card to ensure your rights
5. Our company may update or change the products without notice. Please refer to the official website for the updates.

RECYCLING INFORMATION

All products marked with the symbol for separate collection of waste electrical and electronic equipment (WEEE Directive 2012/19/ EU) must be disposed of separately  from unsorted municipal waste. To protect your health and the environment, this equipment must be disposed of at designated collection points for electrical and electronic  equipment designated by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences for the environment and human health. To find out where these collection points are and  how they work, contact the installer or your local authority.

WARRANTY CARD

Product Information
Product Name______________________________________
Product Type______________________________________
Purchase Date_____________________________________
Warranty Period___________________________________
Dealer Information________________________________
Customer’s Name_________________________________
Customer Phone_________________________________
Customer Address_______________________________

Maintenance Records

Thank you for your support and purchase at we Moes,we are always here for your complete satisfaction,just feel free to share your great shopping experience with us.
If you have any other need,please do not hesitate to contact us first,we will try to meet your demand.

Folow us

	@moessmart		MOES.Official
	@moes_smart		www.moeshouse.com
	@moes_smart		@moes_smart

WENZHOU NOVA NEW ENERGY CO.,LTD
Address: Power Science and Technology Innovation
Center, NO.238, Wei 11 Road, Yueqing Economic
Development Zone, Yueqing, Zhejiang, China
Tel:+86-577-57186815
Email: [email protected]
AMZLAB GmbH
Laubenhof 23, 45326 Essen
Made In China
