Innovative Ergonomic Solutions companies
PTS-04-6200M
Installation Instructions
© 2021 Innovative Ergonomic Solutions REV B
PTS-04-6200M Equinox 6200m Payment Terminal Stand
IMPORTANT: Determine cable routing prior to installing the mount. This will ensure the mount is installed in the correct orientation for your installation.

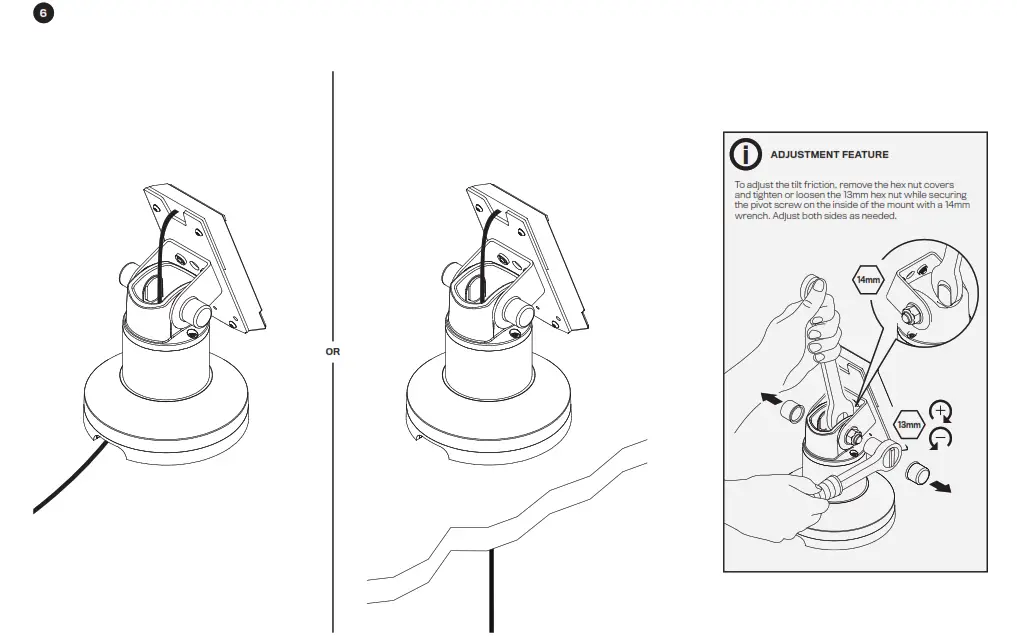

Above Surface, Cable Routing Locate the mount cable exit and plan your installation accordingly.
Below Surface Cable Routing
Cables may pass through the mount (requires a grommet hole).

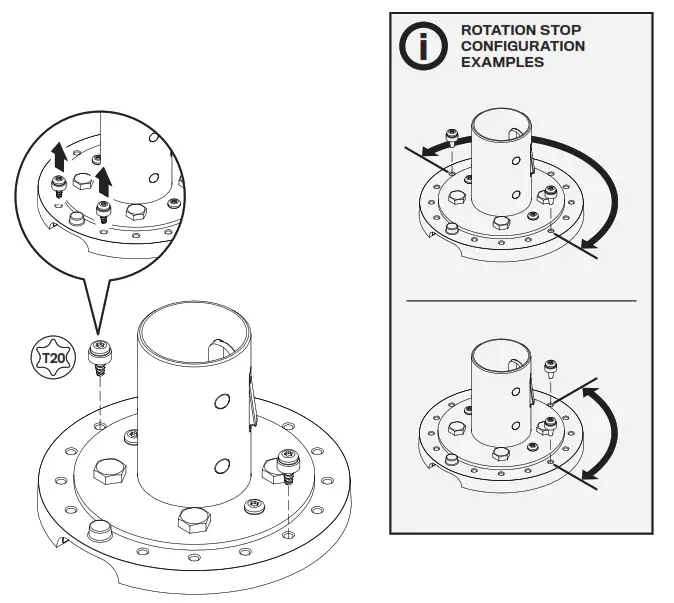

ROTATION
The placement of the two rotation stop screws in the outer ring determines the amount of payment terminal rotation. You can remove the screws from their original location and place them in any of the holes in the outer ring to allow for the amount of desired rotation.

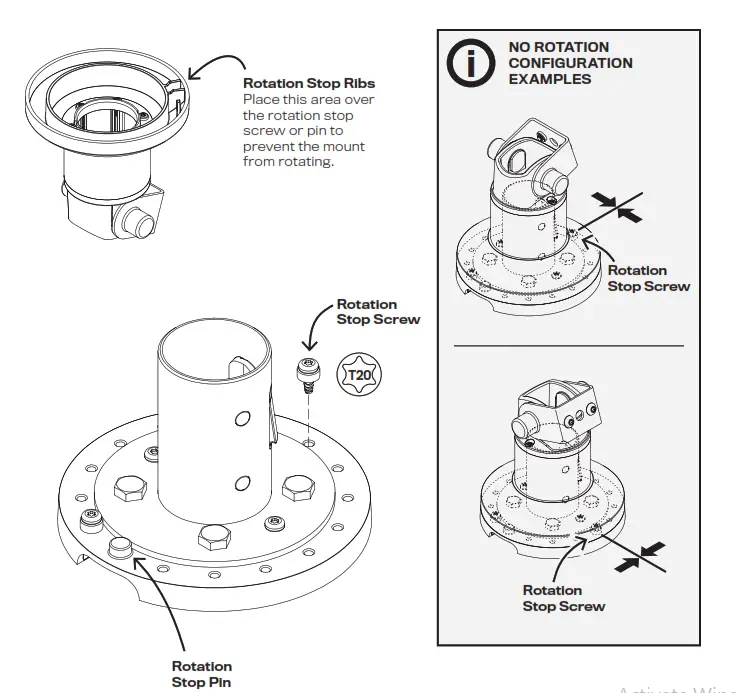

NO ROTATION
There are rotation stop ribs underneath the top portion of the amount that can be placed directly over the rotation stop screw or pin.
This positioning will prevent the payment terminal from rotating. Determine the proper rotation stop screw location for your installation.

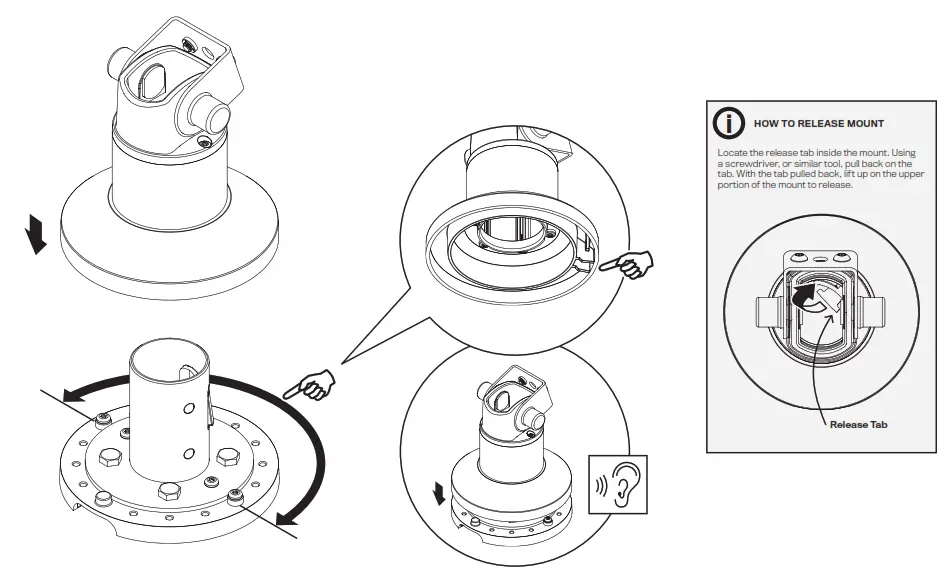

3 When placing the top of the mount onto the base, ensure the rotation stop ribs fall in between the rotation stops that were set in place in Step 2. Or in a no-rotation configuration, the ribs must be placed over top the rotation stop screw or pin.

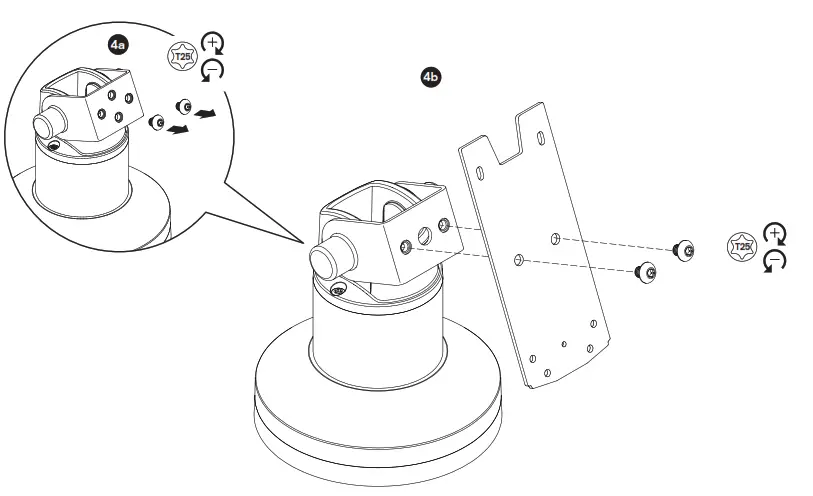

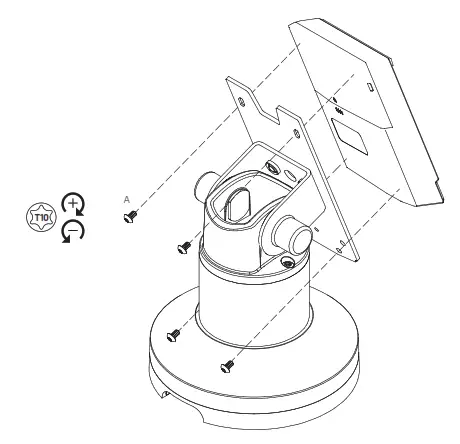

 | 5
|
 |  |
