Manual for
Greenhouse
TITAN Arch 60
TECHNICAL CERTIFICATE
Perform assembling and operation of the greenhouse In strict accordance with the manual and operating rules stated in the technical certificate. Please keep this technical certificate for further reference.
Description

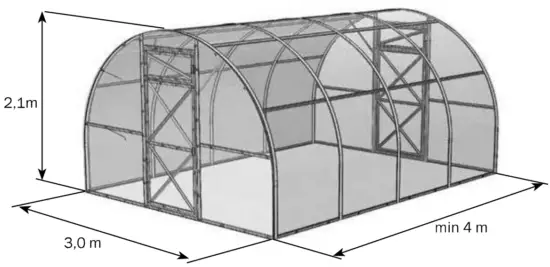

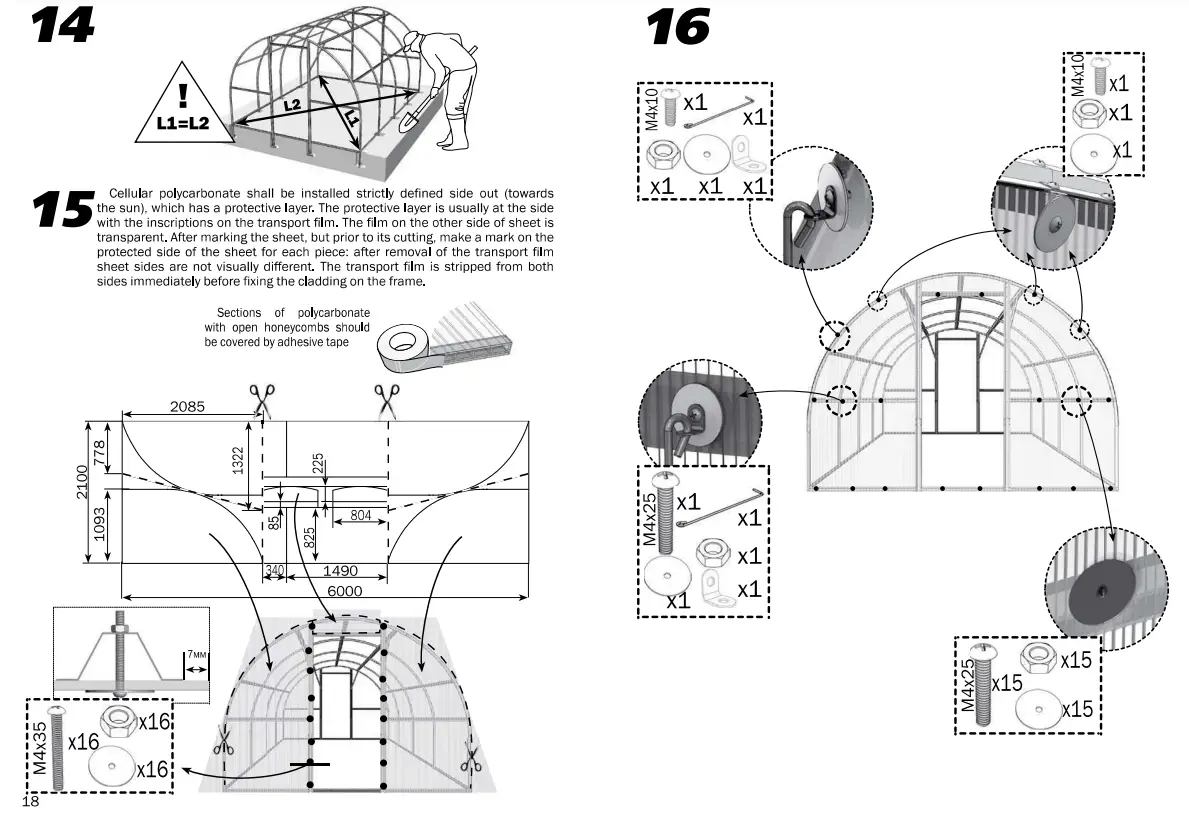

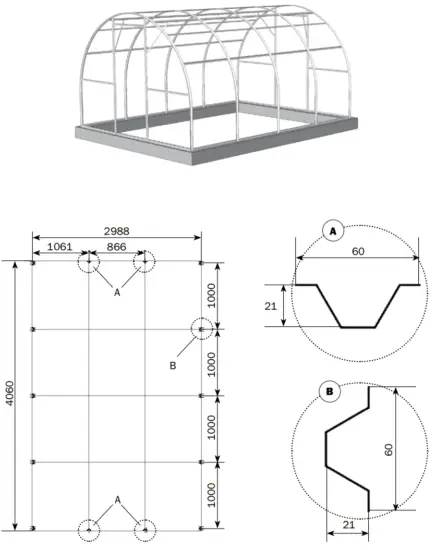

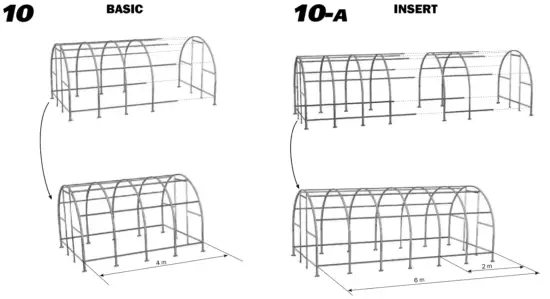

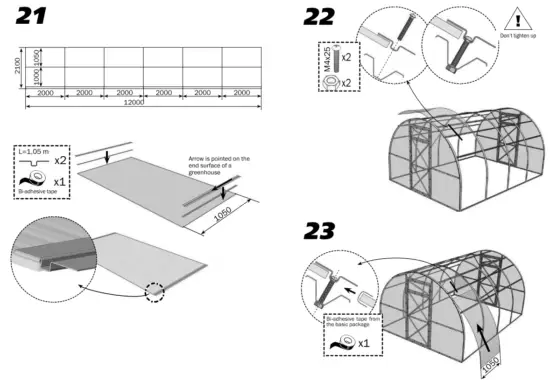

Orbita greenhouse is designed for creating a microclimate favorable for growing garden crops on the cottage and household plots. A greenhouse might have variable lengths depending on customers’ desires. The required length of the greenhouse is provided by purchasing packages with extending inserts. Each insert adds 2 m to the base length. The base length is 4 m. The height of the installed frame is 2.1 m The frame of the greenhouse is made of galvanized iron and is to be assembled with screws and nuts. The greenhouse is fixed on the ground by digging special frame endings or on fundament using angles. The complete set includes all that is needed for the fastening of coverage. Greenhouse may be completed with coverage on the buyer’s request. The greenhouse has two door openings and two small windows in opposite ends. Greenhouse base requires 3 sheets of cellular polycarbonate 2.1×6 m with 6 mm thickness. For each Inserts -1 sheet of cellular polycarbonate 2.1×6 m
Operation rules

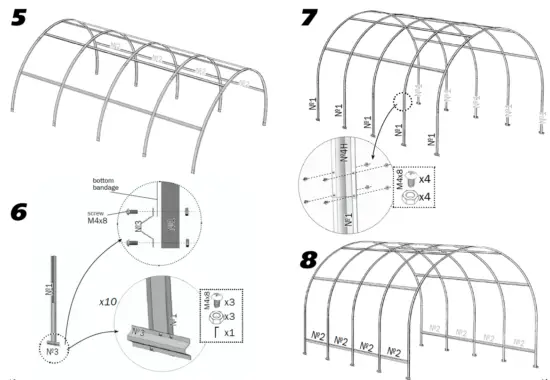

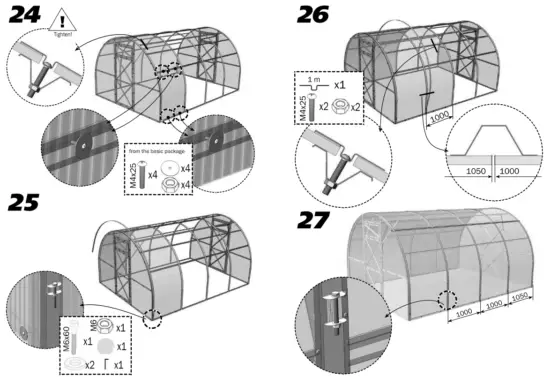

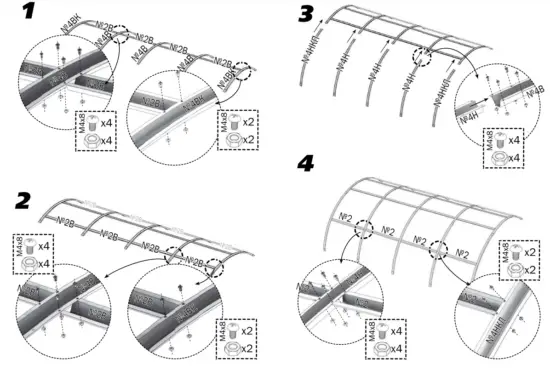

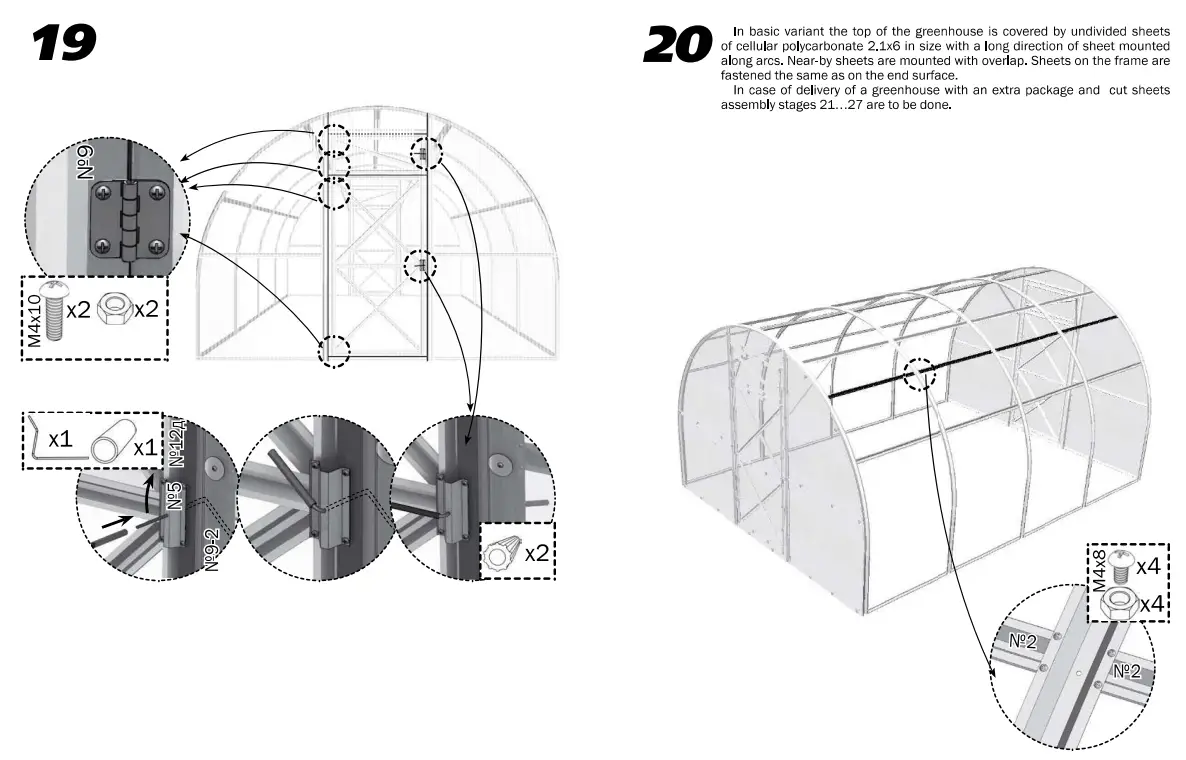

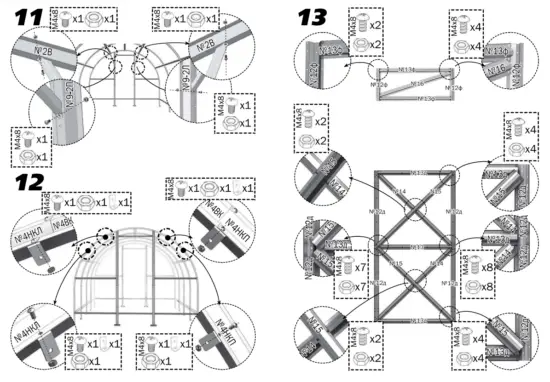

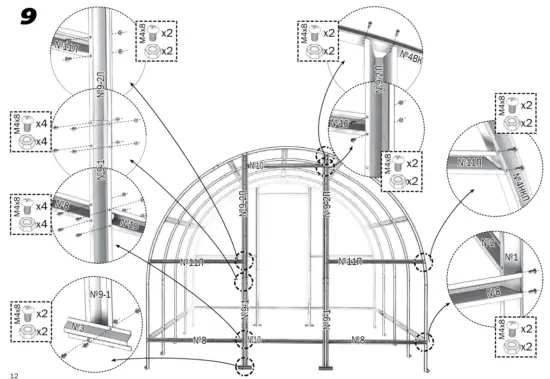

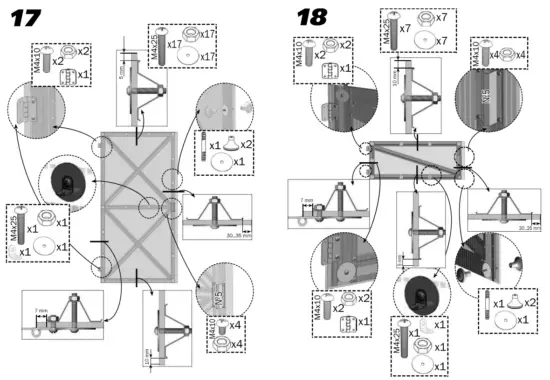

Before the start of the operation, the greenhouse should be assembled and installed as prescribed in the manual. When the greenhouse is assembled by a third party the customer should supervise the quality of work to ensure compliance with the present manual. Some detail has extra holes due to uniformity of details. During assembly, be careful not to damage the parts, because until they are assembled fully, they do not have sufficient rigidity. Use supports (e.g., chairs) at intermediate stages of assembly to evenly raise the assembled frame. To align the holes in difficult joints use a nail with a diameter of 4mm or a mandrel with a conical end. During assembly of the frame details’ connections should be Implemented for all specified openings. The simplified connection of the parts is a violation of assembly rules and causes of removal warranty support by the manufacturer. Do not install the greenhouse too close to buildings or trees where masses of snow/ice can fall on it. The recommended distance is at least 2 m. The greenhouse is designed to withstand wind at a speed below 17 m/sec. The greenhouse cladding should not be removed for the winter period if the snow load is limited. If the greenhouse is left unattended for the entire winter the customer should either remove the cladding or estimate the possible snow load. For the frame assembled the layer of snow weight is 60 kg per 1 sqm of horizontal surface.
Cleaning and washing sheets of polycarbonate
- Rinse the sheet with warm water.
- Wash the sheet with a solution of mild soap or with a household detergent and warm water, using a soft rag or a sponge to remove dirt.
- Rinse with cold water and wipe with a soft cloth.
Never use abrasives or highly alkaline cleaning compositions for cleaning polycarbonate sheets. Dry rubbing of the surface will damage the protective layer of the cladding and shorten its shelf life. Never rub the surface of polycarbonate sheets with brushes metallic cloth or other abrasive materials. When disinfecting the greenhouse from pathogens causing fungal and bacterial diseases, do not use «sulfur blocks« to avoid frame corrosion (blackening).
Warranty liabilities
- The manufacturer is responsible for the completeness of the product.
- The manufacturer is responsible for assemblability of the greenhouse in accordance with the instructions.
- The manufacturer is responsible for the greenhouse durability in specified weather conditions.
- The term for making claims is 24 months from the day of purchase
Terms of warranty provisions
Warranty does not apply to cases of
- Greenhouse Installation in violation of instruction requirements
- Violation of the rules of operation.
- Inappropriate use of the greenhouse.
- Deformation of the greenhouse as a result of ground movement.
- Floods, hurricanes, and other natural disasters.
The company reserves the right to make changes in the greenhouse design
| N2 | marking | description | quantity | |
1 BASIC BOX | ||||
| 1 | 4H | Bottom arc L=1,62 m |  | 6 |
| 2 | 4B | Top arc L=1,62 m | | 3 |
| 3 | 4BK | Top end arc L=1,62 m | | 2 |
| 4 | 4HKN | Right end bottom arc L=1,62 m | | 2 |
| 5 | 4HKN | Left end bottom arc L=1,62 m | | 2 |
| 6 | 1 | Stand L=0,92 m | | 10 |
| 7 | 2B | Top balk L=0,96 m | | 12 |
| 8 | 9–1 | Bottom door opening stand L=0,98 m | | 4 |
| 9 | 9–2n | Right top door opening stand L=1,4 m | | 2 |
| 10 | 9–2n | Left top door opening stand L=1,4 m | | 2 |
| 11 | – | End ampflifier |  | 4 |
2 BASIC BOX | ||||
| 12 | 11n | Middle right end strainer L=1,02 m |  | 2 |
| 13 | 11n | Middle left end strainer L=1,02 m | | 2 |
| 14 | 12A | Door vertical L=0,76 m | | 8 |
| 15 | 12Φ | Small window vertical L=0,32 m | | 4 |
| 16 | 13A | Door horizontal L=0,71 m | | 6 |
| 17 | 13Φ | Small window horizontal L=0,71 m | | 4 |
| 18 | 14 | Small door diagonal L=0,96 m | | 4 |
| Ne | marking | description | quantity | |
| 19 | 15 | Large door diagonal L=1,0 m | | 4 |
| 20 | 16 | Small window diagonal L=0,74 m | | 2 |
| 21 | 2 | Balk L=0,96 m | | 16 |
| 22 | 3 | Support L=0,14 m | | 14 |
| 23 | 8 | Bottom end strainer L=1,04 m | | 4 |
| 24 | 10 | Screed door opening L=0,82 m | | 4 |
| 25 | – | Hook for door and small windows |  | 4 |
| 26 | 5 | Rotator cover plate L=0,09 m | | 4 |
| 27 | – | Bracket |  | 8 |
| 28 | – | Bracket for the hook |  | 8 |
| 29 | – | Loops for doors and windows |  | 8 |
| 30 | – | Workpiece for locking (turner with 2 elastic nozzles) |  | 4 |
| 31 | – | Tube bend spinner |  | 1 |
| 32 | – | Handle |  | 8 |
| 33 | – | Pin |  | 4 |
| 34 | – | Screw M4 x 8 |  | 440 |
| 35 | – | Screw M4 x 10 |  | 56 |
| 36 | – | Screw M4 x 25 |  | 132 |
| Nr | marking | description | quantity | |
| 37 | – | Screw M4 x 35 |  | 32 |
| 38 | – | Nut M4 |  | 660 |
| 39 | – | Washer 32×4 |  | 160 |
| 40 | – | Adhesive tape |  | 1 |
| 41 | 2 | Balk L=0,96 m | | 8 |
| 42 | – | Siding L=1,05 m |  | 4 |
| 43 | – | Siding L=1,0 m | | 4 |
| 44 | – | Top steel band |  | 5 |
| 45 | – | Bottom steel band |  | 10 |
| 46 | – | Bolt M6 x 60 |  | 10 |
| 47 | – | Nut M6 | | 10 |
| 48 | – | Washer 6 |  | 20 |
| 49 | – | Bi-adhesive tape L=5 m | | 2 |
| NI | making | elnerlptlese | if santlly | |
| S BOX INSERT | ||||
| 50 | 4H | Bottom arc L=1,62 m | | 4 |
| 51 | 4B | Top arc L=1,62 m | | 2 |
| 52 | 1 | Stand L=0,92 m | | 4 |
| 53 | 2 | Balk L=0,96 m | | 12 |
| 54 | 2B | Top balk L=0.96 m | | 6 |
| 55 | 3 | Support L=0,14 m | | 4 |
| 56 | – | Siding L=1,0 m | | 4 |
| 57 | – | Top steel band | | 2 |
| 58 | – | Bottom steel band | | 4 |
| 59 | – | Screw M4 x 8 | | 116 |
| 60 | – | Screw M4 x 25 | | 24 |
| 61 | – | Bolt M6 x 60 | | 4 |
| 62 | – | Nut M4 | | 140 |
| 63 | – | Nut M6 | | 4 |
| 64 | – | Washer 6 | | 8 |
| 65 | – | Washer 32×4 | | 16 |
| 66 | – | Bi-adhesive tape L=5 m | | 1 |
