HDMI Mini Splitter 1X2 Pigtail v2.0 with HDCP Key 4Kx2K®60Hz HDCP2.2 Downscaler
USER MANUAL
Follow us on Youtube and Facebook
https://www.facebook.com/OreiProducts/
https://www.youtube.com/channel/UCadsKVcbGXq2N4zCibzD_Sw
www.orei.com
Thank you for purchasing this product
For optimum performance and safety. please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes. surges. electric shock. lightning strikes. etc. The use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Registration page
Please Activate your warranty by registering our product through the link below – www.orei.com/register
Technical Support
Need Help?
Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. Call, email, or chat with us now.
OREI Live Technical Support Hours
US team (US/Canada/Mexico): Monday-Friday. 9 a.m. – 6 p.m. Central Time
Support Email – [email protected] Support Number – 877-290-5530
Or
Chat Live on www.orei.com
Send us an instant message now. Our Technical Support Team will respond momentarily. Available during live support hours.
Scan the QR code to watch a video on How to Use the product.
https://www.youtube.com/watch?v=3xM2MCMs7fs
Introduction

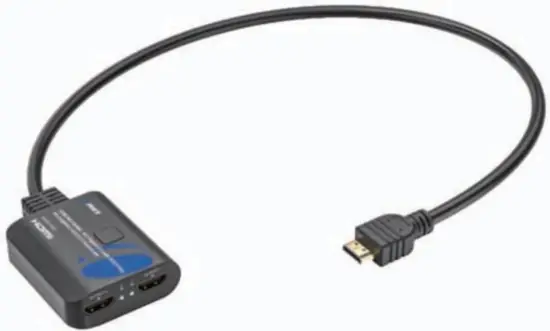

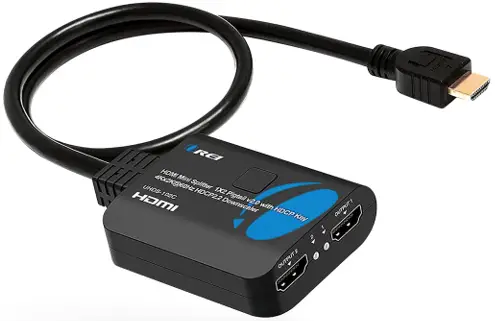

The HDMITM 4K splitter 1×2 with pigtail lets you share two HDMITM displays or projectors with an HDMI-enabled audio /video source device. With support for Ultra HD (4K@60Hz) the HDMITM splitter ensures astonishing picture quality, four times the resolution of HD 1080p@60 Hz. The 4K splitter is also backward compatible with previous HDMITM revisions, supporting 1080p / 720p HDMITM video resolution devices. Even if you don’t require a 4K video today, the HDMITM 4K Splitter 1×2 ensures you’ll be ready to take advantage of tomorrow’s display technology. With one fixed 0.6 meters HDMITM cable (pigtail), this splitter is cost-effective and time-saving.
Features
- Support downscale function means the product can downscale the input 4K resolution to 1080p by the FHD (1080p) displays and 4K resolution to the 4K displays simultaneously.
- Support full 3D video format
- Support high resolution up to 4K@60Hz YUV 4:4:4
- Support HDCP 2.2 and HDCP 1.4
- Support High Dynamic Range (HDR) video
- Support 600MHz/6Gbps per channel (18Gbps all channels) bandwidth
- Support 12bit per channel (36bit all channels) deep color
- Support uncompressed audio such as LPCM
- Support compressed audio such as DTS. Dolby Digital (including DTS-HD Master AudioTM and Dolby TrueHD)
Package Contents
Main Unit
Micro USB Power Cable
User Manual
Specifications
| Input Ports | HDMI x 1 |
| Output Ports | HDMI x 2 |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 6.0Gbps/600MHz per channel() 8Gbps all channels) |
| I interlaced (50860Hz) | 480i$76i.10801 |
| Progressive(508,60Hz) | 480p.576p.720p.1080p.4K©24/30Hz.4K©50/60Hz |
| Limited Warranty | 1 Year Parts and Labor |
| Operating Temperature | OC to 70C |
| Storage Humidity | 5% to 90% RH non-condensation |
| Power Supply | USB Power Cable |
| Power Consumption (Max) | 5W |
| Splitter Unit Cert | FCC. CE. RoHS |
| Power Supply Cert | FCC. CE. RoHS |
| Power Adapter Standard | The US. EU. The UK. AU Standard etc. |
| Dimension(LxWxH) | 65×54.5×20.5mm |
| Net Weight | 92g |
| Material | ABS |
| User Manual | English Version |
Note Specifications are subject to change without notice.
Troubleshooting
Problems | Causes | Solutions |
| The power light is off and the product is not working | Is the USB power cable properly connected and the power on/off button is on | Please check if the power the adapter is connected properly and switch on the power on/off button |
| Screen splash | HDMI cable may not be HDMI 2.0 specification or the cable is too long | Please use the standard HDMI 2.0 cable. the output cable length does not exceed SM 4K/60Hz 4:4:4. 4K@GOHz/1080p can reach 10M |
| No picture out only sound out or output pink screen | Maybe the displays can’t support the resolution or the HDCP | Change a lower resolution of the input 1-IDMI signal to check whether this issue or not: if not. maybe the customer should change a non-HDCP input source or HDCP compliant displays or devices |
| No picture out only sound out or output pink screen | Maybe the displays can’t support the resolution or the HDCP | The downscaled function only supports the 4K©601-1z 4:4:4 and 4:2:0(HDP 10) signal downscale to 1080p signal. or there will not have a picture output to the FHD TV, the customer needs to change a supported downscaled signal input. |
Operation controls and functions

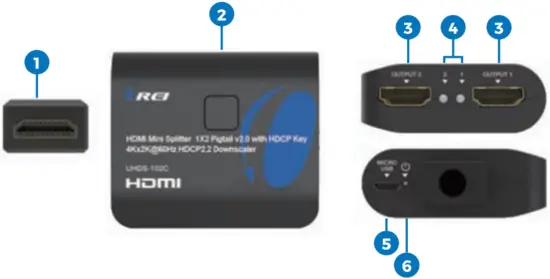

- DMI IN: HDMI INPUT Male Port with a fixed HDMI cable
- RESET: 1J513 DC 5V Input
- OUTPUT 1-2: HDMI Output 1-2 port
- OUTPUT 1-2: HDMI Output 1-2 LED Indicator
- MICRO USB: USB DC 5V Input
- POWER: Power LED

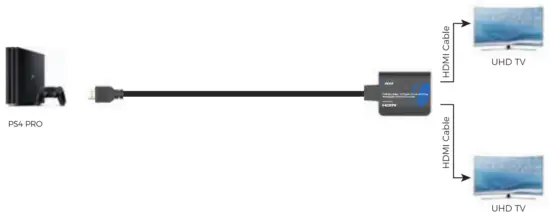

Connection Diagram
