Paul Neuhaus logo6050-95 HELIX Ceiling Light LED
Instruction Manual
Paul Neuhaus 6050 95 HELIX Ceiling Light LED835878-HELIX

6050-95 HELIX Ceiling Light LED

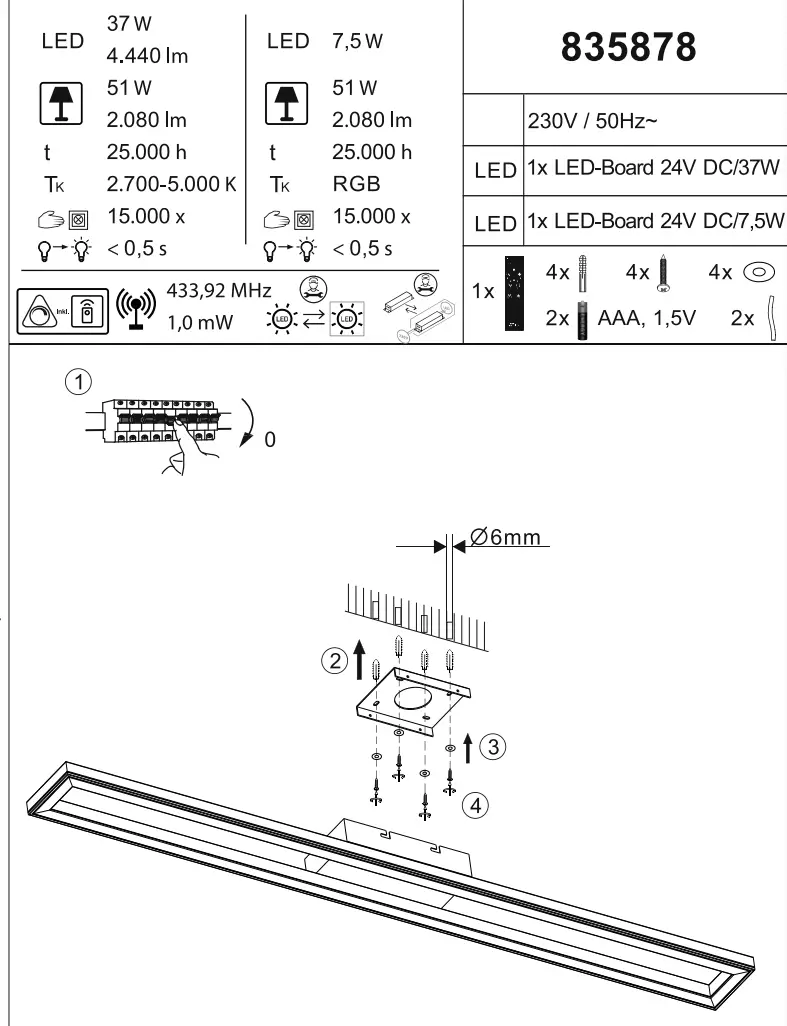

This product contains a light source of energy efficiency class <E>.Paul Neuhaus 6050 95 HELIX Ceiling Light LED - fig 1Paul Neuhaus 6050 95 HELIX Ceiling Light LED - figPaul Neuhaus 6050 95 HELIX Ceiling Light LED - fig 2

Anlernen der Fernbedienung an die Leuchte
Schalten Sie die Leuchte Ober den Wandschalter ein. DrOcken Sie innerhalb von 5 Sekunden die ON-Taste auf der Fernbedienung. Die Leuchte ist nun angelernt and kann Ober die Fernbedienung gesteuert werden.
!!! Eine Fernbedienung kann unbegrenzt viele Leuchten steueren. Eine Leuchte kann von einer Fernbedienung angesteuert werden I!!

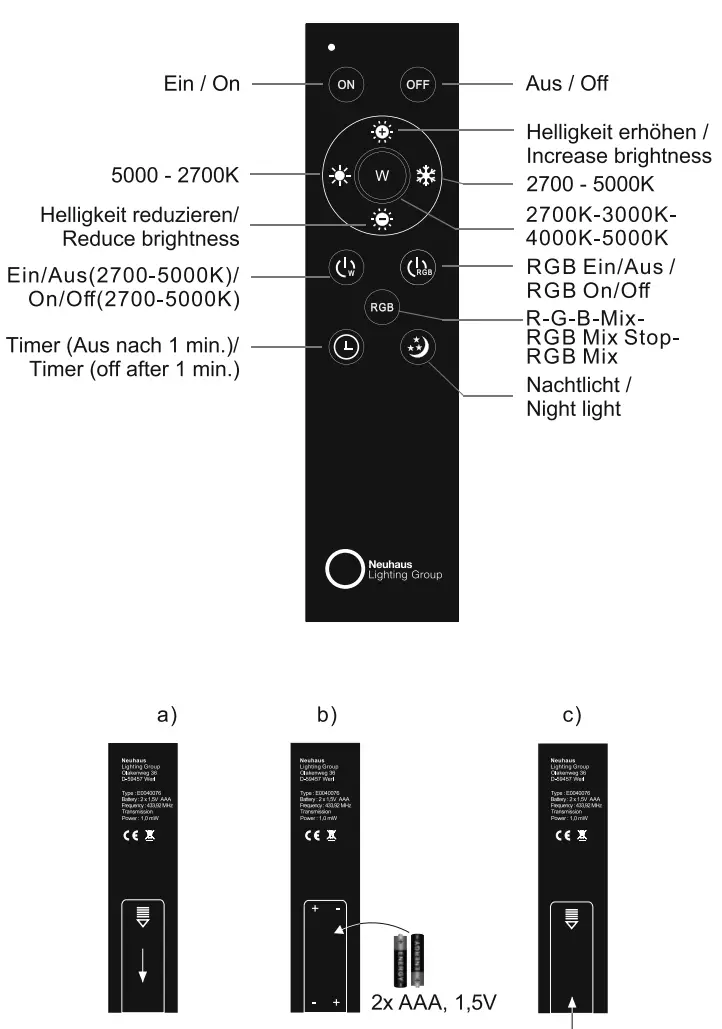

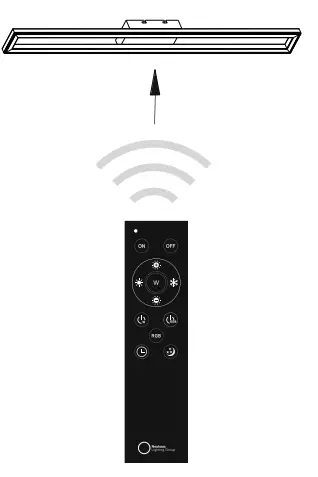

Assigning the remote control to the light
Switch the light on via the wall switch. Press the ON button on remote control within 5 seconds. The light is now assigned and can be operated by the remote control.
!!! A remote control can control an unlimited number of lights. One light can be operated by one remote control !!!

Beschreibung / DescriptionBetriebsgr011e / Operation data
Batterie / Battery2x AAA, 1,5V
Sendefrequenz / Transmission frequenzcy433,92 MHz
Sendeleistung / Transmitting power1,0 mW
Leerlaufstrom / No-load current0,001 mA
Betriebsstrom / Operating currentmax.15 mA
Reichweite der Fernbedienung / Range of the remote control6-8 m

Paul Neuhaus 6050 95 HELIX Ceiling Light LED - fig 3

Paul Neuhaus logoPaul Neuhaus GmbH
Olakenweg 36 – D-59457 Werl
+49(0)2922 9721 9290
[email protected]
www.paul-neuhaus.de
