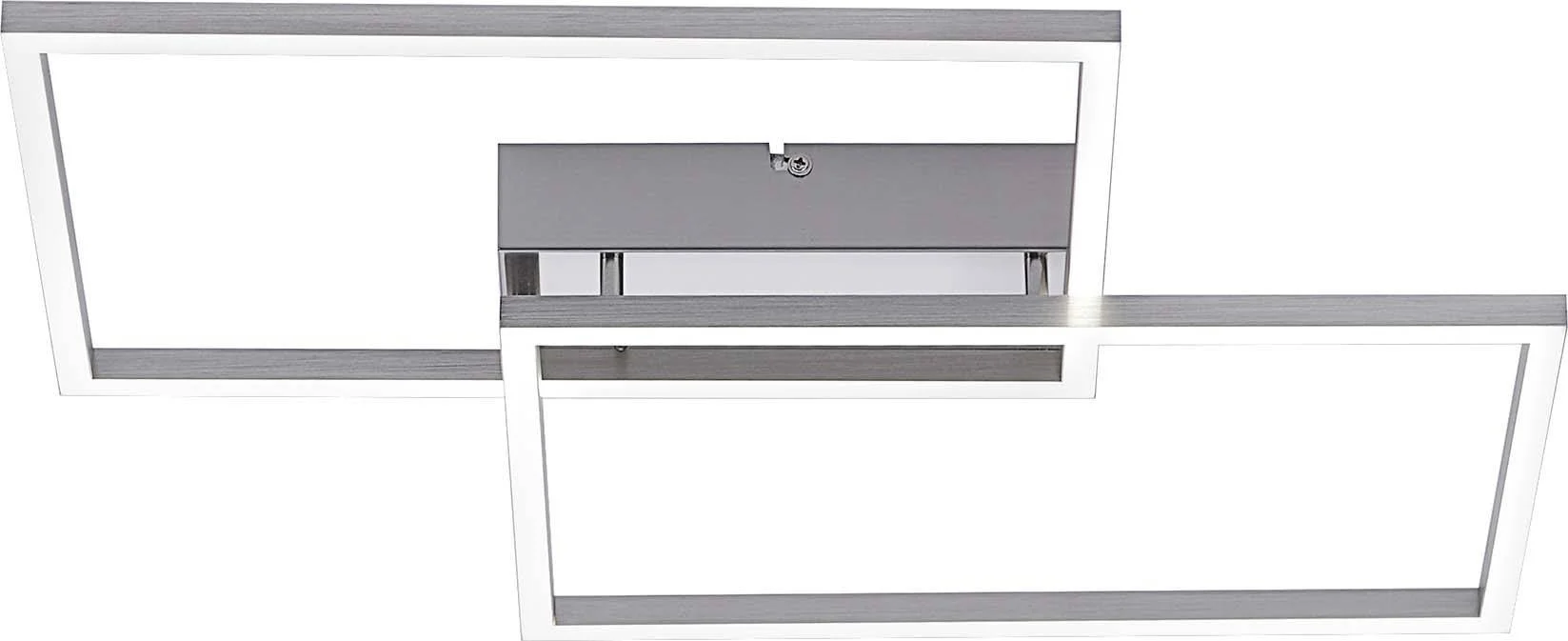

Paul Neuhaus 14018 LED Ceiling Light

Paul-Neuhaus-14018-LED-Ceiling-Light-product

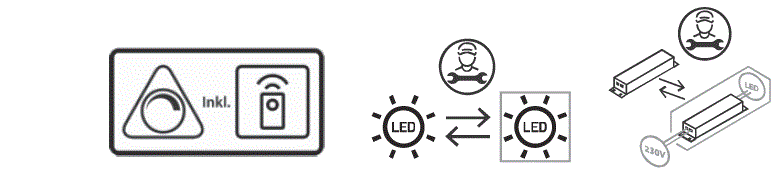

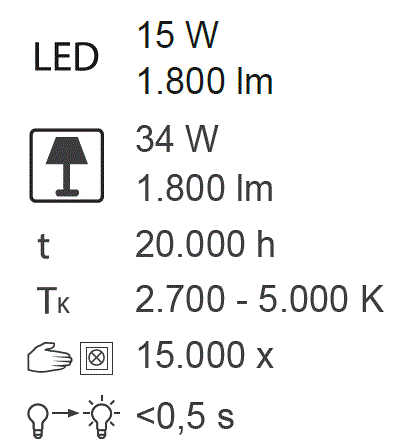

Features

Paul-Neuhaus-14018-LED-Ceiling-Light-fig-1

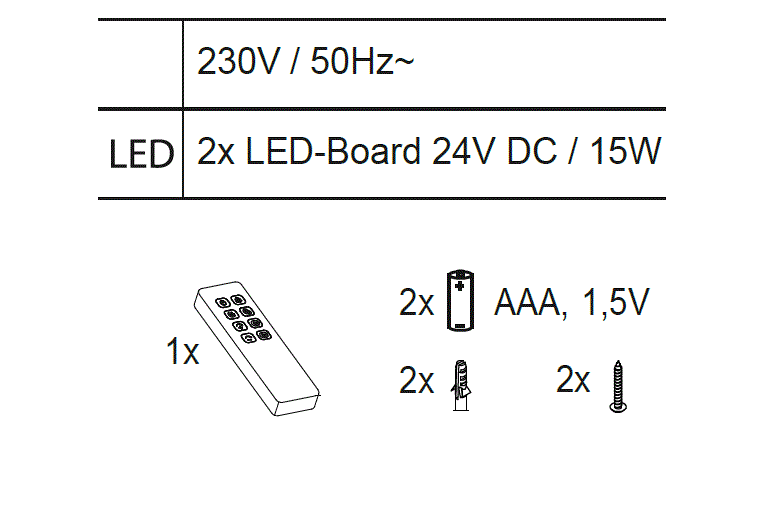

What’s Included

Paul-Neuhaus-14018-LED-Ceiling-Light-fig-4

Paul-Neuhaus-14018-LED-Ceiling-Light-fig-2

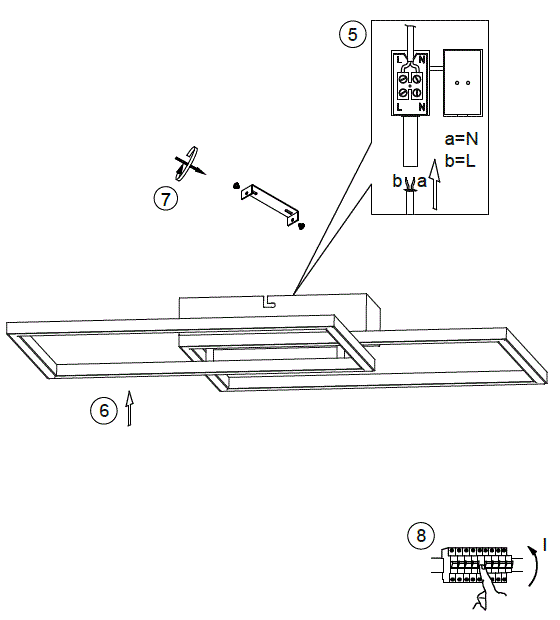

Installation

Paul-Neuhaus-14018-LED-Ceiling-Light-fig-3Paul-Neuhaus-14018-LED-Ceiling-Light-fig-5

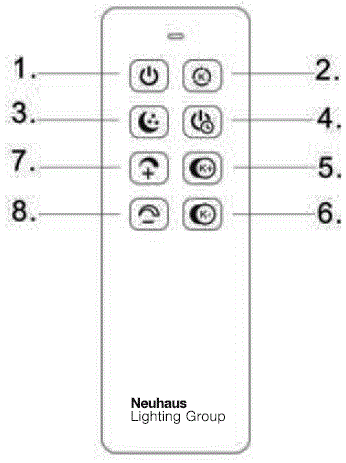

Remote Control Instruction

Paul-Neuhaus-14018-LED-Ceiling-Light-fig-6

  1. On/ Off
  2. Change color temperature
  3. Night light (yellow 5%)
  4. Tum off the light after 1 minute
  5. Increase color temperature
  6. Reduce color temperature
  7. Dim up the brightness (max. 100%)
    Short press: max. brightness
  8. Dim down the brightness (min. 5%)
    Short press: min. brightness

Specification

  • Operation voltage: 3V DC
  • Operation current: 15mA
  • Remote distance: >6m
  • Remote Control: Infrared
  • Battery: 2x 1,5V AAA

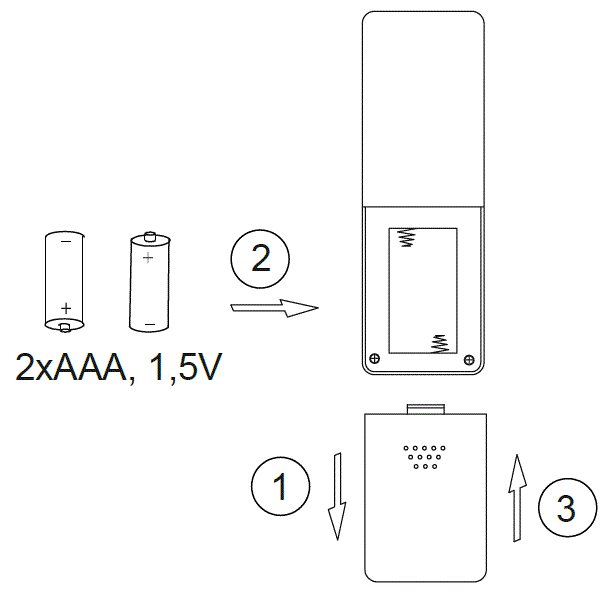

Battery Installation

Paul-Neuhaus-14018-LED-Ceiling-Light-fig-7

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
