SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to assembly. Retain this user guide for future reference.

• Ensure no parts are missing.
• Lay out all the components on a soft surface.
• Carefully identify each component, especially those that are similar. The most
  common mistake is getting things back to front.
• Do not fully tighten screws (leave slightly loose). When the item is fully assembled, tighten the screws but do not overtighten.
•  Separate and identify each component from the hardware pack and rest each one in its proper location before fastening.
• Do not, for any reason, use a power tool to assemble this product. The
  use of power tools may apply excess force on the fixtures, causing damage.
• A Phillips head screwdriver (not supplied) is required for assembly.


COMPONENTS

Parts list

Hardware

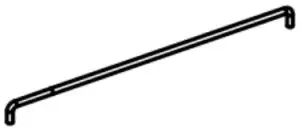

• (A) Ø30 x 325mm (x10)

• (B) 12mm (x4)

• (C) Ø5.5 x 38mm (x12)

• (D) Ø8 x 30mm (x12)

• (E) Ø6 x 15 x 1mm (x1)

• (F) (x1)

• (G) Ø4 x 16mm (x1)

• (H) (x12)


ASSEMBLY

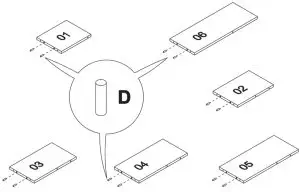

• Step 1: Insert D into the parts shown below.

  D Ø8 x 30mm (x12)

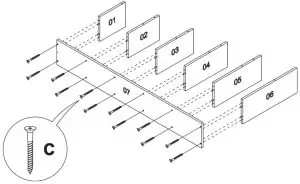

• Step 2: Using a Phillips screwdriver (not supplied), secure C screws to connect the parts shown below.

  C Ø5.5 x 38mm (x12

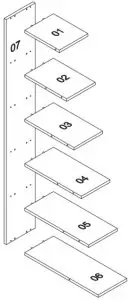

• Step 3: Attach A through the holes between parts 1, 2, 3, 4, 5, and 6.

  A Ø30×325 (x5)

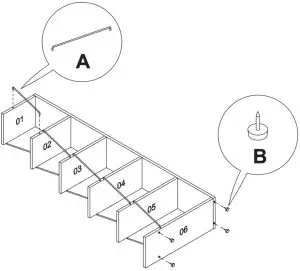

• Step 4: Turn over the assembly and attach A and B as shown below.

  A Ø30 x 325mm (x5)

  B 12mm (x4)

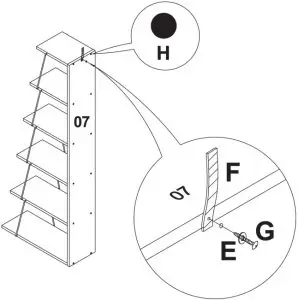

• Step 5: Cover visible screws on part 7 with H.
  Align F on the top of part 7. Place E on top then using a Phillips screwdriver (not supplied), secure a G screw through E and F.

  E Ø6 x 15 x 1mm (x1)

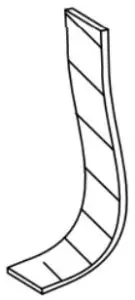

  F (x1)

  G Ø4 x 16mm (x1)

  H (x12)

• Step 6: Secure a screw (not supplied) through F to prevent the shelf from toppling.


TOPPLING FURNITURE WARNING:

• It is strongly recommended that this product is permanently fixed to the wall.
• Please seek professional advice if you are in doubt of what fixing device to use.
• Regularly check that anchors are securely maintained.
• Stability of tall items may be affected by thick carpets or uneven floors.
• Do not place unanchored televisions on furniture.

Caution! For your safety when attaching the anchor fixings, please note the following:
Check any electrical wires or plumbing inside the wall before drilling any holes (if you are unsure, please seek professional advice from a qualified trades person)

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
