LG UQ7070 ZUE series LED 4K UHD Smart WebOS 22 TV

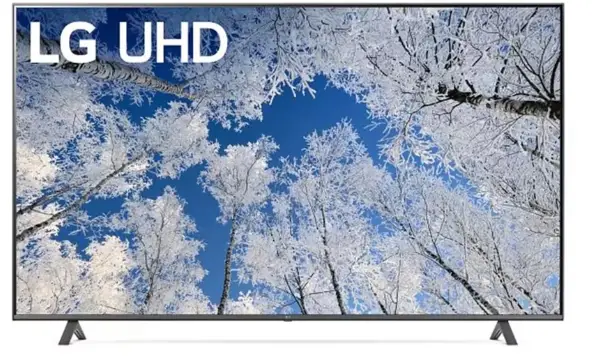

LG-UQ7070 ZUE-series-LED-4K-UHD-Smart-WebOS 22-TV-product

Product Information

  • Product Name: UQ70 Series
  • Model Numbers: 50UQ7070ZUE, 55UQ7070ZUE, 65UQ7070ZUE,
  • 50UQ7070ZUN, 55UQ7070ZUN, 65UQ7070ZUN
  • Manufacturer: LG
  • Country of Origin: Korea

Product Usage Instructions

Installation
  1. Remove the product from the packaging and place it on a stable surface.
  2. Securely attach the stand to the back of the TV using the provided screws (M4 x L16 for 50/55UQ70, M4 x L20 for 65UQ70).
  3. If wall-mounting, use the appropriate wall-mount bracket (WB21LMB for 50UQ70, WB21LMB for 55/65UQ70) and follow the installation instructions provided with the bracket.

Connections

The TV has the following input/output ports:

  • A: AC Power Input (120 V~ 50/60 Hz)
  • B: HDMI Input
  • C: USB Input
  • D: Audio Output
  • E: Ethernet Port

Connect your desired devices to the appropriate ports using compatible cables.

Specifications

Model NumberScreen Size (inches)Dimensions (mm)Weight (kg)Power Consumption (W)
50UQ7070ZUE501210 x 708 x 23514.1130
55UQ7070ZUE551235 x 772 x 23514.0135
65UQ7070ZUE651454 x 900 x 25521.7185

Note: The above specifications are approximate and may vary slightly.

Instruction

LG-UQ7070 ZUE-series-LED-4K-UHD-Smart-WebOS 22-TV-fig-1

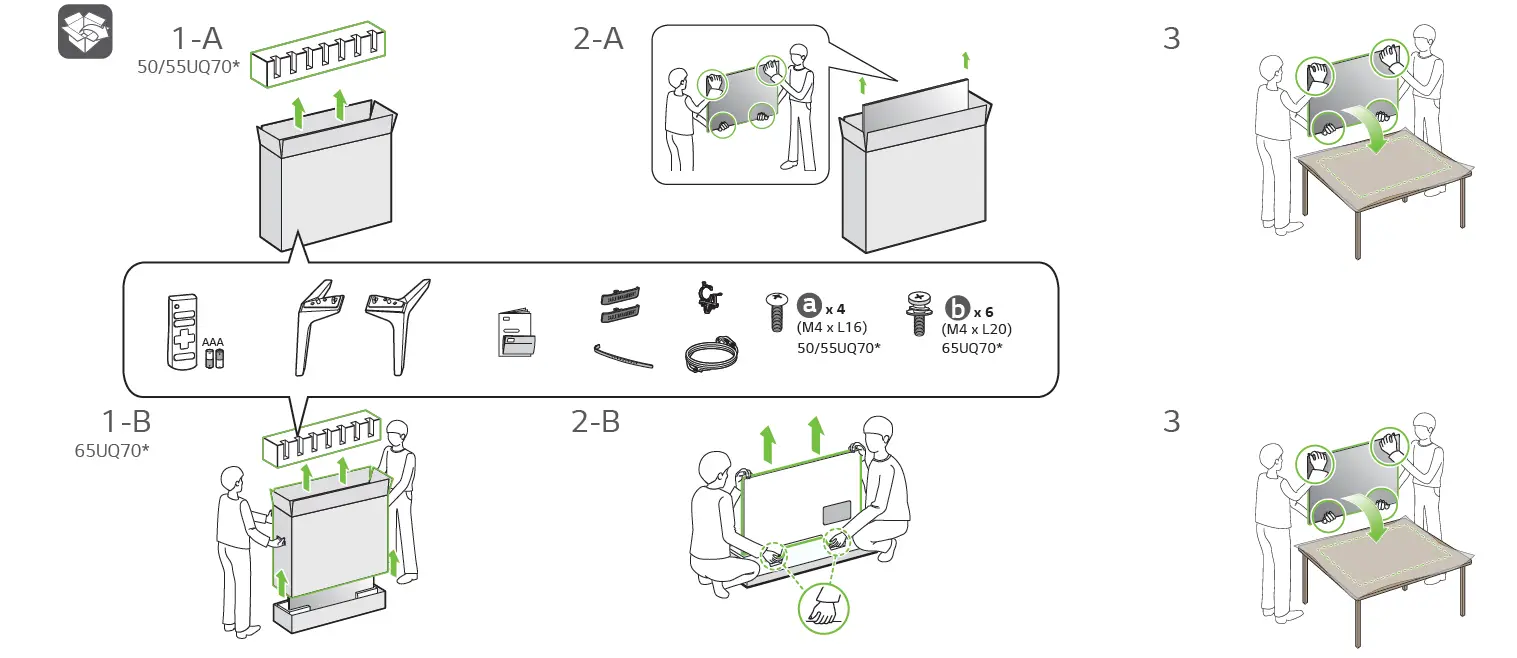

What is in the Box

LG-UQ7070 ZUE-series-LED-4K-UHD-Smart-WebOS 22-TV-fig-2

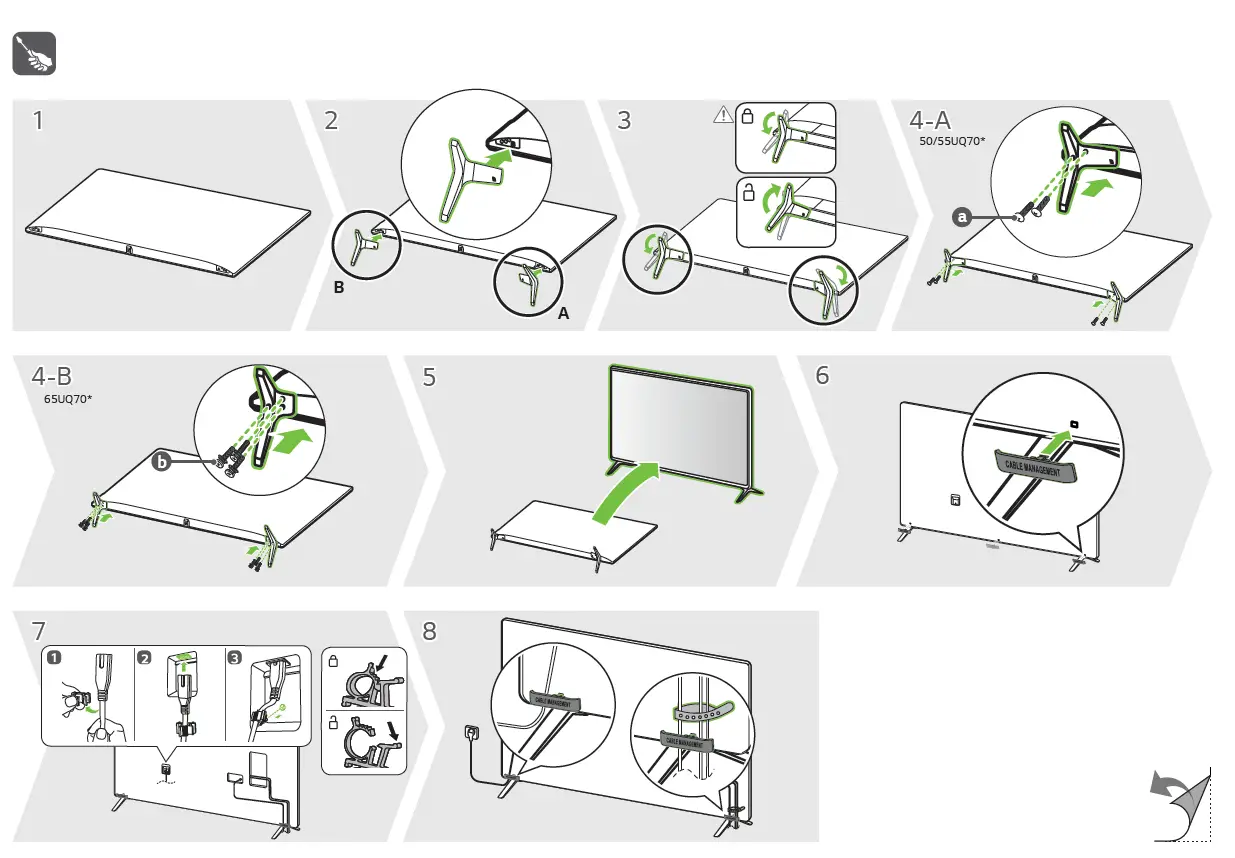

Setting

LG-UQ7070 ZUE-series-LED-4K-UHD-Smart-WebOS 22-TV-fig-3

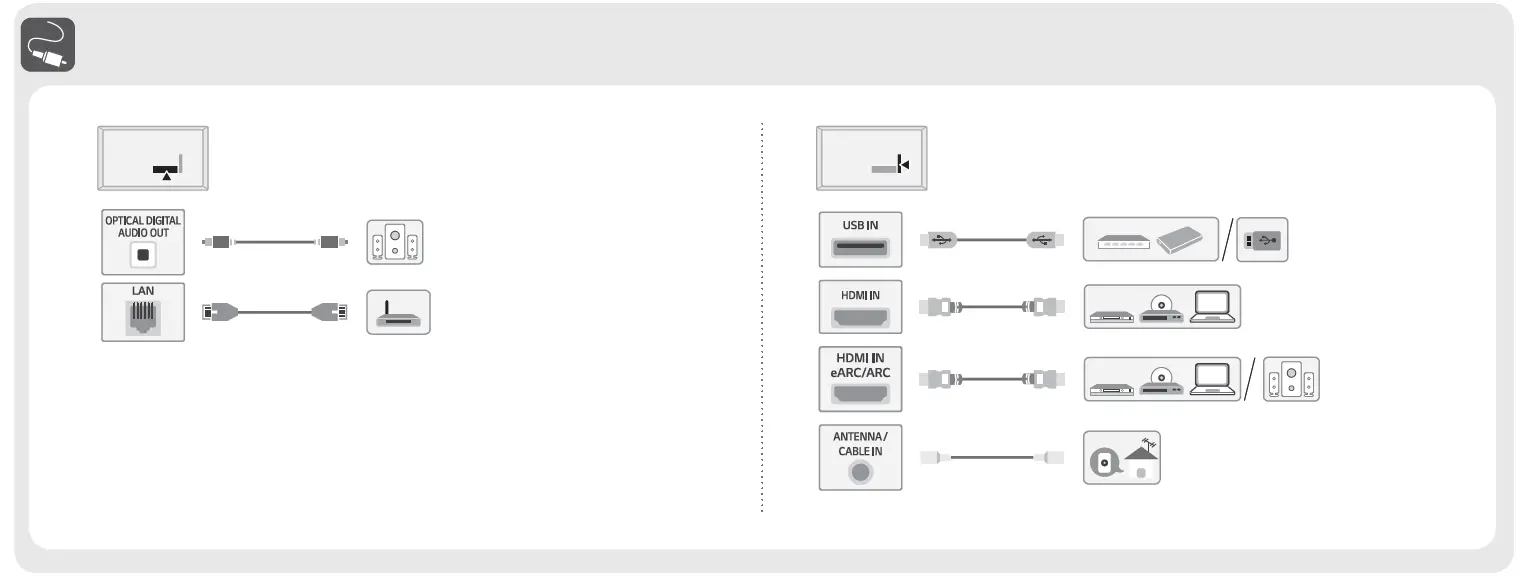

Wire Fixed

0 ZUE-series-LED-4K-UHD-Smart-WebOS 22-TV-fig-4

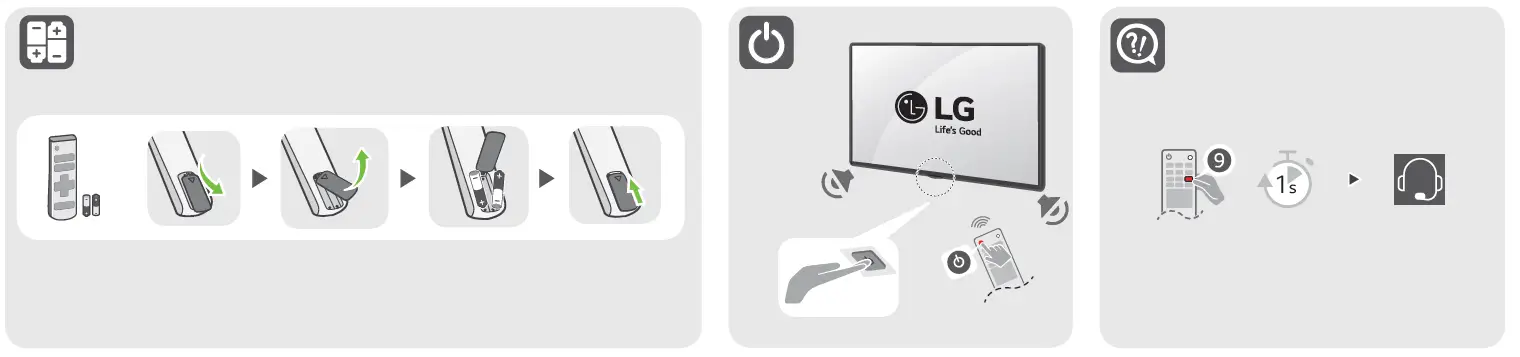

Remote Cells
Power Off

LG-UQ7070 ZUE-series-LED-4K-UHD-Smart-WebOS 22-TV-fig-5

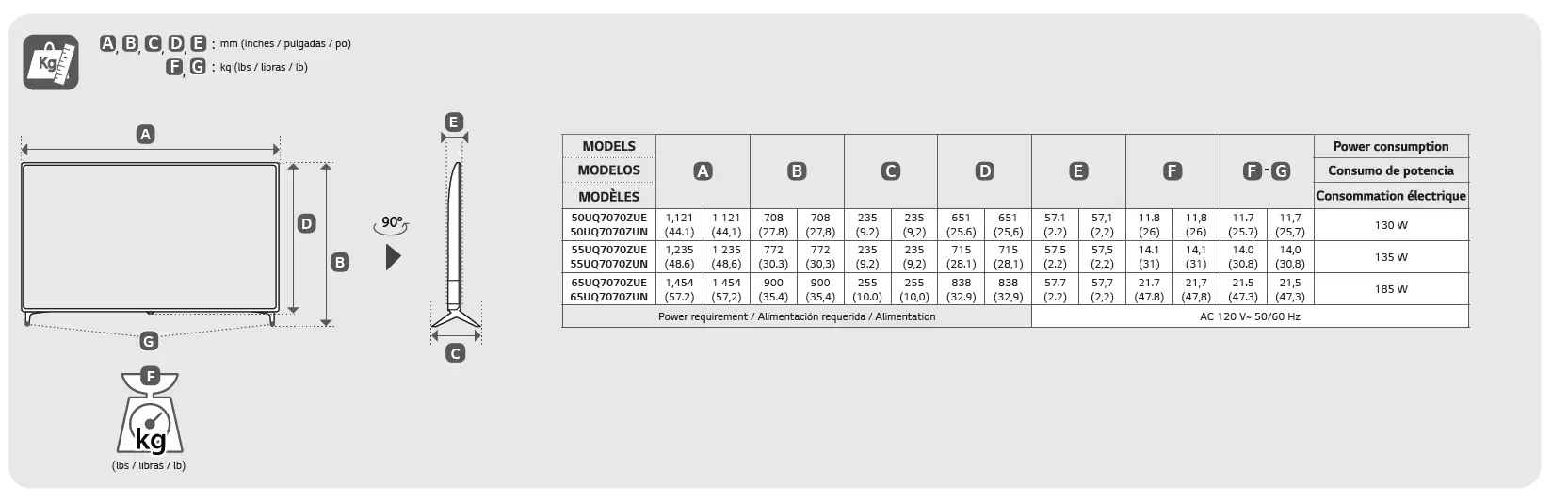

Power consumption

LG-UQ7070 ZUE-series-LED-4K-UHD-Smart-WebOS 22-TV-fig-6

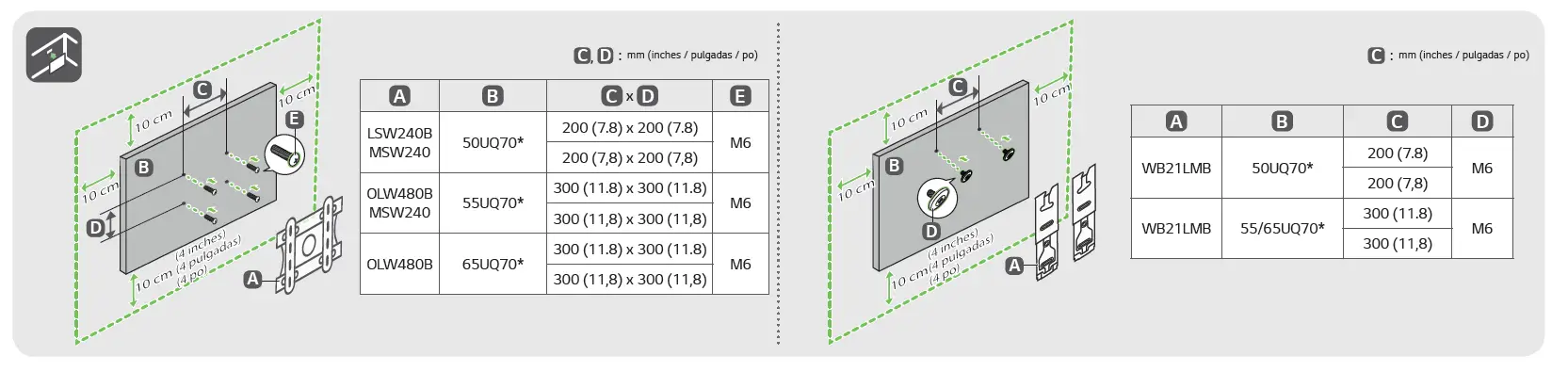

Installation

LG-UQ7070 ZUE-series-LED-4K-UHD-Smart-WebOS 22-TV-fig-7

Read Safety and Reference.

Easy Setup Guide

Please read this manual carefully before operating your set and retain it for future reference.

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
