levenhuk WA50-S Discovery Report Sensor for Weather Stations

Discovery Report WA50-S Sensor for Weather Stations

Getting started
Open the battery compartment cover (4). Insert 2 batteries according to the correct polarity. Close the cover.

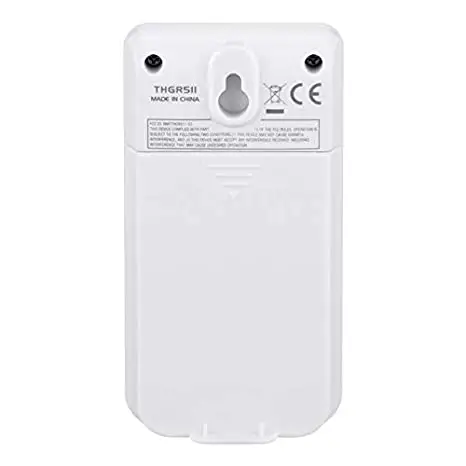

Sensor

LED indicator
Channel switch (1—3)
Wall mount hole
Battery compartment

Sensor connection
Place the base station and the remote sensor within the effective transmission range. If the reception is successful, the display will show the temperature and humidity of the outdoor sensor. If the values are not received from a channel, check the batteries and try it again. Check if there is any source of interference. When changing batteries, replace the batteries first in the base unit, and then in the sensor, to re-establish the connection. If you change the batteries only in one of the devices (for example, in the sensor), the signal may not be received correctly. The default channel is channel 1. To change it, press and hold the CHANNEL button on the base station, and then press the button again to choose between channels 1, 2, and 3. The effective range may differ depending on the unit’s position. Due to interference (various remote control devices, etc.), the maximum distance between the base unit and the sensor may be significantly reduced. In such cases, we suggest moving the base unit and sensor a little. Sometimes it is enough to move one of these units a few inches!
NOTE! Although the sensor is weather-resistant, never place it in direct sunlight or in the rain or snow.

Specifications

Radio signal frequency 433.92MHz\
Radio signal radius 100m (328ft.)
Operating temperature range (outdoors) –50… +70°C (–58… +158°F)
Power supply 2 AAA batteries (not included)
Dimensions 40x104x26mm (1.5×4.1x1in.)

Care and maintenance

Take the necessary precautions when using the device with children or others who have not read or who do not fully understand these instructions. Do not try to disassemble the device on your own for any reason. For repairs and cleaning of any kind, please contact your local specialized service center. Protect the device from sudden impact and excessive mechanical force. Store the device in a dry cool place. Only use accessories and spare parts for this device that comply with the technical specifications. Never attempt to operate a damaged device or a device with damaged electrical parts! If a part of the device or battery is swallowed, seek medical attention immediately. Children should use the device under adult supervision only.

Battery safety instructions

Always purchase the correct size and grade of battery most suitable for the intended use. Make surethe batteries are installed correctly with regard to polarity (+ and –). Never short-circuit batteries asthis may lead to high temperatures, leakage, or explosion. Never heat batteries in order to revivethem. Do not disassemble batteries. Keep batteries out of the reach of children, to avoid risk ofingestion, suffocation, or poisoning. Utilize used batteries as prescribed by your country’s laws.
Warranty: 6 months. For further details, please visit our web site: www.levenhuk.com/warranty The manufacturer reserves the right to make changes to the product range and specificationswithout prior notice.
