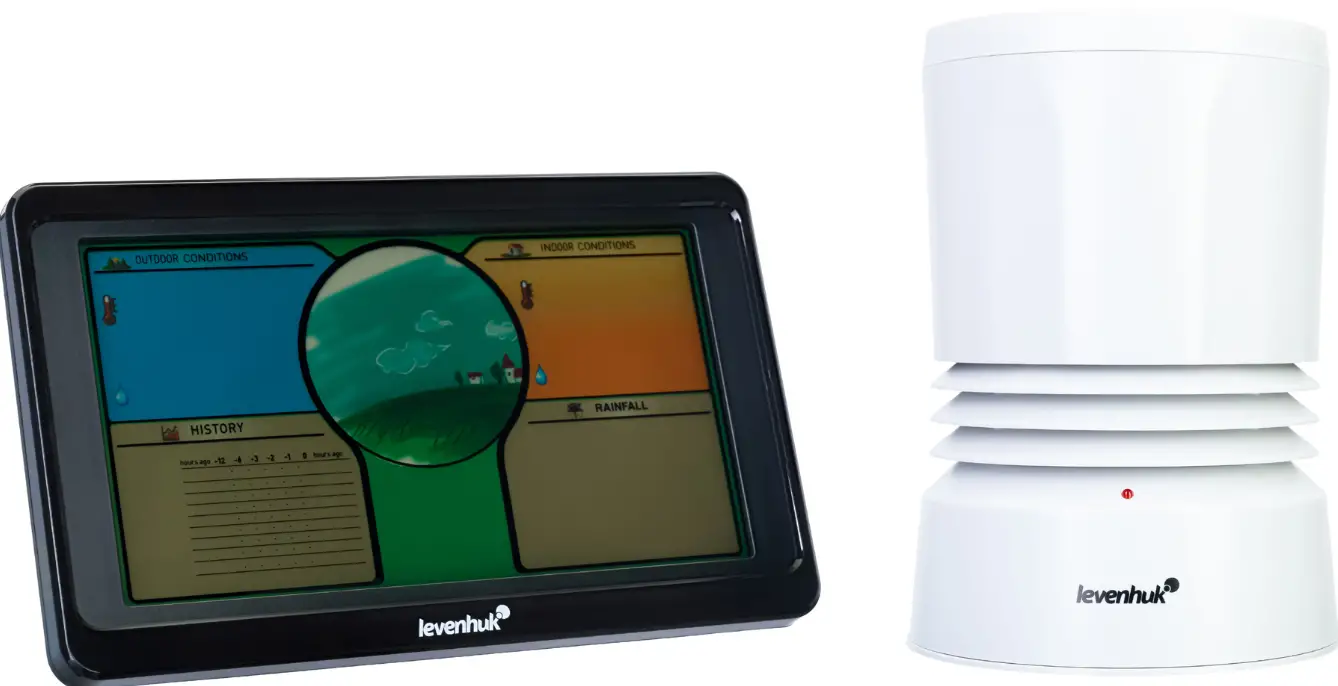

levenhuk LP70 Wezzer Plus Weather Station

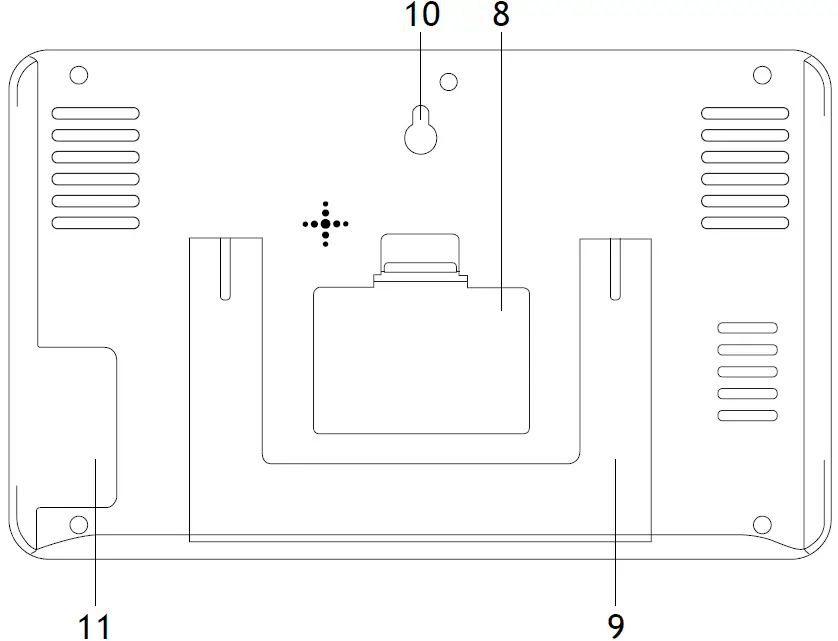

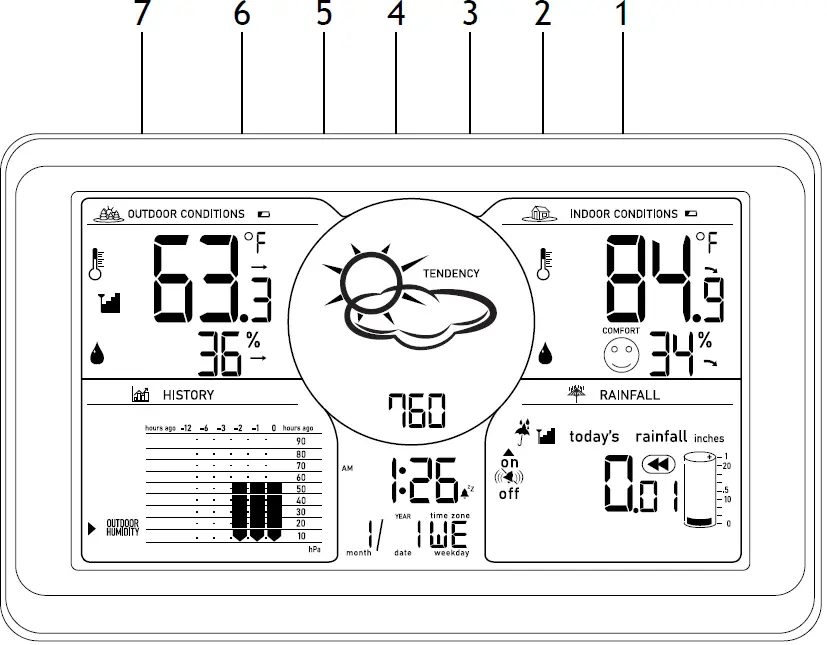

Base station

MODE button
UP button
DOWN button
SNZ/LIGHT button
HISTORY button
ALERT button
CH button
Battery compartment
Table stand (fold-out)
Wall mount hole
Power input

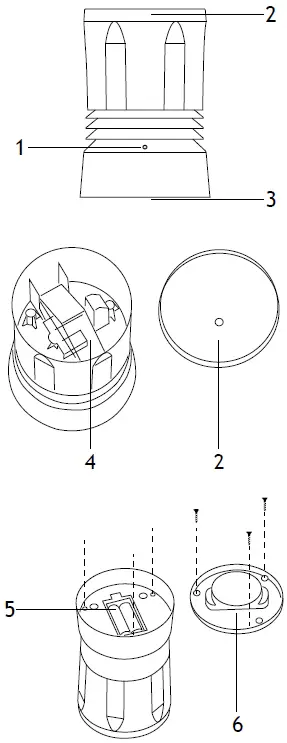

Rain gauge

LED indicator
Rain collector
Mounting ring
Tipping bucket
Battery compartment
Battery compartment cover (water-resistant)

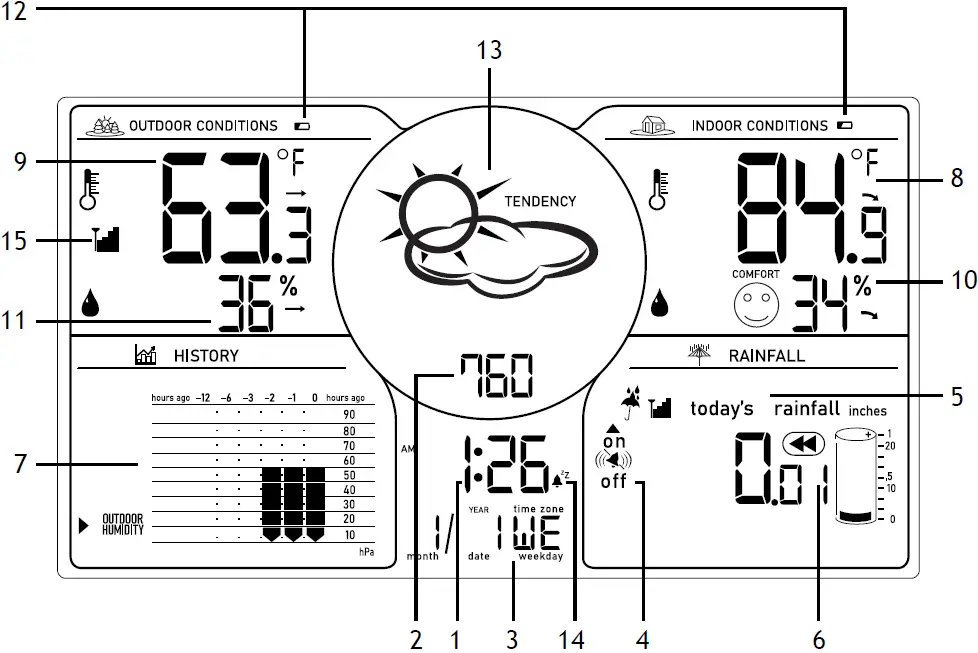

Interface icons

Time display
Atmospheric pressure
Calendar and week display
Rainfall alert
Rainfall display
Rainfall history
MAX./MIN. temperature and humidity record
Indoor temperature
Outdoor temperature
Indoor humidity
Outdoor humidity
Low battery indicator
Weather forecast
Alarm
Sensor connection status

The kit includes: base station, rain gauge, USB cable, user manual, and warranty.
Also required (not included): 2 AA batteries for the rain gauge; 3 AAA batteries for the base station.
Caution!
Please remember that mains voltage in most European countries is 220—240V. If you want to use your device in a country with a different mains voltage standard, remember that use of a converter is absolutely necessary.

Parts overview

Base station

Connect the power cable to the device and the DC adapter (not included) via a USB plug and connect to the AC power supply; or
Open the battery compartment cover (8) and insert 3 batteries according to the correct polarity. Close the cover.

NOTE!
It is recommended to use an adapter for the continuous operation of the base station, although battery power is also possible.
Rain gauge

Turn the rain collector (2) counterclockwise and open the top part of the rain gauge to remove the cardboard inside, and then reattach the rain collector by turning it clockwise.

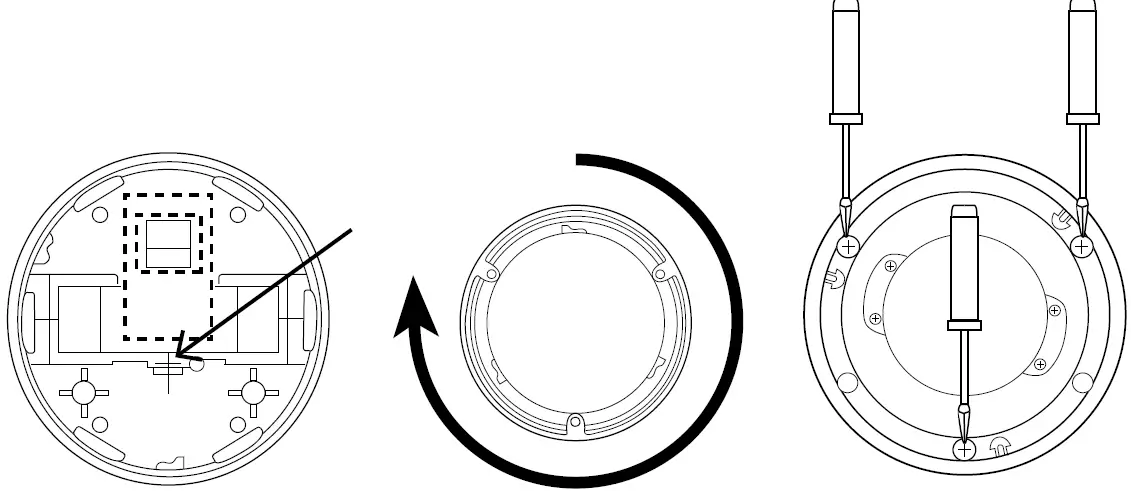

Place the rain gauge upside down. Turn the mounting ring (3) clockwise to open the bottom part. Remove 3 screws on the battery compartment cover (6). Grasp the round handle in the middle to pull the door out.
Open the battery compartment cover (5) and insert 2 batteries according to the correct polarity.
Reattach the battery compartment cover (6) and the mounting ring (3).

Rain gauge connection

Place the base station and the rain gauge within the effective transmission range. Position the rain gauge horizontally in an open area away from the trees or other obstructions so that rain falls naturally. You may insert the three mounting screws (included) through the holes in the base of the rain sensor.
If you have replaced the batteries, or would like to receive the updated readings, press and hold the CH button for 5 seconds. You will see the “—” sign. It can take up to 3 minutes to receive the new readings.

Time setting
Press the MODE button and hold it for 3 seconds. The digits that are to be set are flashing. Press UP or DOWN to change the value, and then press MODE to continue.
The setting order: 12/24h > Hours > Minutes > Year > Month > Date. Finally, press MODE to save the settings and exit.
Alarm setting
Press the MODE button, and then press it again and hold it for 3 seconds. The digits that are to be set are flashing. Press UP or DOWN to change the value, and then press the MODE button to continue.
The setting order: Hours > Minutes.
Press UP or DOWN to turn the alarm on or off.
Snooze/light function

When the alarm rings, press SNZ/LIGHT to activate the snooze function. The alarm will sound again in 5 minutes.
Press any button to silence the alarm until the set alarm time is reached again.

NOTE!
In battery mode, the backlight turns on only for a short period of time.
Rainfall and temperature alert
Press ALERT to turn the temperature alert on or off. Press and hold the ALERT button for 3 seconds. The digits that are to be set are flashing. Press UP or DOWN to change the value, and then press ALERT to confirm and continue.
The setting order: Turn the rainfall alert on or off > Rainfall alert value > Turn the temperature alert on or off > Outdoor MAX. temperature > Outdoor MIN. temperature.
NOTE!

Fine rain = 0.25 mm/h
Light rain = 1mm/h
Moderate rain = 4 mm/h
Heavy rain = 16mm/h
Thunderstorm = 35 mm/h
Strong thunderstorms = 100mm/h

Units of measurement

Press the UP button to switch between °C and °F.
Press the DOWN button to switch between millimeters and inches.

Weather

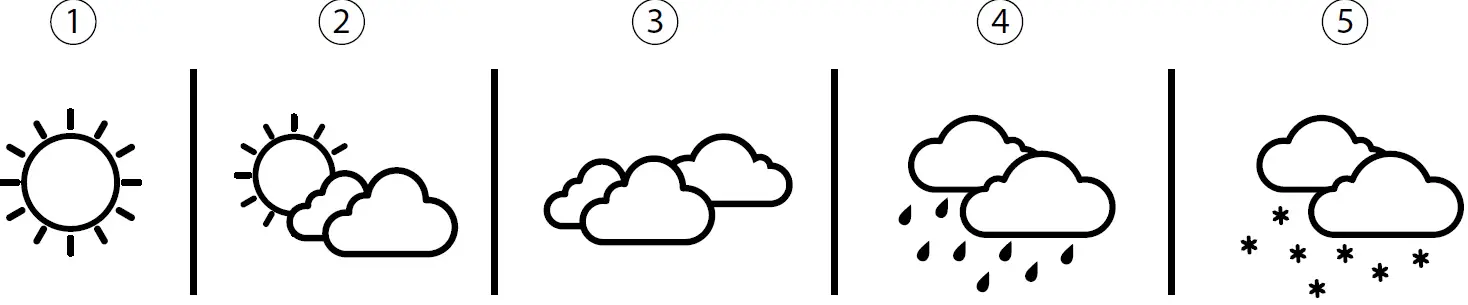

Weather forecast

Sunny
Partly cloudy
Cloudy
Rainy
Snowy

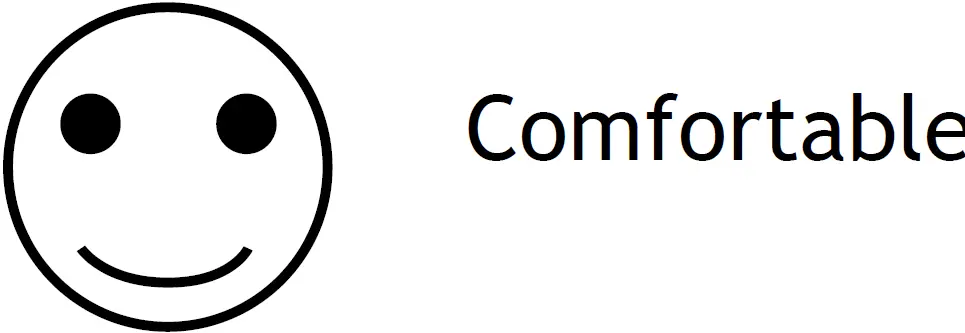

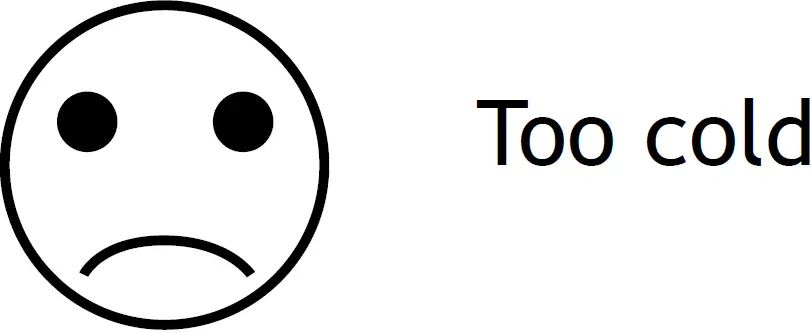

Climate indication

The climate indication is a pictorial indication based on indoor air temperature and humidity in an attempt to determine the comfort level.
History record
Press the HISTORY button to display the rainfall value, MAX./MIN. temperature and humidity. Display order: Previous day rainfall > Current week rainfall > Current month rainfall > Current year rainfall Previous year rainfall > Indoor MAX. temperature and humidity > Indoor MIN. temperature and humidity > Outdoor MAX. temperature and humidity > Outdoor MIN. temperature and humidity. To clear the rainfall value and MIN./MAX. temperature and humidity records, press and hold the HISTORY button for 3 seconds.

Specifications

Atmospheric pressure, units of measurement	mmHg
Air humidity, units of measurement	% (RH)
Operating humidity range (indoors, outdoors)	10… 99%
Temperature, units of measurement	°F, °C
Operating temperature range (indoors)	–10… +50°C (+14… +122°F)
Operating temperature range (outdoors)	–30… +60°C (–22… +140°F)
Rain gauge (precipitations), units of measurement	mm
Rainfall alert	+, mm/h
Time format	24 hours, 12 hours
Weekday display language	English
Screen	color, with an LED backlight
Radio signal frequency	433.92MHz
Radio signal radius	100m (328ft.) (in an open area)
Wireless sensor	rain gauge (included)

Power supply (main unit)	AC/DC adapter 5V 1000mA (not included), З AAA batteries (not included)
USB cable	1.5m (4.9ft.), included
Power supply (rain gauge)	2 AA batteries (not included)

The manufacturer reserves the right to make changes to the product range and specifications without prior notice.

Care and maintenance

Take the necessary precautions when using the device with children or others who have not read or who do not fully understand these instructions. Do not try to disassemble the device on your own for any reason. For repairs and cleaning of any kind, please contact your local specialized service center. Protect the device from sudden impact and excessive mechanical force. Store the device in a dry, cool place away from hazardous acids and other chemicals, away from heaters, open fire, and other sources of high temperatures. Operate the device only in a completely dry environment and do not touch the device with wet or damp body parts. Only use accessories and spare parts for this device that comply with the technical specifications. Check this device, cables and connections for damage before use. Never attempt to operate a damaged device, or a device with damaged electrical parts! Damaged parts must be replaced immediately by an authorized service agent. If a part of the device or battery is swallowed, seek medical attention immediately. Children should use the device under adult supervision only.
Battery safety instructions
Always purchase the correct size and grade of battery most suitable for the intended use. Always replace the whole set of batteries at one time; taking care not to mix old and new ones, or batteries of different types. Clean the battery contacts and also those of the device prior to battery installation. Make sure the batteries are installed correctly with regard to polarity (+ and –). Remove batteries from equipment that is not to be used for an extended period of time. Remove used batteries promptly. Never short-circuit batteries as this may lead to high temperatures, leakage, or explosion. Never heat batteries in order to revive them. Do not disassemble batteries. Remember to switch off devices after use. Keep batteries out of the reach of children, to avoid risk of ingestion, suffocation, or poisoning. Utilize used batteries as prescribed by your country’s laws.
Levenhuk International Lifetime Warranty
All Levenhuk telescopes, microscopes, binoculars, and other optical products, except for their accessories, carry a lifetime warranty against defects in materials and workmanship. A lifetime warranty is a guarantee on the lifetime of the product on the market. All Levenhuk accessories are warranted to be free of defects in materials and workmanship for six months from the purchase date. The warranty entitles you to the free repair or replacement of the Levenhuk product in any country where a Levenhuk office is located if all the warranty conditions are met.
For further details, please visit: www.levenhuk.com/warranty If warranty problems arise, or if you need assistance in using your product, contact the local Levenhuk branch.
