Wheelchair Seat Belt
PRODUCT CODE: WC07040001
Attaching the seat belt

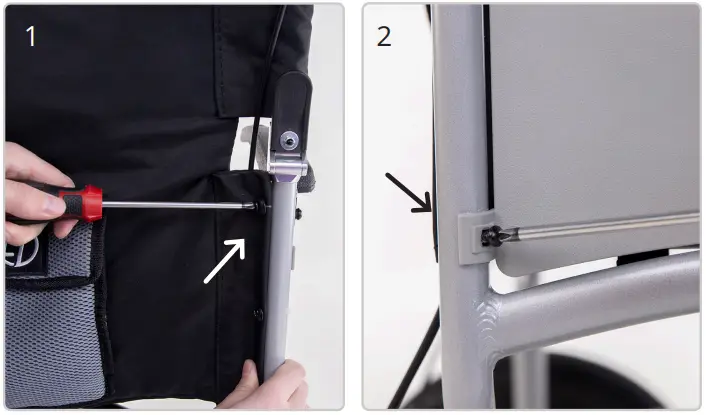

- Use a screwdriver to remove the lower backrest canvas (1) and lower side panel (2) retaining screws.

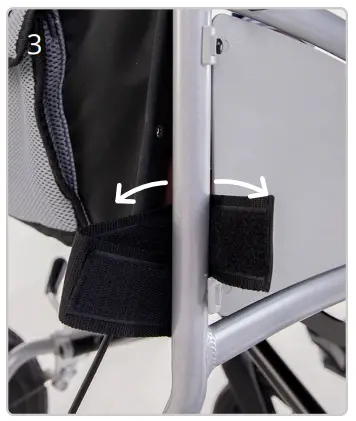

- Insert the seat belt between the backrest canvas and the frame (3).

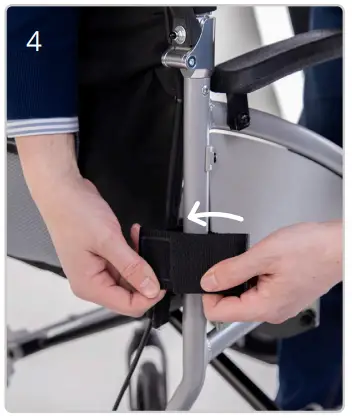

- Secure the seatbelt Velcro loop (4).

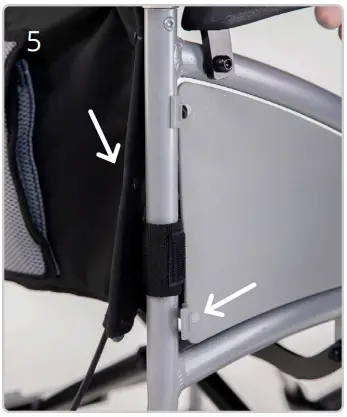

- Reinstall the lower backrest canvas and lower side panel retaining screws using a screwdriver (5).
- Repeat on the other side.

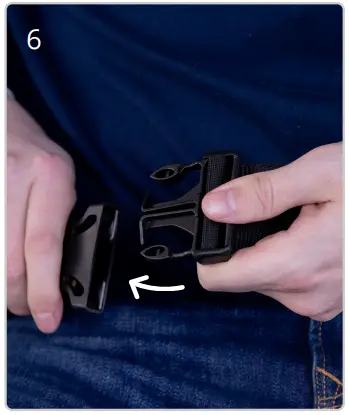

- Adjust the user seatbelt to the desired length (6).
