TDS850 Seat Belt
Installation Guide
HOW TO INSTALL A SEAT BELT
STDS850 Seat Belt

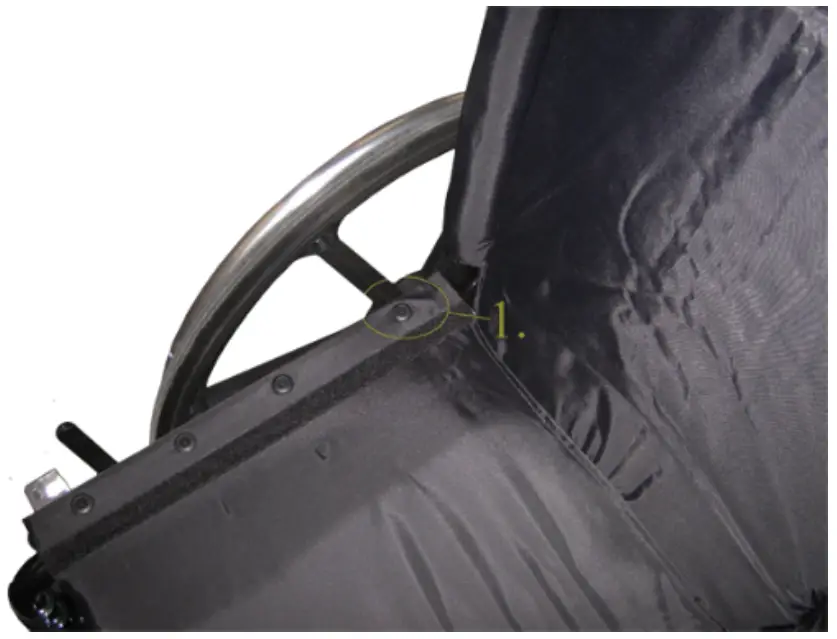

- The seatbelt will be installed on the rear screws of the seat upholstery.

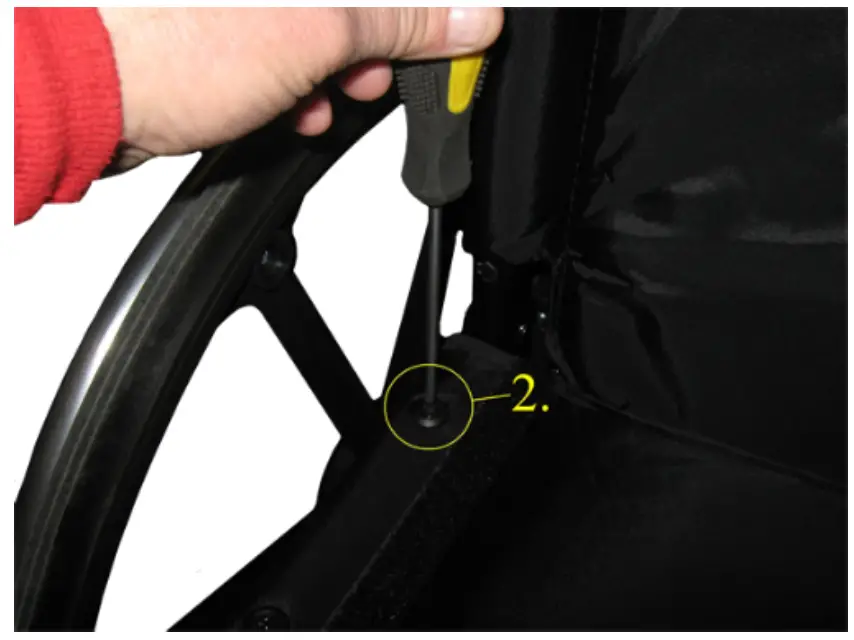

- Remove one of the rear screws.

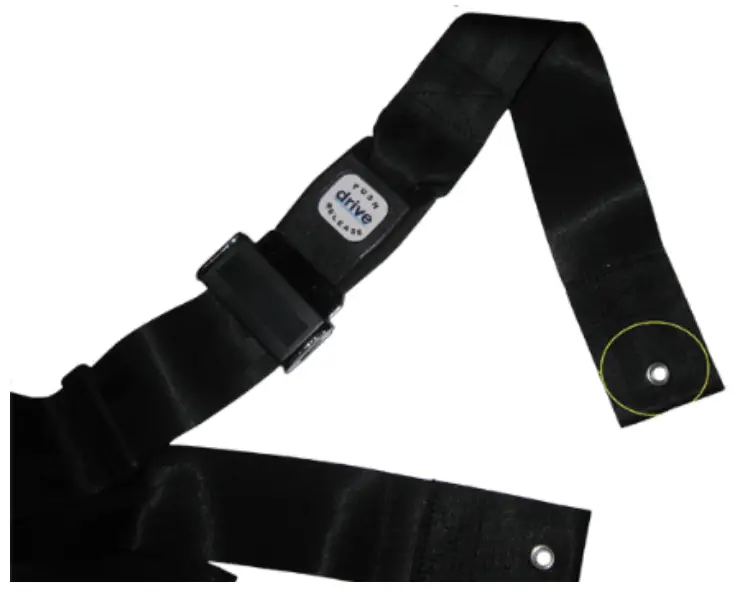

- Take one end of the seatbelt with the underside facing up.
HT SEAT BELT
- Insert the end of the set belt between the upholstery and the cross brace.

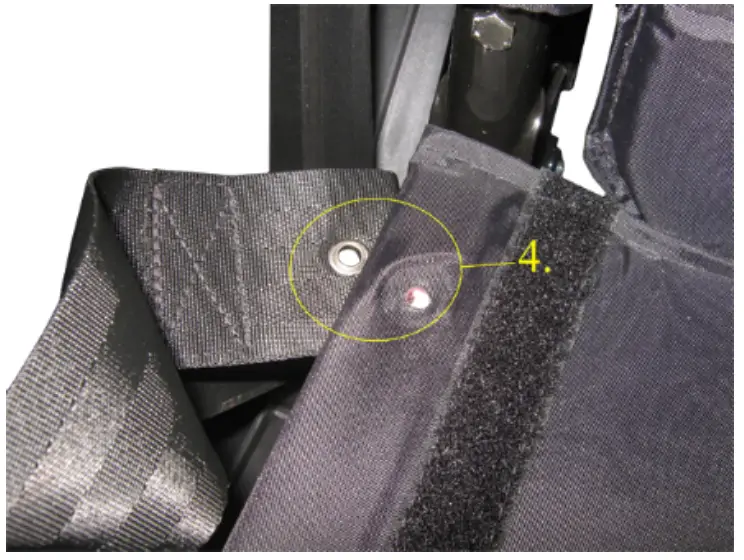

- Insert the seat screw through the seat upholstery then the seatbelt. It is important to make sure the screw goes through the seat stay that is inside the seat upholstery.
- Install the screw back into the cross brace and tighten.
- Repeat this procedure on the opposite side of the seat upholstery.
