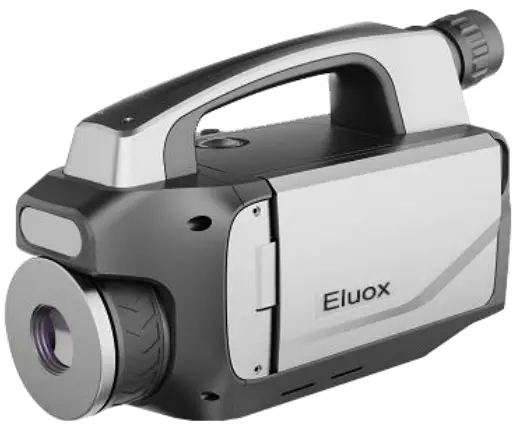

Eluox EIRC35CG VOCs Gas Detection Thermal Camera
Overview

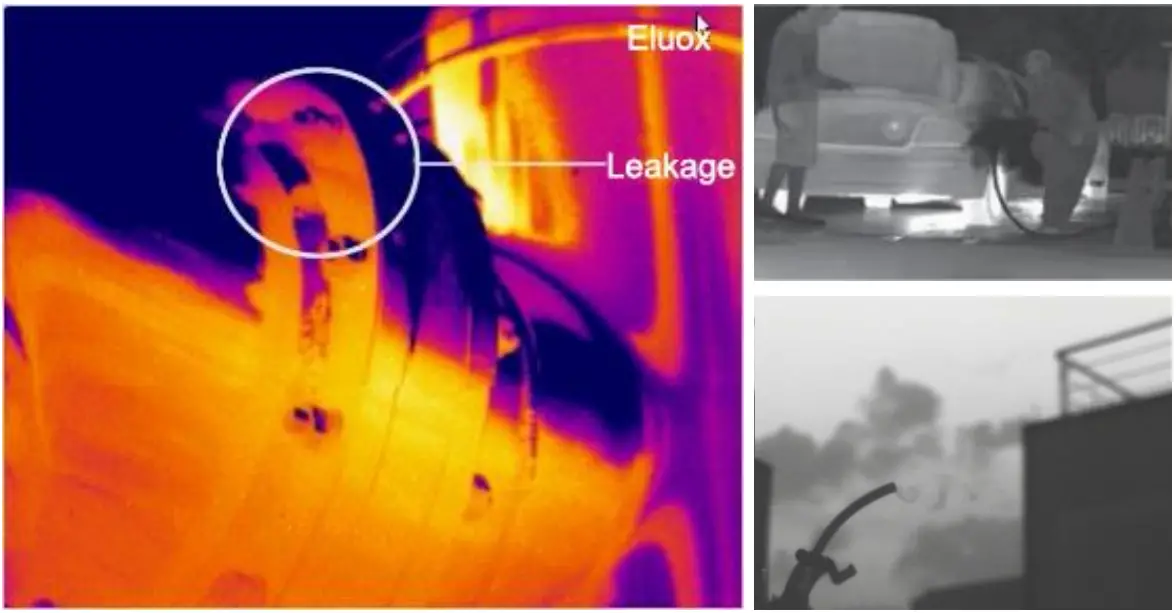

Employed passive thermal imaging technology, EIRC35CG VOCs gas detection thermal camera can quickly scan VOCs natural gas pipelines and equipment, in real-time & intuitively locate VOCs gas leakage points and accurately measure the temperature of object via infrared thermal imaging at long distance.
Features
- Cooled QWIP detector
- Thermal sensitivity: ≤0.01°C
- VOCs gas detection sensitivity: ≤0.4g/hr (CH4) VOC gas leakage detection
- Thermal temperature measurement
- Photo and video recording function
- 128G SD card
- Explosion-proof: Ex ic nC op is IIC T4 Gc
Applications
Ecological environment law enforcement team, city c(country) motor vehicle exhaust pollution monitoring center, Safety supervision bureau, Fire Bureau, Maritime safety administration, LDAR testing service company Offshore oil platform, oil refinery, refineries, gas station, chemical treatment plant, hazardous chemicals, parking lot and hazardous chemicals storage tank area. Natural gas enterprises, natural gas stations, natural gas well sites, natural gas storage facilities, natural gas transmission pipelines, and natural gas power plants. Biogas power plants, pharmaceutical enterprises, pesticide plants, coal chemical plants.
| Item | Value | ||
|
Detector | Type | High sensitivity cooled QWIP Detector | |
| Array size | 320×256 | ||
| Pixel pitch | 30μm | ||
| Spectral range | 3.1 ~ 3.5μm | ||
| Thermal sensitivity | 10mK | ||
| Gas sensitivity | ≤ 0.4g/hr (CH4) | ||
|
Lens | Field of view/ focal length | 14° x 11.2° / 39mm | 24° x 19.2° / 23mm (optional) |
| Minimum imaging distance | 0.5m | 0.3m | |
| Spatial resolution | 0.77mrad | 1.13mrad | |
| Focus | Manual/Motor/Auto | ||
|
Image performance | LCD | HD 5.0”, 1280×720, rotatable touch screen | |
| Visual camera | 5 megapixel CMOS, autofocus, 1 LED fill light | ||
| Frame rate | 50Hz | ||
| Amplification | 1 ~ 8x digital zoom | ||
| Palette | 12 palettes (including iron hot, rainbow, black hot, white hot, etc.) | ||
| Contrast/Brightness | Auto/Manual | ||
|
Measurement | Range | -20°C — +350°C | |
| Accuracy | ±1°C @ 0 ~100°C, ±2% of reading @ -20°C ~ 0°C and > 100°C | ||
| Measuring mode | Up to 10 movable spots, up to 5 movable areas(max, min, avg.), 3 movable circles, movable lines, isothermal analysis, temperature difference, temperature alarm (sound, color) | ||
| Measurement correction | Auto / manual | ||
| Emissivity correction | Adjustable from 0.1 to 1.0 or select from list of materials | ||
| Background temperature correction | Automatically correct according to the background temperature | ||
| Atmospheric transmissivity correction | Auto (according to the input distance, relative humidity, and ambient temperature) | ||
| Setting | Date, time, temperature unit (°C/°F/K), language (Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish.) | ||
|
Storage | Memory card | 128G | |
| Storage mode | Auto/manual single frame image saving,, video recording | ||
| Infrared image | JPEG, with 14 bit measured data | ||
| Visible light image | JPEG | ||
| Video | MPEG4 / H.262, each segment can be up to 1hour | ||
| Voice annotation | 40s, saved together with image | ||
| Timed storage | Every 10s ~ 24h | ||
| Pointer | Laser | 635nm(red), II Class, 1mW | |
|
Power supply | Battery | rechargeable Li-ion battery | |
| Operation time | 3 hours of continuous operation (room temperature) | ||
| Charging | Intelligent charge or power supply adaptor online charge | ||
| External power | DC 14V | ||
| Charging type | Smart charging stand or DC14V 3A power adapter | ||
| Power saving mode | Available | ||
|
Interface | External DC input | available | |
| Audio output | Available | ||
| Video output | HDMI | ||
| Communication interface | WIFI, Bluetooth, USB | ||
| Audio output | Yes | ||
| Tripod | ¼”-20 | ||
| Item | Value | |
|
Environment parameters | Operating temperature | -20°C ~ +50°C |
| Storage temperature | -30°C ~ +60°C | |
| Humidity | ≤95% (non-condensing) | |
| EMC | EN61000-604 & EN61000-6-2, FCC47CFR part15 class A, EN61000-4-8, L5 | |
| Vibration resistance | 2G (IEC60068-2-6) | |
| Shock resistance | 25G (IEC60068-2-29) | |
| Encapsulation | IP54 (IEC60529) | |
| Explosion-proof | Ex ic nC op is IIC T4 Gc | |
| Physical feature | Dimensions | 262mm x 174mm x 154mm |
| Weight | ≤2.8KG (with standard lens & battery) | |
|
Gas detection | Methane | Yes |
| Ethane | Yes | |
| Butane | Yes | |
| Propane | Yes | |
| Octane | Yes | |
| Pentane | Yes | |
| Heptane | Yes | |
| Hexane | Yes | |
| Ethylene | Yes | |
| Propylene | yes | |
| Benzene | Yes | |
| Toluene | Yes | |
| Ethylbenzene | Yes | |
| Xylene | Yes | |
| Ethanol | Yes | |
| Methanol | Yes | |
| Isoprene | Yes | |
| MEK | Yes | |
| MIBK | Yes | |
| 1-pentene | Yes | |
|
Kit | Thermal Camera (with standard lens) | 1PCS |
| Lithium batteries | 2PCS | |
| Battery charger | 1PCS | |
| Power adapter | 1PCS | |
| Vehicle power converter | 1PCS | |
| SD card | 1PCS | |
| Card reader | 1PCS | |
| Software CD | 1PCS | |
| Headset | 1PCS | |
| Video cable | 1PCS | |
| Carry case | 1PCS | |
| Warranty card | 1PCS | |
| Certificate | 1PCS | |
| User Manual | 1PCS | |
Chengdu Eluox Automation Co., Ltd.
No.134, Qingjiang East Road, Chengdu 610072 R.P. China www.eluox.cn [email protected] Tel: +8618349338595
