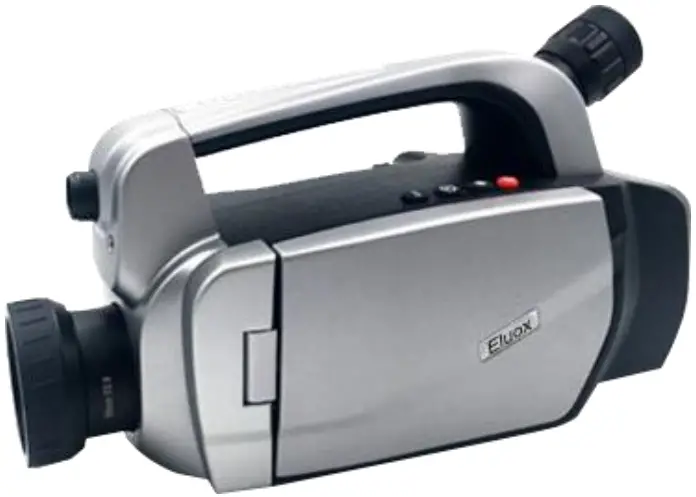

Eluox EIRC20CG
SF6 Gas Detection Thermal Camera
Overview

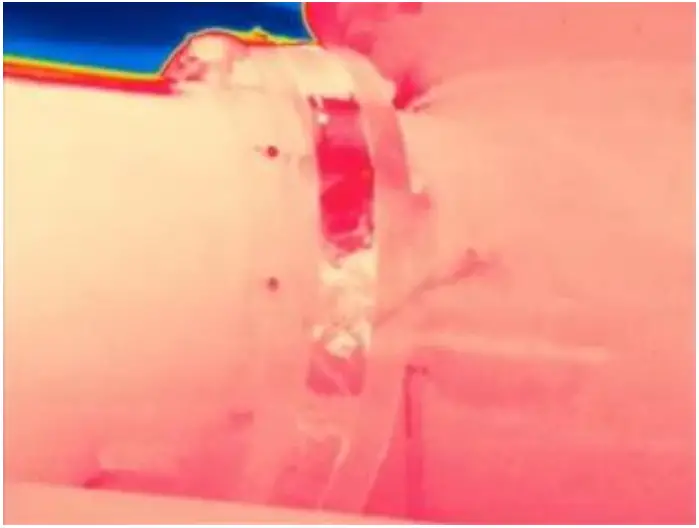

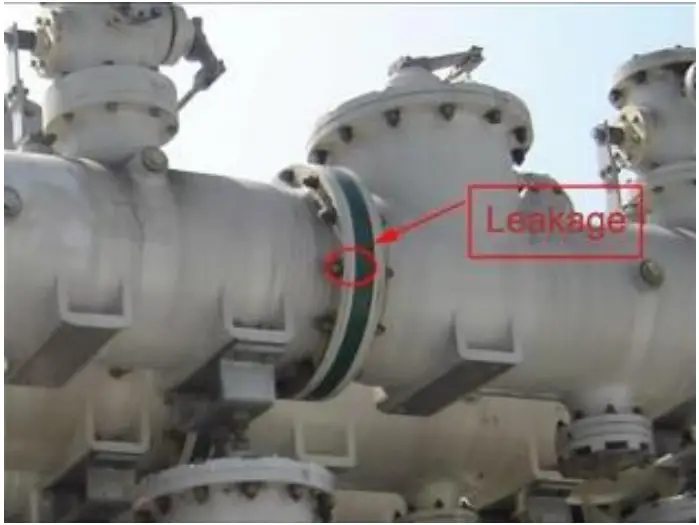

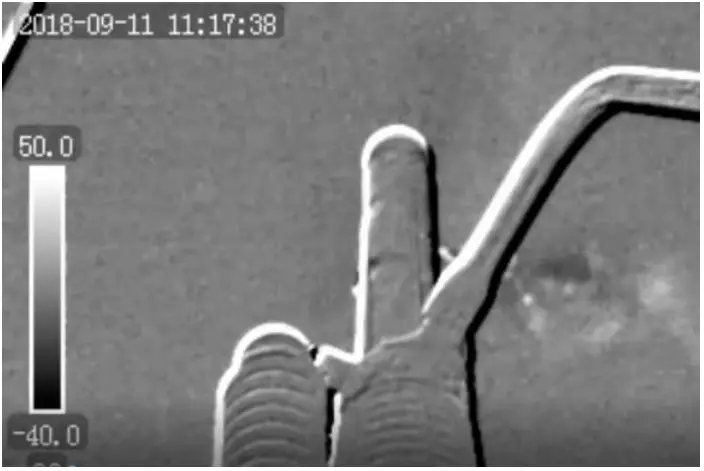

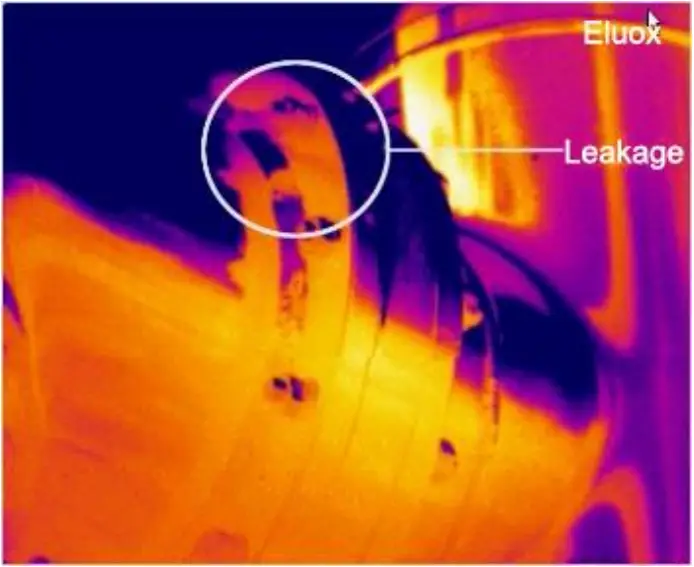

Employed passive thermal imaging technology, EIRC20CG SF6 gas detection thermal camera can quickly locate SF6 leakage point at long distance without power supply shutdown. At the same time, it can also detect the leakage of other various types of gas as well as thermographic inspection of electrical distribution system items and other equipment via thermal imaging.
Features
Cooled QWIP detector
Thermal sensitivity: ≤0.025°C
Gas detection sensitivity: ≤0.001ml/s (SF6)
SF6 & other gas detection
Thermal temperature measurement
Photo and video recording function
Built-in 5.0 MP digital camera
Foldable and 270° rotatable display
Applications:
Electricity
Chemical Industry
Environmental organization
Research Institute
| Item | Value | |
| Detector | Type | High sensitivity cooled QWIP Detector |
| Array size | 320×256 | |
| Pixel pitch | 30μm | |
| Spectral range | 9.8 ~ 11.2μm | |
| Thermal sensitivity | 25mK | |
| Gas sensitivity | ≤ 0.001ml/s(SF6) | |
| Lens | Field of view/ focal length | 10° x 7.5° / 55mm |
| Minimum imaging distance | 2m | |
| Spatial resolution | 0.55mrad | |
| Focus | Manual | |
| Image performance | LCD | HD 5.0”, 800×480, foldable and 270° rotatable |
| Visual camera | 5 mega pixel CMOS, auto focus, 1 LED fill light | |
| Frame rate | 50Hz/60Hz | |
| Amplification | 1 ~ 8x digital zoom | |
| Palette | 12 palettes (including iron hot, rainbow, black hot, white hot, etc.) | |
| Contrast/Brightness | Auto/Manual | |
| Measurement | Range | -20°C — +500°C |
| Accuracy | ±2°C or ±2% of reading, whichever is greater | |
| Measuring mode | Up to 10 movable spots, up to 5 movable areas(max, min, avg.), 3 movable circles, vertical/horizontal movable line, isothermal analysis, temp. difference, alarm (sound, color) | |
| Measurement correction | Auto / manual | |
| Emissivity correction | Adjustable from 0.01 to 1.0 or select from list of materials | |
| Background temperature correction | Automatically correct according to background temperature | |
| Atmospheric transmissivity correction | Auto (according to the input distance, relative humidity, ambient temperature) | |
| Setting | Date, time, temperature unit (°C/°F/K), language (Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish.) | |
| Storage | Memory card | 8G SD card, extendable to 32G |
| Storage mode | Auto/manual single frame image saving,, video recording | |
| Infrared image | JPEG, with 14 bit measured data | |
| Visible light image | JPEG | |
| Video | MPEG4 / H.262, each segment can be up to 1hour | |
| Voice annotation | 40s, saved together with image | |
| Timed storage | Every 10s ~ 24h | |
| Pointer | Laser | 635nm(red), II Class, 1mW |
| Power supply | Battery | rechargeable Li-ion battery |
| Operation time | 2 hours continuous operation (room temperature) | |
| Charging | Intelligent charge or power supply adaptor online charge | |
| External power | DC 14V | |
| Charging type | Smart charging stand or DC14V 3A power adapter | |
| Power saving mode | Available | |
| Interface | External DC input | Available |
| Audio output | Available | |
| Video output | HDMI | |
| SD card slot | Yes | |
| Tripod | ¼”-20 | |
| Environment parameters | Operating temperature | -15°C ~ +40°C |
| Storage temperature | -20°C ~ +50°C | |
| Humidity | ≤95% (non-condensing) | |
| EMC | EN61000-604 & EN61000-6-2, FCC47CFR part15 class A, EN61000-4-8, L5 | |
| Vibration resistance | 2G (IEC60068-2-6) | |
| Shock resistance | 25G (IEC60068-2-29) | |
| Encapsulation | IP54 (IEC60529) | |
| Physical feature | Dimensions | 308mm x 142mm x 166mm |
| Weight | ≤2.5KG (with standard lens & battery) | |
| Gas detection | Sulfur Hexafluoride (SF6) | Yes |
| Ammonia (NH3) | Yes | |
| Cyanoacrylate | Yes | |
| Acetic acid | Yes | |
| Freon-12 | Yes | |
| Methyl Ethyl Ketone (MEK) | Yes | |
| Acetyl chloride | Yes | |
| Allyl bromide | Yes | |
| Allyl fluoride | Yes | |
| Allyl chloride | Yes | |
| Methyl bromide | Yes | |
| Chlorine dioxide | Yes | |
| Ethyl cyanoacrylate | Yes | |
| Ethylene | Yes | |
| Furan | Yes | |
| Hydrazine | Yes | |
| Methyl vinyl ketone | Yes | |
| Propylene | Yes | |
| Trichloroethylene | Yes | |
| Uranyl fluoride | Yes | |
| Vinyl chloride | Yes | |
| Allyl nitrile | Yes | |
| Vinyl ether | Yes | |
| Kit | Thermal Camera (with standard lens) | 1PCS |
| Lithium batteries | 2PCS | |
| Battery charger | 1PCS | |
| Power adapter | 1PCS | |
| Vehicle power converter | 1PCS | |
| SD card | 1PCS | |
| Card reader | 1PCS | |
| Software CD | 1PCS | |
| USB WIFI Module | 1PCS | |
| Carry case | 1PCS | |
| Warranty card | 1PCS | |
| Certificate | 1PCS | |
| User Manual | 1PCS | |
