Niko Connected Dimmer, 3-200w,2-wire User Guide

Manual
551-722×1

Connected dimmer, 3 – 200 W, 2-wire

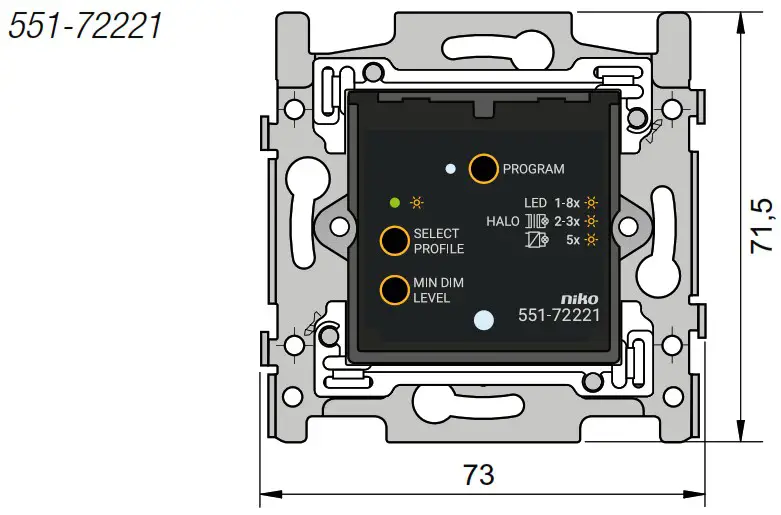

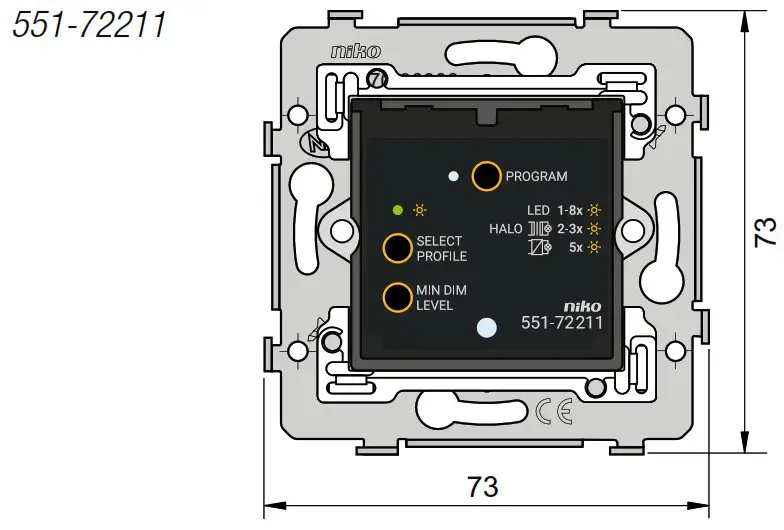

Dimensions

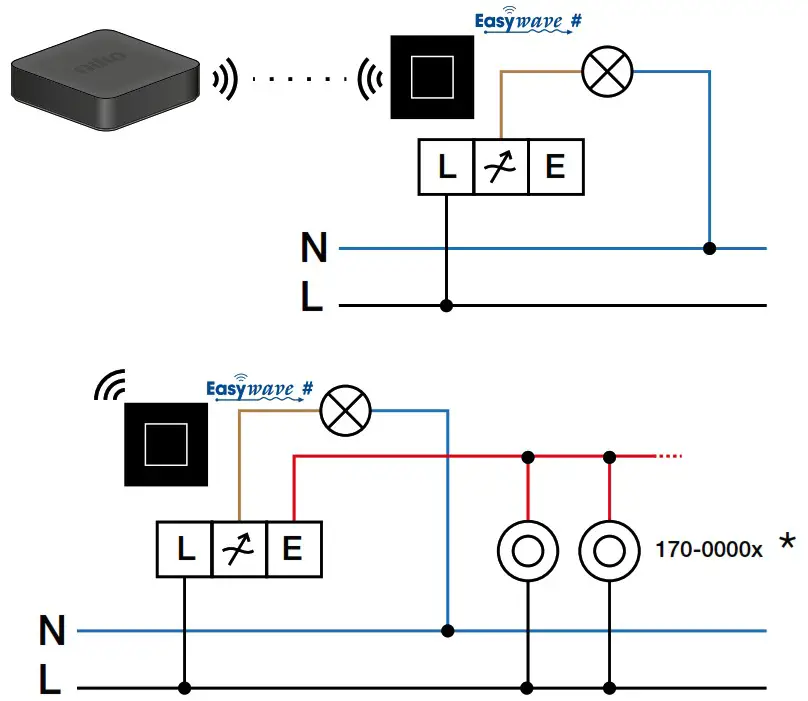

Wiring

230 V – OFF

This product must be secured with a Miniature Circuit Breaker (MCB) of max. 16 A in the electrical cabinet.
* All mechanical push-button extensions wired to the same terminal will show the same behaviour (either the standard behaviour of the actor or a programmed behaviour). It is not possible to configure the behaviour of these extension switches separately. Max. wire length for all extension buttons: 50 m. (Note that this is the total wire length for all extension switches connected to the Easywave switch)

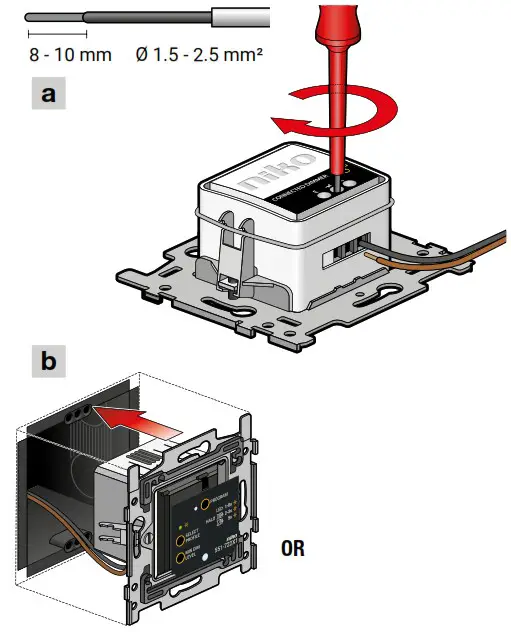

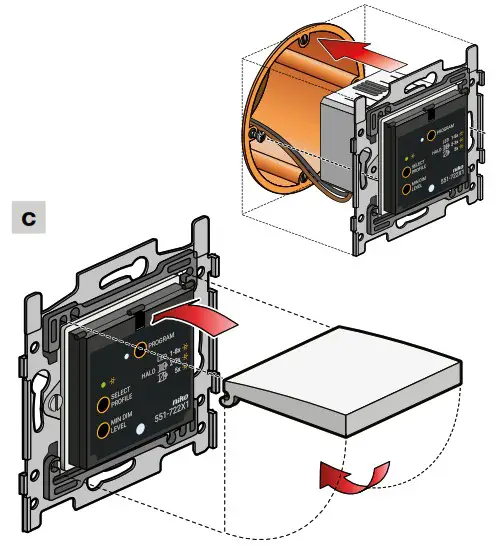

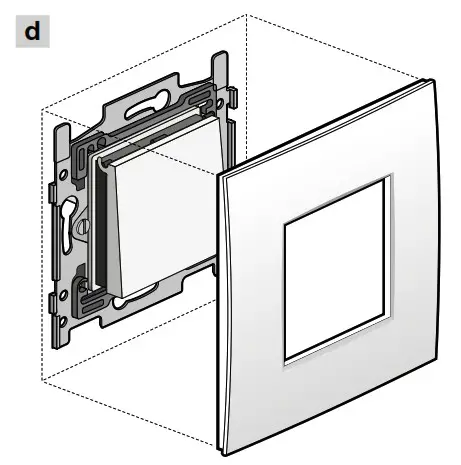

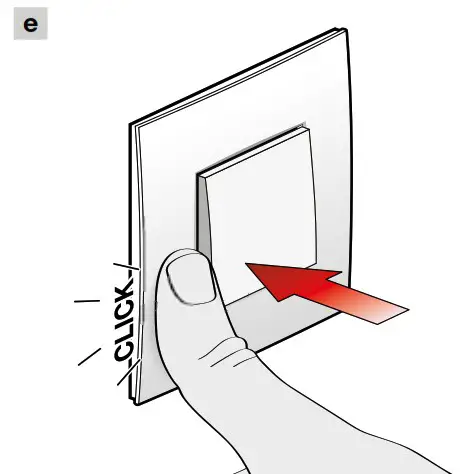

Installation

Settings

In an installation without a wireless smart hub, the dimmer will control the wired lamp. More advanced options become available if you use a wireless smart hub and the Niko Home Contol programming software.

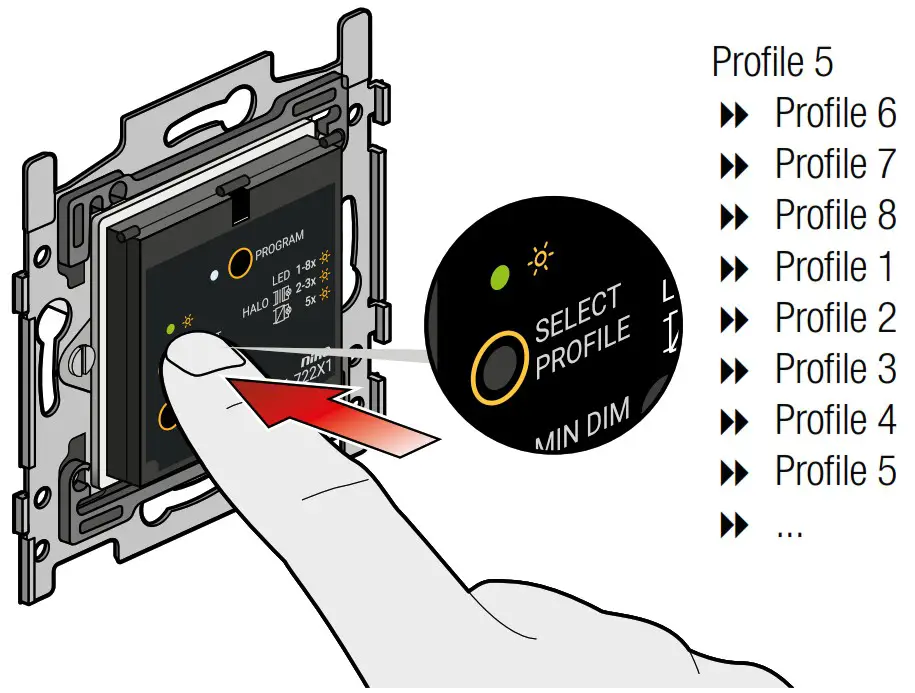

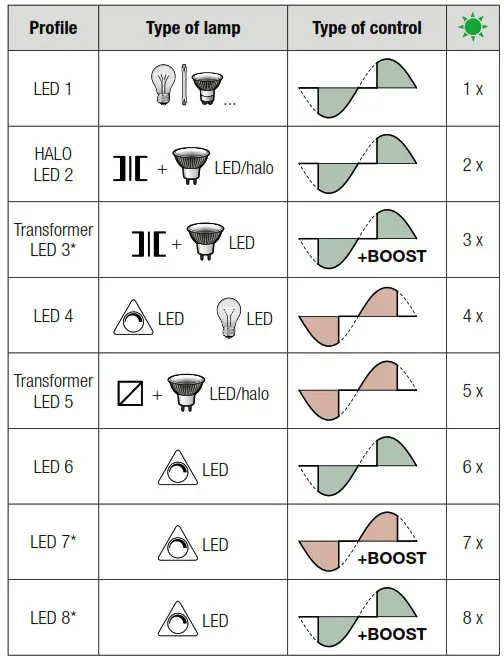

Select dimmer profile

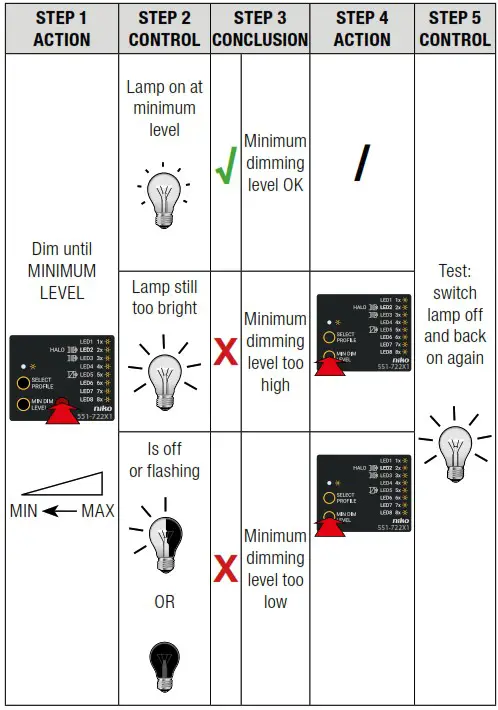

Memory function

Stand-alone mode: The memory function is always active with the previously set light intensity level being stored. It cannot be disabled.
Connected mode: The memory function is active by default and it can be disabled via the Niko Home Control II configuration software.

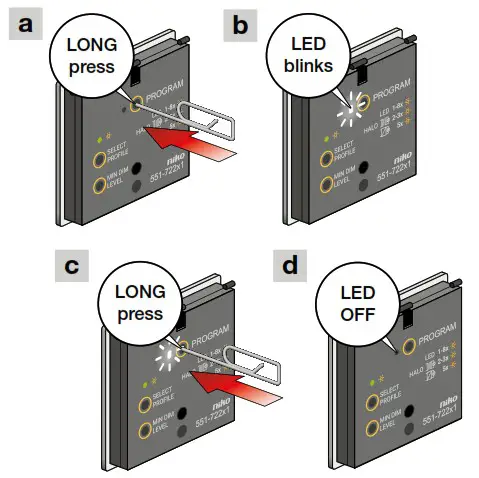

Reset

Load table

Below table gives an overview of the permitted loads at an ambient temperature of 35 °C

Lamp				LED
	Resistive	230 V halogen lamp	12 V halogen lamp	dimmable LED lamp
Max.	200 W	200 W	200 VA	200 W
Min.	3 W	20 W	20 W	3 W

The dimmable capacity decreases by 10 % per 5 °C once the ambient temperature of 35 °C is exceeded

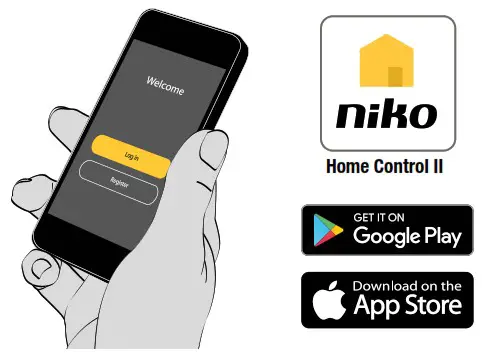

Control

Download the Niko Home Control programming software

Control your dimmer with the Niko Home Control II app

Specifications

Warnings regarding installation
The installation of products that will permanently be part of the electrical installation and which include dangerous voltages, should be carried out by a qualified installer and in accordance with the applicable regulations. This user manual must be presented to the user. It should be included in the electrical installation file and it should be passed on to any new owners. Additional copies are available on the Niko website or via Niko customer services.

CE marking
This product complies with all of the relevant European guidelines and regulations. For radio equipment Niko llc declares that the radio equipment in this manual conforms with the 2014/53/EU directive. The full text of the EU declaration of conformity is available at www.niko.eu under the product reference, if applicable.

Environment
This product and/or the batteries provided cannot be disposed of in non-recyclable waste. Take your discarded product to a recognised collection point. Just like producers and importers, you too play an important role in the promotion of sorting, recycling and reuse of discarded electrical and electronic equipment. To finance the rubbish collection and waste treatment, the government levies recycling charges in certain cases (included in the price of this product).

Support & contact

nv Niko sa
Industriepark West 40 9100 Sint-Niklaas, Belgium
www.niko.eu
+32 3 778 90 80
[email protected]

Niko prepares its manuals with the greatest care and strives to make them as complete, correct and up-to-date as possible. Nevertheless, some deficiencies may subsist. Niko cannot be held responsible for this, other than within the legal limits. Please inform us of any deficiencies in the manuals by contacting Niko customer services at [email protected].

PM551-722x1R21442
