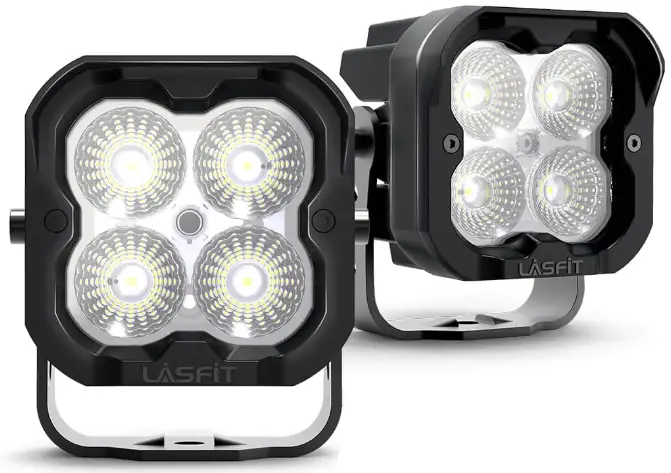

LASFIT 3 Inch LED Pod Lights Off-Road Hood Mount Ditch Lights

LASFIT-3-Inch-LED-Pod-Lights-Off-Road-Hood-Mount-Ditch-Lights-fig-1

Kit Includes

  • Two {2) 3″ LED Pods
  • Two (2) Deutsch-style pigtails
  • Two (2) Mounting brackets and hardware

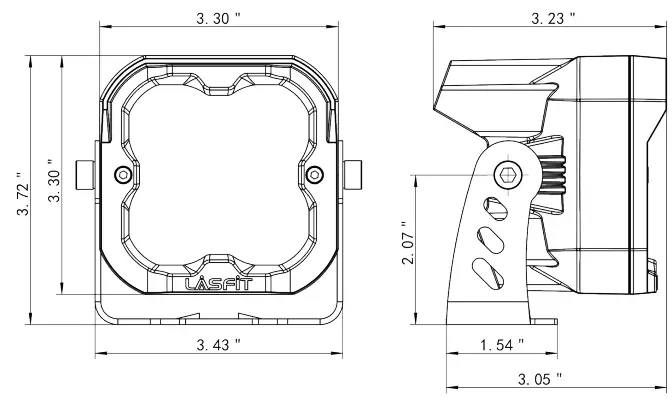

Dimension

LASFIT-3-Inch-LED-Pod-Lights-Off-Road-Hood-Mount-Ditch-Lights-fig-2

Features

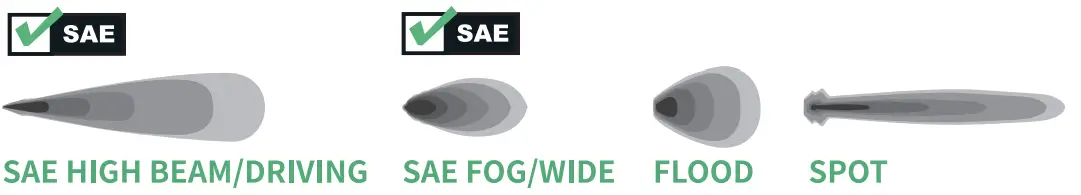

LASFIT-3-Inch-LED-Pod-Lights-Off-Road-Hood-Mount-Ditch-Lights-fig-3

  • Advanced TIR (total internal reflection) optics
  • High-intensity Osram LED emitter
  • High-grade aluminum alloy construction
  • Stainless steel mounting bracket
  • 20″ Deutsch-style pigtail connector
  • IP67 Waterproof

Specification

  • Input Voltage: 9-36VDC
  •  Current Draw: 1.3 amps{Sport)/2.7 amps{HP)@ 14.2V
  • Operating Temperature: -40° to 185° F
  • Weight: 1.25 lbs (each without bracket)

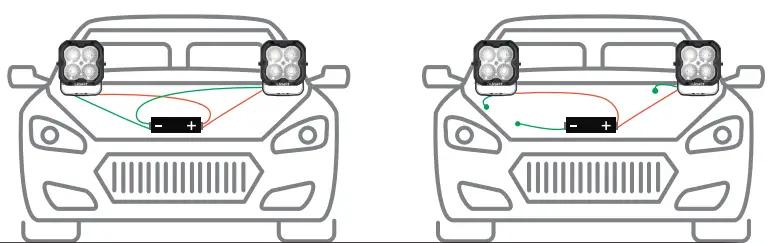

Wiring

Connect the red wire to the positive supply and the black wire to negative or common ground.
Note: 16 AWG or larger wire is recommended

LASFIT-3-Inch-LED-Pod-Lights-Off-Road-Hood-Mount-Ditch-Lights-fig-4

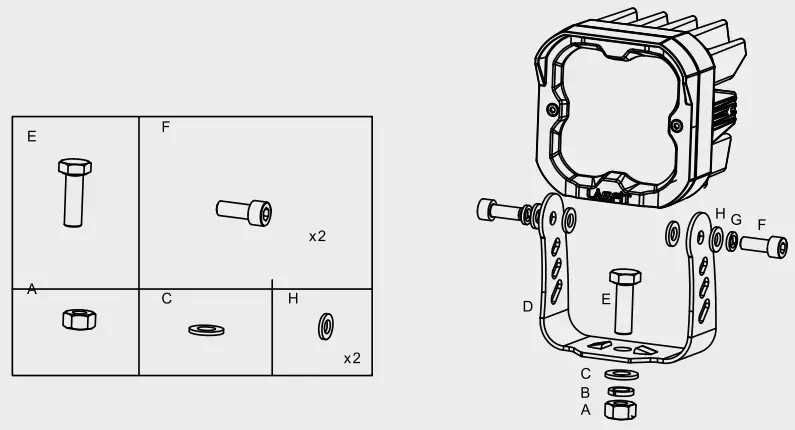

Mounting

  • Mounting brackets and fasteners are included with the lights.
  • Please see diagram for the standard mounting method.

    LASFIT-3-Inch-LED-Pod-Lights-Off-Road-Hood-Mount-Ditch-Lights-fig-5

18W Sport Series



LENS COLOR/ OPTICS



POWER (WATTS)



LUX@l0FT

MEASURED OUTPUT (LUMENS)

RAW OUTPUT (LUMENS)



OUTPUT COLOR

Driving White18W27361235.720006256K
Driving Yellow18W20561233.3320003772K
Fog White18W1728885.4420006196K
Fog Yellow18W1304852.5220003751K
Spot White18W86721351.320006276K
Spot Yellow18W67001288.820003749K
Flood White18W23151451.9620005610K
Flood Yellow18W13111467.1720003633K

36 WHP Series



LENS COLOR/ OPTICS



POWER (WATTS)

LUX@l0FTMEASURED OUTPUT

(LUMENS)

RAW OUTPUT

(LUMENS)

OUTPUT

COLOR

Driving White36W30571981.4440006256K
Driving Yellow36W23771978.3740003772K
Fog White36W20491319.0240006196K
Fog Yellow36W16251317.6840003751K
Spot White36W90932038.7940006276K
Spot Yellow36W70212036.2740003749K
Flood White36W26362605.7140005610K
Flood Yellow36W16322603.5440003633K

Replacement Lenses in 3 Colors (amber, clear/white and yellow) are also available in Lasfit.
*NOT included in the package*
If you already got them, please replace the color filter of your Pods refer to the steps below:

  1. Unscrew two screws from the faceplate
  2. Unscrew two screws from the back
  3. Take off the filter
  4.  Replace a new filter
  5. Put all screws back

Our Guarantees

  • 45 days money-back guarantee
  • 3 years hassle-free warranty
  • Customer Support Team in Ontario, California

ABOUT COMPANY

  • Email: [email protected]
  • Call: {909) 758-7900 Mon. – Fri. 9:00 am-5:30 pm (PST) Location: 2235 E 4th St Ste F Ontario, CA 91764 United States
