MD2163-K
INSTALLATION INSTRUCTION
If you have any questions, please contact us via [email protected] or call us at telephone (626) 604-9048 (USA) Mon – Fri 10 am – 6 pm (Pacific time).
For more information, please visit our website:www.mountingdreamonline.com
Before getting started, let’s make sure this mount is perfect for you!

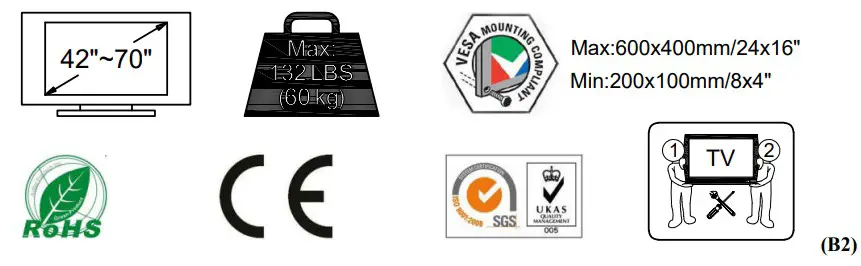

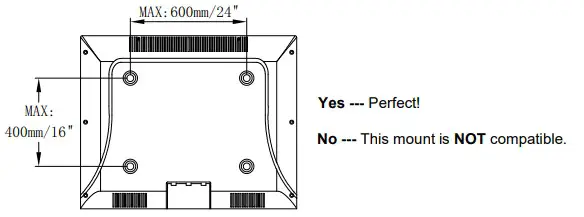

- Is your TV VESA equal to/greater than 200x100mm/8×4″ and equal to/less than 600x400mm/24×16″?

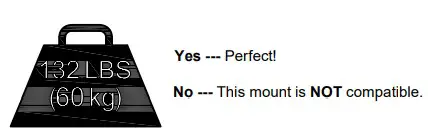

- Does your TV (including accessories weigh less than 132 LBS (60 kg)?
- What is your wall made of?

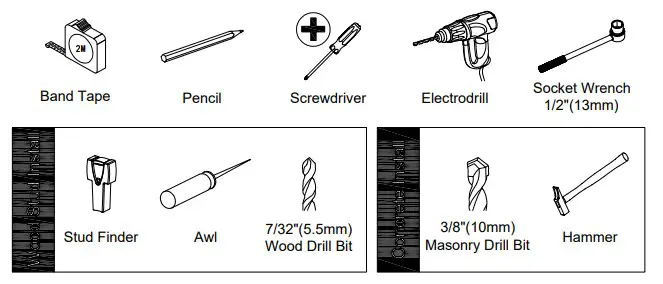

- Installation Tools (Not Included)
- Safety Caution
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service via [email protected] or call us at telephone (626) 604-9048 (USA) Mon
– Fri 10am – 6pm (Pacific time).
- This product is designed for use in wood studs and solid concrete wall.
– DO NOT install into drywall alone. - The wall must be capable of supporting five times the weight of the TV and mount
combined. - Do not apply this product to any purpose not indicated by Mounting Dream.
- Incorrect installation may result in product damage or bodily injury. Mounting Dream shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.

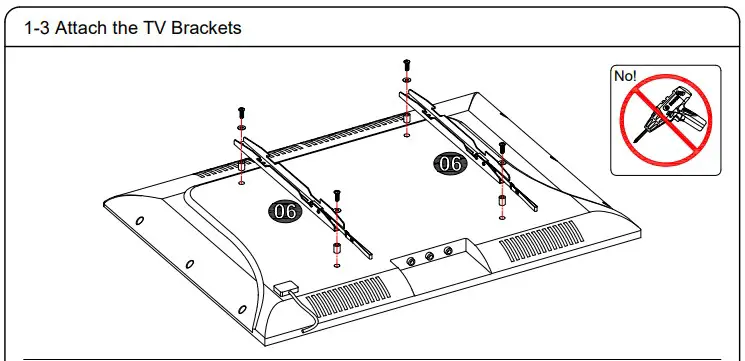

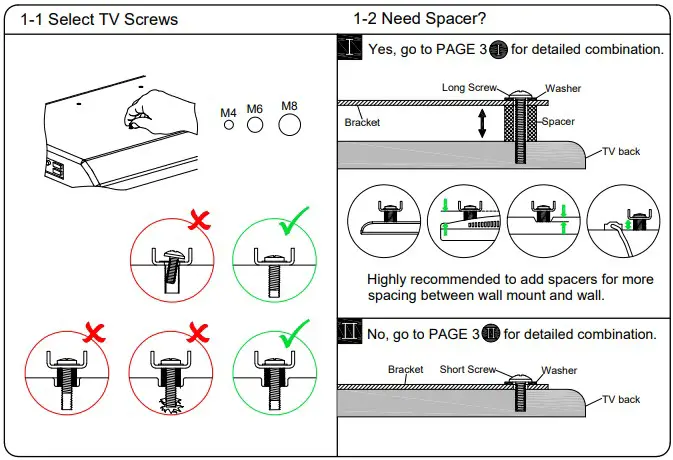

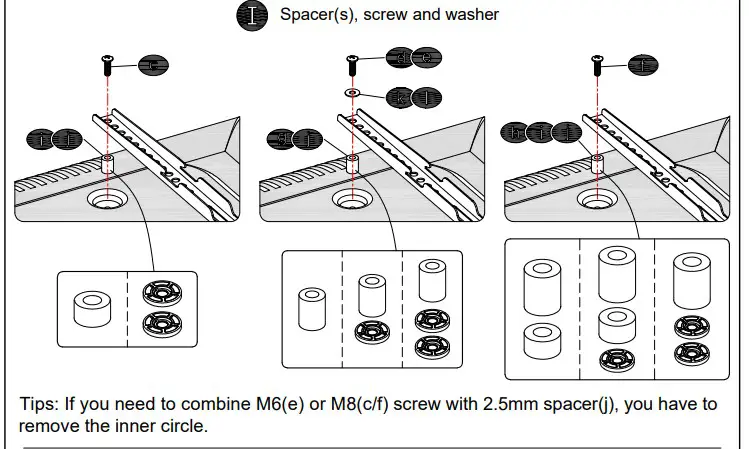

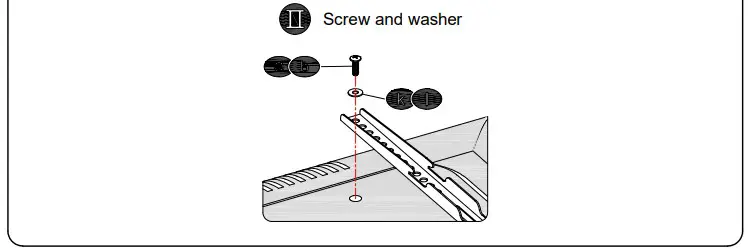

STEP 1. Attach Brackets to TV

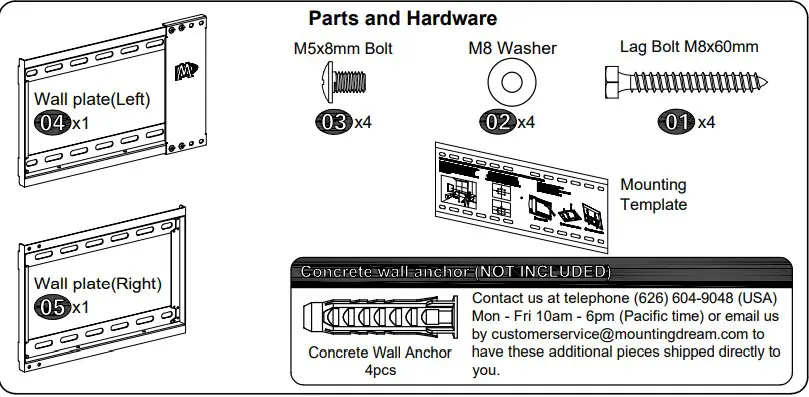

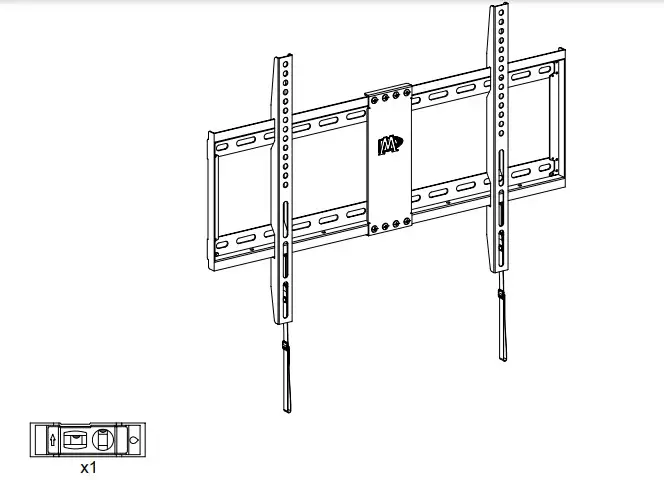

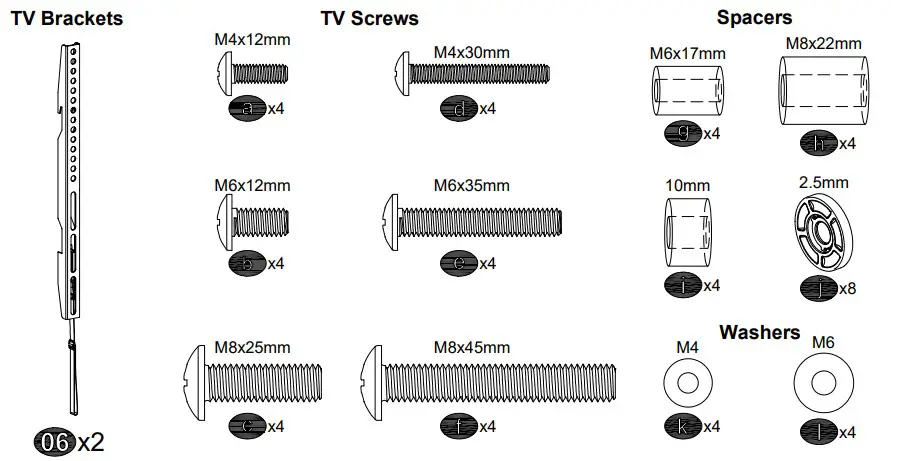

Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. For parts shortage or damage, please contact us via [email protected].
NOTE: Not all hardware included will be used.

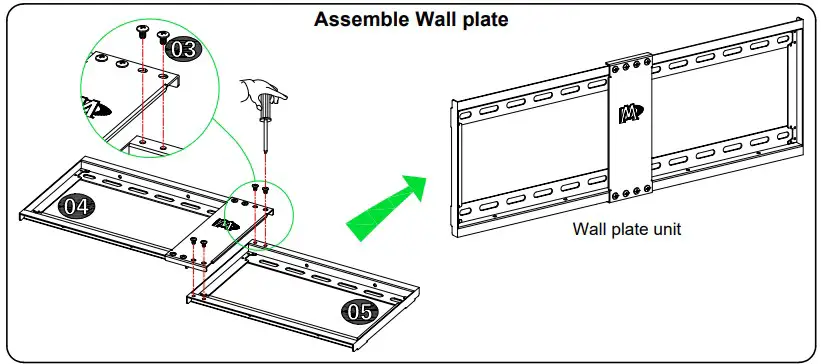

STEP 2. Attach wall Plate to wall
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 6

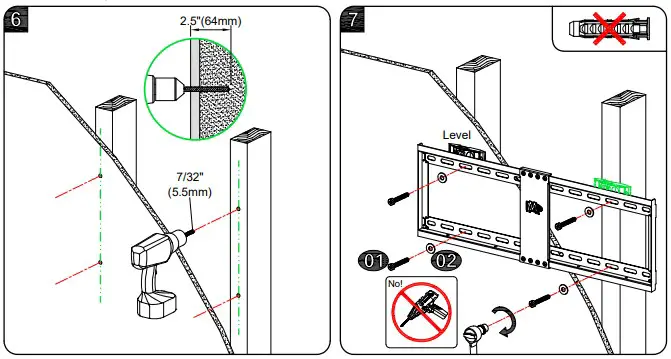

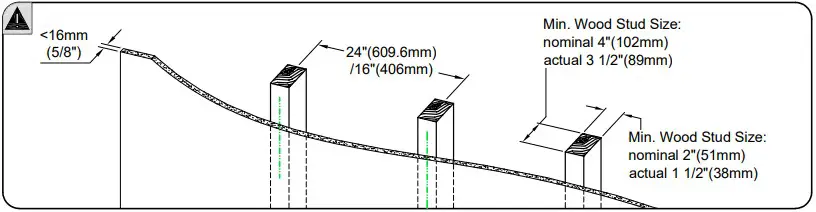

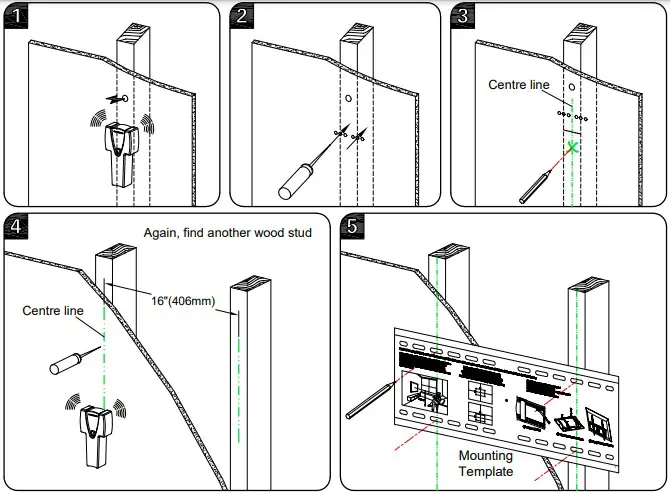

STEP 2A. Wood Stud Installations
CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts 01 MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.

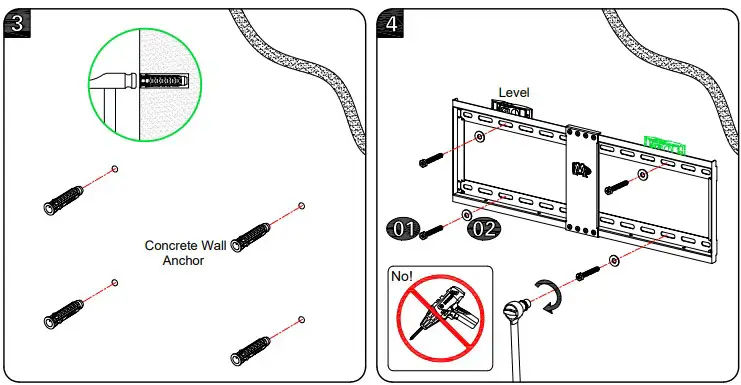

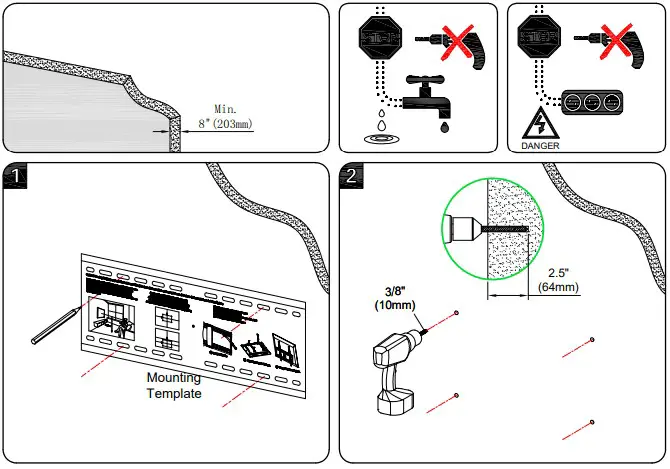

STEP 2B. Solid Concrete Wall Installation
CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts 01MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.

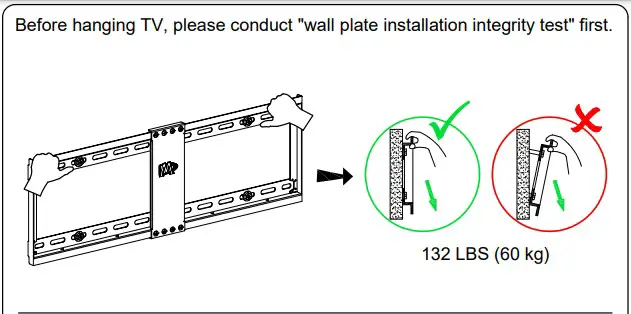

STEP 3. Hung and Secure TV to wall Plate.

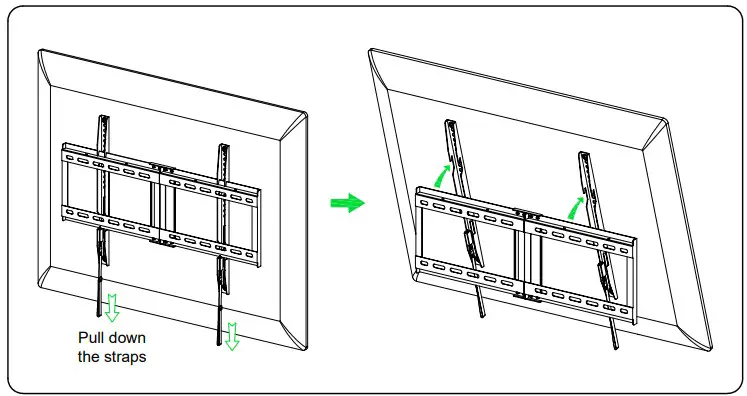

STEP 4.Take Down the TV from the Mount.
Product dimensions:
