ACT AC8351 TV Wall Mount

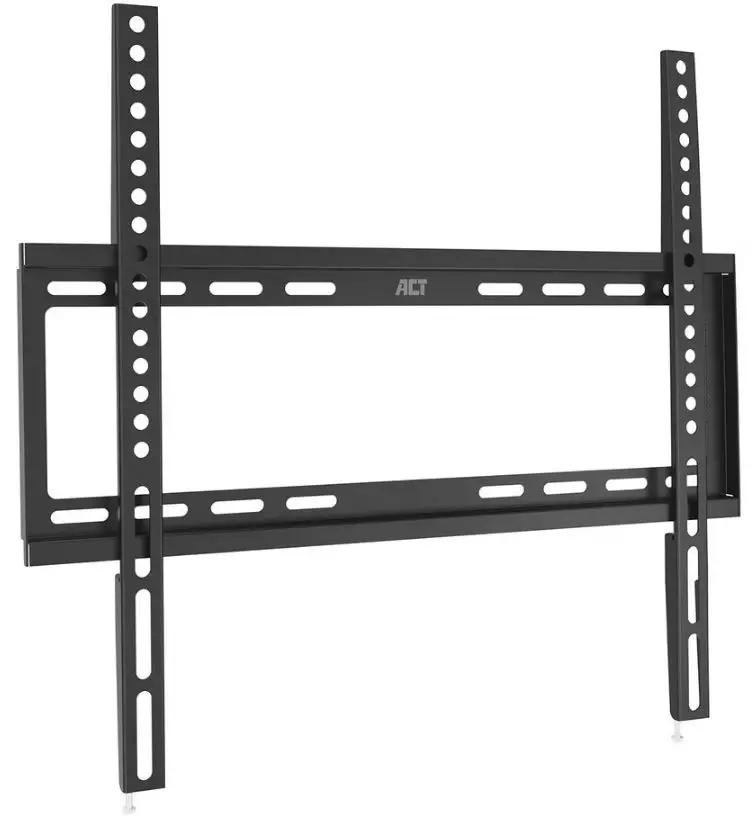

ACT-AC8351-TV-Wall-Mount-product

instruction

Read the entire instruction before you start the installation and assembly.
CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.

  • Mounts must be attached as specified in assembly instructions. Improper installation may result in damage or serious personal injury.
  • Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components
  • Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
  • This product contains small items that could be a choking hazard if swallowed. Keep these items away from children
  • This product is intended for indoor use only. Using this product outdoors could lead to product failure and injury.
    IMPORTANT: Ensure that you have received all parts according to the component checklist prior to the installation.
    MAINTENANCE: Check that the bracket is secure and safe to use at regular intervals (at least every three months).

You can find safety information at www.act-connectivity.com/safety
For service, manuals, firmware or updates visit www.act-connectivity.com

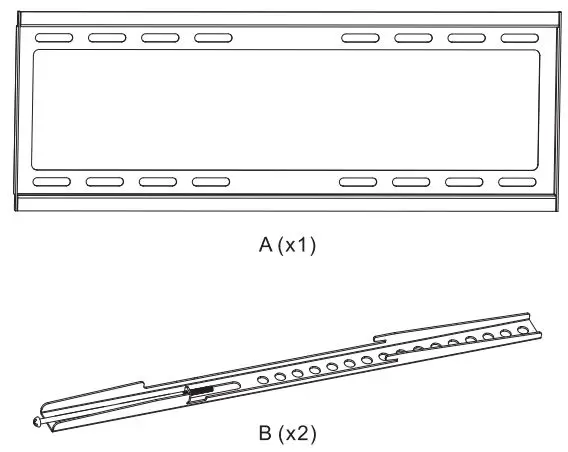

DIMENSIONACT-AC8351-TV-Wall-Mount-fig 1

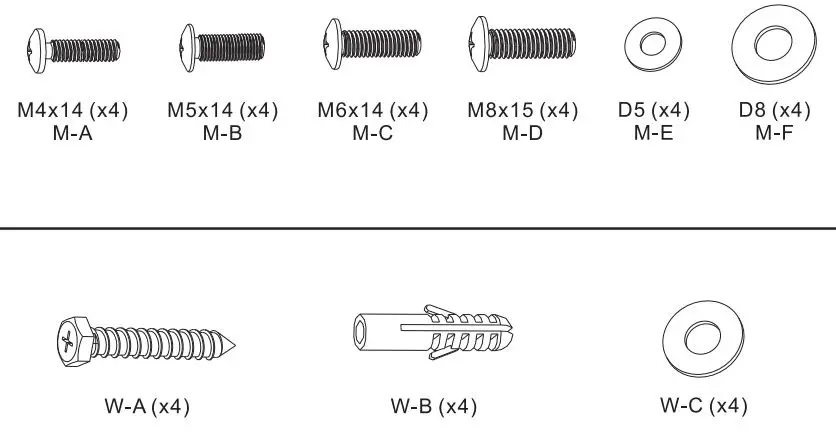

TOOLS REQUIREDACT-AC8351-TV-Wall-Mount-fig 2

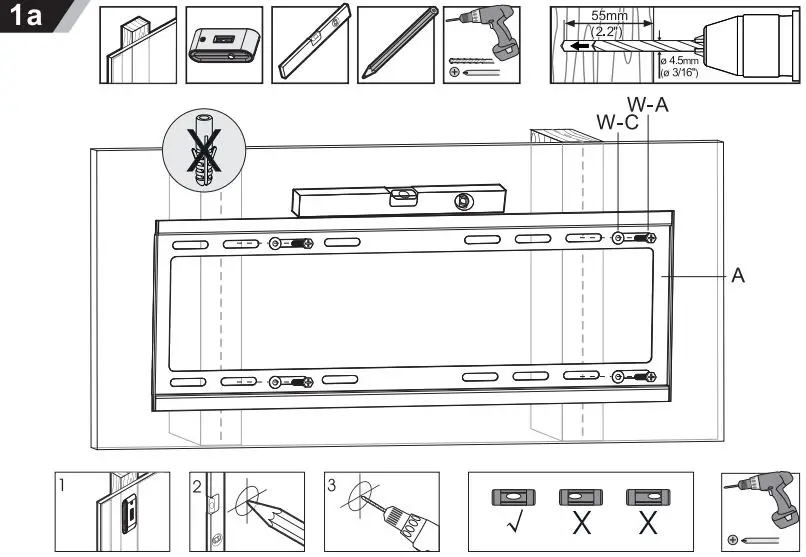

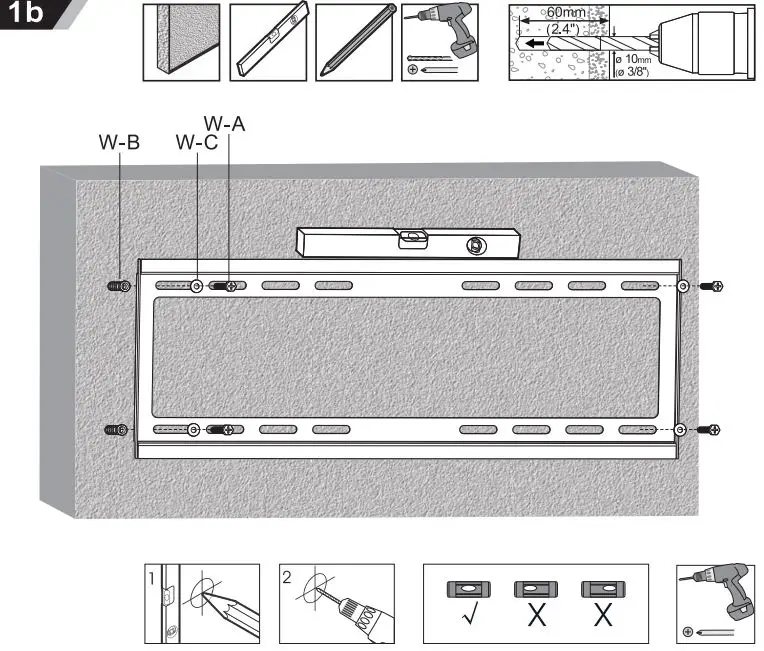

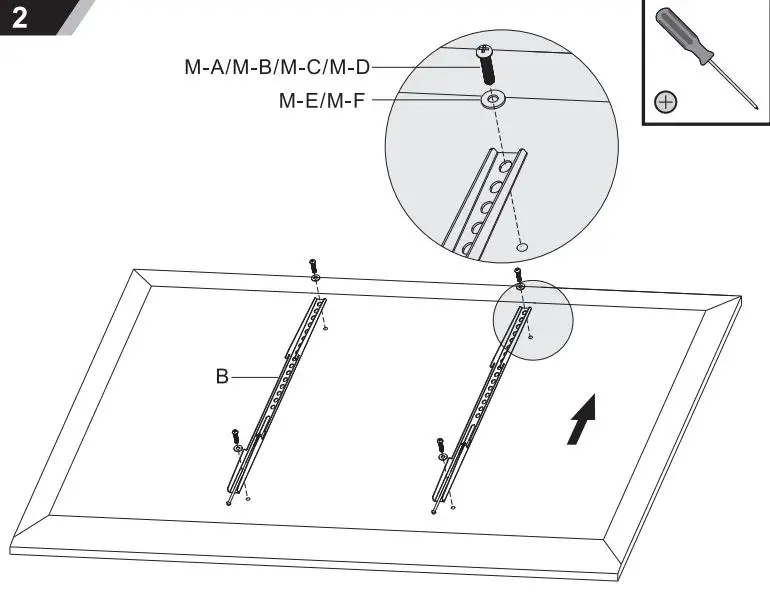

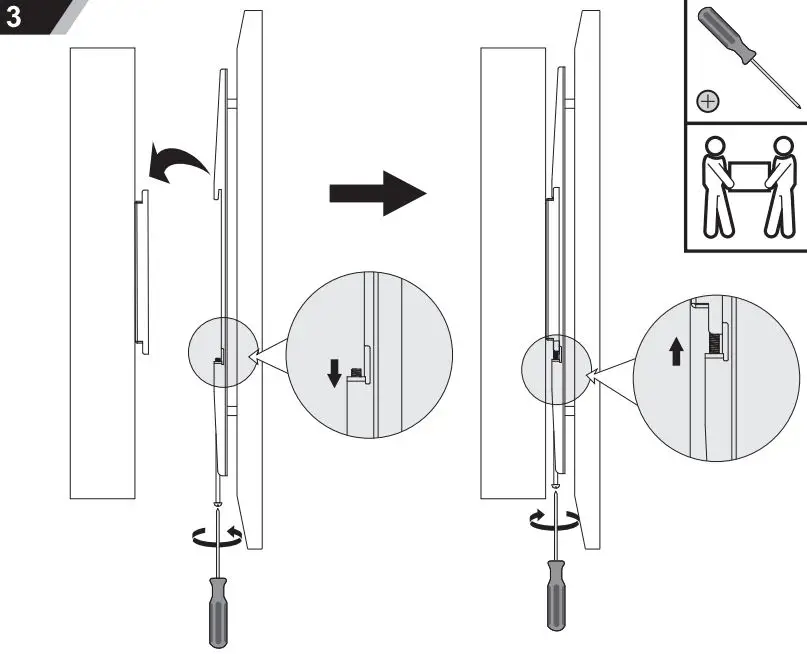

INSTALLATIONACT-AC8351-TV-Wall-Mount-fig 3ACT-AC8351-TV-Wall-Mount-fig 4ACT-AC8351-TV-Wall-Mount-fig 5ACT-AC8351-TV-Wall-Mount-fig 6

www.act-connectivity.com
