Haylou Solar Smart Watch
User Manual

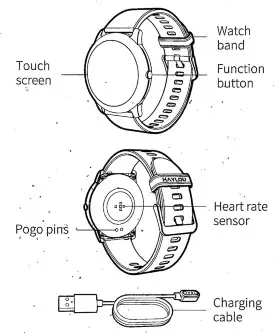

Overview
What’s in the Box
Smart Watch, charging cable, and user manual.

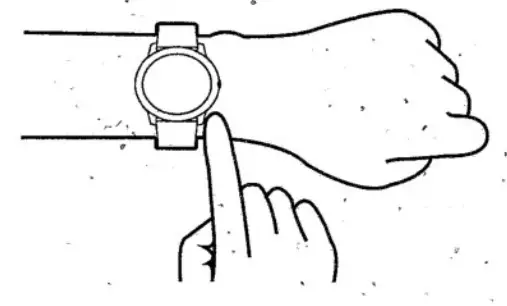

How to Wear
Please put on the watch and move it about one finger distance from your carpus. Please adjust the tightness of the watchband to fit yourself.
Note: Too loose of the band may impact the performance of the heart rate sensor.
How to Link
1. Hold the function button to power on the watch and a QR code will be displayed. Use your phone to scan the QR code to install APP. You may also scan the QR code below to install.
ttps://app.help-document.com/hayloufit/download/index.html?MAC=12:34:56:78:90:1a”
Note: The instruction below is for reference only. For actual installation, please follow the instruction in APP.

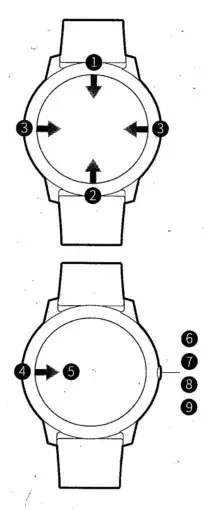

How to Use
- In Home Page, slide down from the top of the watch face to open Quick Setting.
- In Home Page, slide up from the bottom of the watch face to open Control Panel.
- In Home Page, slide right/left to skip to previous/next page.
- When it’s not in Home Page, slide from left edge to right edge to return to previous page.
- In Home Page, keep touching screen for 3s to enter Watch Face Change.
- Hold function button for 3s to power on/off.
- Press function button to return to Home Page (only open one page).
- Press function button to skip to previous’ page (open two pages).
- Press function button to pause/resume your workout (during workout).
 | 12 sport modes ( jogging, hiking, biking, climbing, spinning, indoor running, yoga, gym, free training, basketball, football, and boating) |
 | A 24-hour heart rate monitoring keeps making records |
 | It tracks your sleep time and status |
 | You may check the coming three days’ weather and real-time temperature |
 | Remote music control on phone (the watch cannot play music independently) |
 | Help adjust the breath and relax yourself |
 | Accuracy is up to two decimal places |
 | A full-screen timer |
 | Open, set, check and close the alarm clock |
 | Sit too long and it’s time to get on your knees |

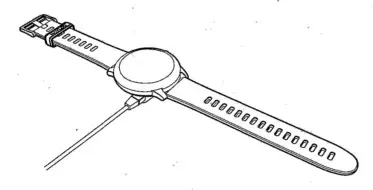

How to Charge
- Charge the watch via charging cable and make sure pogo pins are well-contacted.
- Use a qualified adapter with an output voltage of 5V and an output current of 0.5A or above.
- If you do not use the watch for a long time, the charging icon may not show up until you charge the watch for over 1 minute.
- Please always keep pogo pins dry.
Note:
- We hold the right to revise the User Manual without any notice to you. Parts of the functions may be different in certain software.
- Please charge the watch more than 2 hours before use.
- This product is within IP68 waterproof, yet do not soak it into hot water or other corrosive liquid, or wear it for a dive to a depth over 3m. Any defects caused by the above practices will not be covered by a warranty.
- Please do not get the band too tight. Keep contact parts of the watch dry and clean the band periodically. For any allergies, please take off the watch at once and consult a doctor.
- Function button and touch screen are not available for use underwater. If the watch gets wet, please dry it before use.
Basic Parameters
Product name: Haylou Solar
Product model: Haylou LSO5 -1
Main body size: 45.3 x 11.4mm
Band size: 22mm Weight ( with band ): Mg
Display: 1.28 inch TFT LCD
Definition: 2401’240
Bluetooth version: V5.0
Sensor heart rate sensor, accelerometer sensor
Battery capacity: 340mAh
Battery life: 15 days ( with 24-hour heart rate monitoring on)
Dust, waterproof: IP68
Working temperature: -20°C–45°C
Data sync platform: Haylou Fit
Compatibility: Android 4.4 or IOS 8.0 and later
Warranty Card
Warranty Period
12 months after you purchase this item. ( or you may inquire your local shopper for more details.) Free Service
Supposing any defects caused by quality issues occur within the warranty period, please take this warranty card and purchase receipts to your distributor for free exchange service.
| Model Number | |
| Date of Purchasing | |
| User’s Name | |
| User’s Phone | |
| User’s Address | |
| Shop’s Name | |
| Shop’s Address | |
| Comments |
Free exchange service will not be accessed under the following circumstances:
- Damages caused unauthorized disassembly.
- Defects or physical damages caused by leaking or dropping off
- Damages by an act of God. Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing.
Manufacturer: Dongguan Liesheng Electronic Co., Ltd.
Address: Suite 1303, 1305 and 1306, 13/F,
Project Phrase 2 of Gaosheng Tech District, Dongguan City, Guangdong, China.
