FOXTECH Seeker-10 360TR Ethernet Output 10X Optical Zoom Camera with 360

Gimbal Camera Introduction

FOXTECH Seeker-10 360TR is a 3-axis gimbal camera featuring 10X optical zoom, 360 degrees infinite rotation, and object tracking. It supports Ethernet output, the video output resolution is 1080p/30fps, the effective pixels are 2.12MP.
SEEKER-10 360TR 3-axis gimbal developed based on FOC technology, features excellent stability, accuracy and sensitivity. It has fast-speed and low-speed modes. Fast speed mode is used for small zooming range; Low-speed mode is used for large zooming range.
SEEKER-10 360TR supports PWM, S.BUS, and serial command control.

Target Tracking Function

1. The built-in normalized cross-correlation tracking algorithm, combined with the target lost recapture algorithm, realizes the stable tracking of the target; Support user to display custom characters, adaptive gate, cross wire, and tracking information display.
2. Tracking Performance
3.  Data refresh rate: 50Hz
4.  output lag＜15ms
5.  min. target contrast 5%
6.  Signal-to-noise ratio 4
7.  Target Size: 32×32 to128*128 pixels
8.  Tracking Velocity: ±32 pix/frame
9.  The root mean square value of noise at the target position＜0.5 pixel
10.  Target memory time: 100 sessions

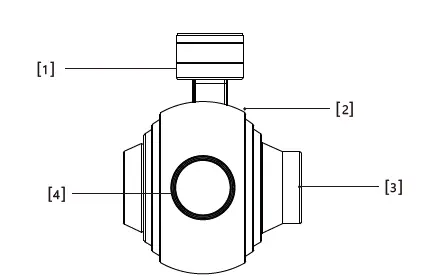

Gimbal Diagram

1. Yaw axis motor
2. Roll axis motor
3. Pitch axis motor
4. HD Zoom Camera

Please ensure that the motor is not blocked by anything during rotation. If the gimbal is blocked during rotation, please clear the obstruction immediately.

Packing List

• gimbal camera1
• pack of screw1

M3 5mm 12

• copper pillar4
• Damper12

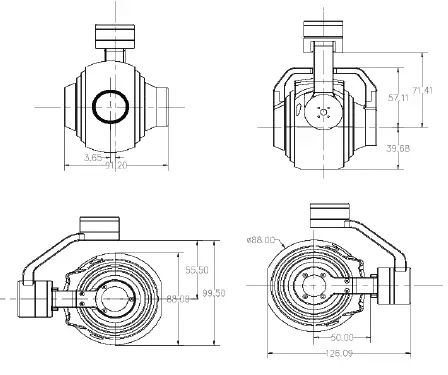

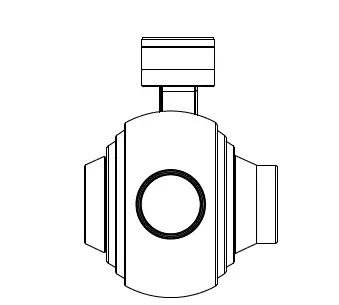

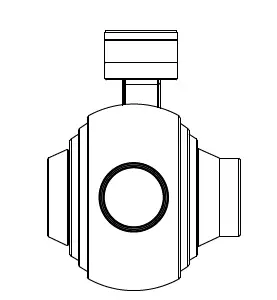

Dimensional Drawing

Installation

Mechanical electronic characteristics

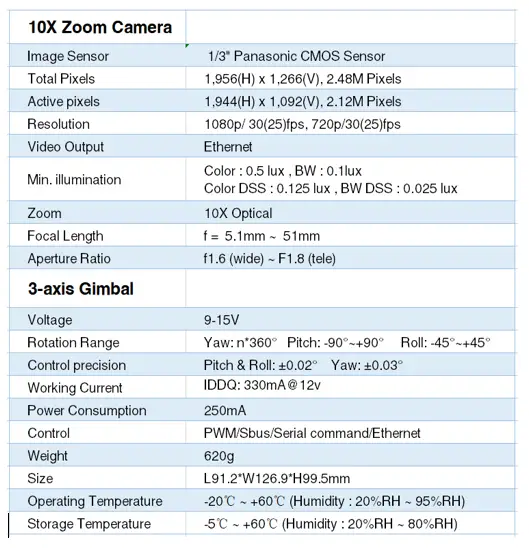

Performance

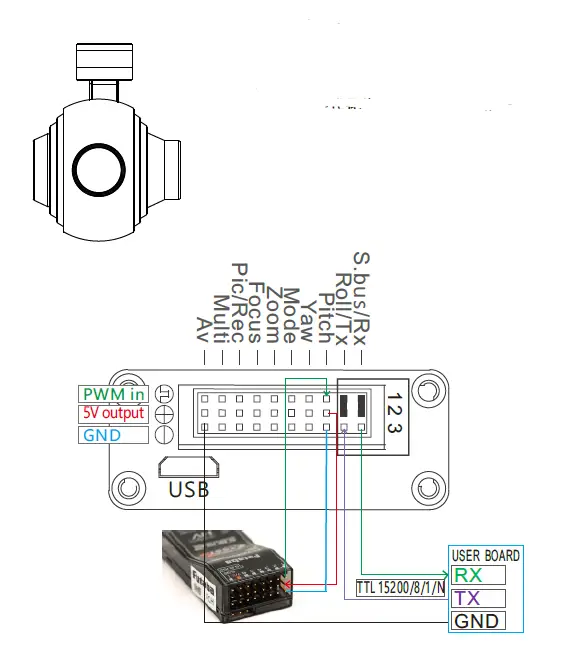

Tracking Gimbal Signal Wiring Diagram

• SD card: max 128G ,class10
• FAT32 or exFAT format
• S.bus RX connects to RX2 for track function(s.bus/RX RX2
• Roll/ Tx:connect to Tx2 for track function.
• Pitch: PWM in, pitch control
• Yaw: PWM in, Yaw Control PWM

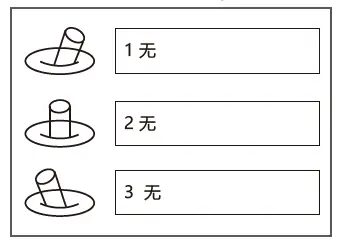

Mode: change the speed/home position

Position 3: Low-speed mode, control Yaw and Pitch in this mode, and then the gimbal will move at the lowest speed;
Turn the knob to any position above position 3: change speed; at this time control Yaw and Pitch, gimbal control speed will be increased(The speed will change depending on the position of the switch) Turn the knob to position 2-1-2: gimbal returns to the middle position. Switch from 2 to 1 and back to 2 continuously and quickly, gimbal back
to home;
Switch from 2-1-2-1-2 continuously and quickly,start to follow mode;
Switch from 2-1-2-1-2-1-2,start head-locking mode.

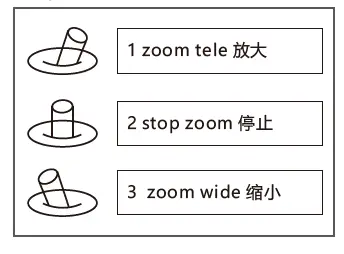

ZOOM: Zoom the camera

focus: focus the camera

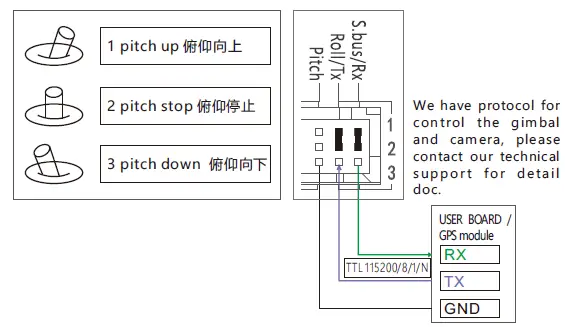

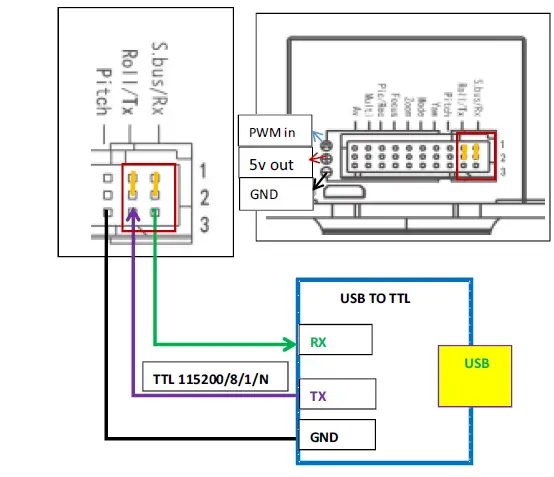

GPS information overlay&serial port control diagram

• RX1/ RX2 and TX1 / TX2 must be connected with jumper caps before connecting UART/FTDI devices.
• Please connect your RX to RX3, and TX to TX3 as shown in the figures.

CAUTION!!

1.  the signals inside the red frame are all TTL signals, DO NOT connect these pin headers to any power(VCC) or ground(GND)!
2. The other signals are for PWM input signals to control the gimbal, PWM in: connect to your PWM receiver signals (does not include AV,
   AV output is for CVBS video signal)
   5V out: for your PWM receiver power supply.
   GND: connect to your PWM receiver GND.
