INR GRAND WALNOT Room Case
Study User Manual

SAFETY REGULATIONS

Goggles are recommended to protect your eyes.

We recommend that two persons are present at the installation.

Use safety shoes during installation.

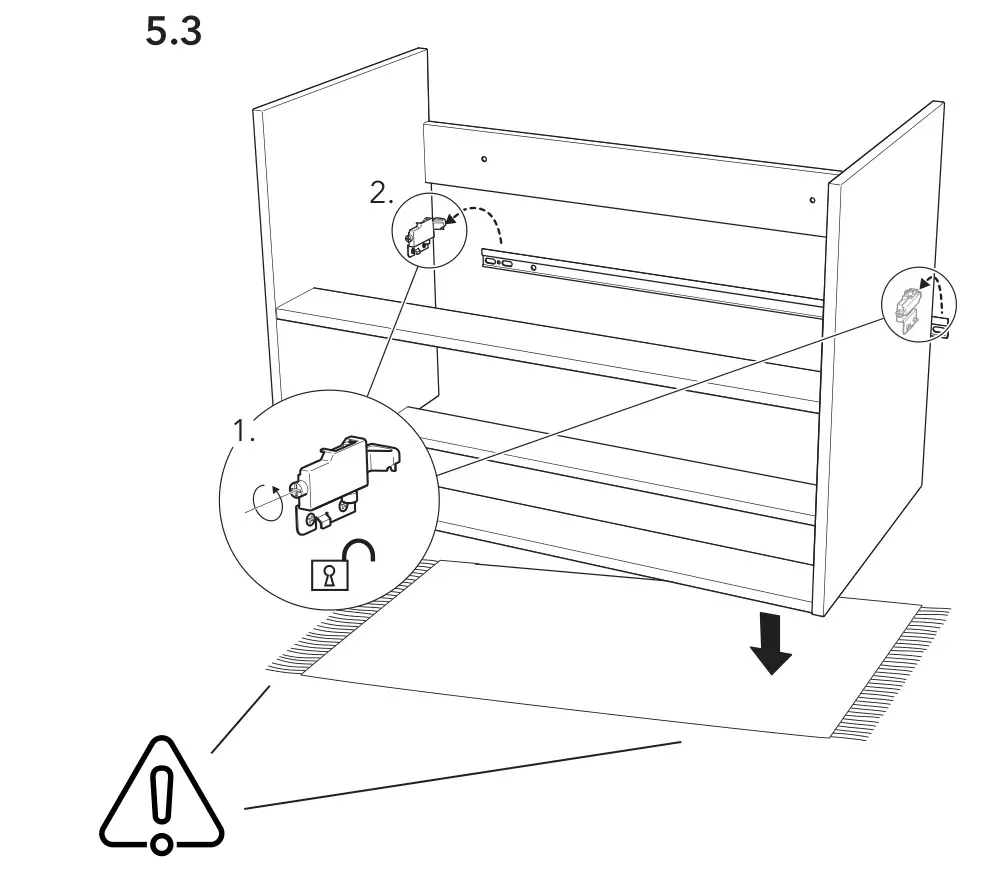

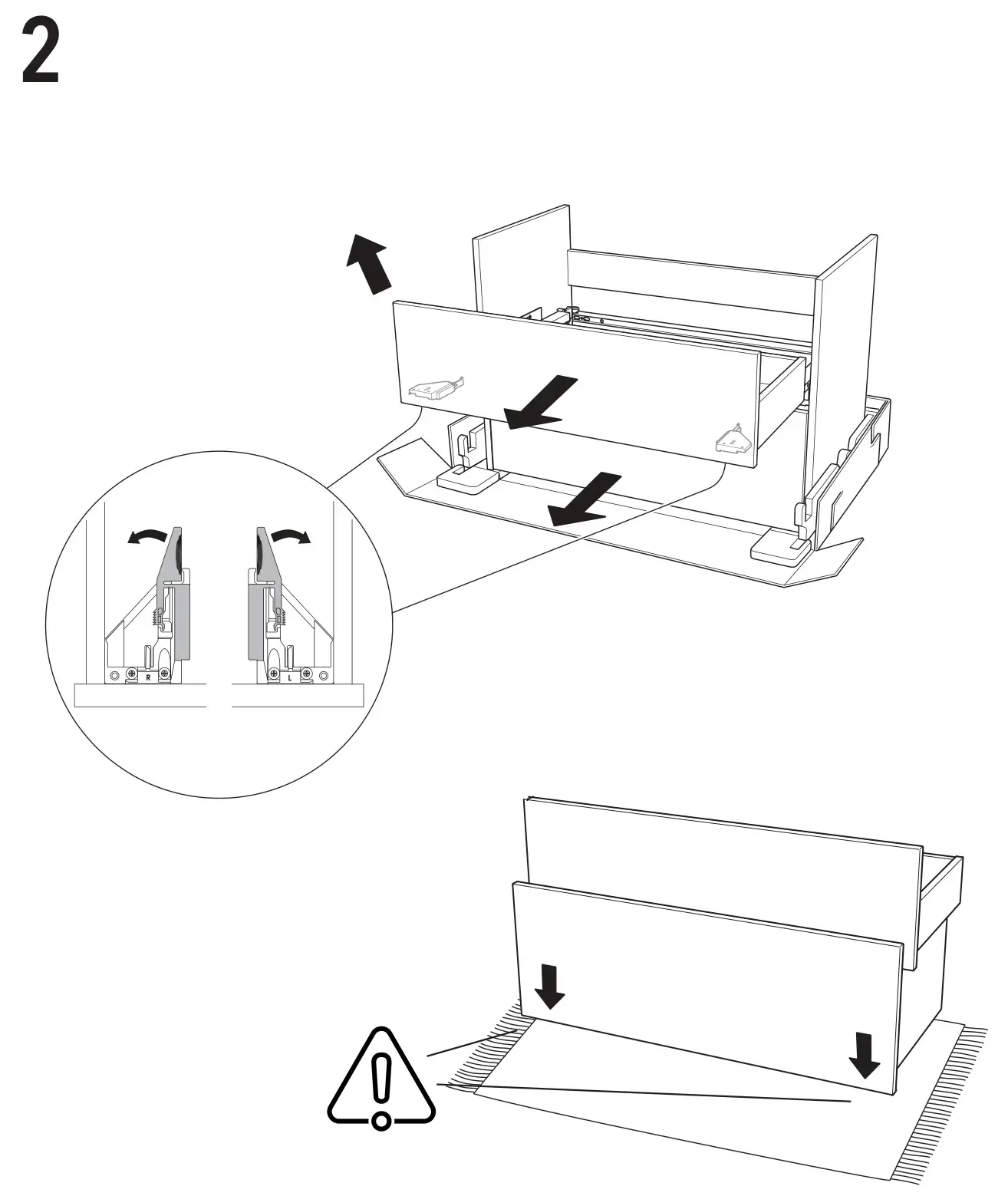

Note! Always set the furniture down on a soft foundation, since edges and corners are very delicate.

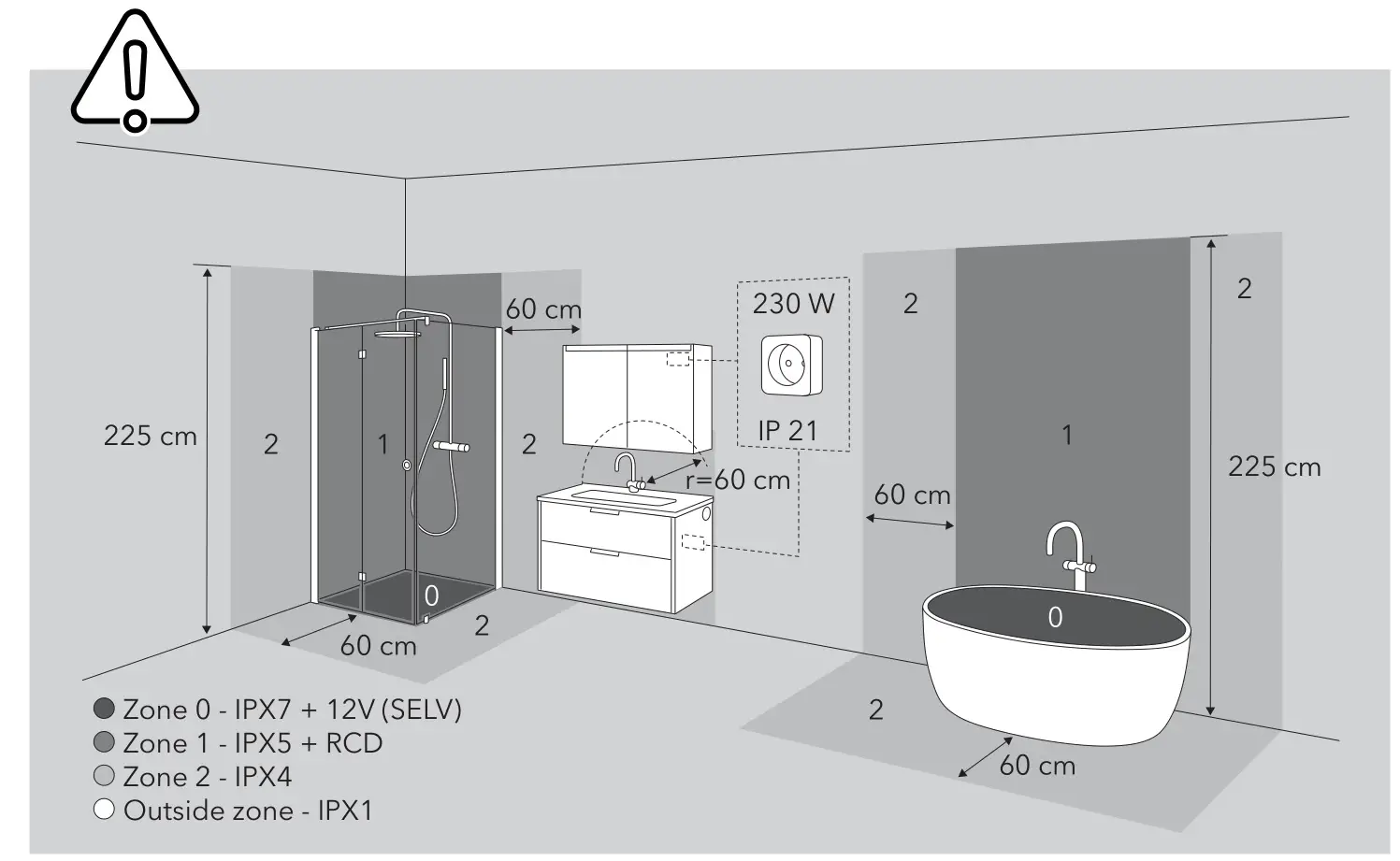

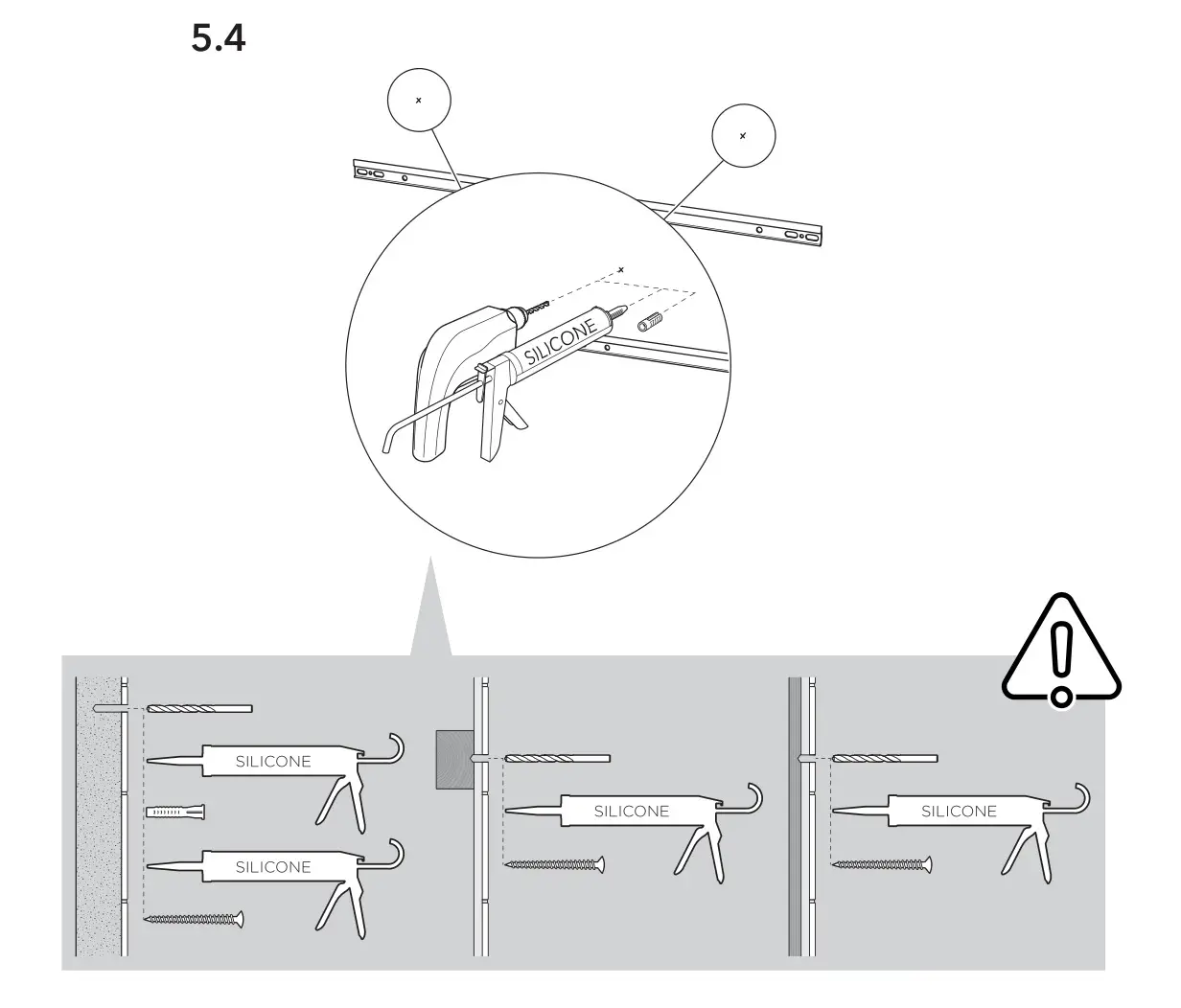

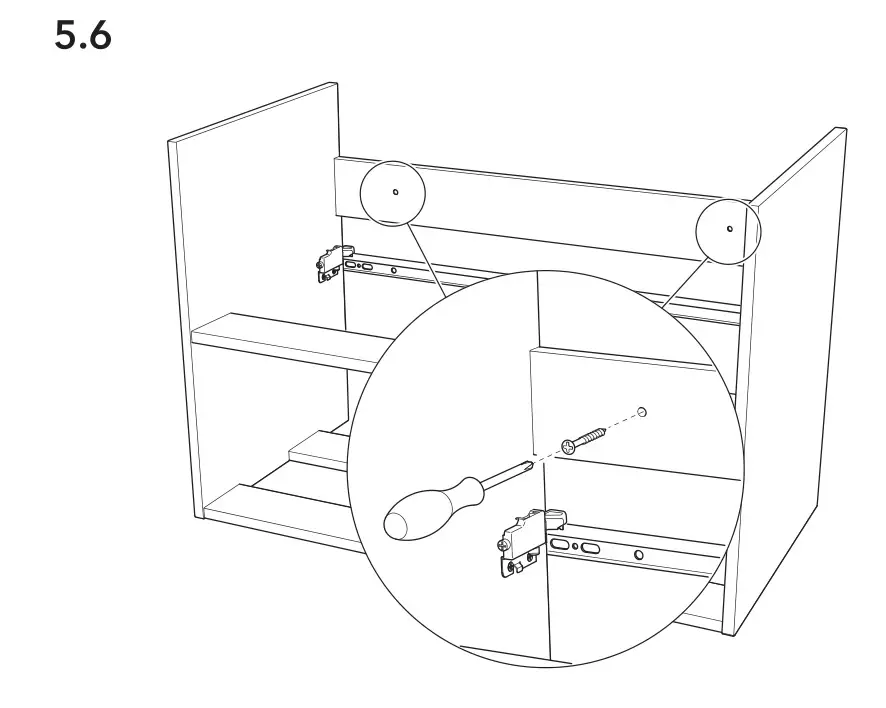

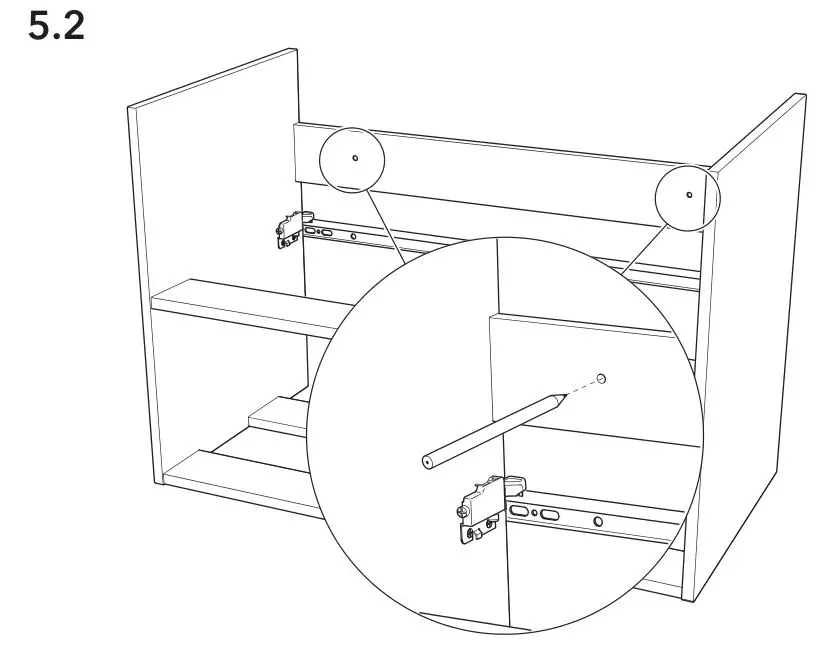

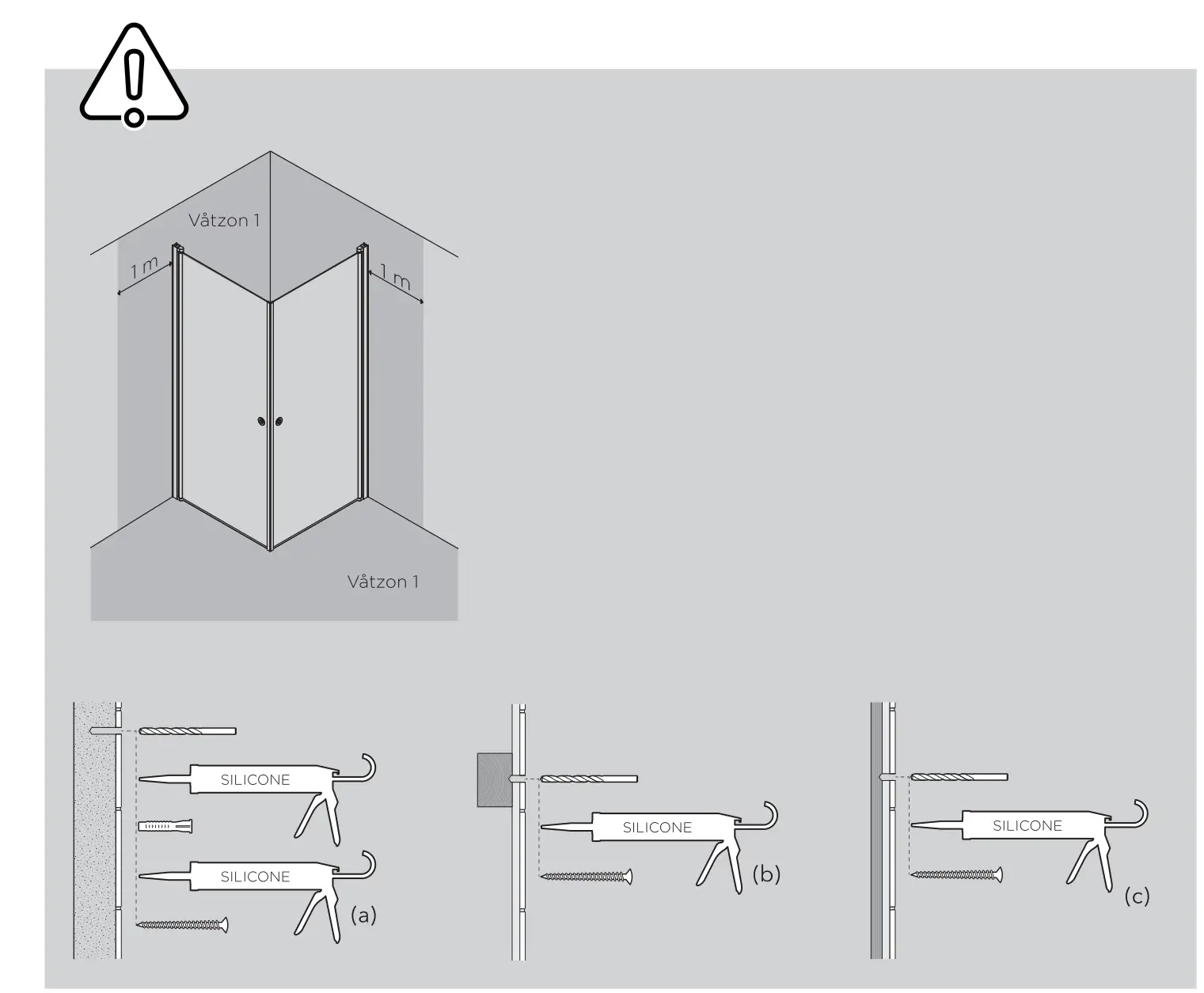

Screw fastenings should be made in concrete or other solid structure (a), wooden studs, wooden noggings (b) or in structures that have been tested and approved for fastenings, for example a sheet construction (c). Requirements for sealing apply in wet zones 1 and 2. See examples of construction at säkervatten.se. Sealing materials must be fixed to the underlying layer and must be waterproof, mould-resistant and age-resistant.

TOOLS

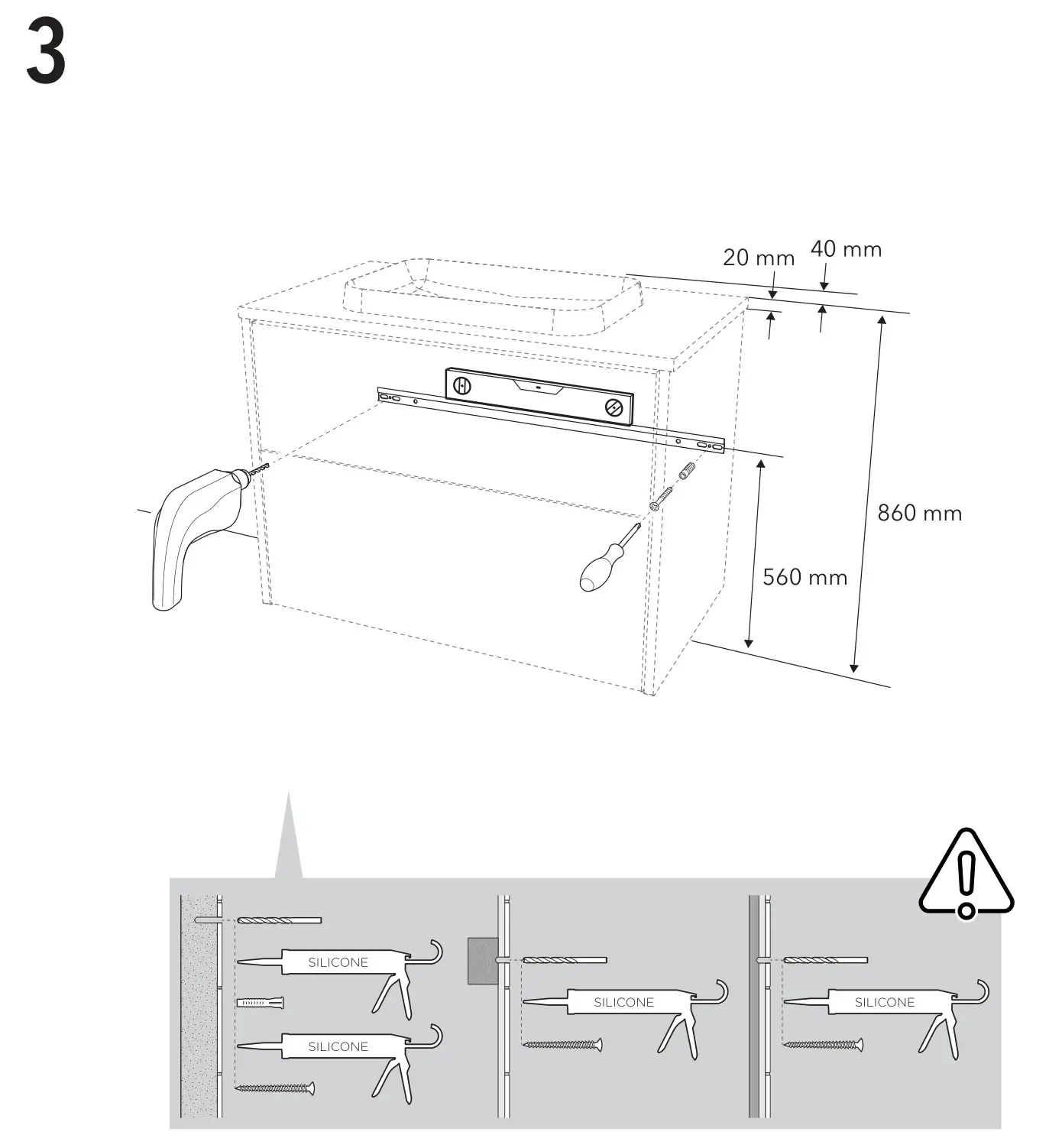

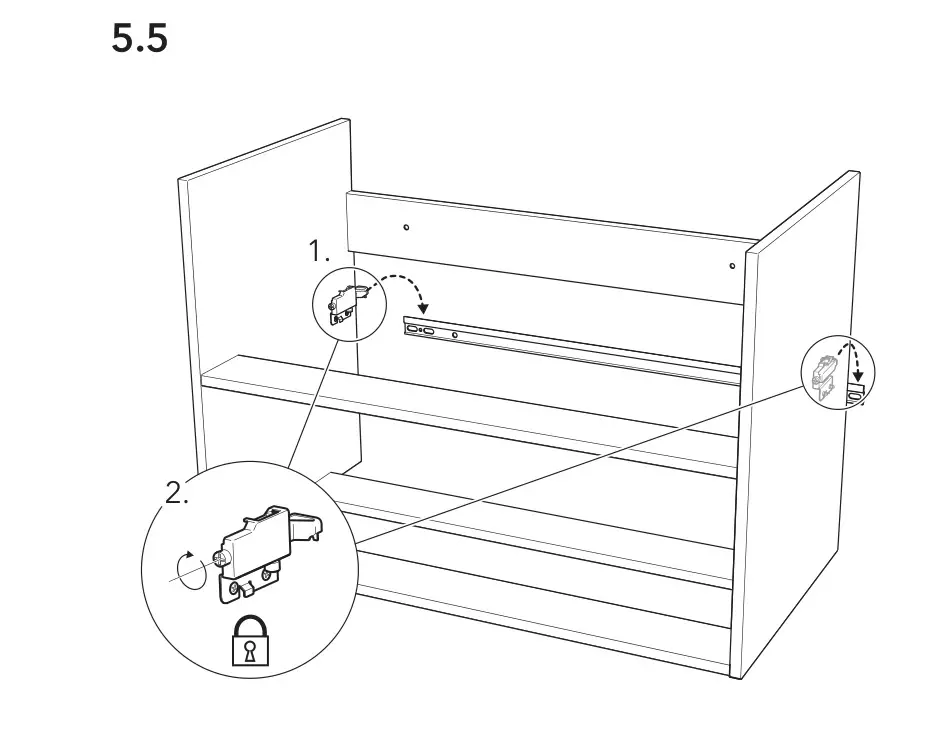

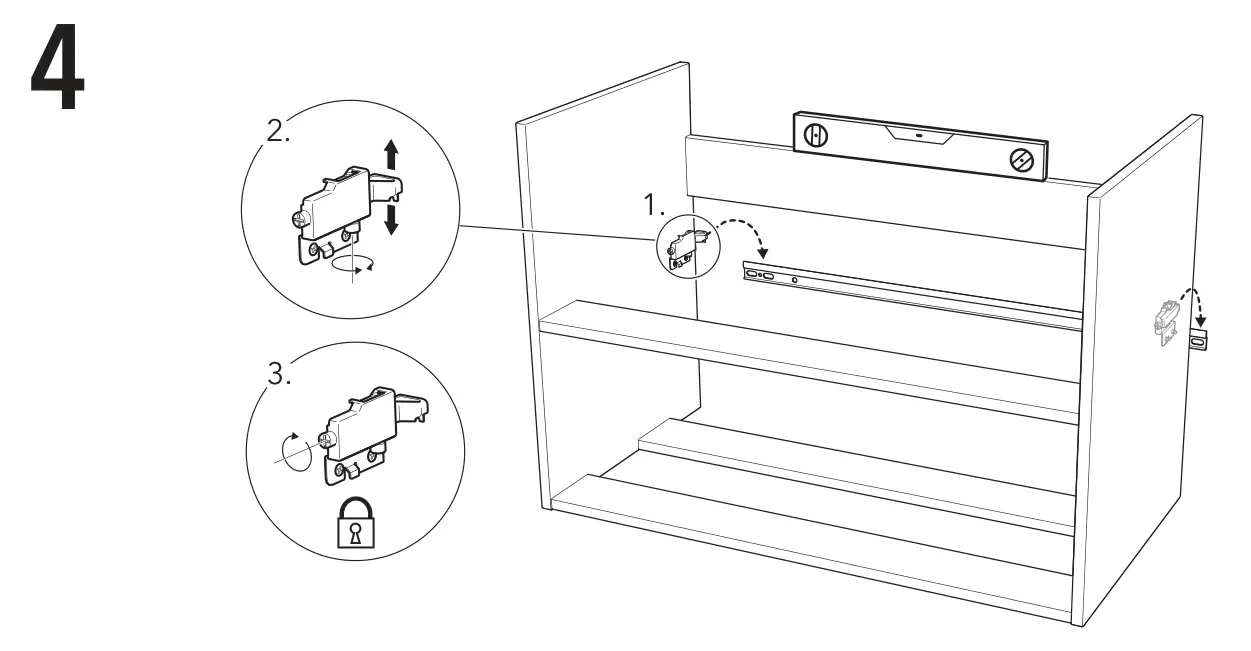

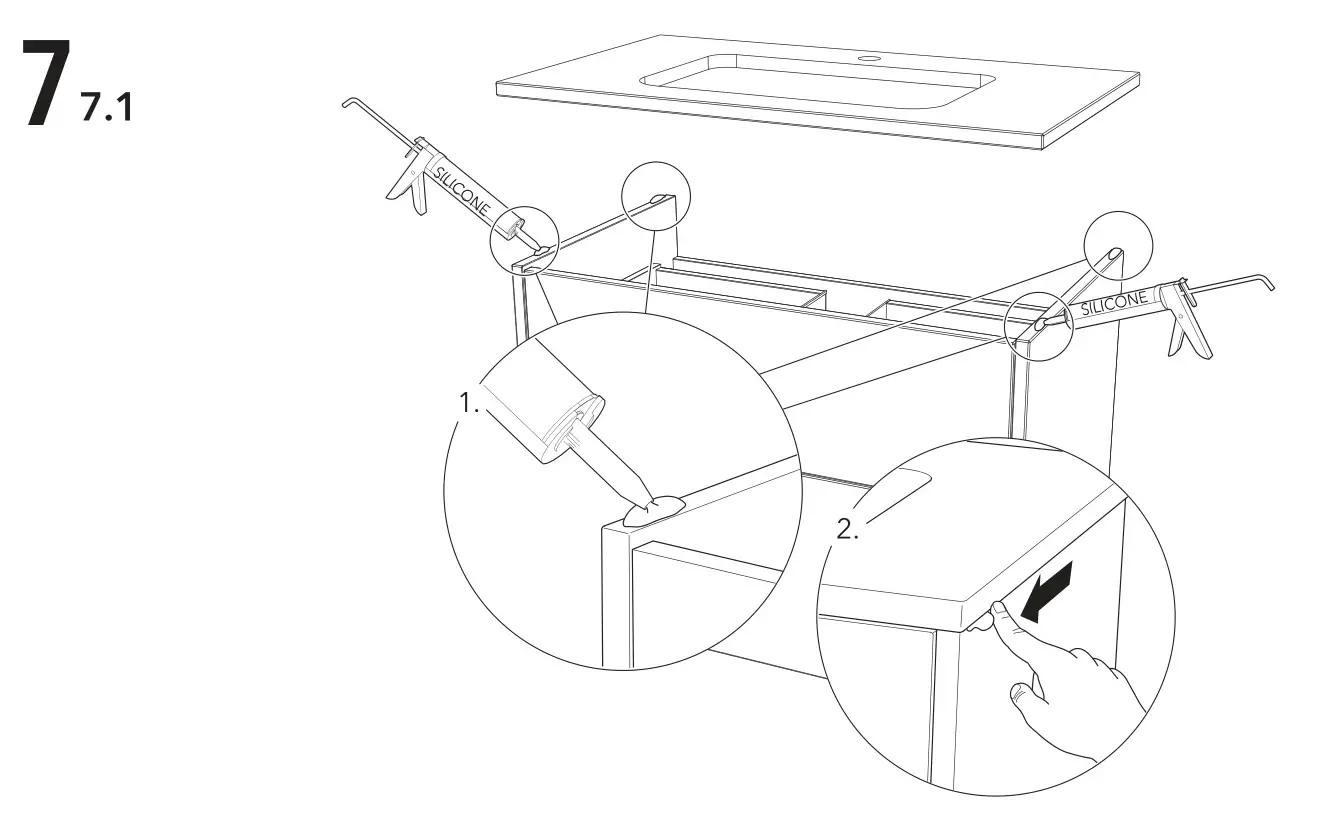

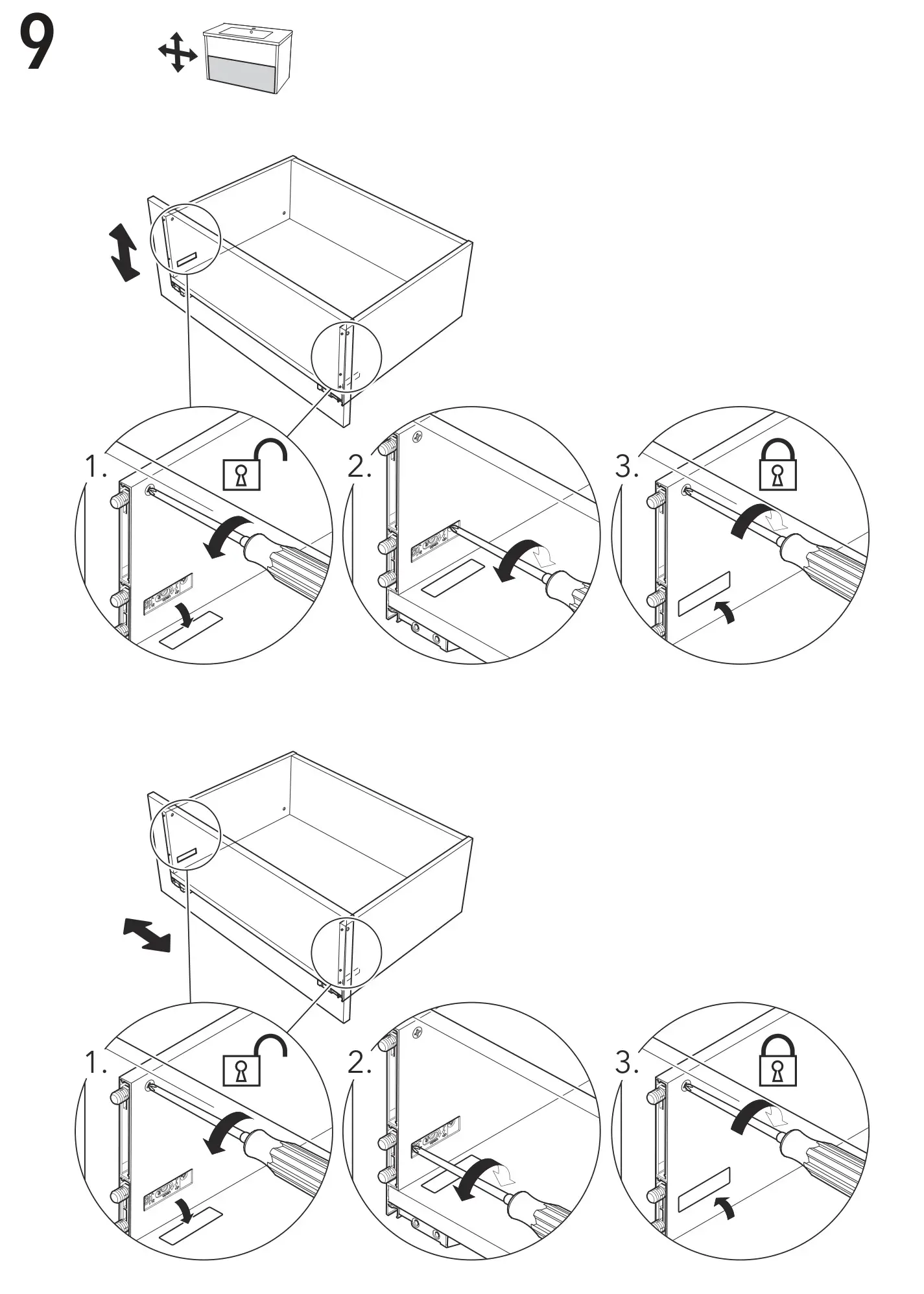

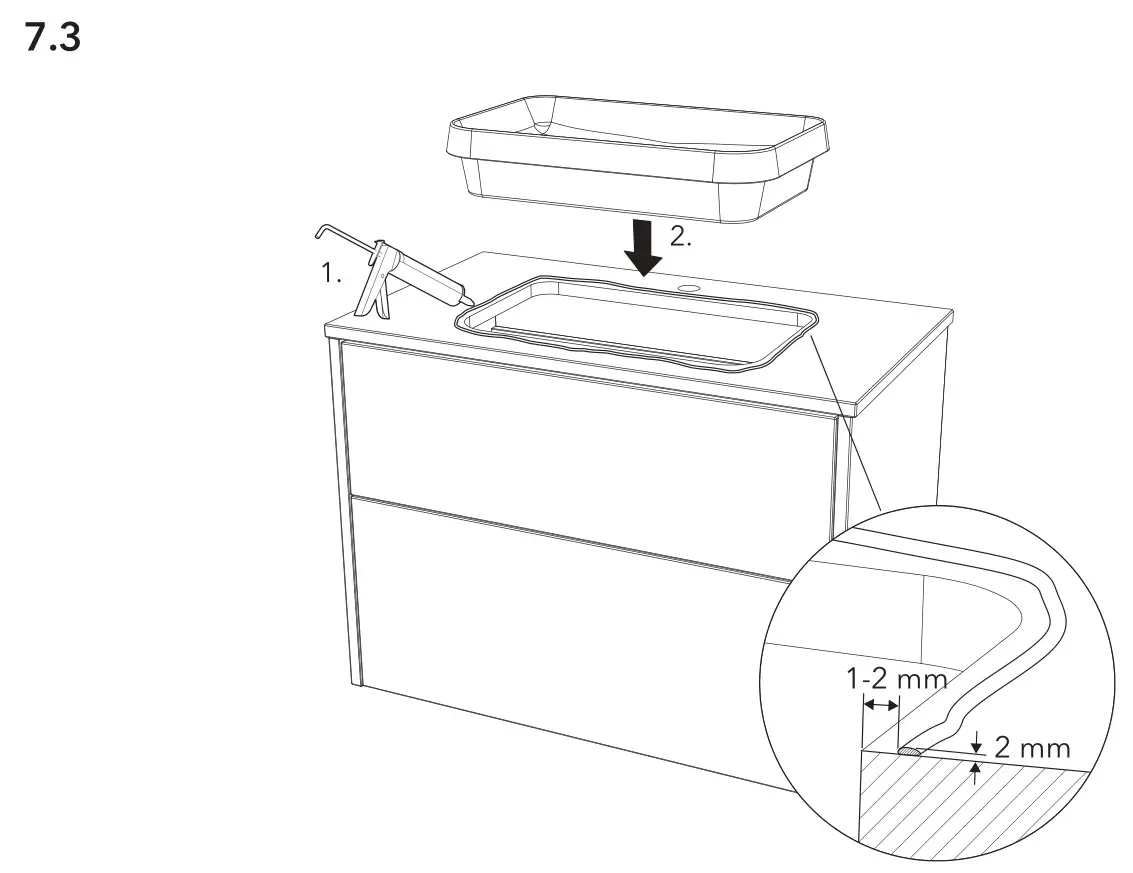

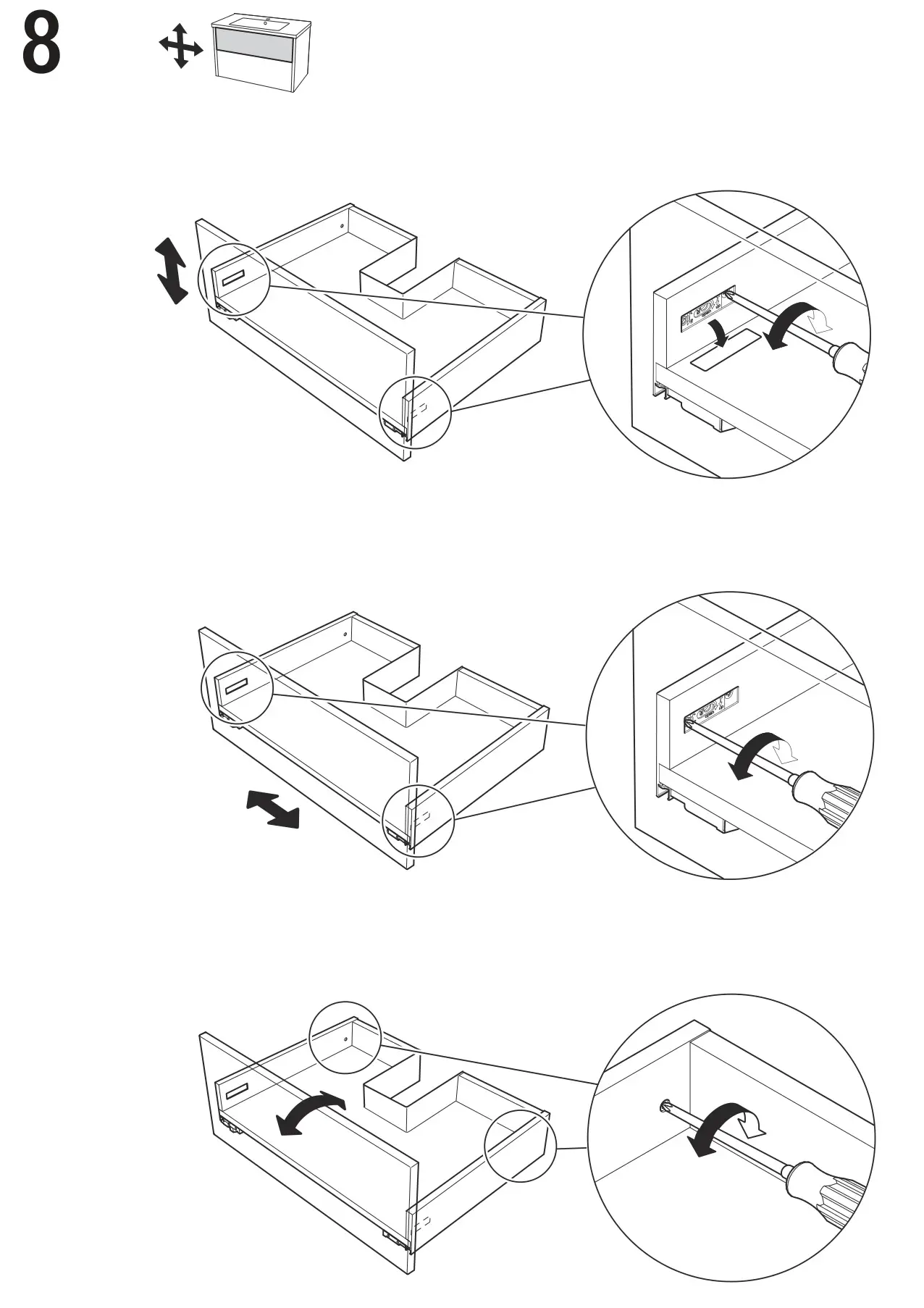

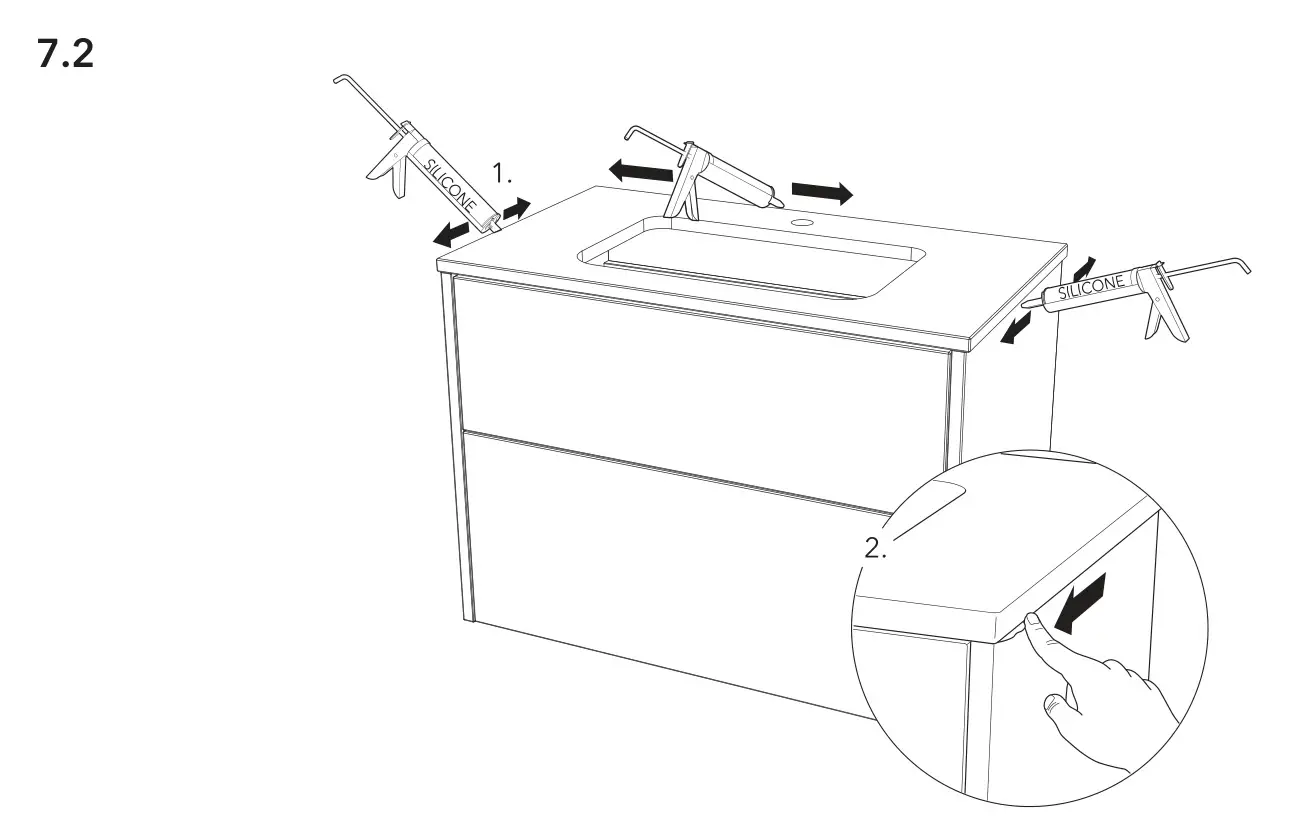

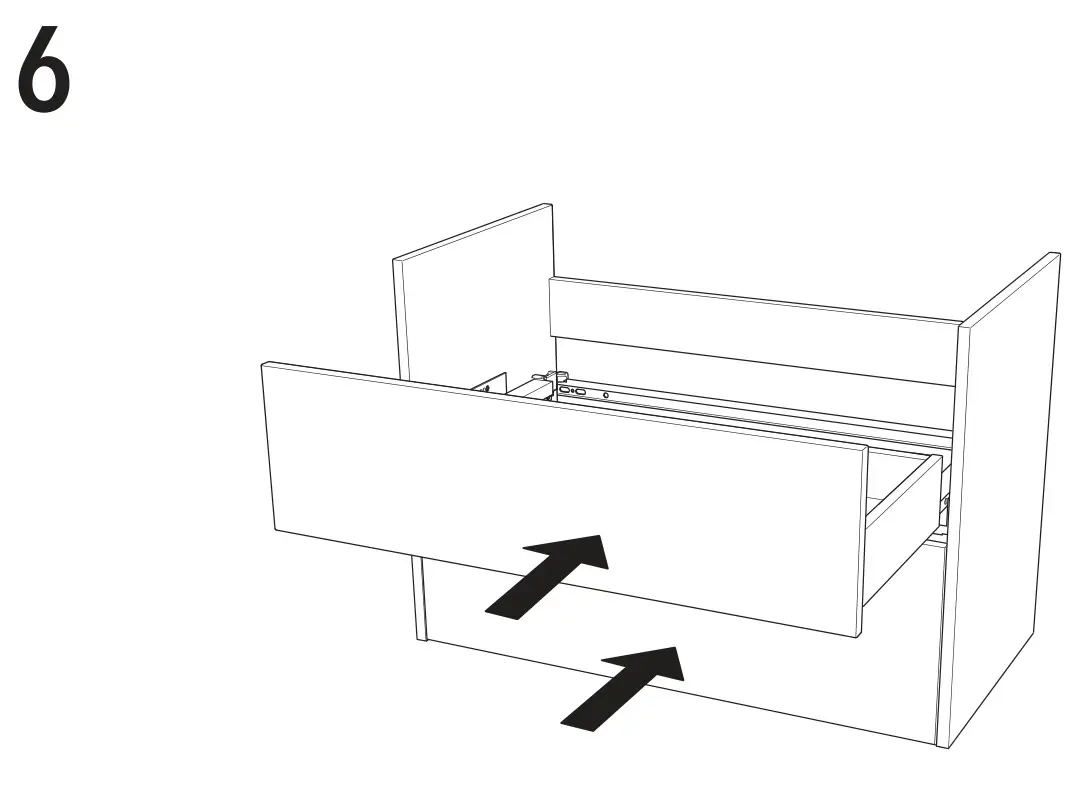

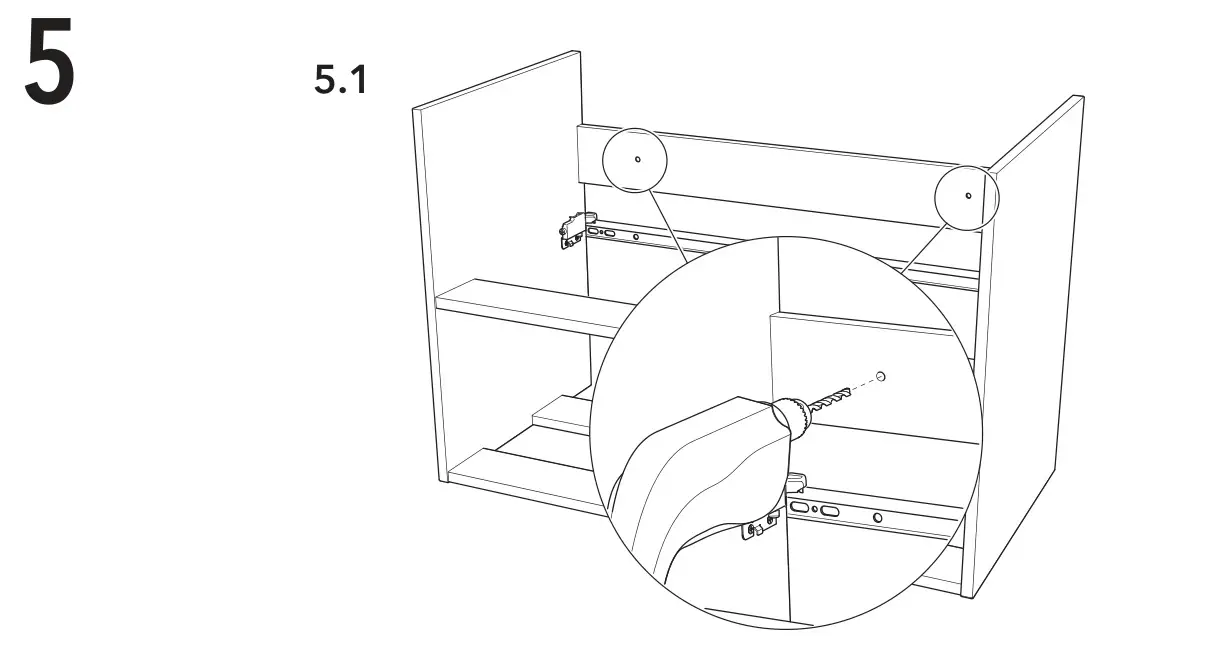

INSTALLATION

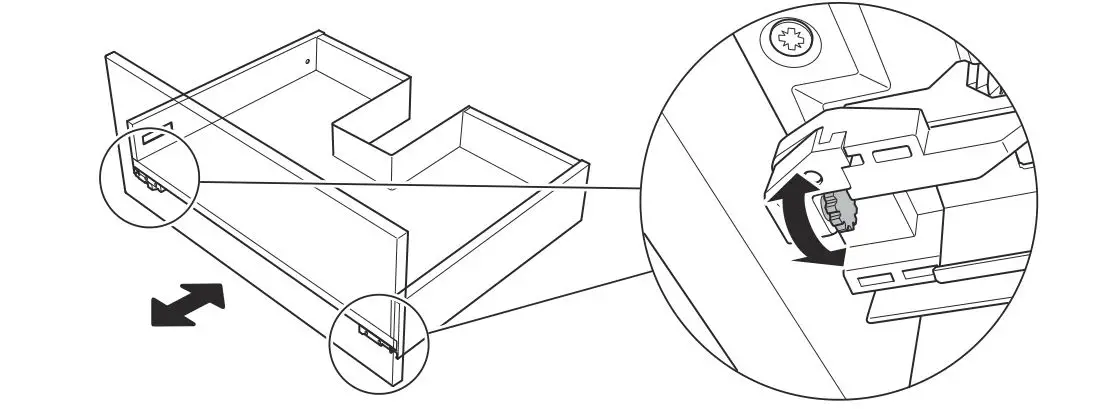

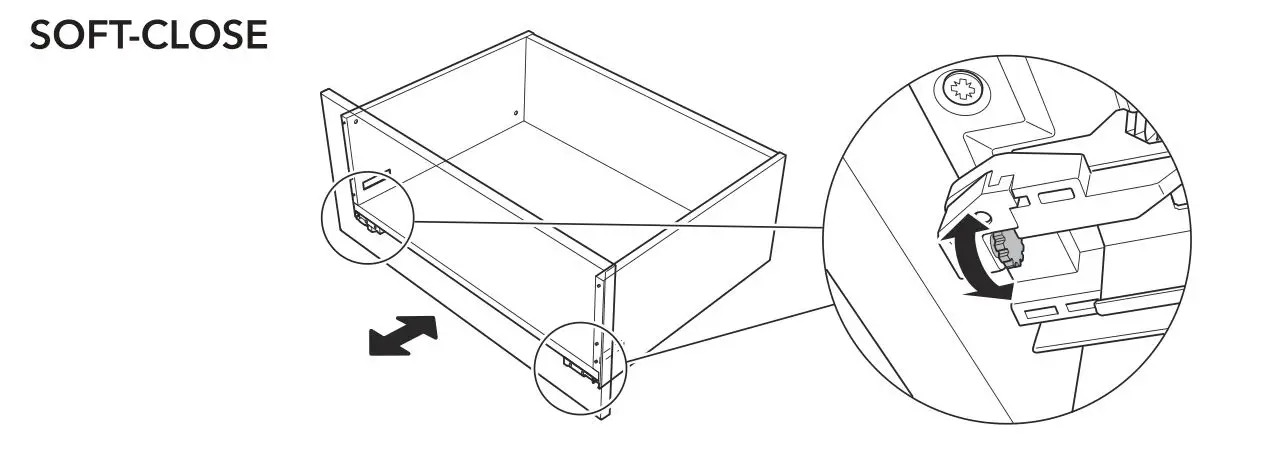

SOFT-CLOSE

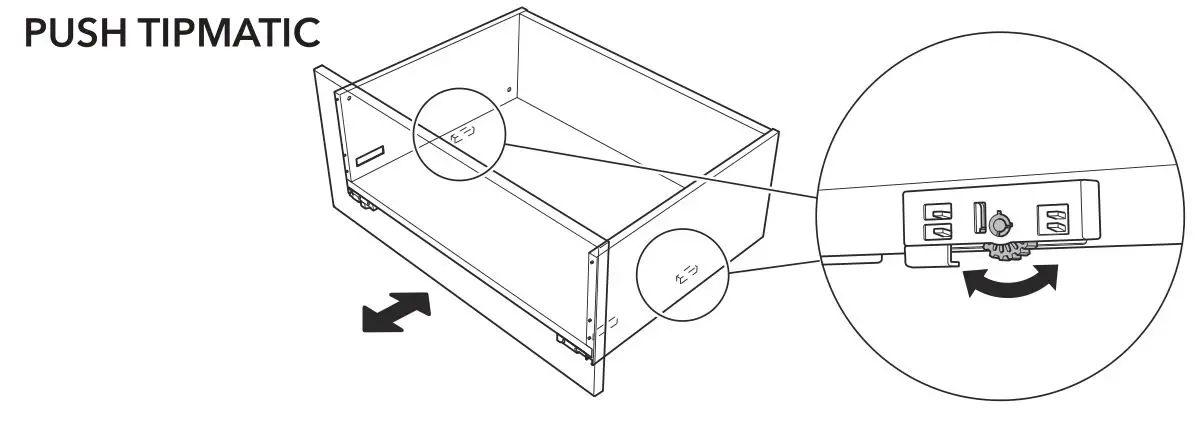

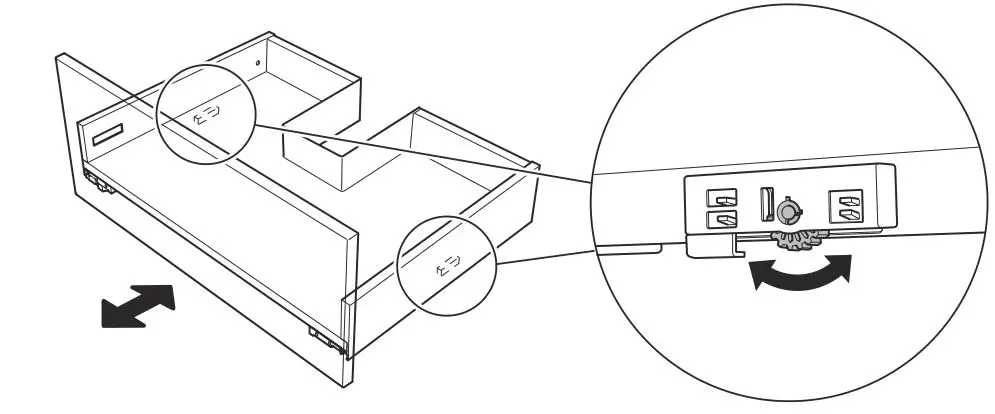

PUSH TIPMATIC

Maintenance advice

To learn more, please visit inr.se
If in doubt regarding your choice of cleaning method, test first on a small, inconspicuous area.

Washbasin, porcelain

Clean with a slightly damp cloth and a mild cleaning agent. Avoid hard abrasives and caustic soda.

Lacquered wooden surfaces

Cupboard doors, drawers and frames can be cleaned with a slightly damp cloth and mild detergent. Avoid the use of furniture polish, scourers, abrasive cleaning agents, ammonia or other strong solvents. Water and splashes should be wiped off immediately with a dry cloth.

Countertop Quarts Composite

A few times a year: use Cif with a damp cloth or small sponge (non-abrasive) for more intensive cleaning. Remove heavy soiling and stains as soon as possible. Avoid contact with acetone and aggressive cleaning agents such as metal polish, drain cleaner and other corrosive substances, do not use detergents with ph value < 4 or > 10. For daily cleaning use damp cloth and a mild detergent

Metal surfaces

For metal surfaces, use a slightly damp cloth and a mild detergent solution.

Warranty

See inr.se

RECYCLING

Metal, wood and glass are separated and recycled separately.
