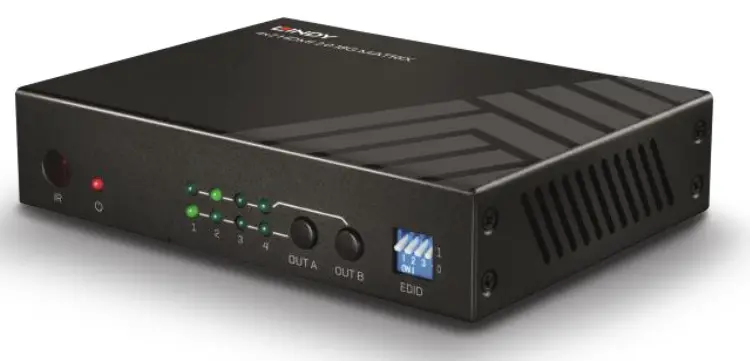

4×2 HDMI 18G Matrix Switch
User Manual
No. 38084
lindy.com
© LINDY Group – THIRD EDITION (January 2021)
Introduction
Thank you for purchasing the Lindy 4×2 HDMI 18G Matrix Switch. This product has been designed to provide trouble-free, reliable operation. It benefits from both a LINDY 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.
This matrix is a high-performance solution for distributing content from multiple source devices to two displays. Supporting HDMI 18G signals, this matrix allows for the transmission of clear 4K Ultra HD 60Hz resolutions, while additional support for High Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider color gamut, perfect for digital signage displays in retail or hospitality or creating engaging educational setups.
Package Contents
- HDMI Matrix
- IR Remote Control and CR 2025 Battery
- Multi-country Power Supply (UK, EU, US & AUS), Barrel Size: 5.5/2.1mm
- 2 x Mounting Brackets
- This Manual
Features
- HDMI 2.0 18Gbps, HDCP 2.2 Compliant
- Supports resolutions up to 3840×2160@60Hz 4:4:4 8bit, with HDR support
- Supports pass-through HDMI audio up to 7.1CH
- Audio extraction from Output A to Toslink (Optical) and 3.5mm Analogue Audio
- Automatic downscaling from Output B – 4K to 1080p
- EDID Management
- Control switching via push buttons on the unit and IR remote
Specification
- Input: 4 x HDMI Type A (Female), IR Receiver
- Output: 2 x HDMI Type A (Female), 3.5mm Stereo Audio (Female), Toslink Optical (Female)
- Metal Housing
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -20°C – 60°C (-4°F – 140°F)
- Humidity: 20 – 90% RH (non-condensing)
- Power Requirements: 5VDC 1A
Installation
Please ensure all devices are switched off before making any connections.
Connect the source devices such as a PC, Blu-ray player or games console to the HDMI matrix input porThen connect the high definition displays to the HDMI matrix output ports. When all the connections are made, connect the power supplies.
Once all the connections have been made, switch on the devices in this order: displays, HDMI Matrix, source devices. Please allow a few minutes for the devices to handshake and for the signals to appear.
Operation

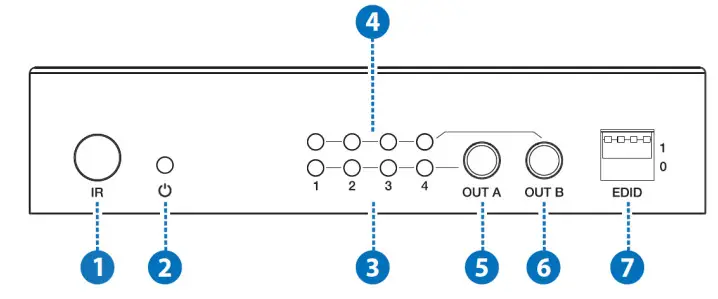

Front of Unit
| Number | Name | Function |
| 1 | IR | IR Receiver Sensor |
| 2 | Power LED | Power LED Indicator |
| 3 | Output A LED | The selected input channel will illuminate for Output A |
| 4 | Output B LED | The selected input channel will illuminate for Output B |
| 5 | Output A Button | Select the input channel for Output A |
| 6 | Output B Button | Select the input channel for Output B |
| 7 | EDID | EDID management to select the output video and audio signal |

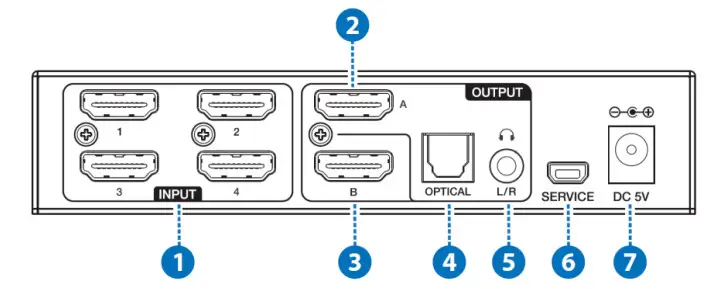

Rear of Unit
| Number | Name | Function |
| 1 | Input Ports | Connect to an HDMI source device |
| 2 | Output A | Connect to an HDMI display |
| 3 | Output B | Connect to an HDMI display |
| 4 | Toslink (Optical) Output | Extract audio from Output A to Toslink (Optical) audio |
| 5 | 3.5mm Stereo Output | Extract audio from Output A to 3.5mm Stereo Analogue audio |
| 6 | Service | For firmware updates |
| 7 | DC 5V | Connect to 5VDC 1A Power Supply |
EDID Management
| EDID Mode | EDID Function |
| 0 | AUTO (EDID Pass-through) |
| 1 | Copy EDID of HDMI Output A |
| 10 | Copy EDID of HDMI Output B |
| 11 | 720, 60Hz, 4:4:4, 8bit, 2 Channel Audio, 24-bit, 48KHz, No formats. |
| 100 | 1920×1080, 60Hz, 4:4:4, 8bit. 2 Channel Audio, 24-bit, 48kHz. No formats. |
| 101 | 1920×1080, 60Hz, 4:4:4, 8bit. 6 Channel Audio, 24-bit, 192Khz. Dolby Digital and DTS audio |
| 110 | 1920×1080, 60Hz, 4:4:4, 8bit. 8 Channel Audio, 24-bit, 192Khz, DTS Audio, Dolby Digital Plus, DTS-HD, Dolby True HD, Dolby Digital |
| 111 | 3840×2160, 30Hz, 4:4:4, 8bit. 2 Channel Audio, 24-bit, 48Khz. No formats. |
| 1000 | 3840×2160, 30Hz, 4:4:4, 8bit. 6 Channel Audio, 24-bit, 192Khz. Dolby Digital and DTS audio |
| 1001 | 3840×2160, 30Hz, 4:4:4, 8bit. 8 Channel Audio, 24-bit, 192Khz. DTS Audio, Dolby Digital Plus, DTS-HD, Dolby True HD, Dolby Digital. |
| 1010 | 3840×2160, 60Hz, 4:2:0, 8bit. 2 Channel Audio, 24-bit, 48Khz. No formats. |
| 1011 | 3840×2160, 60Hz, 4:2:0, 8bit. 6 Channel Audio, 24-bit, 192Khz. Dolby Digital and DTS audio |
| 1100 | 3840×2160, 60Hz, 4:2:0, 8bit. 8 Channel Audio, 24-bit, 192Khz, DTS Audio, Dolby Digital Plus, DTS-HD, Dolby True HD, Dolby Digital. |
| 1101 | 3840×2160, 60Hz, 4:4:4, 8bit. 2 Channel Audio, 24-bit, 48Khz, No formats. |
| 1110 | 3840×2160, 60Hz, 4:4:4, 8bit. 6 Channel Audio, 24-bit, 192Khz, Dolby Digital, and DTS Audio. |
| 1111 | 3840×2160, 60Hz, 4:4:4, 8bit. 8 Channel Audio, 24-bit, 192Khz, DTS Audio, Dolby Digital Plus, DTS-HD, Dolby True HD, Dolby Digital. |

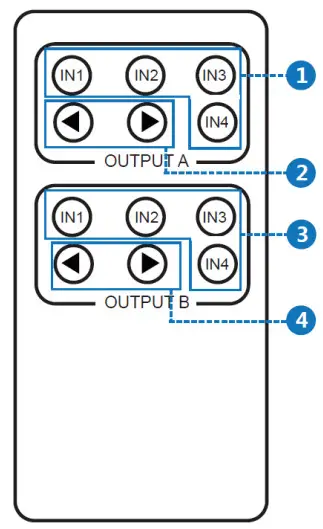

IR Remote Control
| 1 | Select the Input for Output A |
| 2 | Select the last or next Input for Output A |
| 3 | Select the Input for Output B |
| 4 | Select the last or next Input for Output B |
Systematic code：0xFD02
OUTPUTA：
IN1(Switch to input 1) –> 0xde
IN2(Switch to input 2) –> 0xda
IN3(Switch to input 3) –> 0xdb
IN4(Switch to input 4) –> 0xd9
left( switch to last input) –> 0x55
right(switch to next input) –> 0xdf
OUTPUTB：
IN1(Switch to input 1) –> 0xcb
IN2(Switch to input 2) –> 0xc3
IN3(Switch to input 3) –> 0x97
IN4(Switch to input 4) –> 0x99
left( switch to last input) –> 0xc8
right(switch to next input) –> 0xc0
CE/FCC Statement
CE Certification
LINDY declares that this equipment complies with relevant European CE requirements.
UKCA Certification
LINDY declares that this equipment complies with relevant UKCA requirements.
FCC Certification
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
The enclosed power supply has passed Safety test requirements, conforming to the US American versions of the International Standard IEC 60950-1 or 60065 or 62368-1.
| Hersteller / Manufacturer (EU): LINDY-Elektronik GmbH Markircher Str. 20 68229 Mannheim Germany Email: [email protected] , T: +49 (0)621 470050 | Manufacturer (UK): LINDY Electronics Ltd Sadler Forster Way Stockton-on-Tees, TS17 9JY England [email protected], T: +44 (0)1642 754000 |
Recycling Information
WEEE (Waste of Electrical and Electronic Equipment), Recycling of Electronic Products
Europe, United Kingdom
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must enter the recycling process.
Each individual EU member state has implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from your national WEEE recycling agency.
Battery Remark:
Do not put empty batteries in your domestic waste bin as they will not be recycled. Empty batteries can be returned for recycling at our trade counter or at your local household recycling center.
The raw materials enclosed in batteries such as Zinc, Iron, and Nickel can be reused to a very large proportion. The recycling of batteries and disused/obsolete electronic equipment is one of the most efficient environmental protection actions you can easily take.
