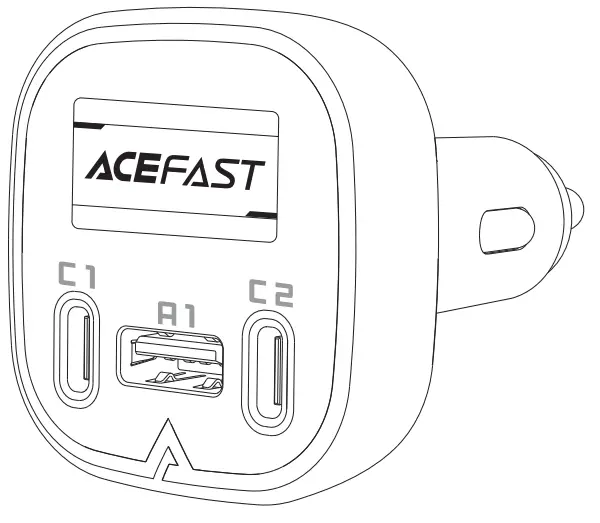

Acefast B5 Metal Car Charger With Oled Smart Display User Guide

B5

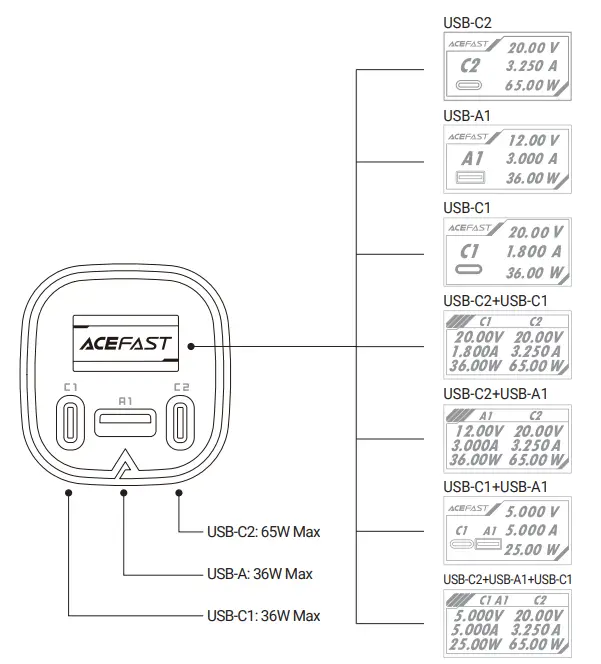

Product diagram

Single / Combined output use

• USB-C2
• USB-A1
• USB-C1
• USB-C2 + USB-C1
• USB-C2 + USB-A1 + USB-C1
• USB-C2 + USB-A1
• USB-C1 + USB-A1

Package contents

B5 101W (USB-C1 + USB-C2 + USB-A1) metal car charger with OLED smart display User Manual.
Thank you for purchasing the B5 101W (USB-C1 + USB-C2 + USB-A1) metal car charger with OLED smart display
Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Specifications

Getting started

1. USB-C1 20V output can only be realized when 24V (large truck) voltage is input.
2. USB-C2 20V output can be realized at rated working voltage input.
3. USB-C1 and USB-A1 do not support fast charging when used at the same time.
4. The charging cable that meets the fast charging protocol is required to realize the fast charging function.
5. To protect your device, please disconnect the device after it is fully charged.
6. When not using the charger or starting the engine, please unplug the charger from the socket.
7. To ensure long-lasting durability, do not shake the charger when it is plugged into the vehicle’s DC outlet.

OLED display description

1. The product displays “ACEFAST” when it is connected to the cigarette lighter slot.
2. When C1/C2/A1 is charging, the charging voltage, current, and power parameters will be displayed in real-time.
3. The parameter error of the OLED screen is less than 5%.

Please read all instructions and warnings before using this product. Improper use will cause damage to the product.

1. Do not store this product under high temperature, strong light, and strong magnetic environment, do not place it in other harsh environments such as fire sources to avoid heat, combustion, or electrical shock.
2. When over-voltage, over-current, or over-temperature occurs during charging, the charger will automatically stop charging to avoid damage. When returning to the normal state, charging will continue.
3. When the product is working under full load, it is normal for the casing to heat up.
4. Do not disassemble, repair or modify this device by yourself.
5. Do not touch the charger with wet hands or immerse it in water or other liquids.
6. Do not use the charger for products higher than the output range of this product to avoid electrical shock, burning, or damage to the device.

Product Care

Keep away from liquids and extreme heat

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the mail below that corresponds with your region. Please include your Amazon order number and
product mode number.

Amazon US orders: [email protected]
Amazon EU orders: [email protected]
Amazon UK orders: [email protected]
Amazon CA orders: [email protected]
Amazon JP orders: [email protected]
Other region orders: [email protected]

*Please note, ACEFAST can provide after-sales service for products purchased from any official ACEFAST store. If you have purchased from a local seller, you can also contact them directly for service or warranty issues.

Shenzhen Houshuxia Technology Co., LTD
www.acefast.com | [email protected]
Rm203, 2nd Floor, Building C, Youth Pioneer Park,
Jianshe East Road, Tsinghua Community,
Longhua Street, Longhua District, Shenzhen, P. R. China
Shenzhen, 518000, China
