Acefast A13 Fast Charge Wall Charger User Guide

Quick Start Guide
for: A13/A14/A15

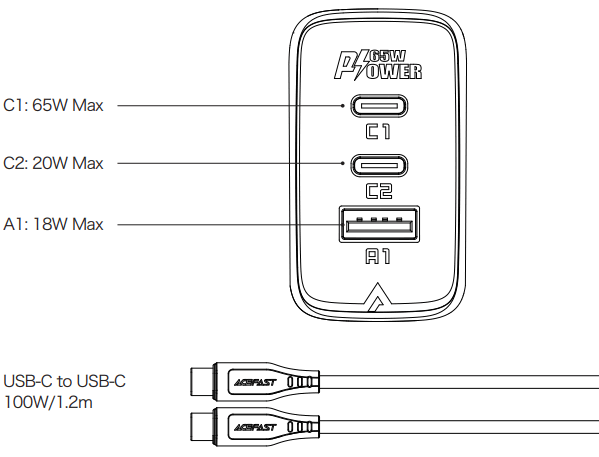

Product Diagram

Package Contents

PD65W (2USB-C+USB-A) three port charger
User Manual

Thank you for purchasing the PD65W (2USB-C+USB-A) three-port charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Specifications

Total Wattage	65W Max
Input	AC100-240V~ 50Hz/60Hz 1.5A Max
Output C1	DC3.3V-21V3A(PPS) 5V3A 9V3A 12V3A 15V3A  20V3.25A(PD65W Max )
Output C2	DC5V3A 9V2.22A 12V1.67A (PD20W Max)
Output A1	DC5V3A 9V2A 12V1.5A (18W Max)
Output C1+C2	45W+20W Max
Output C1+A1	45W+18W Max
Output C2+A1	18W Max
Output C1+(C2+A1)	30W+18W Max
Cable Wattage	100W

Getting Started

1. Plug the charger into a wall outlet
2. Connect a charging cable (not included) to your device charging port
3. Connect the other end to an output port on the charger
4. Unplug your devices when fully charged

Use environment

1. Operating environment temperature: 0 ℃ to 35 ℃ in non-tropical areas below 2000 meters above sea level
2. The device is only suitable for indoor use
3. Storage temperature: -20 ℃ to 40 ℃

Note:
Please read all instructions and warnings before using this product. Improper use will cause damage to the product.

1. Do not store this product under high temperature, strong light, and strong magnetic environment, do not place it in other harsh environments such as fire sources to avoid heat, combustion, or electrical shock.
2. When over-voltage, over-current, or over-temperature occurs during charging, the charger will automatically stop charging to avoid damage. When returning to the normal state, charging will continue.
3. Do not disassemble, repair or modify this device by yourself.
4. Do not touch the power adapter with wet hands or immerse it in water or other liquids.
5. Do not use the power adapter for products higher than the output range of this product to avoid electrical shock, burning, or damage to the device.

Product Care

Keep away from liquids and extreme heat

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the mail below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [email protected]
Amazon EU orders: [email protected]
Amazon UK orders: [email protected]
Amazon CA orders: [email protected]
Amazon JP orders: [email protected]
Other region orders: [email protected]

*Please note, ACEFAST can provide after-sales service for products purchased from any official ACEFAST store. If you have purchased from a local seller, you can also contact them directly for service or warranty issues.

ShenZhen Houshuxia Technology Co., LTD
www.acefast.com | [email protected]
Rm203, 2nd Floor, Building C, Youth Pioneer Park,
Jianshe East Road, Tsinghua Community,
Longhua Street, Longhua District, Shenzhen, P. R. China
Shenzhen, 518000, China
