ACEFAST A1 Fast Charge Wall Charger

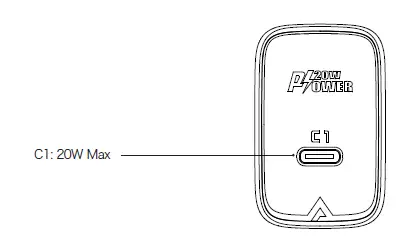

Product Diagram

Package Contents

PD20W single USB-C charger
User Manual

Thank you for purchasing the PD20W single USB-C charger. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Speciﬁcations

Total Wattage	20W Max
Input	AC100-240V~ 50Hz/60Hz 0.5A Max
Output C1	DC5V	3A 9V	2.22A 12V	1.67A (PD20W Max)

Getting Started

Plug the charger into a wall outlet
Connect a charging cable (not included) to your device charging port
Connect the other end to an output port on the charger
Unplug your devices when fully charged

Use environment

Operating environment temperature: 0 ℃ to 35 ℃ in non-tropical areas below 2000 meters above sea level
The device is only suitable for indoor use
Storage temperature: -20 ℃ to 40 ℃

Note:
Please read all instructions and warnings before using this product. Improper use will cause damage to the product.

Do not store this product under high temperature, strong light and strong magnetic environment, do not place it in other harsh environments such as fire source to avoid heat, combustion or electrical shock.
When over-voltage, over-current, or over-temperature occurs during charging, the charger will automatically stop charging to avoid damage. When returning to the normal state, charging will continue.
Do not disassemble, repair or modify this device by yourself.
Do not touch the power adapter with wet hands or immerse it in water or other liquids.
Do not use the power adapter for products higher than the output range of this product to avoid electrical shock, burning or damage to the device.

Product Care
Keep away from liquids and extreme heat

Warranty & Customer Support
For questions, support, or warranty claims, contact us at the mail below that corresponds with your region. Please include your Amazon order number and product mode number.Please note, ACEFAST can provide after sales service for products purchased from any official ACEFAST store. If you have purchased from a local seller, you can also contact them directly for service or warranty issues.
