AIRZONE RLQ1 Diffusion Grille
Product Information

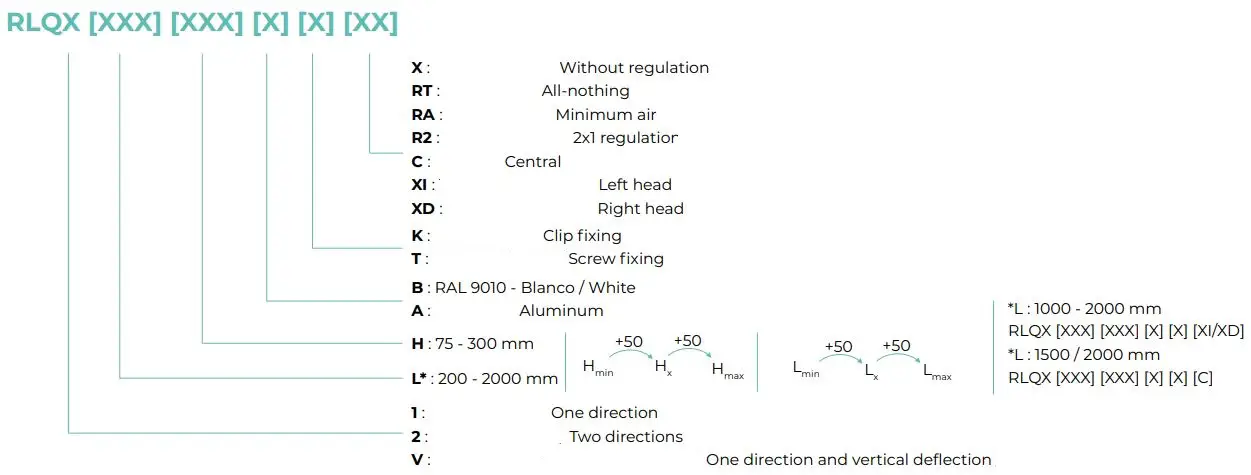

The RLQ1/2/V is a diffusion grille made from extruded aluminum with a standard frame measuring 26mm and slats that facilitate airflow supply. It comes in various options such as RLQX [XXX] [XXX] [X] [X] [XX], RLQV, RLQ2, and FLOWTOOL.
The RLQ2 measures 300 x 150 mm in white with clip fixing and without regulation. The dimensions may vary depending on the type of fixing or regulation. The product is available in different languages such as ES, EN, PT, FR, IT, and DE.
Product Usage Instructions
To install the RLQ1/2/V, simply insert the grille into the opening until it clips into place. For ceiling installation, the use of screws is necessary. The product requires an assembly frame for installation.
When using the RLQ2, fit the grille into the opening and screw it tightly into place using screws. For installation, you may need to use an assembly frame. The dimensions of the product may vary depending on the type of fixing or regulation.
FLOWTOOL
- Visit Flowtool to calculate/select your installation.
15° FIXED LINEAR-SLAT GRILLE

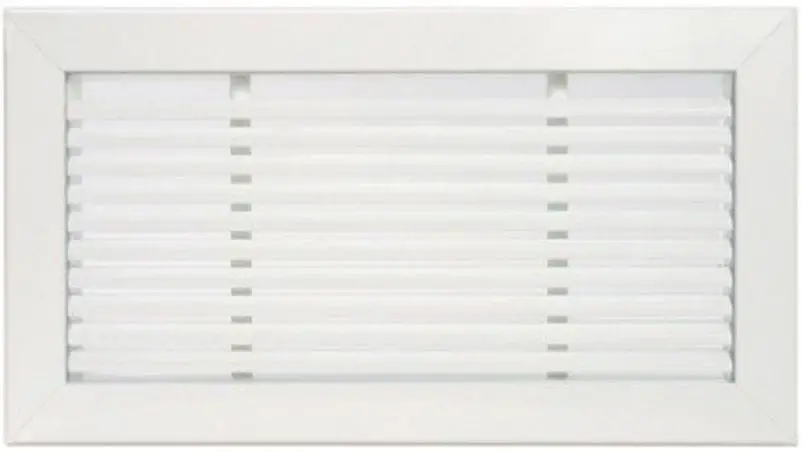

Diffusion grille made from extruded aluminum with a standard frame measuring 26 mm and slats which facilitate airflow supply.
The following options are available:
- All-nothing: The damper occupies 100% of the grille
- Minimum air: The damper occupies 80% of the grille
- 2×1: The damper occupies 50% of the grille

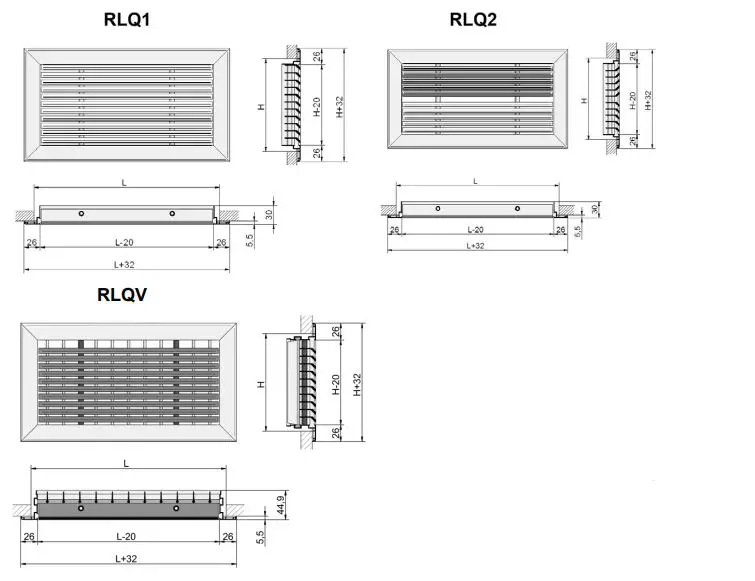

The dimensions may vary depending on the type of fixing or regulation.
COMPATIBLE ACCESSORIES
- PREJxx
- LAG
- FR-X2F
- CREJ
- DFxx
INSTALLATION

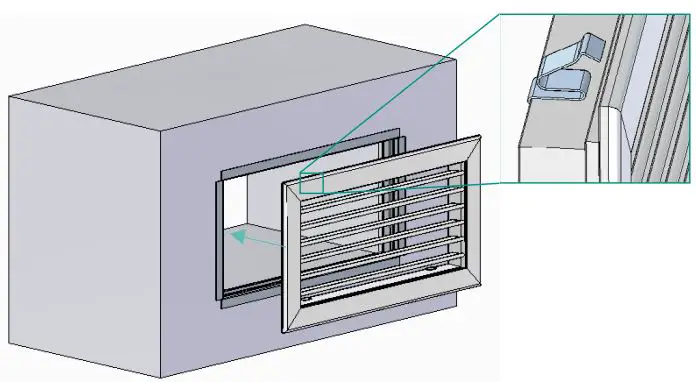

- Insert the grille into the opening until it clips into place.

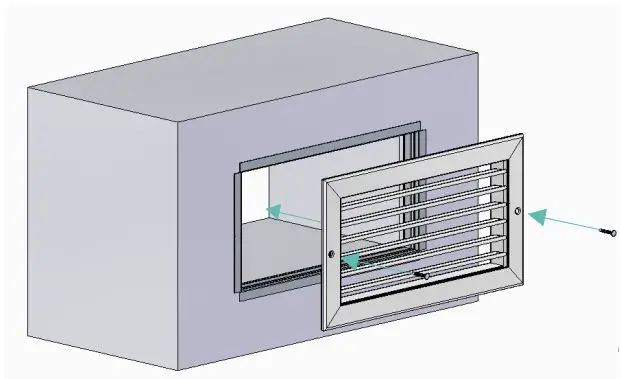

- Fit the grille into the opening and screw it tightly into place
- For ceiling installation, the use of screws is necessary.
- Requires assembly frame.
RLQxxxxxxxxKxx
RLQxxxxxxxxTxx
