Airzone RSDR Horizontal Single Deflection Return Grille Installation Guide
HORIZONTAL SINGLE DEFLECTION RETURN GRILLE

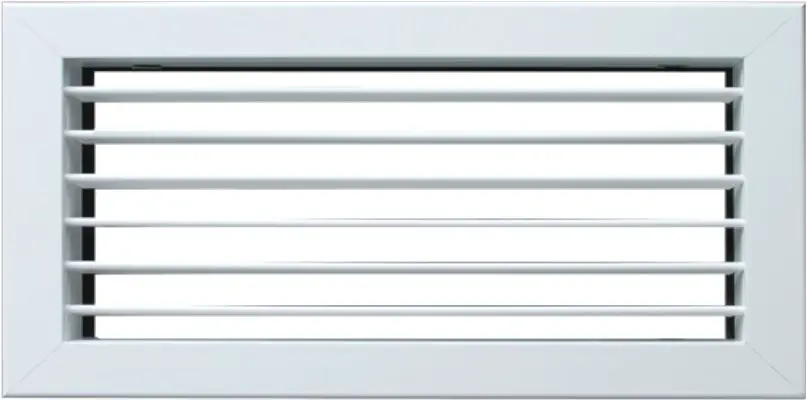

RSDR diffusion grille made from extruded aluminum with a standard frame measuring 26 mm and mobile horizontal slats that can be individually adjusted, adapting the range and air stream to the required needs. The available regulation types are:
- All-nothing: The damper occupies 100% of the grille
- Minimum air: The damper occupies 80% of the grille
- 2×1: The damper occupies 50% of the grille

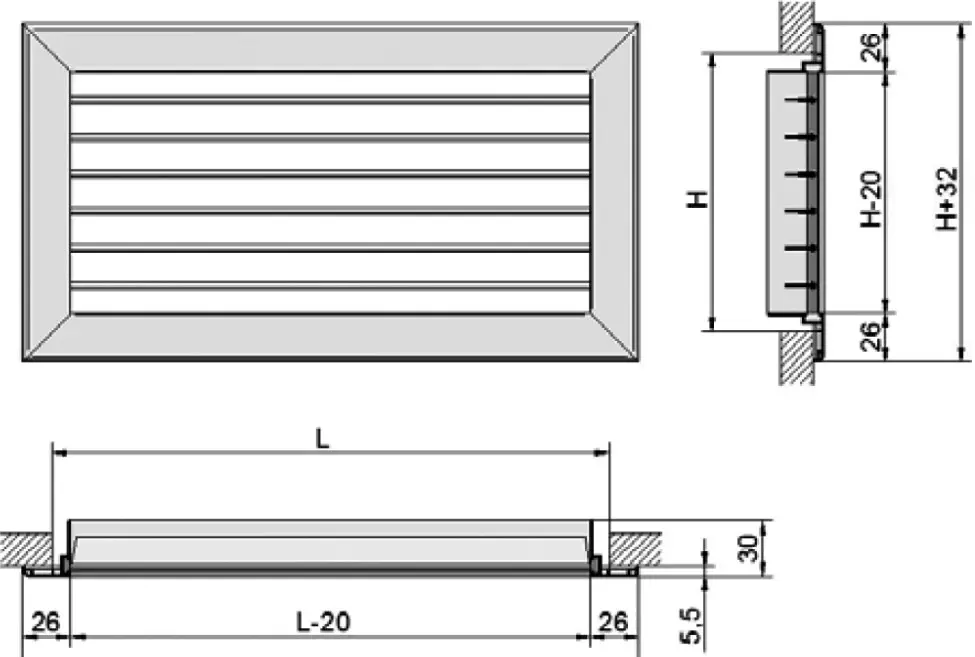

DIMENSIONS
The dimensions may vary depending on the type of fixing or regulation
INSTALLATION

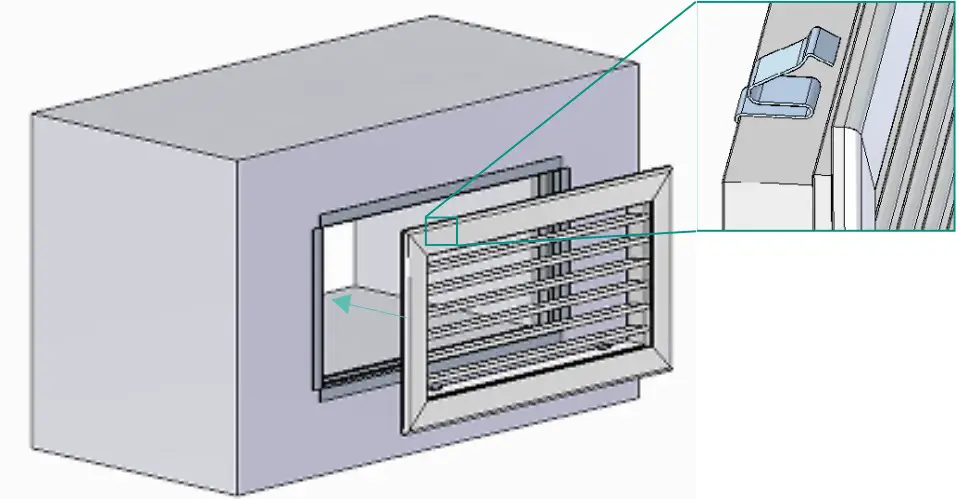

K: Insert the grille into the opening until it clips into place.

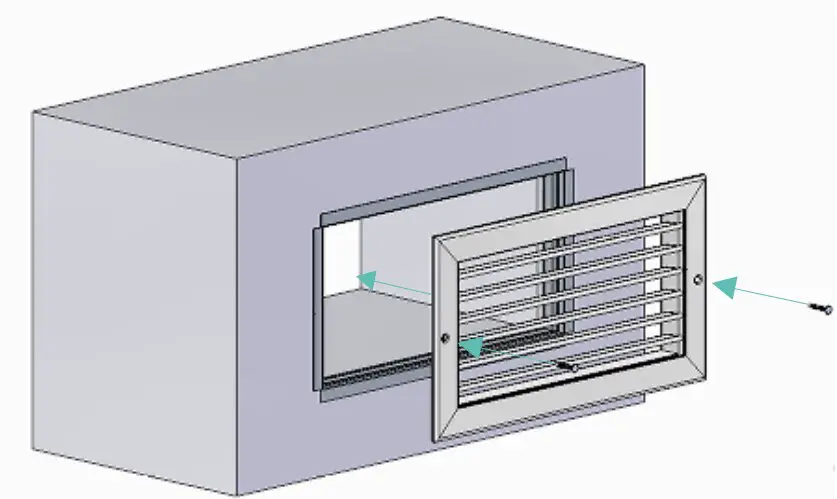

T: Fit the grille into the opening and screw it tightly into place.

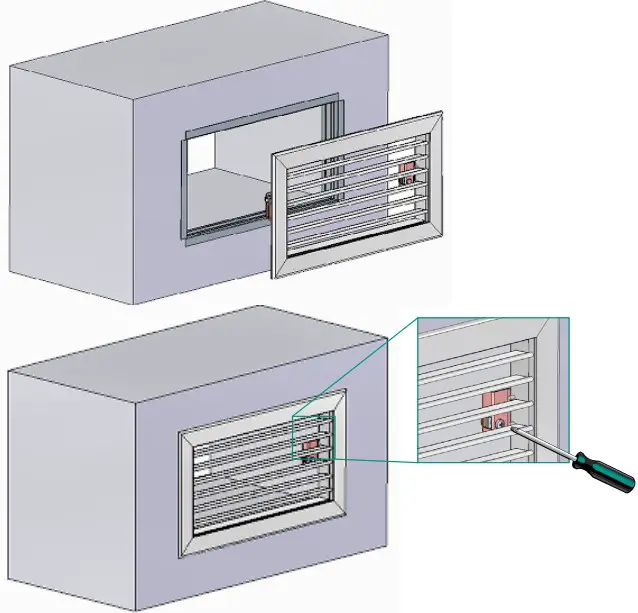

P: Fit the grille in the opening
Locate the screws that adjust the latches and screw them in the correct position until the grille is fixed in place.
