Quoizel Burd8411ac 1-light Aged Copper Hardwired Outdoor Wall Lantern Sconce Installation Guide

QUOIZEL BURD8411AC 1-Light Aged Copper Hardwired Outdoor Wall Lantern Sconce

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read the instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

TOOLS REQUIRED

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish. If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST), or visit us online at www.quoizel.com.

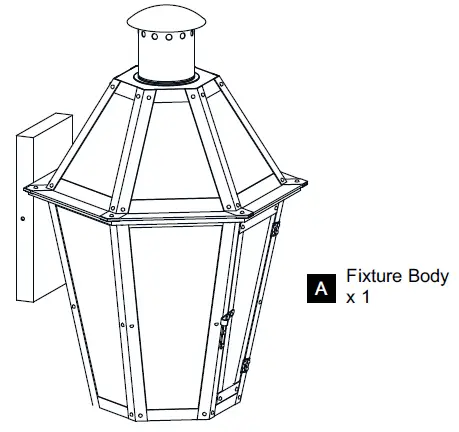

PACKAGE CONTENTS

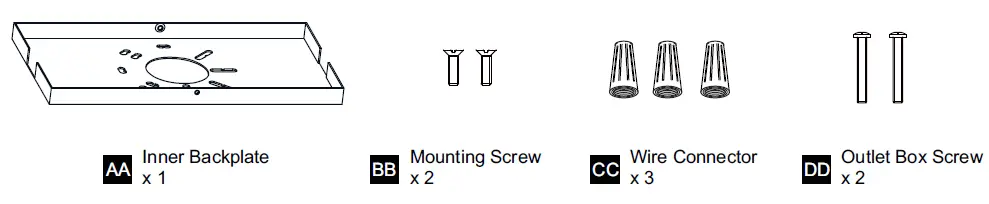

MOUNTING HARDWARE

INSTALLATION

Option 1

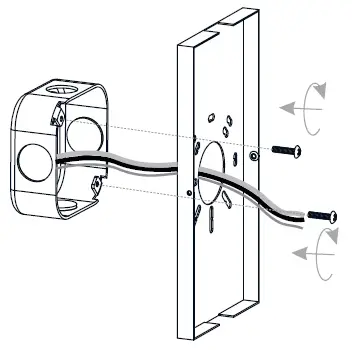

1. Install Inner Backplate

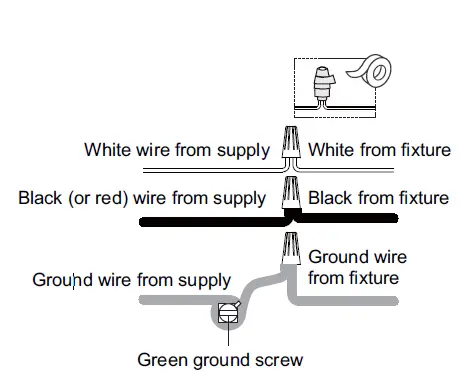

2. Wiring
3. Install Fixture Body

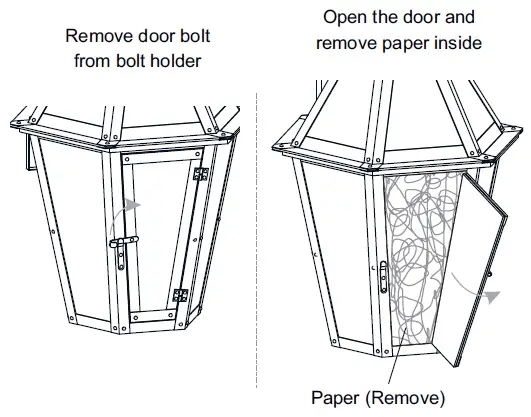

4. Remove Papers inside of the Cage
   • Remove door bolt from bolt holder
   • Open the door and remove the paper inside

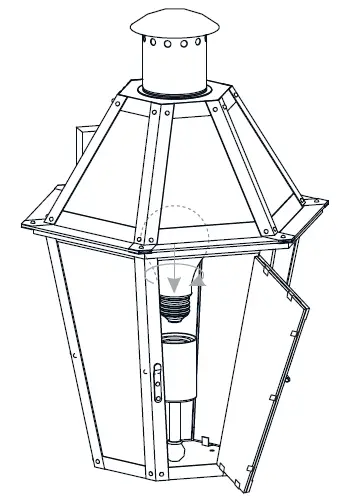

5. Install Bulb
   Install the correct bulb referring to fixture markings and/or labels for maximum wattage.

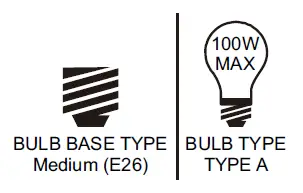

   Recommended Bulb Type (not included):

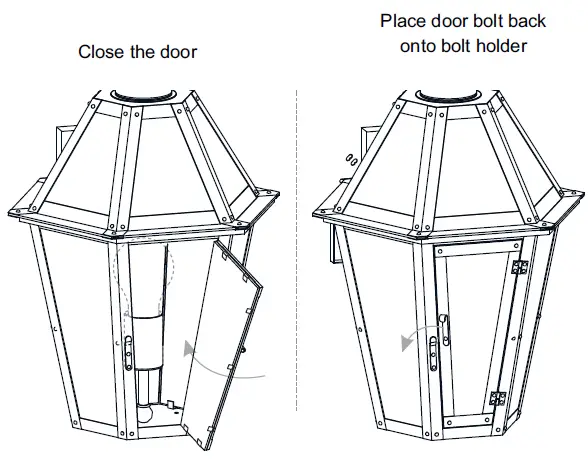

6. Close the Door
   • Close the door
   • Place door bolt back onto bolt holder

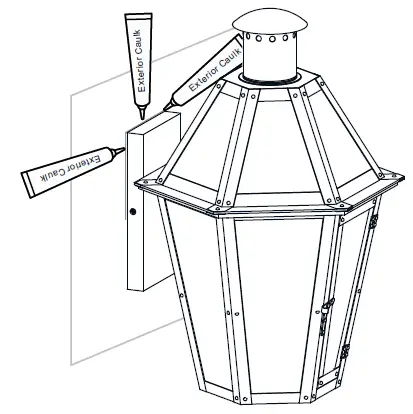

7. Apply Caulking
   Note: Do NOT caulk the bottom of the backplate to allow moisture to escape.

Option 2

1. Remove Backplate from Fixture Body
2. Reinstall Backplate to Fixture Body

Go to step 1 – step 8 of option 1 to complete the rest installations.
Your installation is now complete! Restore electricity and save this sheet for future reference.
