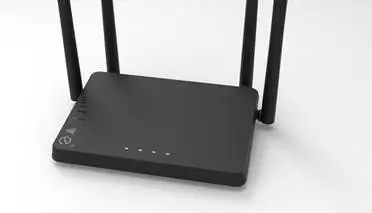

Airlive Wifi 6 Ax 1800 Gigabit Mesh Router User Manual

W6 184QAX AX1800 Gigabit Router(EG)

• Main Chip:    Qualcomm IPQ6000, Quad-Core, 64-bit
• Flash:128MB
• RAM: DDR3 256MB
• Ethernet (LAN): 3 x RJ45 10/100/1000mbps
• WAN: 1x RJ-45 10/100/1000mbps
• WiFi: 2 x 802.11ax/ac/n 2T2R(2.4Ghz), 2 x 802.11ax/ac 2T2R (5Ghz)
• WPS/Reset: 1 Button
• MESH: 1 Button
• Power: 1 Button
• Power Input: 1 x 12VDC 1 or 1.5A acceptable
• Antenna Connector:
  2 x Wireless Antenna (5Ghz), 2 x Wireless Antenna (2.4Ghz)

WAN

• WAN: PPPoE, DHCP, Static IP, Transparent Bridge.

WiFi

• Standard: IEEE 802.11a/b/g/n/ax, 2×2, 20/40/80 MHz channels
• Functions: Multi-SSID, SSID hidden ,SSID isolation
• Security: WEP, WPA, WPA2, WPA3,WPA-PSK, 802.1x
• Modulation: 1024-QAM modulation rates
• Wi-fi Advanced: Wireless client isolation, STBC, WMM multimedia acceleration
• Wireless Channel
• 2.4G:1~13
• 5.8G(EG Channel): 36,40,44,48,52,56,60,64
• Wireless TX Power
• .4G:20dbm MAX; 5.8G:TX 23dbm MAX

IPv6

• IPv6 RA/ Prefix apps

Firewall/Filtering

• Firewall Level: High, Middle, low
• Filter Rule: URL Filter/Mac Filter
• URL filtering: White list/Black List.

DMZ

• DMZ

IPTV

• VLAN support, IPv4, IPv6
• LAN1/LAN2/LAN3

Port Forwarding Rule/Range

• TCP/UDP

• PPTP L2TP VPN Server
• L2TP/PPTP client

UPnP

• Upnp

DDNS

• 3322.org
• dyndns.org
• o-ip.com
• easydns.com
• dnsexit.com
• Dnsomatic.com
• he.net
• dnsdynamic.org

Parental Control

• Mac Address Filtering
• URL Filtering

MESH

• Easy Mesh
• Controller
• Agent
• Status

SNMP

• V1/2c agent

Data Statistics

• Lan
• WAN
• WiFi 2.4G
• WiFi 5.8G

Multiple Language

• English / Arabic

Environment

• Operating temperature：0°C ~ +50°C
• Storage Temperature：-10°C ~ +70°C
• Humidity：10% ~ 90% (non-condensing)
• Enclosure： Plastic

Package Accessory
1 x Device, 1 x Power Adapter
Ordering information

• AirLive W6 184QAX EG
  Wi-Fi 6 AX 1800 Indoor Gigabit Router, with Easy
  MESH, VPN, IPTV, OpenWrt preloaded
