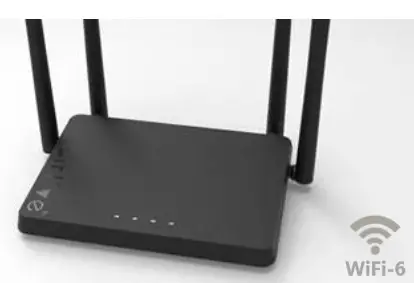

Wi-Fi 6 AX 1800 Gigabit MESH Router
W6 184QAX IL

Overview

• Wi-Fi 6 2.4Ghz 40Mhz, 2 x 2 at 574Mbps, 90% faster than 11ac 1200
• Wi-Fi 6 5Ghz 80Mhz, 2 x 2 at 1201Mbps, 40% faster than 11ac 1200
• Advanced Qualcomm Quad-Core CPU and DDR3 256MB high memory,
  support stable connection up to 128 devices
• OFDMA + MU-MIMO + Range Boost + 1024QAM +OSBB
  ✓ Multiple users can transmit data simultaneously at the same time
  ✓ Lower latency in a crowded environment
  ✓ Wide Coverage
  ✓ Higher throughput and capacity
  ✓ Shorten waiting time for signals
• Support IPTV/VLAN
• Support latest WPA3 advanced security protocol
• Support Parental Control (Black/White list, URL control)
• Smart Easy MESH Roaming
• VPN for remote working
• Preload OpenWrt

Features

• WiFi 6 11a/b/g/n/ax compliant
• 2T2R 1800Mbps Wireless High Speed (573Mbps + 1201Mbps)
• Qualcomm IPQ6000 1.2Ghz 64-bit Quad-Core CPU processor
• DDR3 256MB RAM and 128MB Flash memory
• 20/40/80Mhz Channel
• Concurrent dual bands
• 1 x 10/100/1000mbps WAN
• 3 x 10/100/1000mbps LAN
• 2 x 2.4Ghz 5dBi external antennas
• 2 x 5Ghz 5dBi external antennas
• Stable Internet connection for multitasking
• VPN Server
• Easy Mesh Support
• IPTV Support
• Preload OpenWrt
• Language: English, Arabic

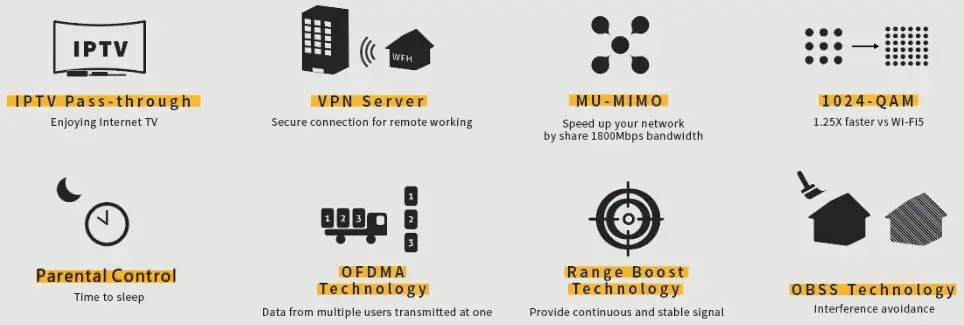

Rich & Advanced Functions AirLive W6 184QAX IL

Specification

Model
Device Interface

• Main Chip: Qualcomm IPQ6000, Quad-Core, 64-bit
• Flash:128MB
• RAM: DDR3 256MB
• Ethernet (LAN): 3 x RJ45 10/100/1000mbps
• WAN: 1x RJ-45 10/100/1000mbps
• WiFi: 2 x 802.11ax/ac/n 2T2R(2.4Ghz),
  2 x 802.11ax/ac 2T2R (5Ghz)
• WPS/Reset: 1 Button
• MESH: 1 Button
• Power: 1 Button
• Power Input: 1 x 12VDC 1 or 1.5A acceptable
• Antenna Connector:
  2 x Wireless Antenna (5Ghz)
  2 x Wireless Antenna (2.4Ghz)

WAN

• WAN: PPPoE, DHCP, Static IP, Transparent Bridge,

WiFi

• Standard: IEEE 802.11a/b/g/n/ax, 2×2, 20/40/80 MHz channels
• Functions: Multi-SSID, SSID hidden ,SSID isolation
• Security: WPA, WPA2, WPA3,WPA-PSK, 802.1x
• Modulation : 1024-QAM modulation rates
• Wi-fi Advanced: Wireless client isolation, STBC, WMM multimedia acceleration
• Wireless Channel
• 2.4G: (IL Channel) 3,4,5,6,7,8,9
• 2.4G Freq (IL): 2422 ~ 2542Mhz
• 5.8G: (IL Channel): 36,40,44,48
• 5.8G: Freq (IL): 5180Mhz ~ 5240Mhz
• Wireless TX Power
• 2.4G:20dbm MAX; 5.8G:TX 23dbm MAX

IPv6

• IPv6 RA/ Prefix apps
  Firewall/Filtering
• Firewall Level: High, Middle, low
• Filter Rule: URL Filter/Mac Filter
• URL filtering: White list/Black List.

DMZ

• DMZ

IPTV

• VLAN support, IPv4, IPv6
• LAN1/LAN2/LAN3

Port Forwarding Rule/Range

• TCP/UDP

* Specification will be changed without prior notice

W6 184QAX AX1800 Gigabit Router(IL)
VPN

• PPTP L2TP VPN Server
• L2TP/PPTP client

UPnP

• Upp

DDNS

• 3322.org
• dyndns.org
• no-ip.com
• easydns.com
• dnsexit.com
• Dnsomatic.com
• he.net
• dnsdynamic.org

Parental Control

• Mac Address Filtering
• URL Filtering

MESH

• Easy Mesh
• Controller
• Agent
• Status

SNMP

• V1/2c agent

Data Statistics

• Lan
• WAN
• WiFi 2.4G
• WiFi 5.8G
  Multiple Language
• English / Arabic

Environment

• Operating temperature：0°C ~ +50°C
• Storage Temperature：-10°C ~ +70°C
• Humidity：10% ~ 90% (non-condensing)
• Enclosure： Plastic

Package Accessory
1 x Device, 1 x Power Adapter
Ordering information

• AirLive W6 184QAX IL
  Wi-Fi 6 AX 1800 Indoor Gigabit Router, with Easy MESH, VPN, IPTV, OpenWrt preloaded

www.airlive.com

AirLive Technology Corporation
4F., NO. 132, LN. 235, BAOQIAO RD., XINDIAN DIST., NEW TAIPEI CITY 231407, TAIWAN
