LUFT Cube
LUFT Cube I Portable Air Purifier Quick Guide

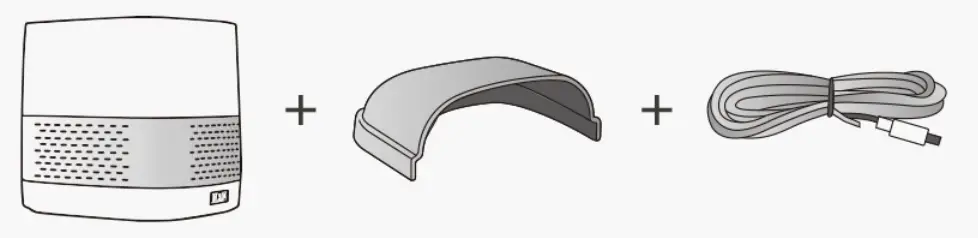

Product included
Standard
Device body, air vent cap, type C cable (1m long)
Optional
Car Cup Holder
Operation instruction 1
No.1

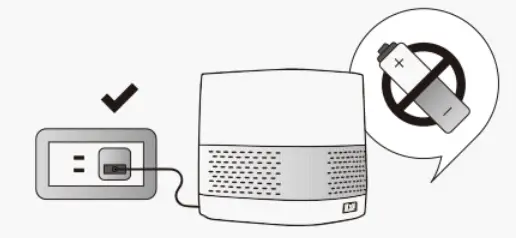

This product is powered by the grid rather than battery
No.2

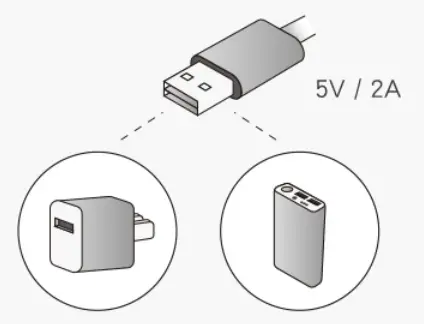

USB Type A port (for plug of USB power cable and power bank for most cellphones)
No.3
Without support to fast charging socket (QC, USB PD, supercharge. supervooC
Operation instruction 2
No.4

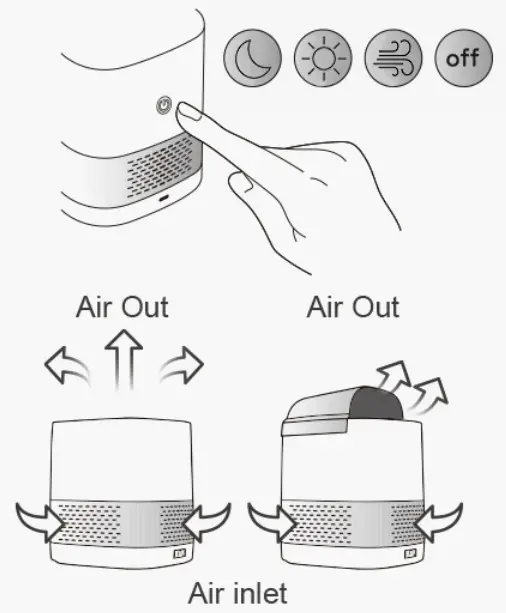

Gears of touch control switches:
The 1 ,. gear (night mode/power on), The 2° gear (day mode), The 3 gear (full speed mode), power off. The last mode that the user uses will be recorded automatically when turning off.
No.5

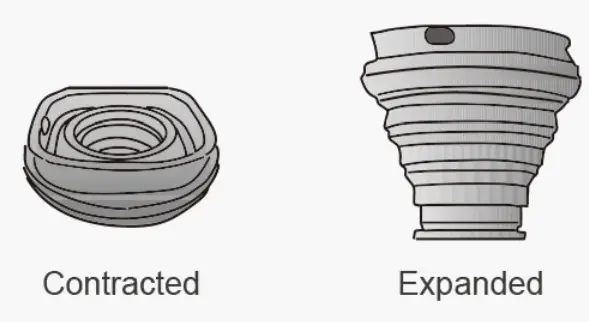

Air vent cap: to set direction of fresh air.
No.6

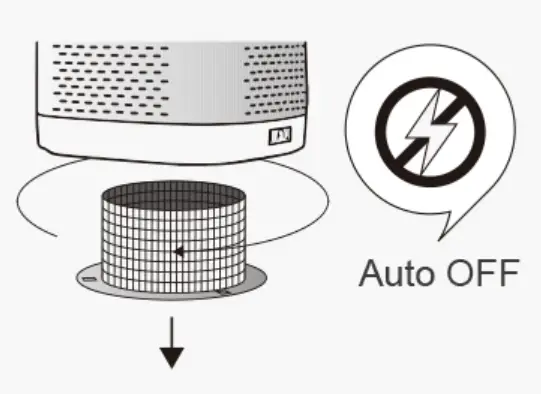

Turn the filter to remove it out of the device (and the device powers OFF automatically afterwards).
Operation instruction 3
No.7

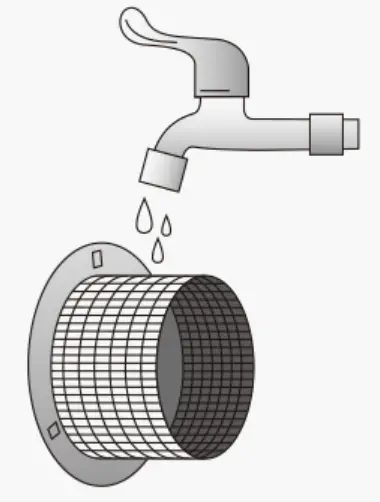

Please remove and clean the filter every 2-6 weeks
No.8
Use of the car cup holder
Insert your LUFT Cube in the car cup holder Insert the Type C USB cable Insert the car cup holder in the cup bracket of your car

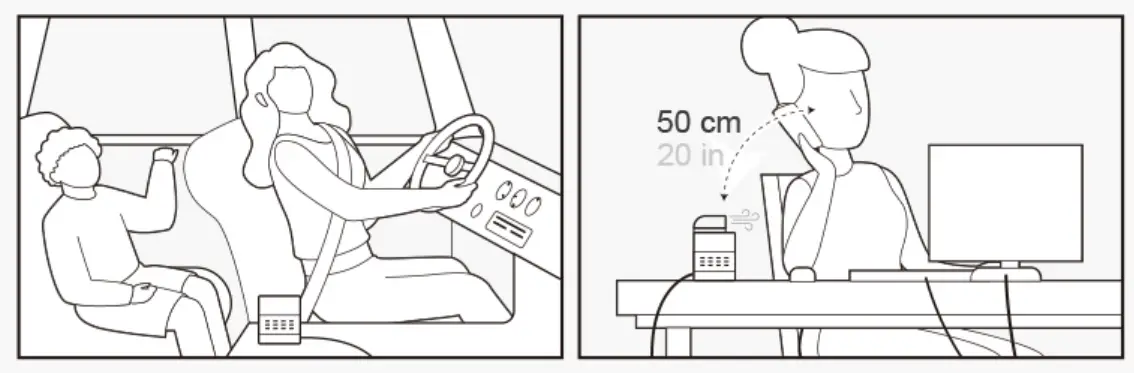

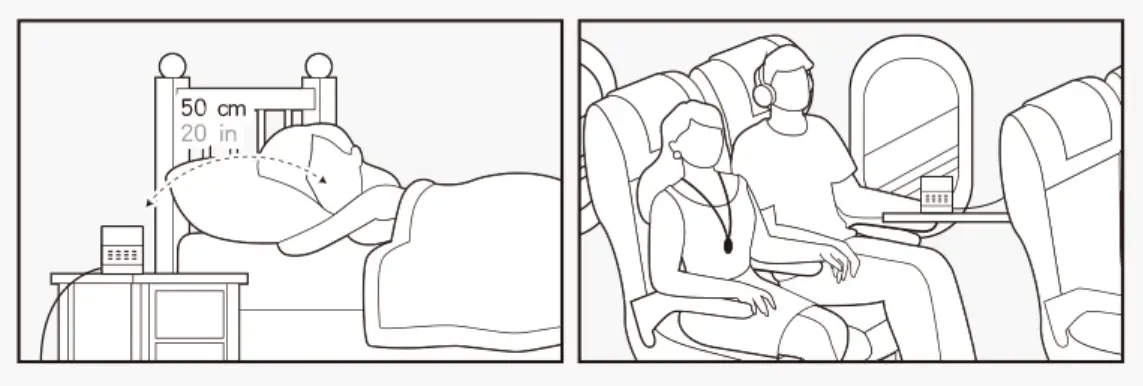

Usage scenarios
Vehicle Office
Bedroom Aircraft
Precautions

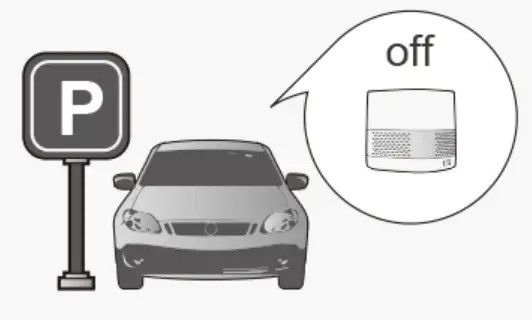

Please power OFF your product after the engine stopped

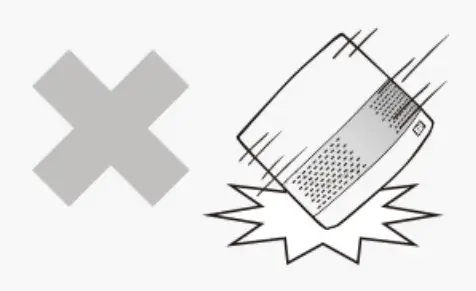

DO NOT drop this product as the internal conditions may be damaged.

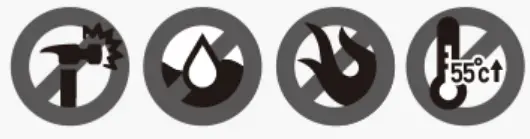

DO NOT dismantle, press, pierce, or short circuit this product. DO NOT expose to water or fire or to temperatures above 55C (131F)

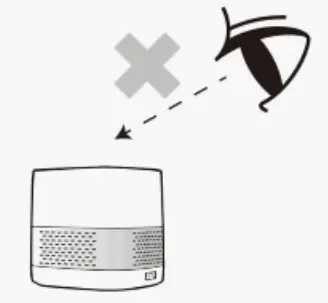

DO NOT look into the source of light for long time.
- This product employs capacitive touch control switch.
Please use CE or FCC certified USB power cable plug. Electricity signal of some power supplies may be too noisy for the switching function of the device. In case like his. please change to another USB power supply socket or test the plug with USB port of PCs. - Notes for using the product in a vehicle :
2-1 The battery of some vehicles keeps on discharging even after the engine has stopped. In case like this, power OFF this product to prevent it exhaust and damage the battery. 2-2 The USB power supply port of some vehicles may fail to turn OFF the touch control switch. Please use a cigarette lighter USB port exclusive adapter to
prevent this from occurring. - Do not press the upper edge of the washable filter with heavy articles or your body as this may deform the filter or Cause personal injury.
- Please rlrv the filter before replacing it in the device or the latter’s circuit may get damaged by a wet filter.
- There are 3 gears (modes) for users to choose based on personal preference. The last mode that the user uses will be recorded automatically when turning off.
Product Specifications
| Dimension | 77 X 77 X 73 mm | |||
| Weight | — 200 gram | |||
| Power rating | 5 Volt/ 0.6 Amp — 3W | |||
| Adapter recommended | 5V I 2A USB power plug | |||
| Working temperature | -20 — +55t | |||
| Coverage | 10m•’ (120 re) Otgiten.”1,.1ha°1::..t”s: “ | |||
| Gears (modes) | 10 gear SI SH | 2•, gear cm. USW | 34 gear 14 Saidoli | OFF |
| Indicator light | Orange | Purple | Blue Pulse | – |
| Outlet air flow (without / with) air vent cap(45cm, (m/s) Noise (without / with) air vent cap ( dB ) | ..0,3/-08 | -04,-1 1 | -071-15 | – |
| 23128 | 30(35 | 37 il 41 | – | |
| Power consumption (W) | 2.1′ | 2. | 3. | • |
This product is made under strict quality control which makes it very unlikely to suffer function failure. In case any error does occur, please call or email your local dealer r visit the official website of this company. DO NOT dismantle or repair this product without approval by this company in advance Otherwise, the warranty of your roduct may be voided
Model : 30502_C15
Customer service
FB fan page (@Luft.Qi)
Official website www.luftqi.com
This product comes with product liability insurance with coverage at TWD 10 million
