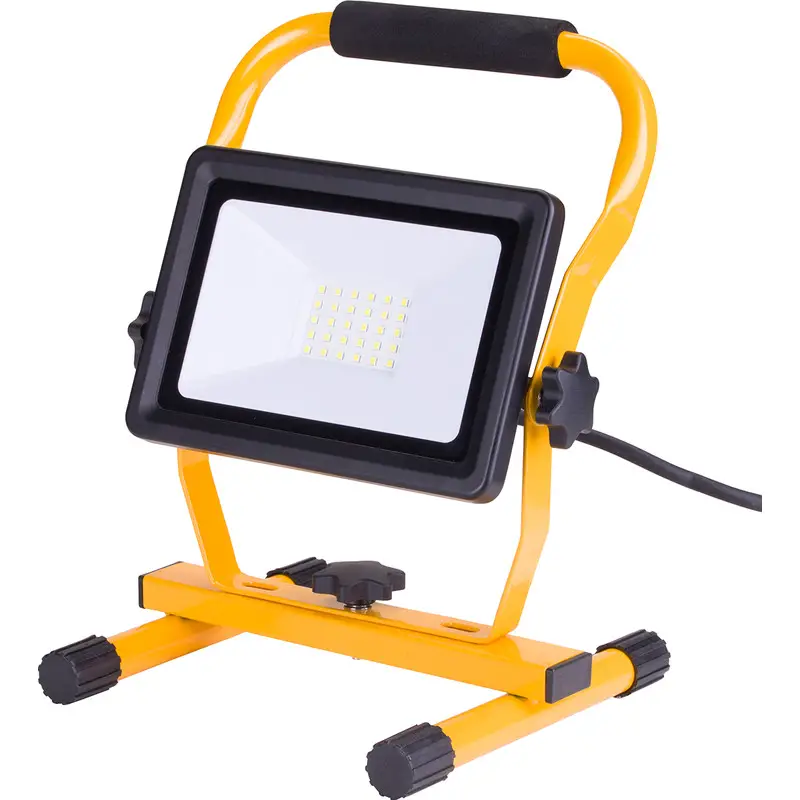

V-TAC Floodlight with H-Stand VT-109
Technical Data
| MODEL | VT-109 |
| WATT | 100W |
| LUMENS | 8000LM |
| BEAM ANGLE | 100° |
| PF | >0.9 |
| CRI | >80 |
| LONG LIFE | 25,000 HOURS |
| WIRE LENGTH | 3 METERS |
| BODY TYPE | Die Cast Aluminum |
| INPUT POWER | AC: 220-240V, 50Hz |
| DIMENSION | 352x184x380mm |
INTRODUCTION & WARRANTY
Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
Warning
- Make sure the electricity is turned off before starting the installation.
- Please read all instructions below before installation the device.
- The user must prepare the necessary accessories and spare parts (not supplied).
- If the safety glass is damaged, it should be replaced immediately with tempered glass.
- If the supply cord of the lamp or other part of appliance is damaged, the manufacturer or its service agent to similarly qualified person must replace it in order to avoid a hazard.
- The light source of this fixture cannot be displayed; at the end of the life of the light source, the entire luminaire must therefore be replaced.
- Installation should only be performed by a certified electrician.
- Minimum distance from lighted objects 1m.
Installation Diagram
