V-tac Vt-118 Led Slim Floodlight With Direct Connection Instruction Manual

INSTALLATION INSTRUCTION

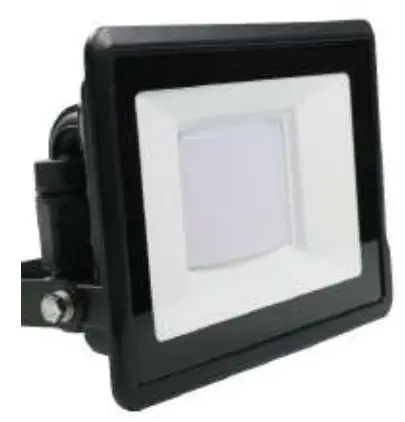

LED SLIM FLOODLIGHT
WITH DIRECT CONNECTION

IP65 RATING

TECHNICAL DATA

INTRODUCTION & WARRANTY

Thank you for selecting and buying the V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at their best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of Daily operation. Usage of the product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING

• Please make sure to turn off the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
• Proper grounding should be ensured throughout the installation.
• The minimum distance from lighted objects is 1m.
• Replace any cracked protective shield.

This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.

INSTALLATION DIAGRAM

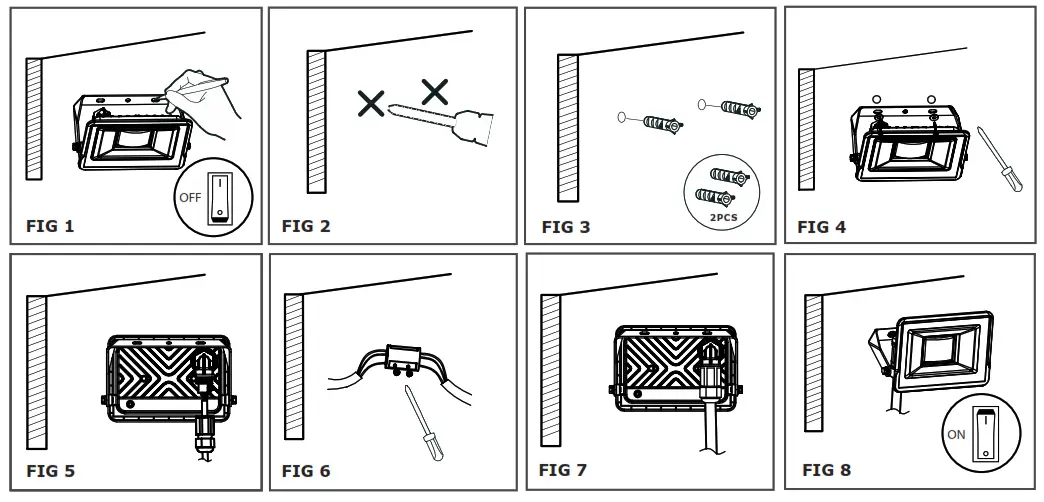

INSTALLATION INSTRUCTION

1. Switch off the power. Confirm the installation position.
2. Punch holes in the building surface with an impact drill.
3. Insert expansion bolt.
4. Fixed bracket.
5. Turn on the connector counterclockwise, and pass the sorted cable through the waterproof cap and connector in turn
6. The cable is connected to the terminal, the live wire is connected and installed L, and the zero wire is connected to N, Ground wire is connected to, tighten the screw of the terminal block.
7. Turn the connector and waterproof cap clockwise, and pay attention to the fact that the waterproof joint nut must be tightened, otherwise, there is a hidden danger of water leakage. The rubber-covered part of the outer lead should extend into the waterproof cap for more than 15mm, otherwise, there is a hidden danger of water leakage.
8. Switch on the power and test the light.

MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the manual in multiple languages.

http://vtac.store/vt118IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
