GFPIL15125TRIM Wiring Device Kellems
For non-residential installations, all 125V 15 and 20 AMP receptacles installed in locations specified in NEC® Article 210.8(B)(1) to (8) shall have ground fault circuit interrupter protection for personnel. These areas include:
- Bathrooms
- Kitchens
- Roof Tops
- Outdoors
- Sinks (within 6′ of edge)
- Indoor Wet Locations
- Locker Rooms / Shower Facilities
- Garages / Service Bays
Personnel Protection
The combination of GFCI protection and tamper-resistant safety provides an ideal one-stop solution. Hubbell’s tamper-resistant GFCI devices also include. a weather-resistant rating per NEC 406.9, providing UV and corrosion resistance.
GFCI Receptacles
- Self-Test units continually test and monitor for protection automatically
- No power at device face if reverse wired, eliminating false assumption of protection
- Patented tamper-resistant design limits improper access to energized contacts
AUTOGUARD® Self Test GFCI Recetacles
| Description | Color | 15A 125V 20A 125V | |
| Flush, polyester face; back and side wired; | Black | GFR5262SGBK | GFR5362SGBK |
| Brown | GFR5262SG | GFR5362SG | |
| Gray | GFR5262SGGY | GFR5362SGGY | |
| Ivory | GFR5262SGI | GFR5362SGI | |
| Red | GFR5262SGR | GFR5362SGR | |
| White | GFR5262SGW | GFR5362SGW | |
Locking Switches
- Prevents unauthorized control of lighting or ventilation control
- Keys supplied with each locking switch
- One piece integral grounding terminal provides a low resistance ground path
AC Barrel Key
20A 120-277 Volt
| Pole | 20A |
| Single Pole Double Pole Three-Way Four-Way | HBL1221RKL HBL1222RKL HBL1223RKL HBL1224RKL |
| Barrel key replacement | HBL1209RKL |
Locking Switches
120-277 Volt
| Pole | 15 Amp | 20 Amp |
| Single Pole Double Pole Three-Way Four-Way | HBL1201L HBL1202L HBL1203L HBL1204L | HBL1221L HBL1222L HBL1223L HBL1224L |
| Replacement key | HBL12O9 |
Circuit Guard° Portable GFCI
- Provides watertight housing for maximum safety in harsh environments
- Available with either automatic or manual set features to fit the application
- Bright indicator light provides fault confirmation from a distance

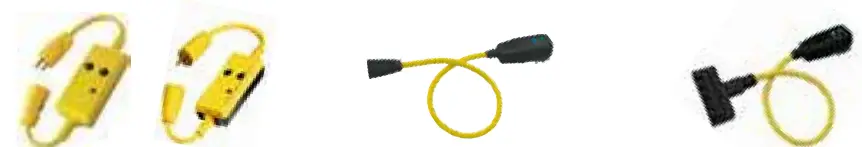

Portable GFCI Line Cords
| Industrial Grade | Commercial G-de | Single | Commercial Grade Triple Tap | ||||
| Description | Length | Automatic | Manual | Automatic | Manual | Automatic | Manual |
| 15A 120V AC | 18 in. 2 ft. 6 ft. 25ft. | GFP4C15A — GFP6C15A GFP25C15A | GFP4C15M — GFP6C15M GFP25C15M | — GFP2CA — GFP25CA | — GFP2CM — GFP25CM | — GFP2TTA — GFP25TTA | — GFP2TTM — GFP25TTM |
| 20A 120V AC | 3 ft. | — | GFP3C2OM | ||||
In-Line GFCI
2 ft. cord length; 15A and 20A 120V AC
| Automatic | Manual | |
| Single Triple Tap 15A | GFPIL15125A GFPIL15125TRIA | GFPIL15125M GFPIL15125TRIM |
| Locking 20A | GFPIL20250LKA | GFPIL20250LKM |
Wired-On Straight Blade
Portable GFCI Plugs
| Industrial Grade Manual Set; 15A 125V | |
| Black Yellow Black w/ 1′ line cord | GFP5266C GFP5266CY GFP1C |
| Commercial Grade | |
| Field ………Automatic wireable…….. Manual | GFP515A GFP515 |
