MAG Z690 TORPEDO Motherboard
User Guide
MOTHERBOARDS

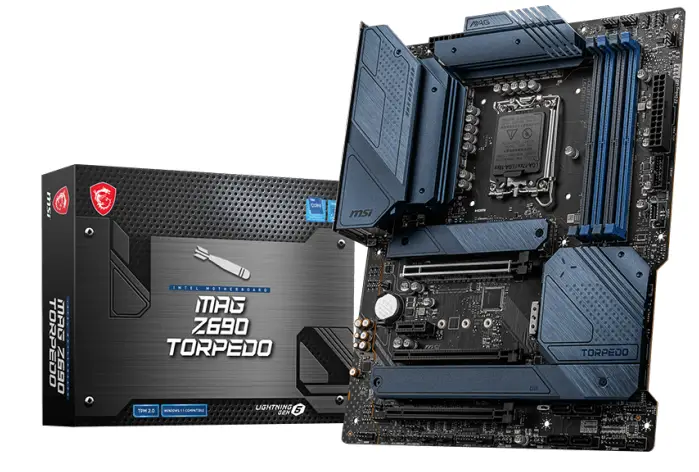

MAG Z690 TORPEDO
CONQUER THE BATTLEFIELD
SPECIFICATIONS
| Model Name | MAG Z690 TORPEDO |
| CPU Support | Supports 12th Gen Intel® CoreTM Processors, Pentium® Gold and Celeron® Processors |
| CPU Socket | LGA 1700 |
| Chipset | Intel® Z690 Chipset |
| Graphics Interface | 1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x16 slot Supports AMD® CrossFireTM Technology |
| Display Interface | Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4 Requires Processor Graphics |
| Memory Support | 4 DIMMs, Dual Channel DDR5-6400+ (OC) |
| Expansion Slots | 1x PCIe 3.0 x16 slot, 1x PCIe 3.0 x1 slot |
| Storage | 3x M.2 Gen4 x4 64Gbps slots, 1x M.2 Gen3 x4 32Gbps slot, Support Intel® OptaneTM Technology, 6x SATA 6Gbps ports |
| USB ports | 1x USB 3.2 Gen 2×2 20Gbps (Type-C), 4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C), 4x USB 3.2 Gen 1 5Gbps (Type-A), 6x USB 2.0 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 |
FEATURES
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for maximum storage performance.
M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
2.5G Network Solution
Features premium 2.5G LAN with LAN manager to deliver a better network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability, and compatibility.
Audio Boost 5
Isolated audio with a high-quality audio processor & amp for the most immersive gaming experience

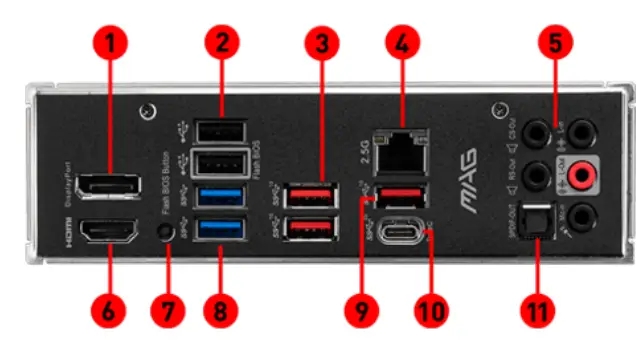

CONNECTIONS
| 1. DisplayPort 1.4 2. USB 2.0 Port 3. USB 3.2 Gen 1 10Gbps Type-A 4. 2.5G LAN Port 5. HD Audio Connectors 6. HDMI 2.1 Port | 7. Flash BIOS Button 8. USB 3.2 Gen 1 5Gbps Type-A 9. USB 3.2 Gen 2 10Gbps Type-A 10. USB 3.2 Gen 2×2 20Gbps Type-C 11. Optical S/PDIF OUT |
Generated 2021-11-08, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
© 2021 Micro-Star Int’l Co.Ltd. MSI is a registered trademark of Micro-Star Int’l Co.Ltd. All rights reserved. Intel, the Intel logo, the Intel Inside logo, and Intel Core are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
