Honeywell Pm45 Industrial Label Printer User Guide

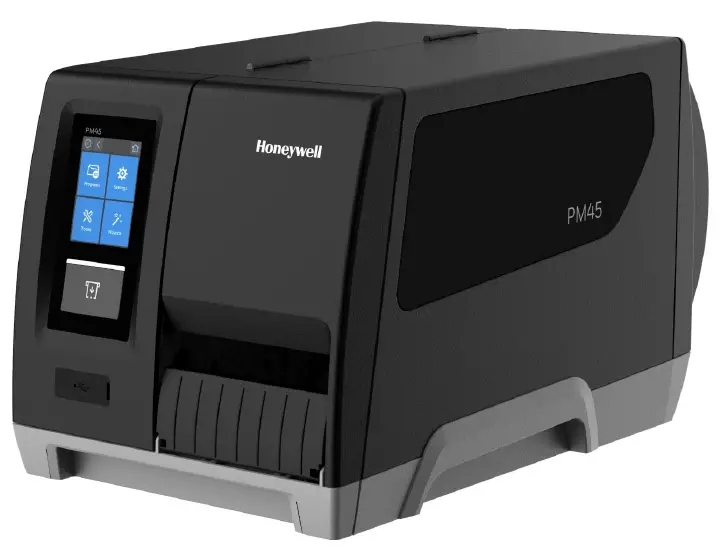

Honeywell PM45 Industrial Label Printer

PRINTHEADS

• 50180236-001
• Kit, Printhead 203 DPI 203 DPI printhead assembly, 4”

• 50180237-001
• Kit, Printhead 300 DPI 300 DPI printhead assembly, 4”

• 50180238-001
• KKit, Printhead 406 DPI  406 DPI printhead assembly, 4”

• 50180234-001
• Kit, Printhead 600 DPI 00 DPI printhead assembly, 4”

CONNECTIVITY

• 50178327-001

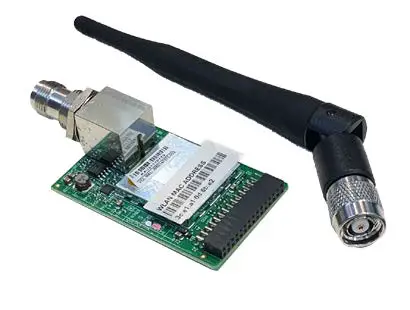

• Kit, Wireless LAN NA: Customer-installable Wi-Fi Kit, includes internal card and antenna. Only for USA and Canada.

• 50174832-001
• Kit, Wireless LAN ROW: Customer-installable Wi-Fi Kit, includes internal card and antenna, for countries outside of USA and Canada.

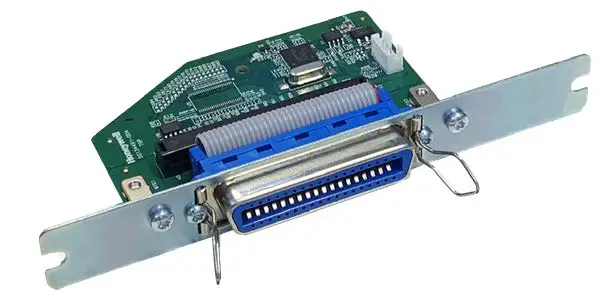

• PM45-PAR-01
• Kit, Parallel Port: Parallel Interface (IEEE 1284)

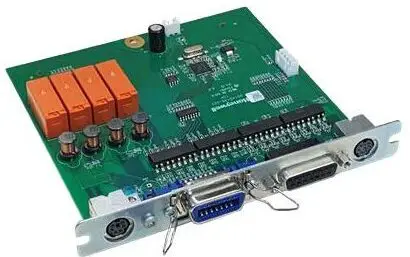

• PM45-IND-01

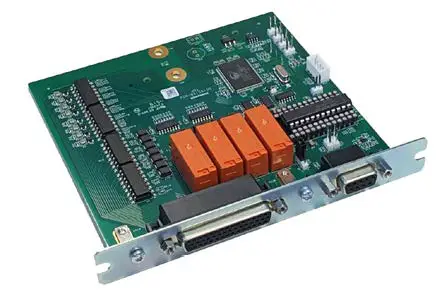

• KIT, Industrial interface: Industrial interface – eight digital in/out, four analog relays, one RS232/422/485 port

• PM45-APPL-01
• KIT, Applicator interface: Applicator Interface – Ext Error 8-pin mini-DIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN

MEDIA OPTIONS

• 50180235-001

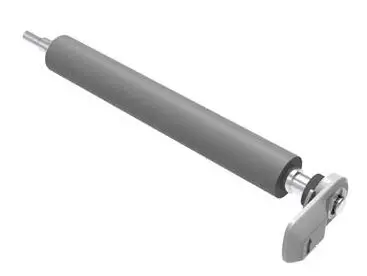

• Kit, Platen Roller: Platen Roller Assembly

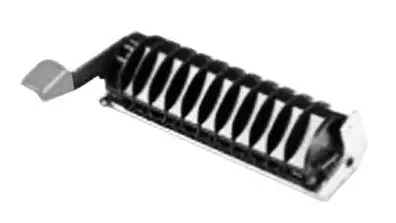

• 50180192-001
• Media Arm Edge Guide: Prevents telescoping of media rolls

• 203-972-001
• 3’’ Media Core Adapter for 3’’ diameter media cores

• 50180221-001
• Collapsible Core: Enables coreless ribbon take-up and coreless media rewinding

• 50180196-001
• Label Dispenser: Making it easier to dispense labels with strong adhesive. Must use together with rewinder.

50180206-001

• Cutter Kit for PM45: Media cutter

• 50180201-001
• Cutter kit for PM45c: Media cutter

CABLES

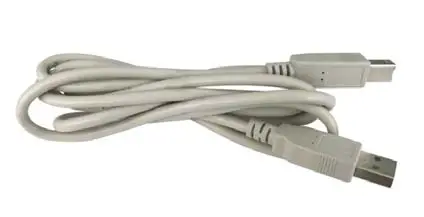

• 321-576-004
• USB Cable: USB (USB-A to USB-B) cable, 6.5 ft. (2 m) length, RoHS compliant.
• 1-974028-025
• US power cord
• 1-974030-025
• AU power cord
• 321-471-002
• Italy power cord
• 1-974024-018

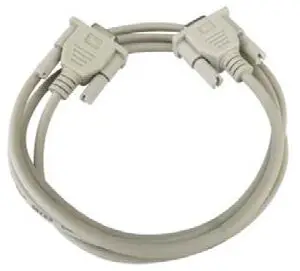

• Serial Cable: RS-232 (DB9F to DB9M) cable, 5.9 ft. (1.8 m) length, RoHS compliant.

• 1-974027-025
• EU power cord
• 32-2497-01
• China power cord
• 321-501-002
• Denmark power cord

• 1-94022-018

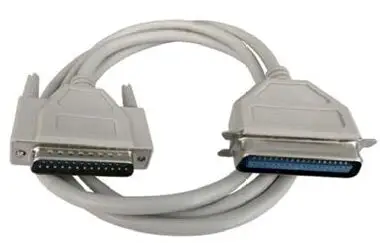

• Parallel Cable: Parallel (IEEE 1284) cable, 5.9 ft. (1.8 m) length, RoHS compliant.
• 1-974029-020
• UK power cord
• 321-502-002
• India power cord

CLEANING CARDS

• 1-110501-00

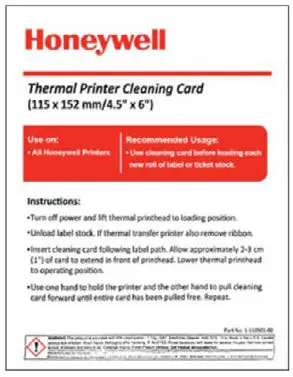

• Printhead Cleaning Card: Box of 25 cleaning cards, sized 4.5 x 6 in.
